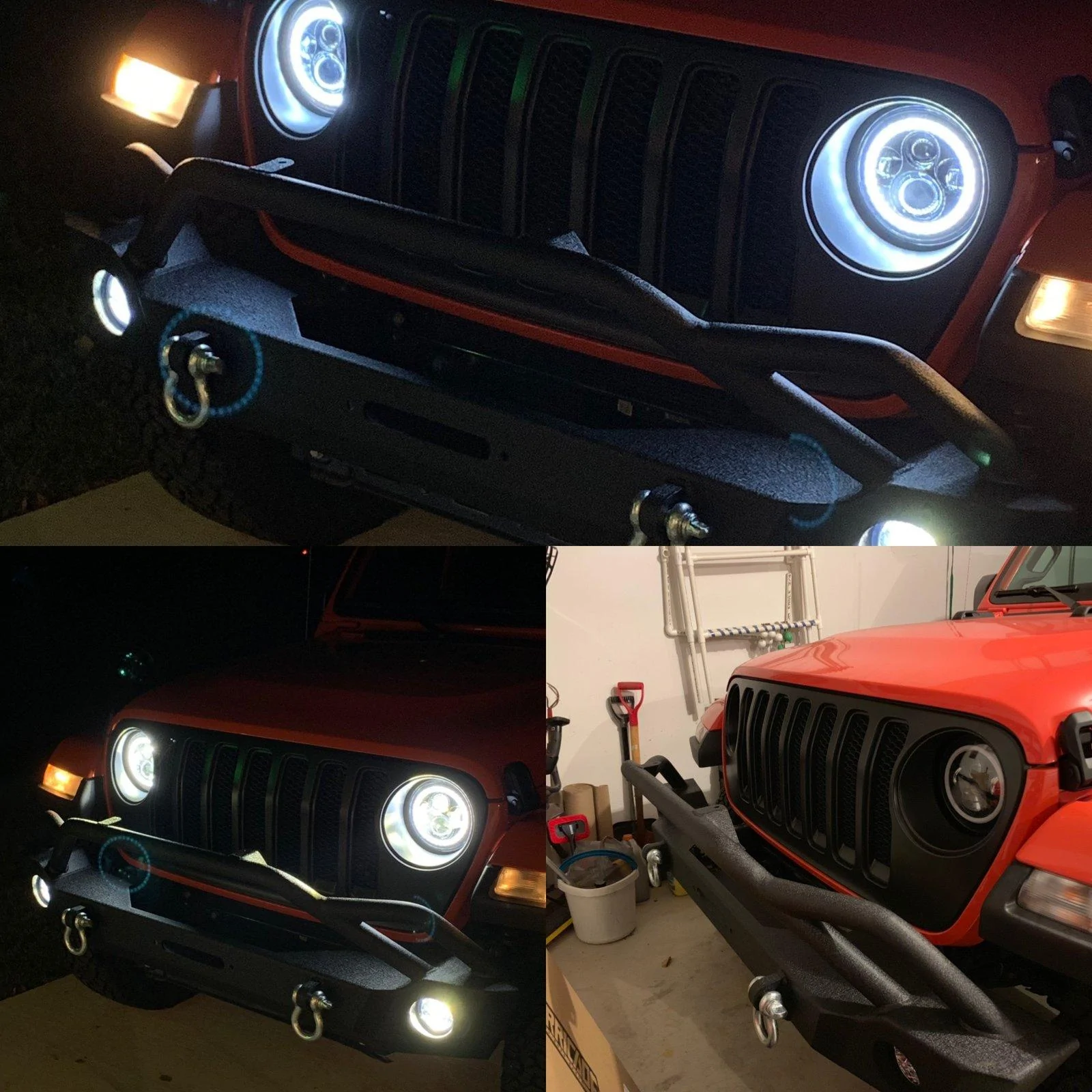

Introducing Inspired Engineering JL Headlight kits!

[InspiredEngineering]

Received mine today.

Do you have a link to the Optional DRL supplemental Manual?

We have an install manual posted here. At the end of page 4 we have info for the DRL wiring.

We are still modifying it as we learn more about JLs and we have more and more come in for installs. Its not uncommon for us to see variations between similar Jeeps.

For the blinker option, use the supplied green wire and tap into the white/green wire on the left side, and white/blue green on the right side.

For the "DRL" option use the red wire and tap into the white/ brown wire on the left side, and white/ orange green wire on the right side, to turn on with the parking lights. To turn on whenever the Jeep is on you can use a fuse tap in the fuse box as explained in the manual.

We haven't updated the manual yet, as we have only done this on 3 Jeeps in the shop, and we want to confirm on a larger sample space before publishing. This info is just what we have found so far, so confirm on your own prior to tapping the wire.
