I didn't see an existing battery tester thread, so here you go.
I had been documenting my JT's miss fire issue with screenshots of the jscan app on my phone and wanted that same screenshot documentation option with a battery tester. I bought an ANCEL BT500 Bluetooth Battery Load Tester.
https://www.amazon.com/gp/product/B087R3FWQM/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1.

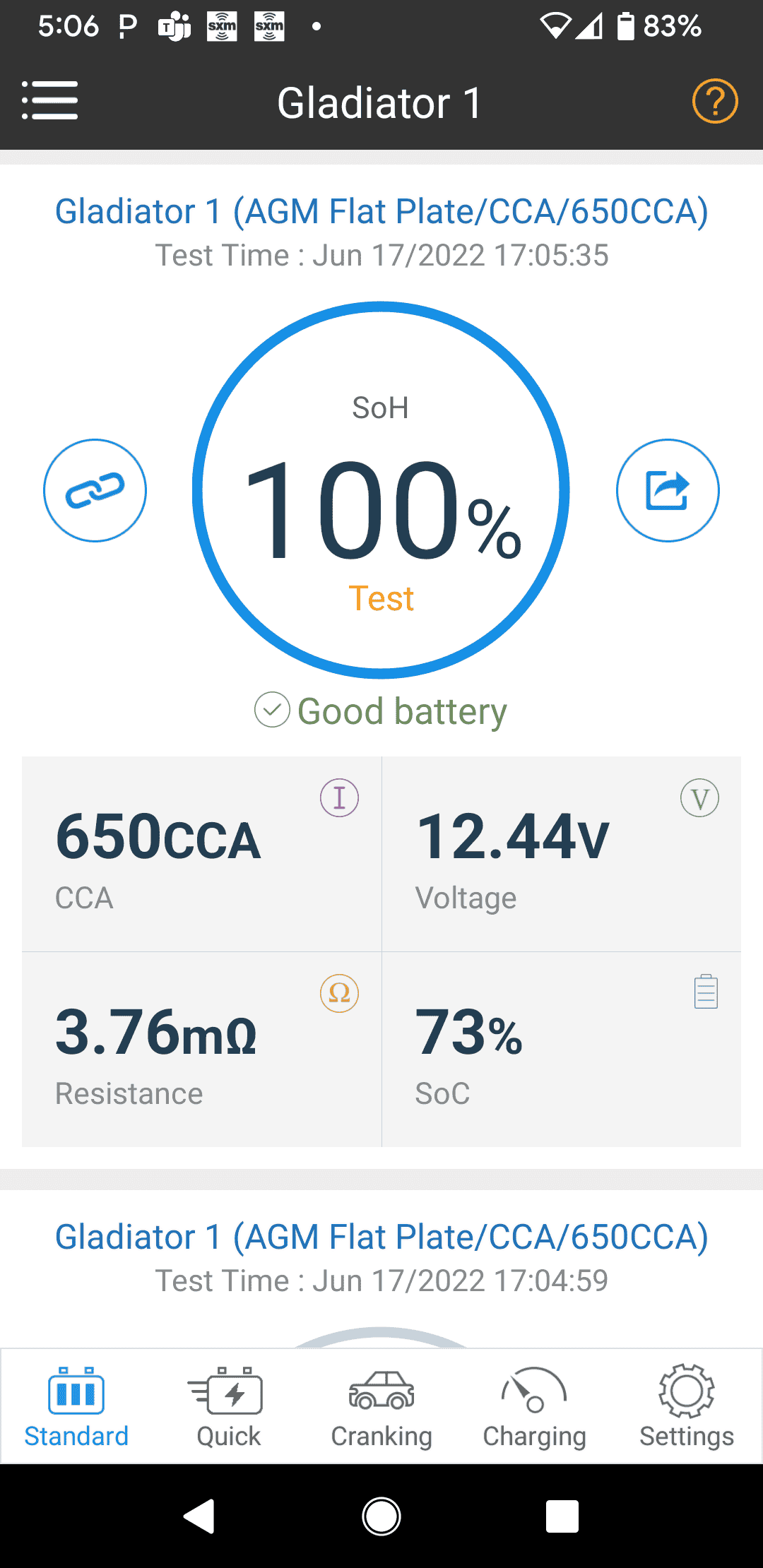

It seemed to work pretty good as far as I know, here's some screen shots.

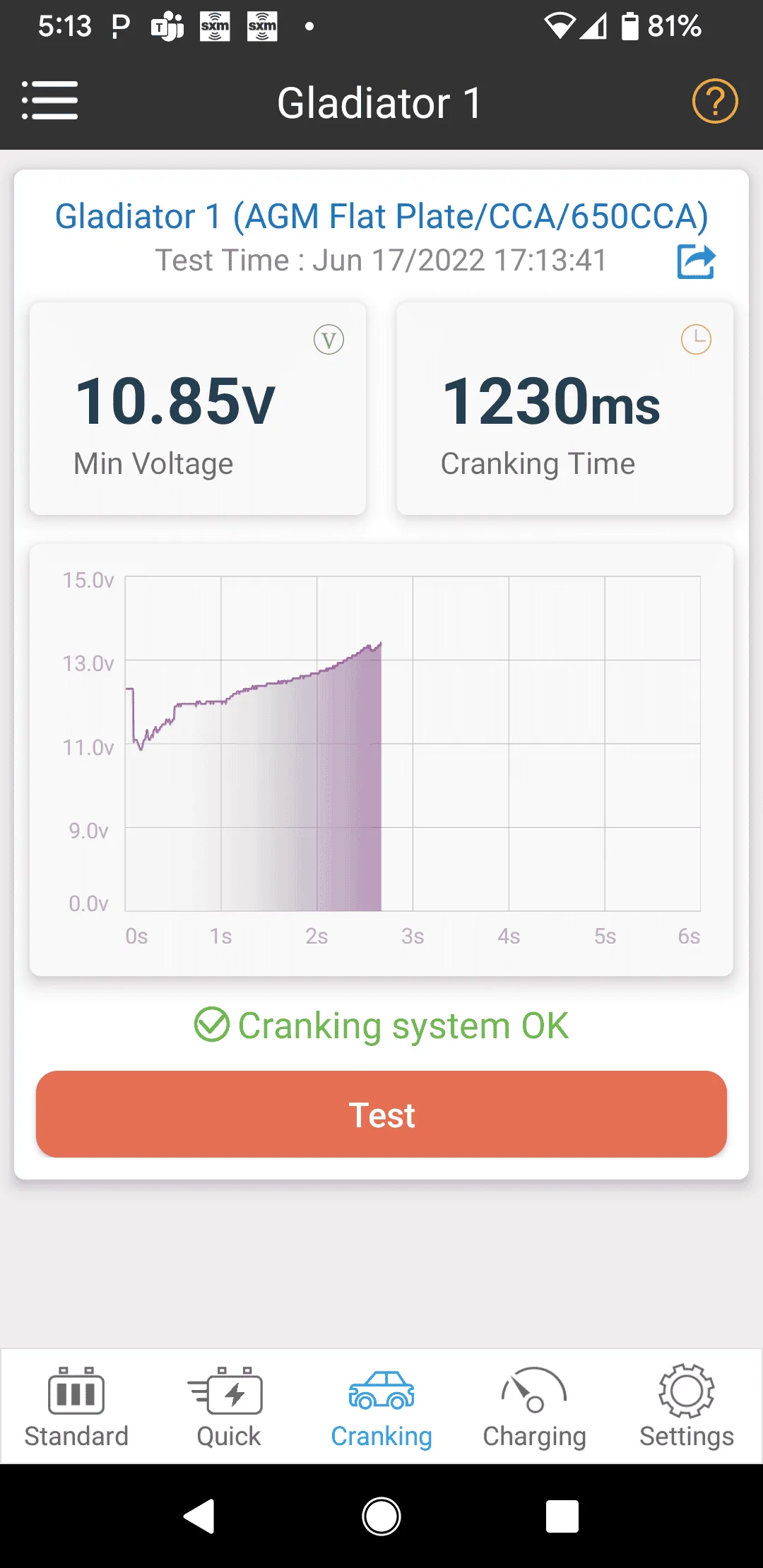

Cranking test

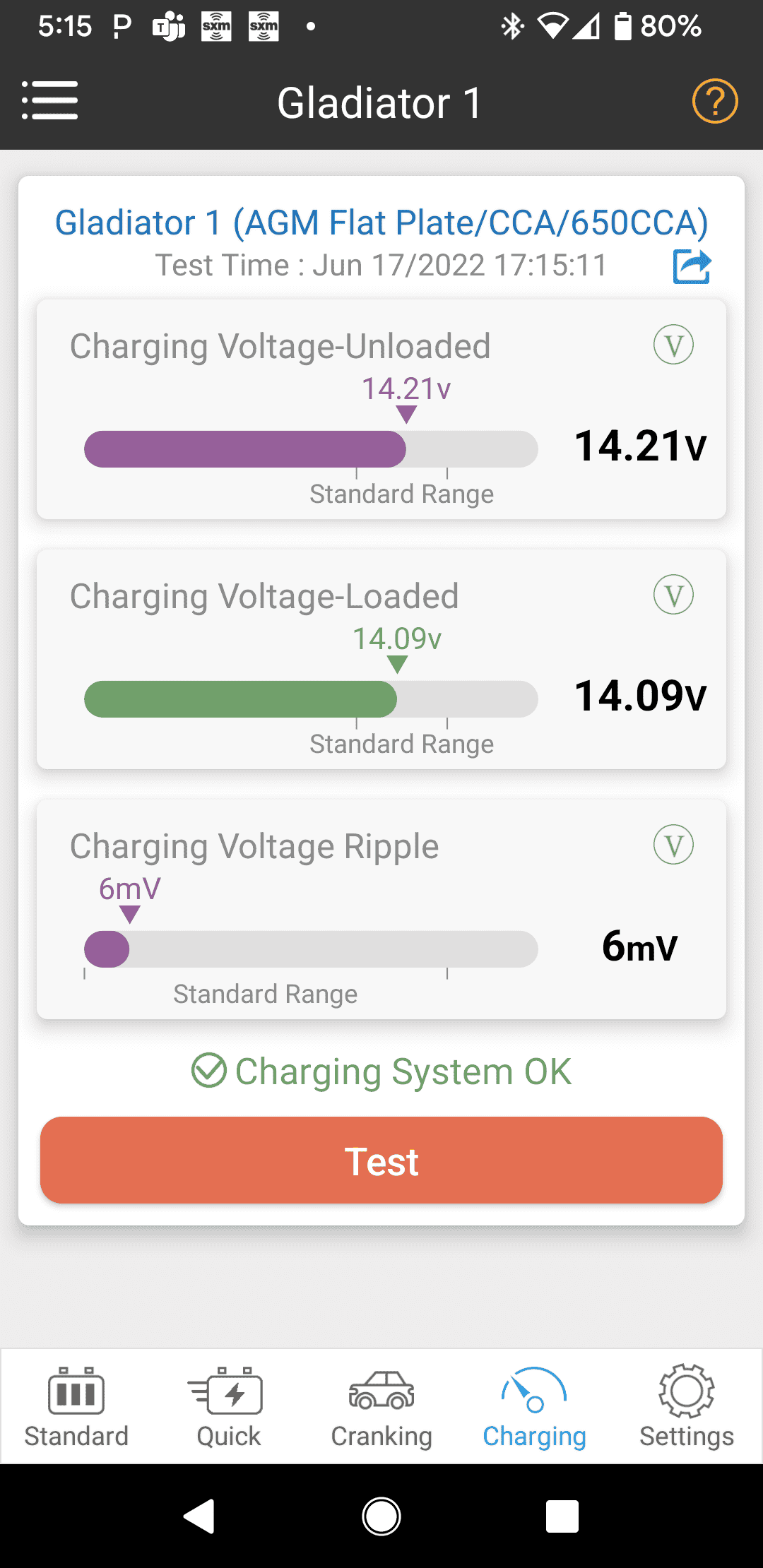

Charging test
Aux battery voltage too low to test
Aux battery charged and retested
I had been documenting my JT's miss fire issue with screenshots of the jscan app on my phone and wanted that same screenshot documentation option with a battery tester. I bought an ANCEL BT500 Bluetooth Battery Load Tester.
https://www.amazon.com/gp/product/B087R3FWQM/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1.
It seemed to work pretty good as far as I know, here's some screen shots.
Cranking test
Charging test
Aux battery voltage too low to test
Aux battery charged and retested
