PAC to the Amp remote in. But the lead is quite short so you could use the remote wire in your wiring kit to connect the lead to your amp.
That blue lead is the one I am talking about
Good advice here, just know that some amps require more "remote on" power than the PAC's remote on wire will supply. If that's the case, use the trusty 12V Outlet tap method. ;)





Advertisement



ModMike

Member
Joined
Aug 15, 2020
Messages
15
Reaction score
3
Location
Quebec
Vehicle(s)
2020 Jeep JL Willy’s
Great thread, trying to read through is leaving me dizzy!

I saw some mention of a 2 door JL Stealthbox at the beginning and was wondering if anyone has any updates?


ModMike

Member
Joined
Aug 15, 2020
Messages
15
Reaction score
3
Location
Quebec
Vehicle(s)
2020 Jeep JL Willy’s
Jeep JL Audio build list, please help me validate:

Radio
7" UConnect that will be upgraded to Connect 8.4 ver 5 when I can find one at scrapper

Main Components
JL Audio VX700/5i: Full-Range Amplifier with Integrated DSP
JL Audio Stealthbox® for 2018-Up Jeep Wrangler 2 door ????
JL Audio C2-650 compnent speakers (Front)
JL Audio C2-400x 4-inch (100 mm) Coaxial Speaker System (Sound bar)

Installation parts
Metra JP-1014 Speaker Pods
99838, SBA-J-JL-FHB: 2018-Up Jeep Wrangler (JL) Fuse Holder Bracket
91656, XB-MFBU-ANL: Master ANL Fuse Block
99837, SBA-J-JLU-UAR: 2018-Up Jeep Wrangler (JL) Unlimited Universal Amplifier Rack
90355, XD-PCS4-1B: Premium 4 AWG 12 V Power Connection Kit, Single Amplifier
47K Ohm 5 watt Resistors

Notes:
I don't mind spending money but not looking to chop up sound bar especially as it is mostly used for fill. That being said, I have no issue upgrading anything that can fit in stock sounder speaker holes.

I would like to "replicate" the Alpine system by having an amp in the box, off the floor and use factory wiring

Current Questions:

What is considered the premium radio? The 8.4 or 7"? Or does it mean Alpine?

Thanks!


tthoms

Member
First Name
Tyler
Joined
Sep 9, 2020
Messages
17
Reaction score
4
Location
Bakersfield, CA
Vehicle(s)
2020 Jeep Wrangler Unlimited (Willy's)
PAC to the Amp remote in. But the lead is quite short so you could use the remote wire in your wiring kit to connect the lead to your amp.
That blue lead is the one I am talking about
Okay great. So you just have your remote signal for the amp coming from the PAC. I assume, once the radio/PAC is off, the amp will turn off too.


tthoms

Member
First Name
Tyler
Joined
Sep 9, 2020
Messages
17
Reaction score
4
Location
Bakersfield, CA
Vehicle(s)
2020 Jeep Wrangler Unlimited (Willy's)
Good advice here, just know that some amps require more "remote on" power than the PAC's remote on wire will supply. If that's the case, use the trusty 12V Outlet tap method. ;)
I assume that if the amp does not turn on, this would be the indicator that I need to use the 12v?
I don't know if it matters too much but I am using a fairly small amp. Compact 4 channel soundstream St4 1000D.


sandor.g

Well-Known Member
First Name
Sandor
Joined
Feb 19, 2020
Messages
94
Reaction score
32
Location
Orlando, FL
Vehicle(s)
2019 Wrangler JLU Sport S, Gladiator Hard Rock rims, MOPAR 2" lift
Occupation
Project Manager
I assume that if the amp does not turn on, this would be the indicator that I need to use the 12v?
I don't know if it matters too much but I am using a fairly small amp. Compact 4 channel soundstream St4 1000D.
Or, your wiring is wrong.
- Did you connect all three of the bottom pins (black wires in that 6 pin lead) to the chassis?
- did you connect both of the red wires to the battery?

- did you (you definitely should) put any inline fuse in the power wire? Is the fuse in and okay?
- did you connect the top right pin, the blue wire to the PAC remote wire?
- when disconnected from the amp, using a multimeter, can you measure 12Volts between the power (PW) pins and the ground (GND) pins or the Remote (RE) pins and the GND pin below it?
- did you check if the PAC is actually on, solid amber on LED1?

This made me chuckle :)


btw this is probably the worst quality manual I've ever seen.

OP
Sting_NC_USA

Sting_NC_USA

Well-Known Member
First Name
Michael
Joined
Mar 25, 2018
Messages
891
Reaction score
799
Location
Charlotte, NC
Vehicle(s)
2018 Jeep Wrangler JL Unlimited Rubicon
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #727
I assume that if the amp does not turn on, this would be the indicator that I need to use the 12v?
I don't know if it matters too much but I am using a fairly small amp. Compact 4 channel soundstream St4 1000D.
Most likely. I've not installed an amp that would accept the PAC's Remote out. It's just not strong enough. Hit the 12V Outlet and you should be fine.


tthoms

Member
First Name
Tyler
Joined
Sep 9, 2020
Messages
17
Reaction score
4
Location
Bakersfield, CA
Vehicle(s)
2020 Jeep Wrangler Unlimited (Willy's)
Or, your wiring is wrong.
- Did you connect all three of the bottom pins (black wires in that 6 pin lead) to the chassis?
- did you connect both of the red wires to the battery?

- did you (you definitely should) put any inline fuse in the power wire? Is the fuse in and okay?
- did you connect the top right pin, the blue wire to the PAC remote wire?
- when disconnected from the amp, using a multimeter, can you measure 12Volts between the power (PW) pins and the ground (GND) pins or the Remote (RE) pins and the GND pin below it?
- did you check if the PAC is actually on, solid amber on LED1?

This made me chuckle :)


btw this is probably the worst quality manual I've ever seen.

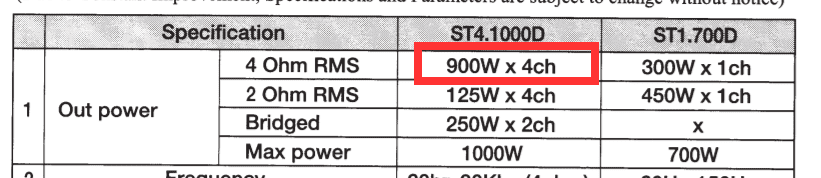

Thanks! Yeah 900w per channel eh? xD
