SGW 12+8 - Need help locating these connectors.

[xj2jk2jlu]

Hello! Need some help locating these connectors. Does anyone know the name of these 12 & 8 pin connectors?

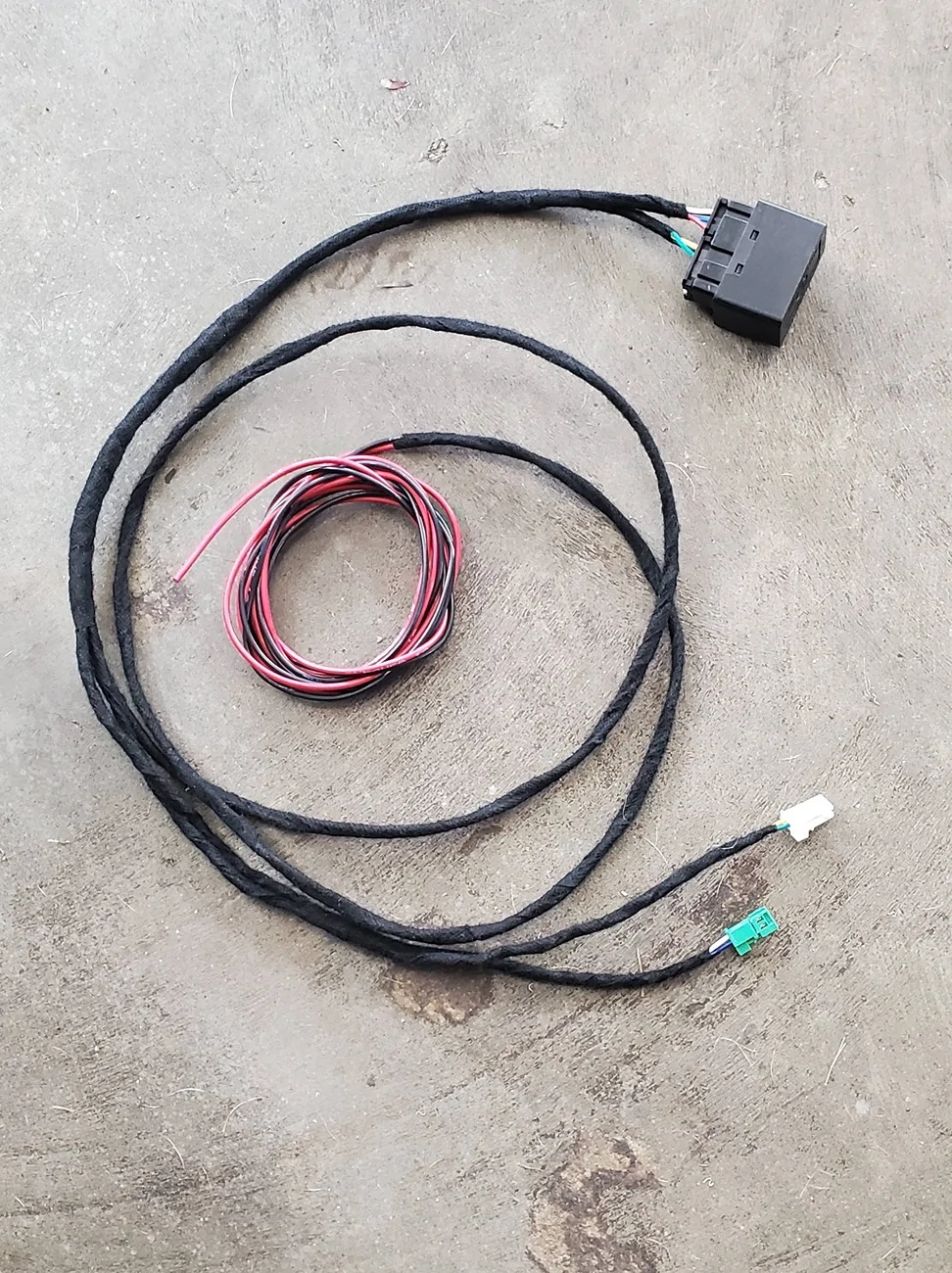

I’m looking to create a harness like this one:

This harness was created by @dayusmc and is for a Tazer mini.

Sponsored



[ScotM]

are you talking about this from z automotive"?

https://www.zautomotive.com/product...MI6NWG24n2lAMVuidECB3PVSqWEAQYBSABEgKaJvD_BwE



[xj2jk2jlu]

No. It’s part of that, but the other side coverts to canbus and power +\-



[Grayhound]

What is the advantage of being plugged in to the canbus directly?



[xj2jk2jlu]

What is the advantage of being plugged in to the canbus directly?

For security purposes. I use the Tazer specifically for the canbus immobilizer / PIN. Using this harness you’re able to hide the Tazer anywhere in the vehicle so it can’t be easily removed by a thief.



[bmpcamry09]

About 7 minutes in to my YouTube video here you’ll see where to go with it. Only difference is my install was inline.

You can’t mess it up. Both connectors are different and none of those connectors work in any other place.



[xj2jk2jlu]

About 7 minutes in to my YouTube video here you’ll see where to go with it. Only difference is my install was inline.

You can’t mess it up. Both connectors are different and none of those connectors work in any other place.

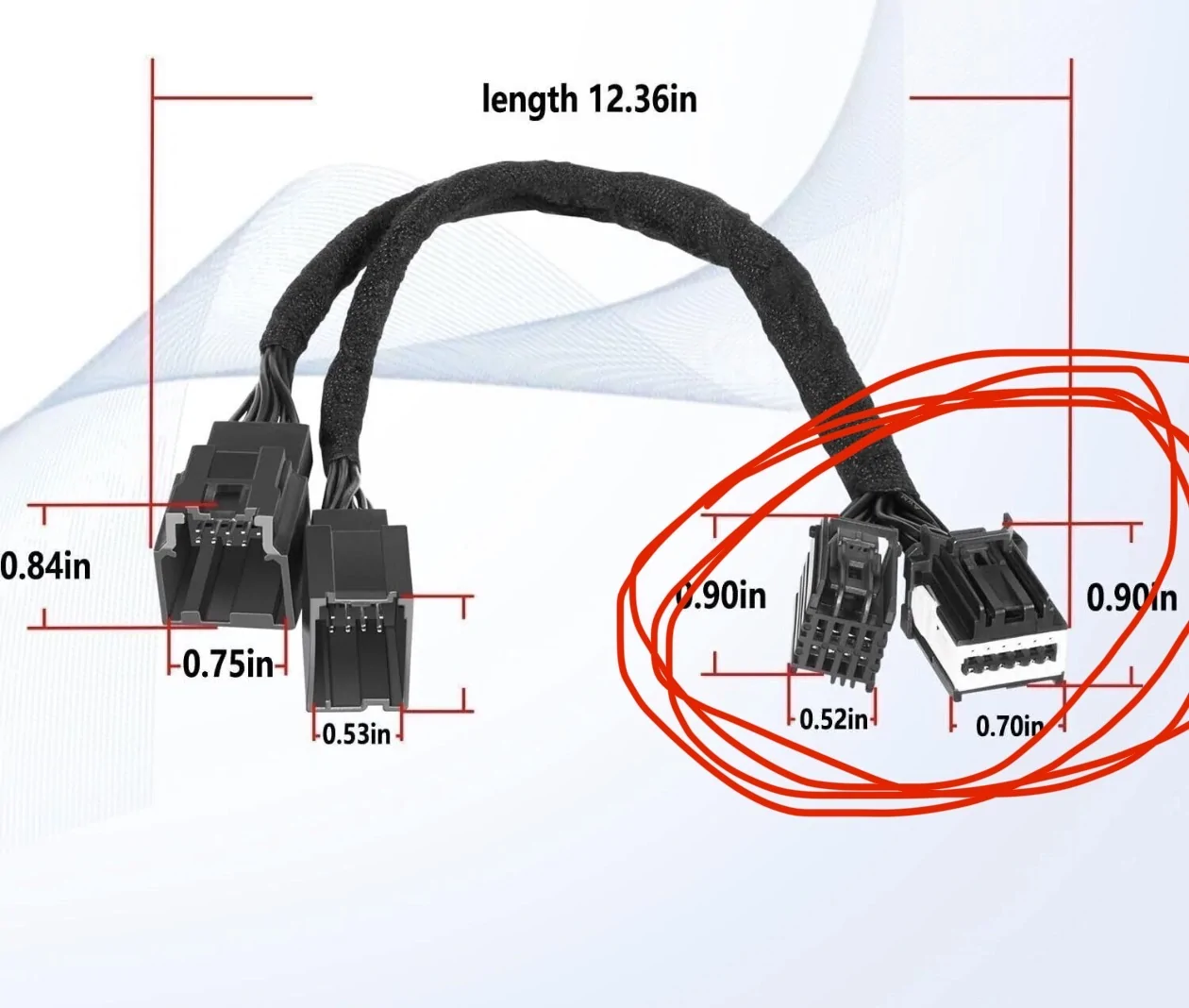

I know how to install / bypass the SGW. I’m looking for the name of the connectors circled in my first photo above. I need to make a custom 12+8 pin harness like the one in the second photo.



[bmpcamry09]

I know how to install / bypass the SGW. I looking for the name of the connectors circled in my first photo above. I need to make a custom 12+8 pin harness like the one in the second photo.

Well then what do you mean name? They are the security gateway module connectors. Are you looking for a connector part number? You’ll be better off finding any junkyard Mopar from 2018 and newer and just cut one out.



[xj2jk2jlu]

There’s gotta be a way to just order the connectors so I can pin it myself. If not, I’ll order the extension and remove the wires. I was just looking for a cheaper solution.



[xj2jk2jlu]

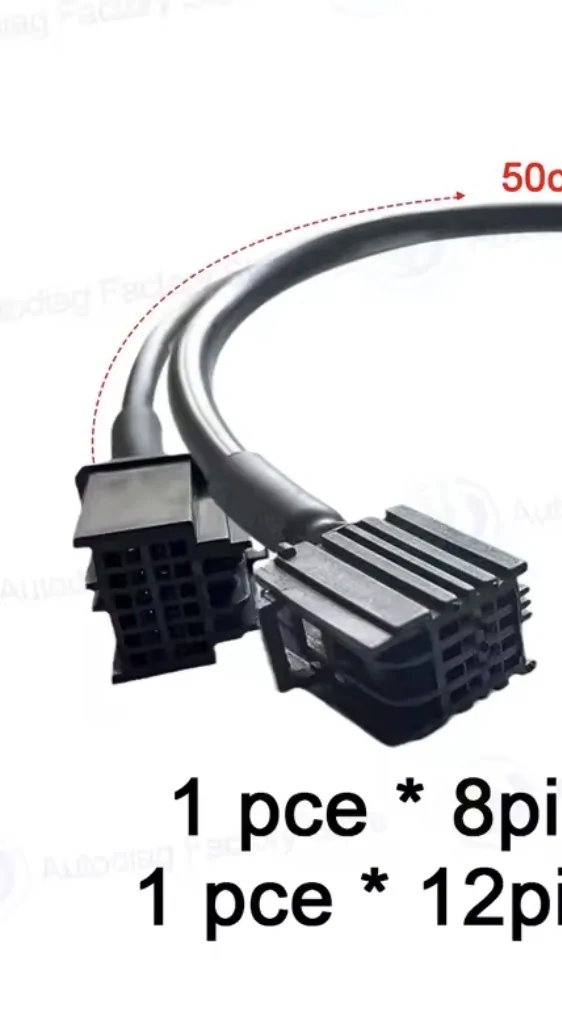

Looking for these empty connectors.



[bmpcamry09]

I can’t track down those part numbers. But every 2018 and newer Stellantis product will have the same ones at the SGW module in a junk yard.



[xj2jk2jlu]

I can’t track down those part numbers. But every 2018 and newer Stellantis product will have the same ones at the SGW module in a junk yard.

Thanks for trying! I think it will just be easier to order the SGW extension and double bypass from Zautomotive



[RubyRuin]

They're Molex connectors; the 12 pin is 34690-0120, the 8 pin is 34690-0080.



[xj2jk2jlu]

They're Molex connectors; the 12 pin is 34690-0120, the 8 pin is 34690-0080.

Awesome! Now I just need to find the female version of this. Thank you!



[xj2jk2jlu]

Got it!! Thank you!
