Regear, check my pattern please

[Organic Gasoline]

Hello JL readers, having some trouble chasing patterns. Would this pass, or can anyone provide guidance to improve this pattern?

Backlash is at .003" right now, if i take out .005" I am at .012" which is out of spec according to Dana.

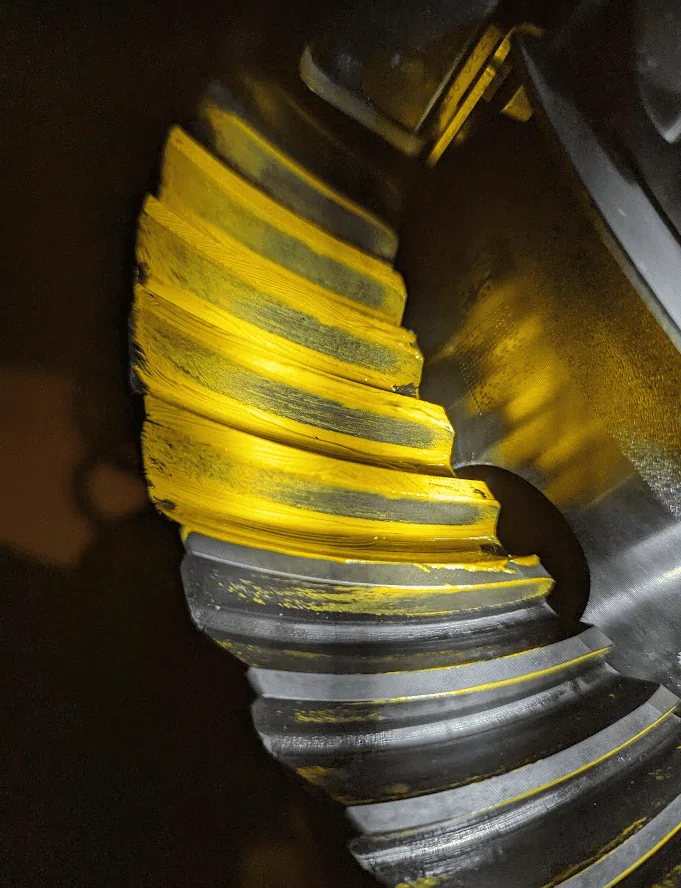

Seems pretty close to the toe:

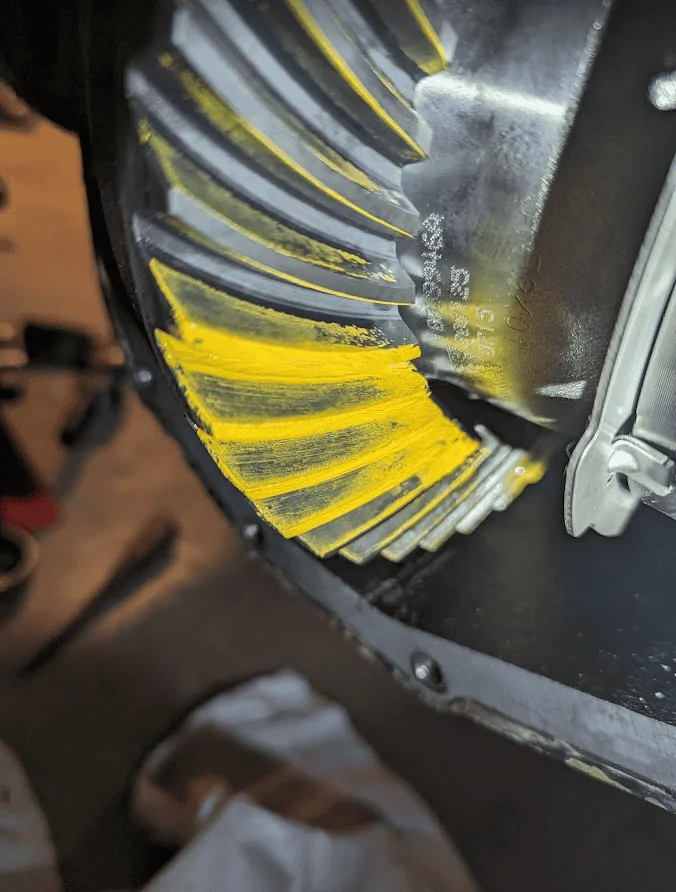

Then the coast side is out at the heel??

This is a Revolution gear set on the M220 rear axle Dana 44 - 4.88

Just need a little help, thank you for y'als input.

Sponsored



[CarbonSteel]

@chevymitchell + @grimmjeeper ^^^^



[Willys41]

I would start by adding .005 to the pinon and move the carrier/ ring gear to the left by about .008 to .010 and check the backlash. 6 to 10k backlash closer to 6k is better
I set my backlash between 4 to 6k
Also a case spreader really helps
You may be able to rent one or purchase one

https://www.amazon.com/Mophorn-Diff...-2-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&psc=1



[azwjowner]

.003 seems very tight for Revolution gears. What is their spec for backlash? You should be following Revolution’s spec, not Dana’s. Dana gears are 2-cut, most aftermarket are 5-cut and require larger backlash.

I am a gear novice, but I would try slightly deeper on the pinion just to see how it changes. Willys41‘s suggestion of adding .005 makes sense. Your current pattern doesn’t look terrible to me.



[Organic Gasoline]

I was going off the Dana spec, so this is good to know. Revolution specs .006-.010"

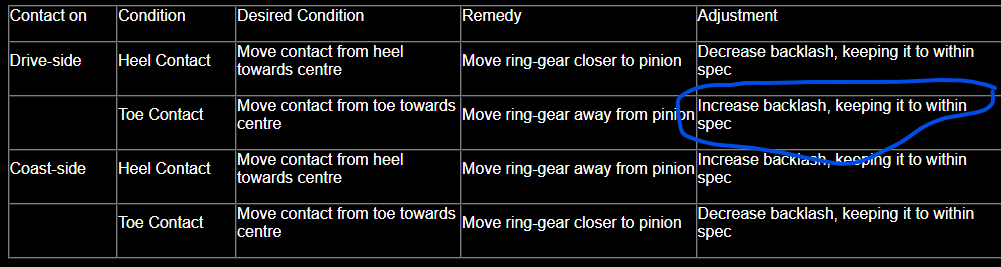

Might just get that into spec and rerun a pattern. I saw this from another post here:

Hate to drive out that pinion race if I dont have to! Got to this point with the write up from @chevymitchell - Thank you for putting that all together, it was more than helpful.



[word302]

Yeah I would open up the backlash ever so slightly and re-run a pattern. You are really close. If you thin the paint more and add more resistance while turning you should get a little clearer pattern as well.
