It should be located under the rear cargo floor, I personally do not own a JL but this is what I have read from research.

- Benny





Advertisement



wranglerflx

Active Member
Joined
Jan 21, 2019
Messages
29
Reaction score
14
Location
naples me
Vehicle(s)
2017 4runner 2019 wrangler sport
I am looking for a tailgate harness to replace\match my newly installed
tailgate power latch ref code 68282968AA

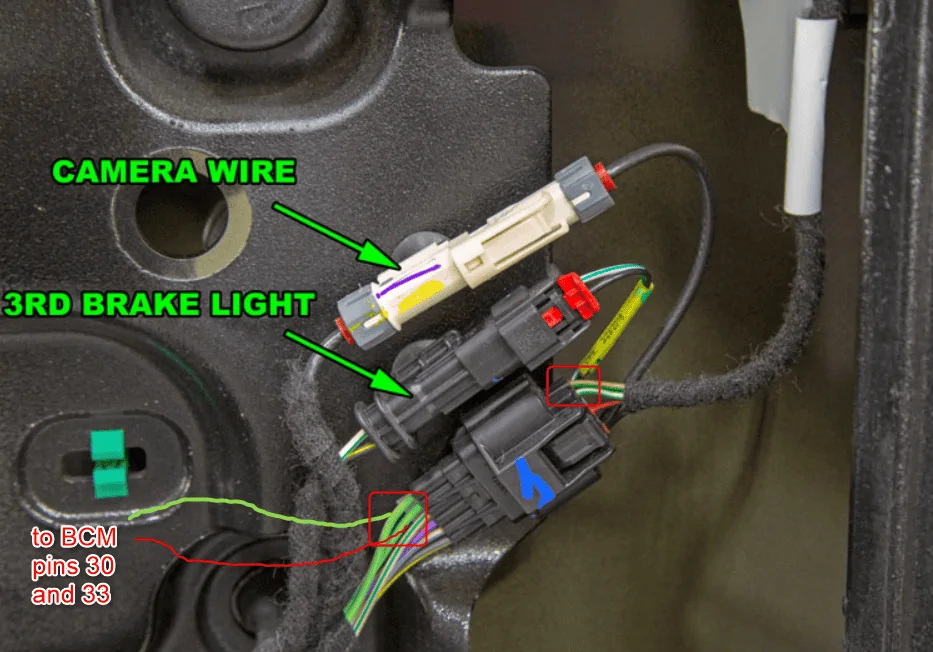

see the connector marked '1' with blue marker and going to ... i am not sure maybe the BCM ?
my original harness has two wires (corresponding to tailgate open/close sense wires) and I need one that adds lock/unlock logic

please advise

ref 2019 Sport Wrangler VIN ******551600

swing door bypass.png


troubledog

Active Member
First Name
Dave
Joined
Jan 7, 2021
Messages
32
Reaction score
32
Location
Houston
Vehicle(s)
2021 Jeep Wrangler Rubicon diesel
It should be located under the rear cargo floor, I personally do not own a JL but this is what I have read from research.

- Benny
thanks Benny - it isn't there with the other tools... will look again and then call dealer

OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
839
Reaction score
341
Location
NY
Vehicle(s)
2018 JL
I am looking for a tailgate harness to replace\match my newly installed
tailgate power latch ref code 68282968AA

see the connector marked '1' with blue marker and going to ... i am not sure maybe the BCM ?
my original harness has two wires (corresponding to tailgate open/close sense wires) and I need one that adds lock/unlock logic

please advise

ref 2019 Sport Wrangler VIN ******551600

swing door bypass.png

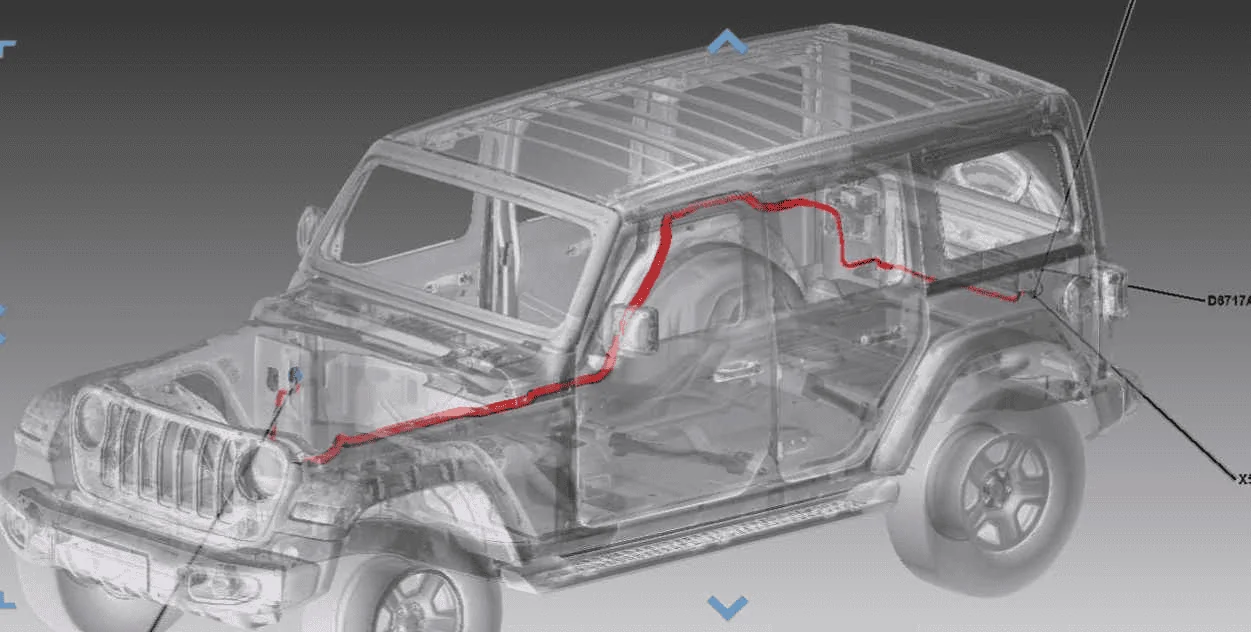

As per our data the tailgate harness is part of the body harness


However there is a 3 way jumper harness part # 68351167AA but from here you will need to run your own wiring to the BCM if those circuits are not currently present.

Please let me know if you have any questions.
Thanks,
-Benny


Altitude2020

Well-Known Member
First Name
Chris
Joined
Oct 29, 2020
Messages
106
Reaction score
23
Location
Canada
Vehicle(s)
2020 Jeep Wrangler JLU Altitude
Mopar Brake Controller

Hi Benny, any update on the Mopar brake controller. I do have the ADH build code on my Jeep. My vin is 1C4HJXEG6LW112656. The dealership here does not have any information on how to fix the issue I have with the lights coming on the dash when I manually press the brake on the controller. The dealership mentioned replacing the unit.


Rubi II

Active Member
Joined
Dec 12, 2020
Messages
30
Reaction score
20
Location
Central Massachusetts
Vehicle(s)
2020 JLUR
Thank you, I will drop the bulletin of at the dealership tomorrow. That was not done. See if it works.
Altitude, I had the same problem and after a long process, the dealership found this TSB (08-019-21) and it worked. No more lights flashing on the dash with and without connection to trailer. Good luck!
Big shout out to OMTBiker for previous TSB that made my dealership investigate further.


Altitude2020

Well-Known Member
First Name
Chris
Joined
Oct 29, 2020
Messages
106
Reaction score
23
Location
Canada
Vehicle(s)
2020 Jeep Wrangler JLU Altitude
I have it printed and going tomorrow to drop it off. Hopefully it will work.


DanW

Well-Known Member
First Name
Dan
Joined
Mar 2, 2017
Messages
7,165
Reaction score
8,884
Location
Indiana
Vehicle(s)
18 JLUR, 08 JKUR, 15 Ford Transit 350, 04 WJ 4.7, 17 Renegade, 99 Merc E430 S
Vehicle Showcase
2
Hi Benny, I am wondering if Mopar offers 4.56 gear sets for the JL Rubicons front/rear differentials, and if so, would you be able to give me a quote? Thanks!

OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
839
Reaction score
341
Location
NY
Vehicle(s)
2018 JL
Hi Benny, I am wondering if Mopar offers 4.56 gear sets for the JL Rubicons front/rear differentials, and if so, would you be able to give me a quote? Thanks!

Hi Dan,

None that I can see. The OE ratios are 3:73 and 4:10. Mopar offers a performance ring & pinion kit in 4:88 but if you want 4:56's from mopar you would have to swap to the Dana ultimate axle assemblies https://www.allmoparparts.com/sku/77072529.html

Please let me know if you have any questions.
Thanks,
-Benny


40”JLURD

Well-Known Member
First Name
Ross
Joined
Aug 20, 2020
Messages
578
Reaction score
424
Location
Southern California
Vehicle(s)
2021 JL Unlimited Rubicon Diesel
Occupation
Bad Mother Fucker
@AllMoparParts.com

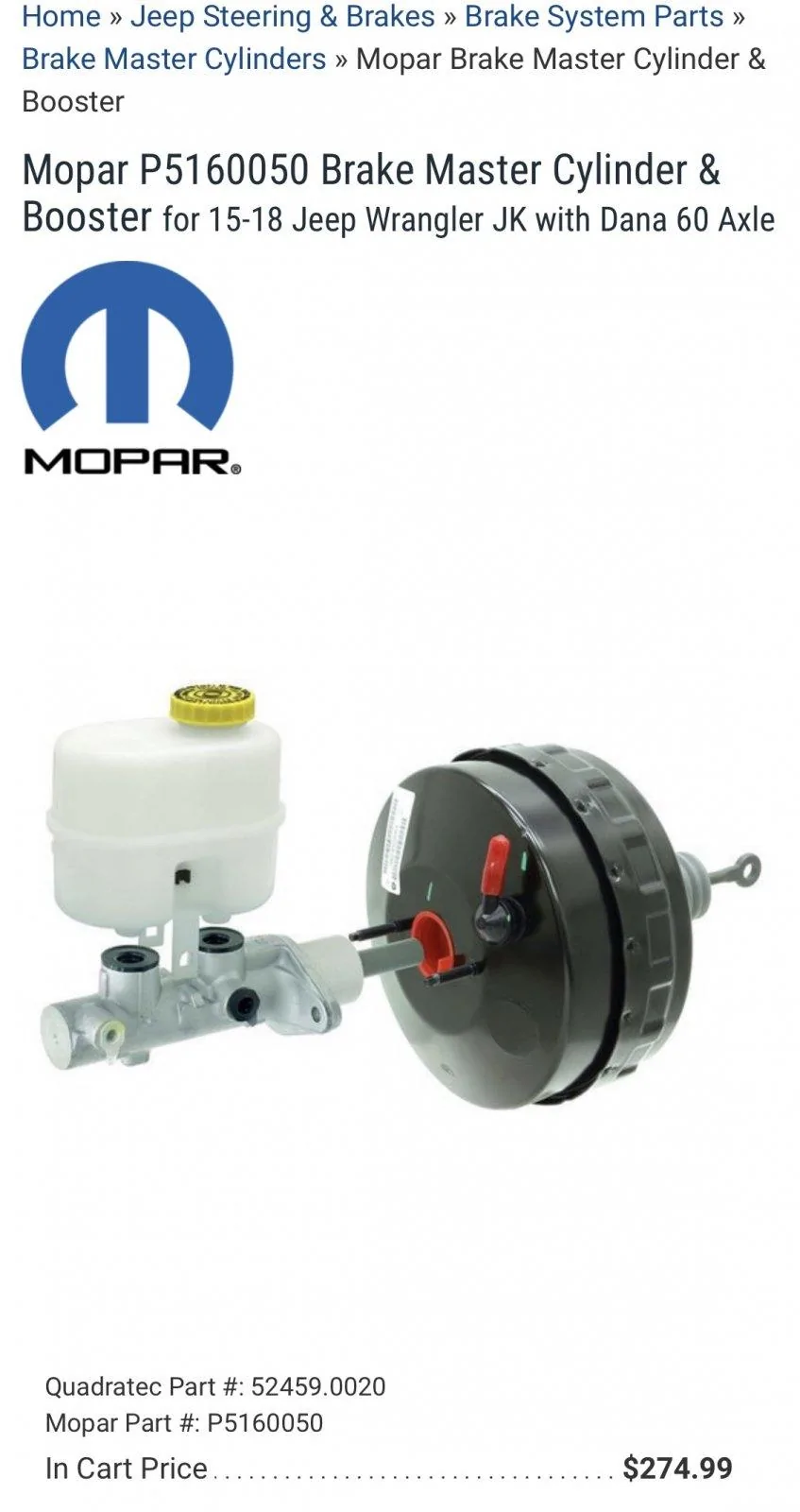

Do you guys offer anything like this for the JL?? Or would this possibly work on a JL?

I sure hope so because I just got Dana Ultimate 60’s and the factory Rubi brake master isn’t enough anymore and I can’t find a viable upgrade!!!


OP
AllMoparParts.com

AllMoparParts.com

Well-Known Member
Peak Sponsor (Level 2)
First Name
Benny
Joined
Mar 8, 2018
Messages
839
Reaction score
341
Location
NY
Vehicle(s)
2018 JL
Hi Ross,

I am sorry I do not see an upgraded Master available. In doing some research I can see that the Gladiator uses a different part number master, I am wondering if this is due to the increased weight of the vehicle meaning that it should have increased brake pressure. I will search around to see if this has been retrofitted before.

- Benny


acenines3

Well-Known Member
First Name
Dave
Joined
Sep 14, 2020
Messages
126
Reaction score
328
Location
NJ
Vehicle(s)
2018 Jeep Wrangler Sport JL
Occupation
Retired
I was wondering if the hardware kit that come with the Mounting bracket lower a pillar #82215427AB Can be bought separately . If so how much.
Thanks for your reply,
Dave
