265/70/17 on Mojave wheels

[Lucky7Wrangler]

My 2025 Sport came with street tires. Im not going bigger with this Wrangler. All the 245/75/17 all terrains Im looking at are load range E. I want to go 265/70/17 and get load range C. I might just stick to the stock steel wheels but I am interested in some Mojave take offs. With 265 and the less offset Mojave wheels, how much if any tire will stick out or be flush? Anyone with pics of Mojave take offs with either 245 or 265 width tire?

Sponsored



[azwjowner]

From the Gladiator Mojave? Those have a 37mm offset instead of 44mm, so they stick out 7mm further.

Half of your wider tire (265 - 245 = 20) is on the outside of the centerline of the wheel, so the edge sticks out 10mm further.

Total is 17mm or two-thirds of an inch further out for the outside edge of the tire.

I'd go for the 255/75/17 C load tires, personally. It's only 0.6" taller.



[G.moats]

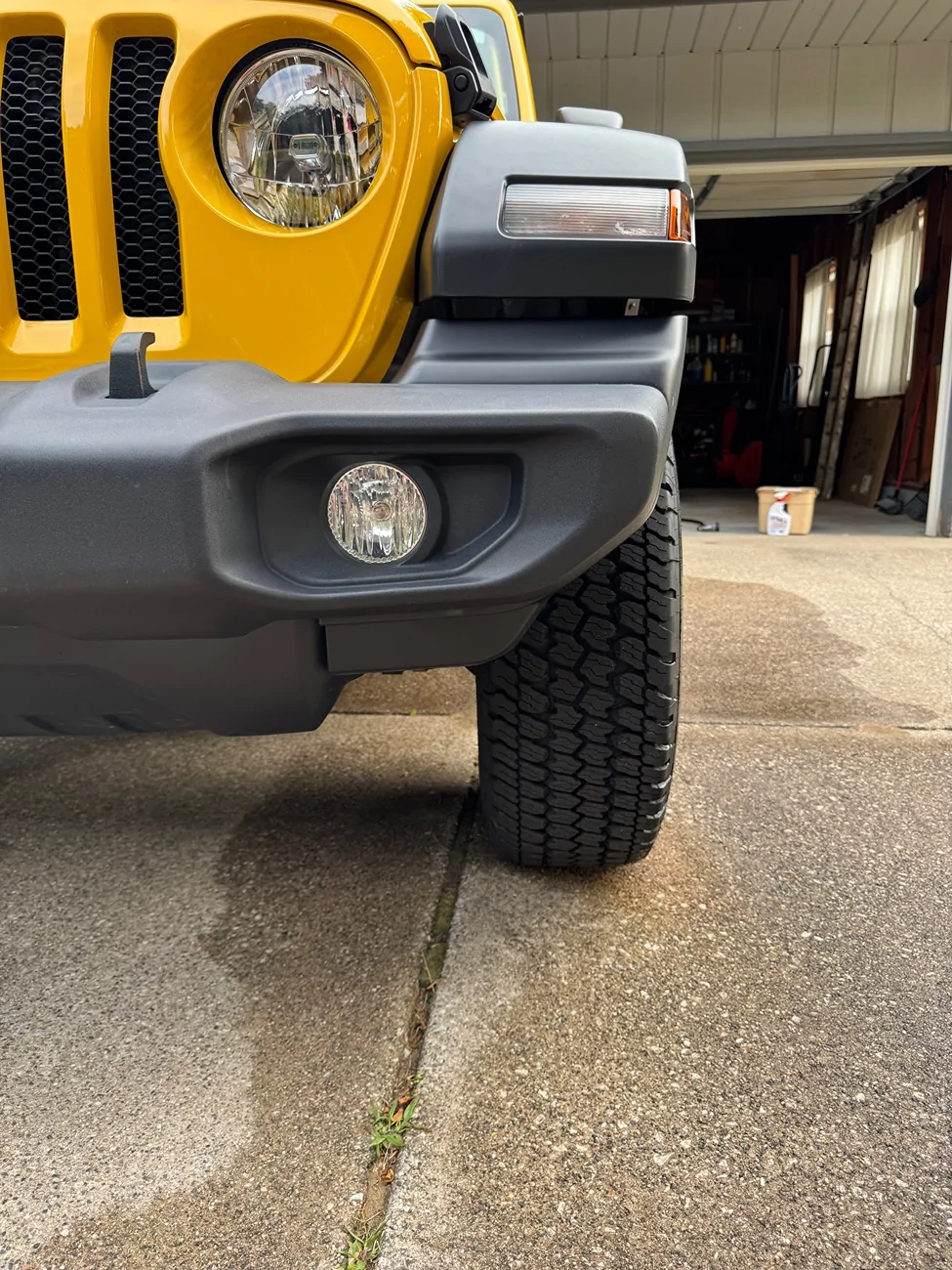

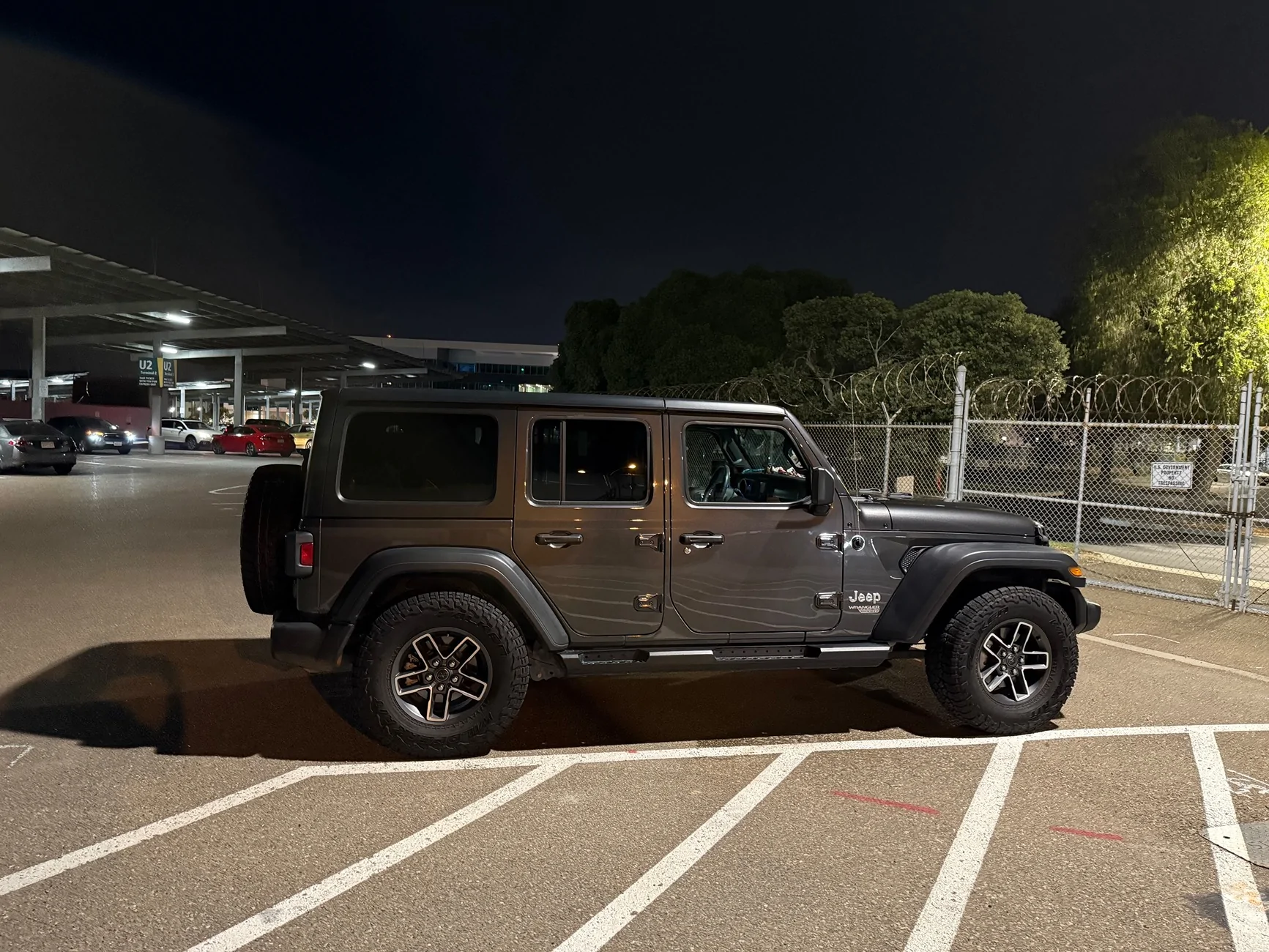

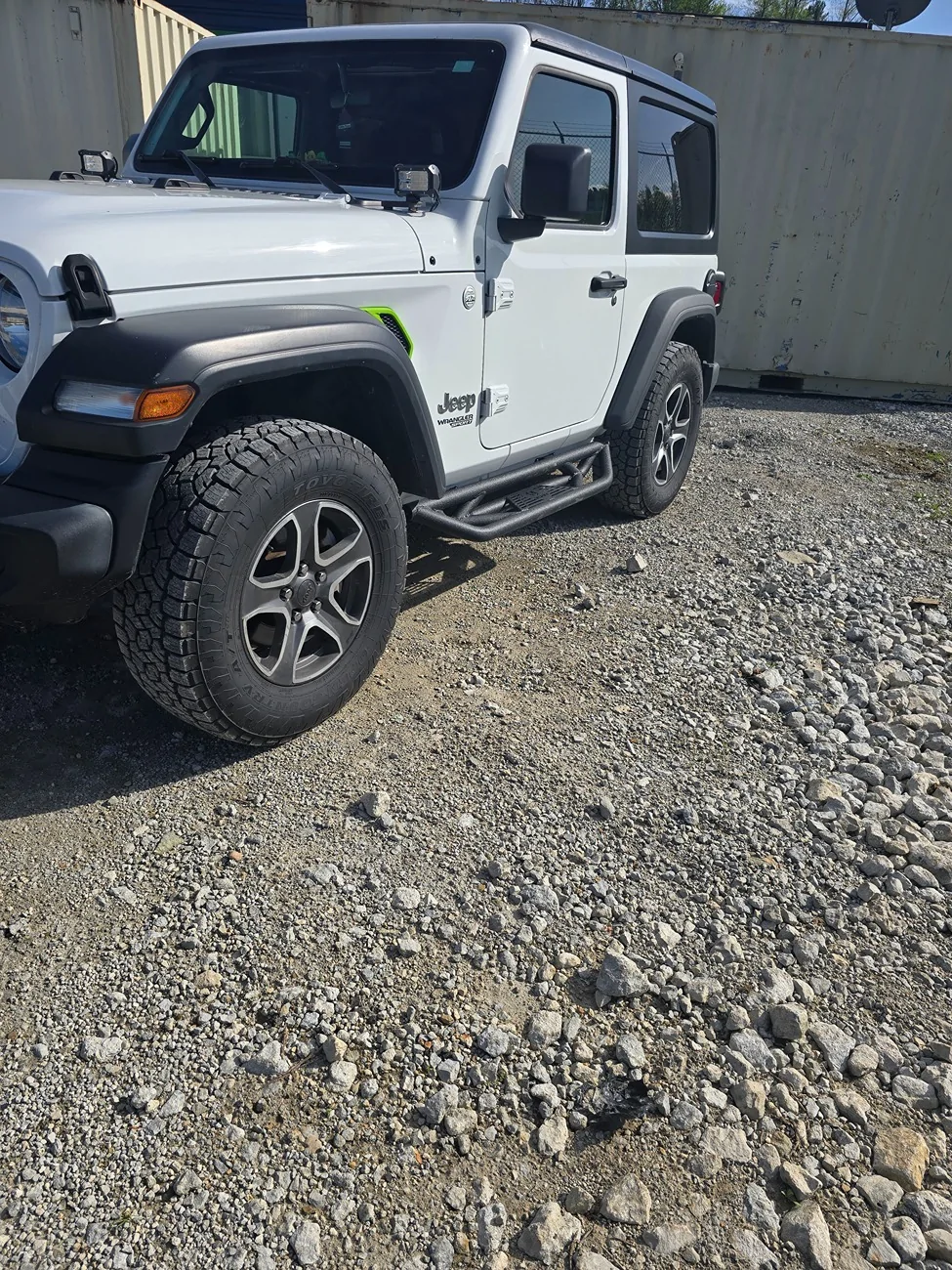

265/70/17 sit flush
