'21 Fuse box picture please

[WannFly]

Folks, someone with a '21 4Xe - would be so kind and post a picture of your fuse box? The inside of course, not the diagram, the actual fuses. I took out a relay to seat a fuse and then realized the crap move I have made. I did find a few JLU pictures and put it back in, started the Jeep and its fine from what I can tell, but I have a nagging feeling at the back of head that something aint right.

JLU picture is probably fine, but we have a crap load of other electric goodies that an ICE only JLU doesn't have.

Thanks in advance.

Sponsored



[2timing]

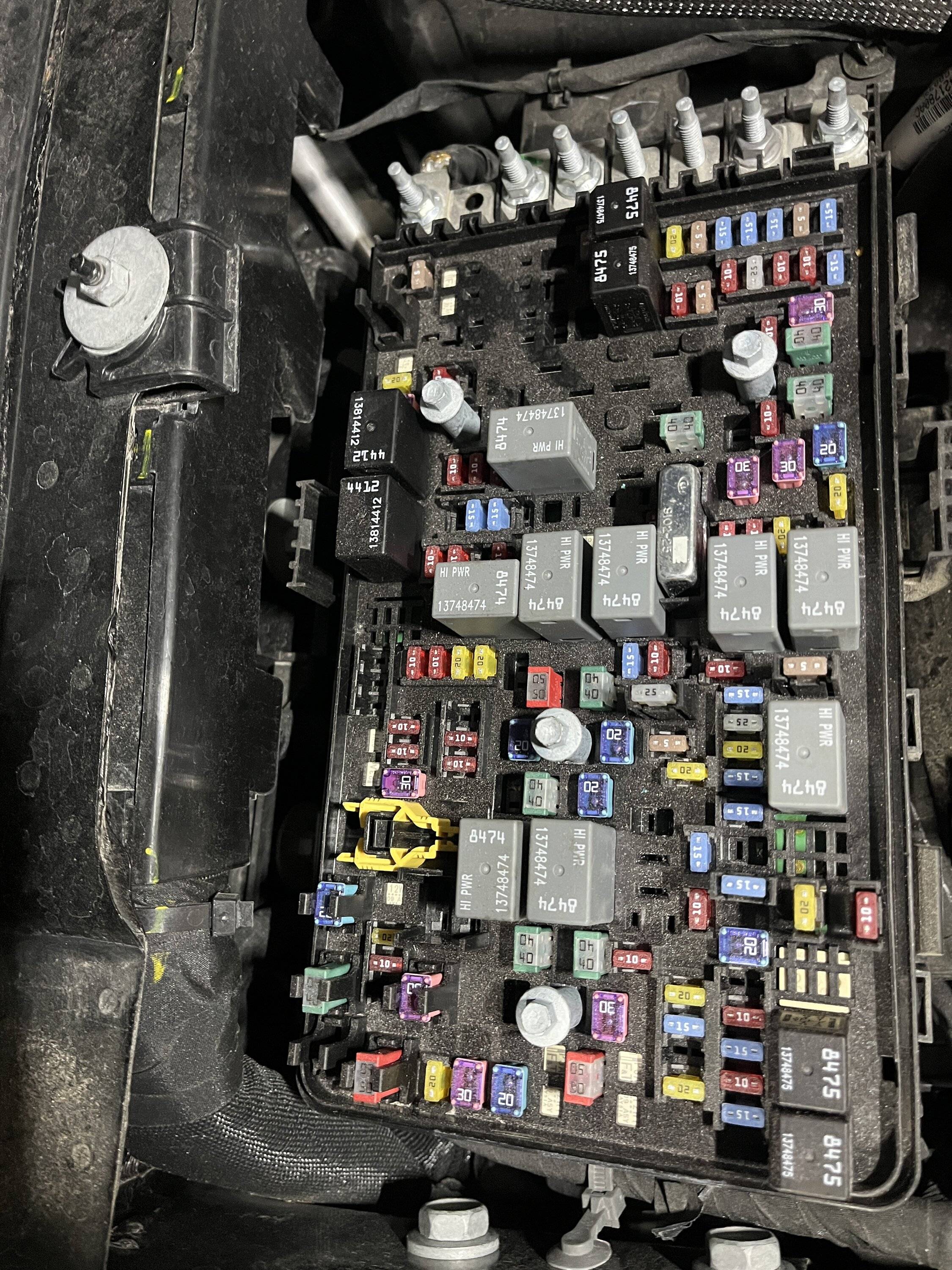

Here you go



[WannFly]

@2timing

THANK YOU SO MUCH for doing this. Cant thank you enough.

My nagging feeling was right, I put the relay back in incorrect order

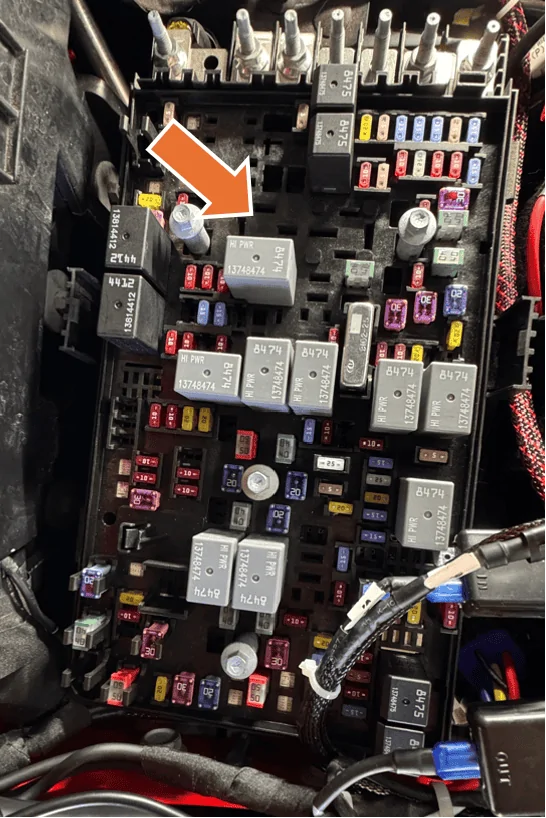

However, looking at the picture for some more time (mine below), I am now super confused. My relay and your relays dont exactly match

The one with the arrow is the one I had taken out, didnt touch anything else.

Yours is a '21 4Xe JLUR right?



[WannFly]

Looking at more pictures online, the relay orientation are all over the place



[2timing]

Mine is a 21 4xe Sahara , I am going to guess the differences are going to be which options yours has vs mine.



[WannFly]

Mine is a 21 4xe Sahara , I am going to guess the differences are going to be which options yours has vs mine.

Possible, but the K08 relay in question is Start/Run relay, so they should be the same for both of us. From what I can tell relay orientation matters, so not sure why the various orientation I see on the interwebs is all over the place.



[WannFly]

Update: I found a picture of mine that I took before messing around, and I did put it in the right way. It still baffles me that mine and the Sahara one is oriented in different ways



[botlfed98]

if relay orientation matters how do they allow it to plug in both directions?
