Door wiring harness pin layout

[Recoil]

Does anyone have the pin layout for the connectors on the door's wiring harness? My passenger side defrost isn't working and I'm trying to troubleshoot it.

Sponsored



[Infotainment]

This connector?

XY650A
Connector Details

• Harness Family:
  Door_Pass
• Color:
  BLACK
• Gender:
  FEMALE
• Part Number:
  7298-4329-30
• Part Description:
  --
• Connector No:
  X650A
• Option:
  HALF DOORS
• Repair Kit Part Number:
  Mopar Connector Repair Kits
• Cavity Count:
  30

Connector Views
Mating Side: Wire Insertion Side: Isometric View:

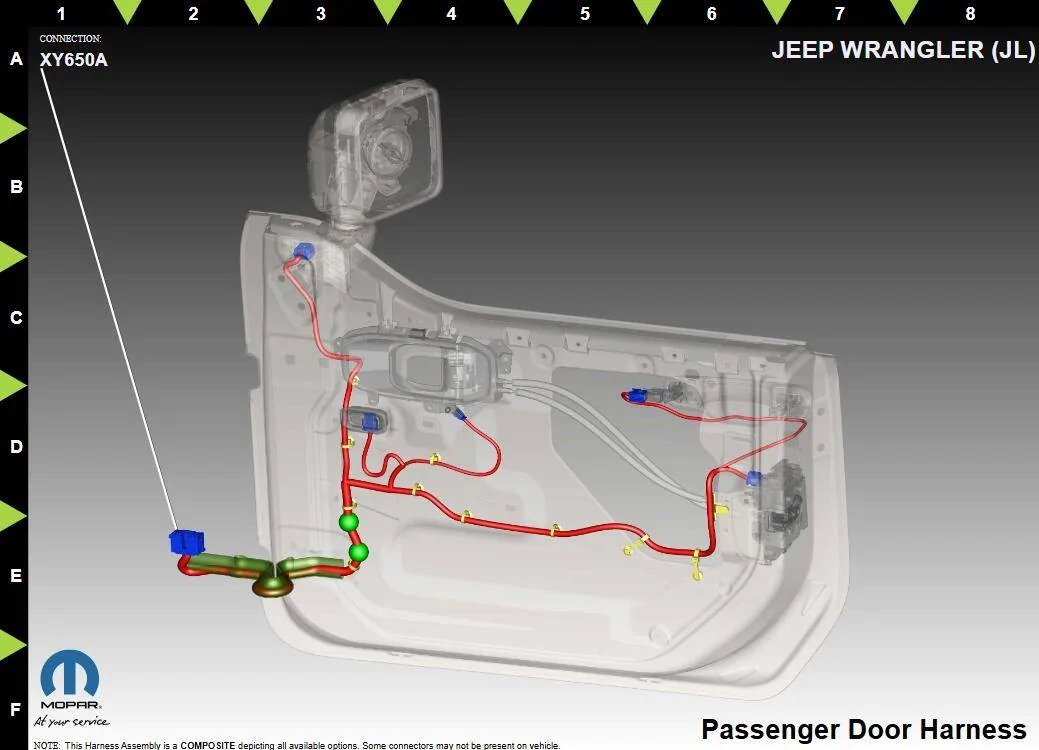

Location Views
Standard	View

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT
2	C110	DB/BU	0.75	MIRROR HEATER DRIVER
3	E12	OG/GY	0.50	PANEL LAMPS DRIVER
4	N0	NA	0	NO CONNECT
5	G160	VT/GN	0.50	RIGHT DOOR LOCK SWITCH STATUS
6	N0	NA	0	NO CONNECT
7	L160	WH/BG	0.75	RIGHT FRONT TURN SIGNAL CONTROL
8	M5	WH/GN	0.50	AMBIENT LIGHTING CONTROL
9	N0	NA	0	NO CONNECT
10	N0	NA	0	NO CONNECT
11	P72	BG/GY	0.75	PASSENGER MIRROR VERTICAL DRIVER
12	Z910	BK	0.50	GROUND
13	N0	NA	0	NO CONNECT
14	P76	BG/BU	0.75	MIRROR COMMON DRIVER
15	P401	GN/VT	0.75	RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH RETURN
16	P400	GN/OG	0.75	RIGHT FRONT PASSIVE ENTRY HANDLE SWITCH SENSE
17	P372	BG/OG	0.50	DOOR LOCK SW RTN PASS
18	G74	VT/WH	0.50	PASSENGER DOOR AJAR SWITCH SENSE
19	N0	NA	0	NO CONNECT
20	N0	NA	0	NO CONNECT
21	P712	GN/WH	0.75	RIGHT BLIND SPOT INDICATOR DRIVER
22	N0	NA	0	NO CONNECT
23	N0	NA	0	NO CONNECT
24	P74	BG/OG	0.75	PASSENGER MIRROR HORIZONTAL DRIVER
25	N0	NA	0	NO CONNECT
26	P777	GN/DG	0.75	DOOR LOCK CONTROL
27	P292	VT/GN	0.75	DOOR UNLOCK CONTROL
28	N0	NA	0	NO CONNECT
29	N0	NA	0	NO CONNECT
30	N0	NA	0	NO CONNECT



[Recoil]

That's the one, thank you!



[RoccoV]

Just what I needed!!
