Hello friends!

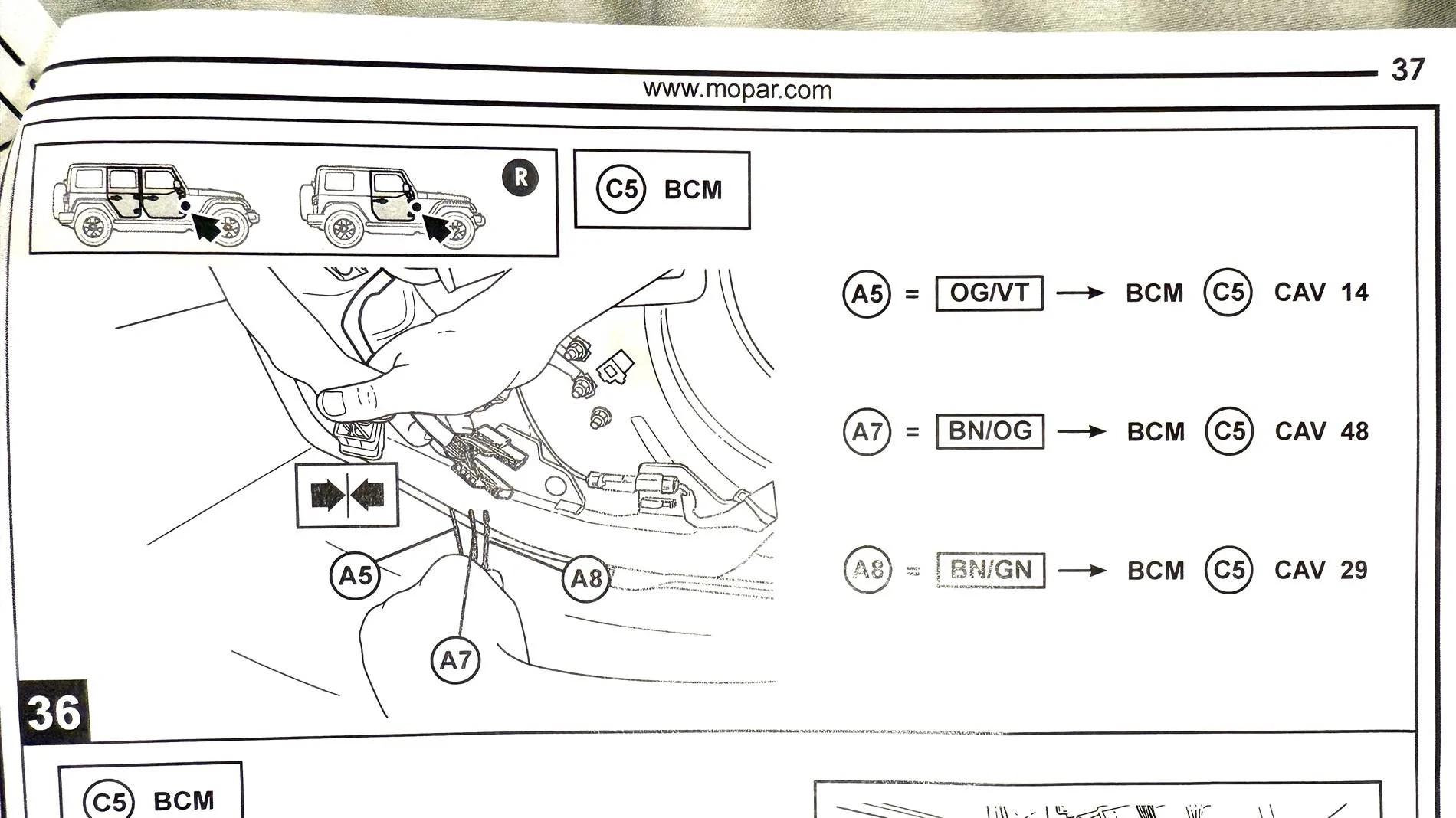

I will be to be doing the hard top wiring on my Jl, But I’m having a hard time figuring out where the cables goes attached in the C5 plug.
How do you know which pin is 14-48-29? The kit instructions doesn't show any diagram of the plug it self, Is the plug labeled?

I hope you could help me! Please!!!!

thank you

Sponsored



[ncflyer]

The lettering in the boxes OG/VT etc should be the wire coloring so l could look at the harness, color and see which outlet it is.

OG - Orange
VT - Violet?
BN - Brown
GN - Green

What do you have to connect? Looks like hooking up doors not anything from the top.



[fczabala]

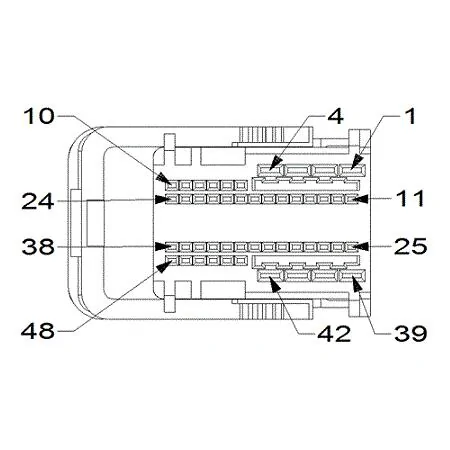

I think this is it



[Long Division]

I recently installed this kit. I used the same pin out as above. There are numbers on the plug itself at the beginning and end of each row which make it fairly easy to figure out which pin is which. Don't be alarmed if you find that some of them are already populated like mine.



[nicolasveracid]

What do I have to do If there is a cable in the pin already?



[Long Division]

What do I have to do If there is a cable in the pin already?

Remove the existing pin and tape it back out of the way. It's mentioned as note 3 in my instructions. I can't remember if there were any for the BCM plug but there definitely were for the PDC plugs.
