Wrenches for Clayton jam nuts?

OP
OP
dlong1119

dlong1119

Well-Known Member
First Name
Dan
Joined
May 13, 2021
Threads
9
Messages
216
Reaction score
126
Location
Gainesville, FL
Vehicle(s)
21 Sahara 4xe (Billet), 21 Sahara 4xe (StingGray)
Vehicle Showcase
2
Well, shit.... My Motobilt wrenches showed up this afternoon and they don't fit any of the jam nuts (I checked every arm and trackbar to make sure it wasn't one out of tolerance). That was $90 wasted (they'll go in my toolbox, so one day maybe it won't be a waste)...

@Clayton Off Road calls for either 1-7/16 or 1-13/16 (also spec'd as 46mm) and I got both in the Motobilt set, but they're both too small to fit over the nuts. I did a quick Google search for tolerances and here's what I found:

1-7/16" Wrench should measure 1.446-1.457", mine measures 1.452".
1-7/16" Nut should measure 1.438" max, mine measures ~1.475".

1-13/16" Wrench should measure 1.822-1.835", mine measures 1.822".
1-13/16" Nut should measure 1.813" max, mine measures ~1.830".

Here's where I got the specs: Wrench/Nut specs. I compared the actual nut measurements to this and it would be a very sloppy fit to move up to the next size (1-1/2" or 1-7/8"), especially on the larger nuts.

Lowe's didn't have any wrenches large enough to fit both nuts, so it looks like I'll have to check Home Depot or NAPA if I don't feel like the Harbor Freight wrenches are strong enough. I could also use a pipe wrench, but I don't want to risk chewing up the nuts with the serrated teeth.


Gregj

Well-Known Member
First Name
Greg
Joined
Dec 15, 2018
Threads
19
Messages
2,174
Reaction score
4,943
Location
West Texas
Vehicle(s)
JLU Rubicon, JLU Sport, upgrades in progress!

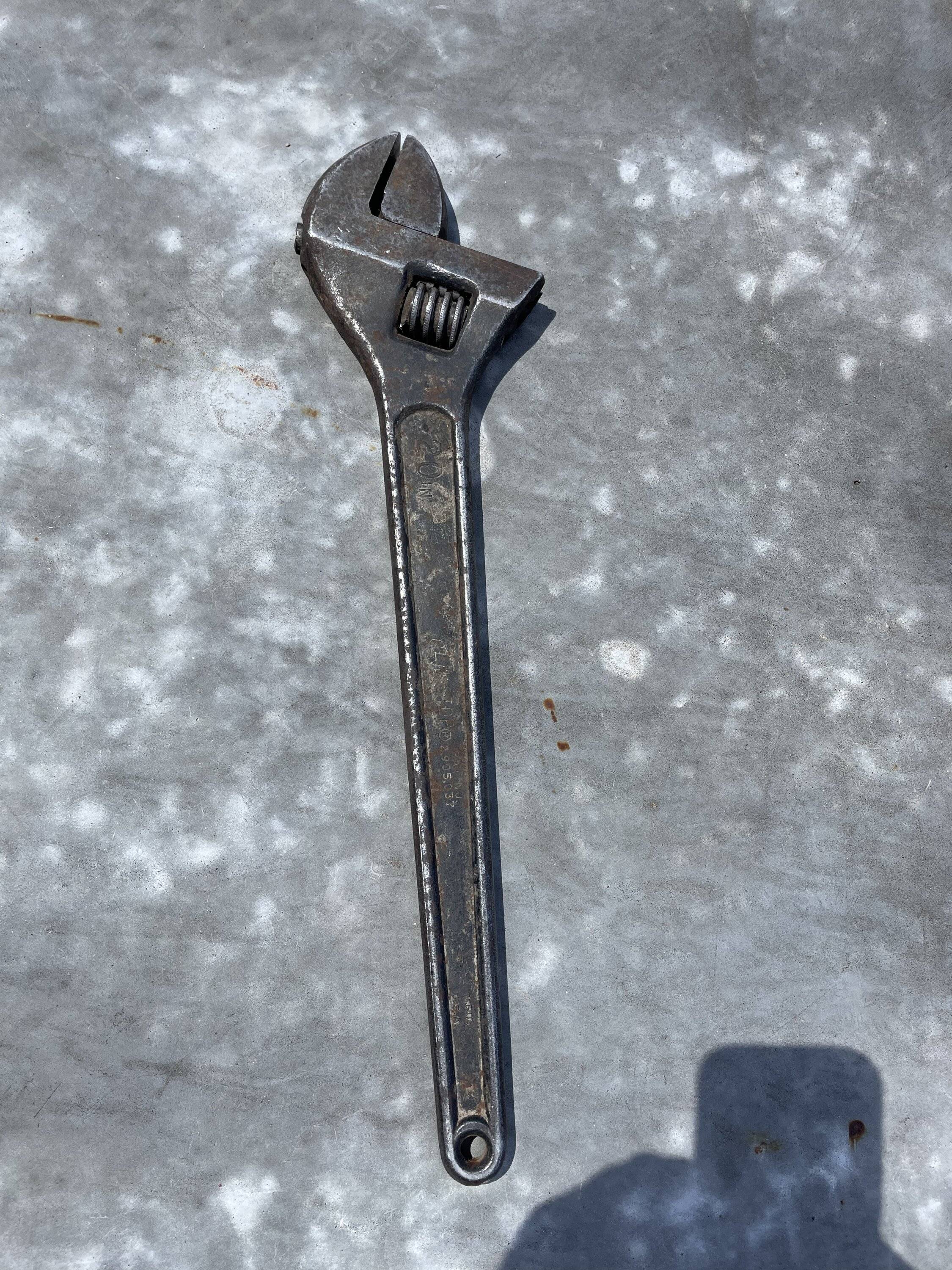

That sucks! Just get one of these, works on all of them.
Jeep Wrangler JL Wrenches for Clayton jam nuts? 4F2A8106-4D65-4FFA-9251-05D63AD07DA2

Gregj

OP
OP
dlong1119

dlong1119

Well-Known Member
First Name
Dan
Joined
May 13, 2021
Threads
9
Messages
216
Reaction score
126
Location
Gainesville, FL
Vehicle(s)
21 Sahara 4xe (Billet), 21 Sahara 4xe (StingGray)
Vehicle Showcase
2
That sucks! Just get one of these, works on all of them.
Jeep Wrangler JL Wrenches for Clayton jam nuts? 4F2A8106-4D65-4FFA-9251-05D63AD07DA2

Gregj
Yeah, I got a 15" one from HF but am trying to find a better quality version. Headed to visit my parents this evening, I may have to go raid my dad's shop and see what he has around.


Sponsored

Electrified

Well-Known Member
First Name
Steve
Joined
Jan 28, 2022
Threads
4
Messages
164
Reaction score
321
Location
Texas
Vehicle(s)
2022 392XR
Well, shit.... My Motobilt wrenches showed up this afternoon and they don't fit any of the jam nuts (I checked every arm and trackbar to make sure it wasn't one out of tolerance). That was $90 wasted (they'll go in my toolbox, so one day maybe it won't be a waste)...

@Clayton Off Road calls for either 1-7/16 or 1-13/16 (also spec'd as 46mm) and I got both in the Motobilt set, but they're both too small to fit over the nuts. I did a quick Google search for tolerances and here's what I found:

1-7/16" Wrench should measure 1.446-1.457", mine measures 1.452".
1-7/16" Nut should measure 1.438" max, mine measures ~1.475".

1-13/16" Wrench should measure 1.822-1.835", mine measures 1.822".
1-13/16" Nut should measure 1.813" max, mine measures ~1.830".

Here's where I got the specs: Wrench/Nut specs. I compared the actual nut measurements to this and it would be a very sloppy fit to move up to the next size (1-1/2" or 1-7/8"), especially on the larger nuts.

Lowe's didn't have any wrenches large enough to fit both nuts, so it looks like I'll have to check Home Depot or NAPA if I don't feel like the Harbor Freight wrenches are strong enough. I could also use a pipe wrench, but I don't want to risk chewing up the nuts with the serrated teeth.
Icon products at HF are excellent. I did not, however, see the sizes you need.


OldGuyNewJeep

Well-Known Member
First Name
Don
Joined
Sep 21, 2017
Threads
81
Messages
3,697
Reaction score
6,575
Location
CT
Vehicle(s)
2018 Wrangler JL, 2016 Yukon XL
Yeah, I got a 15" one from HF but am trying to find a better quality version. Headed to visit my parents this evening, I may have to go raid my dad's shop and see what he has around.
https://www.knipex.com/products

Knipex makes incredible tools. A big “pliers wrench” might do well for this application.

I have this set and they’re some of my most often used tools: https://a.co/d/4cBqb6m


dragoneggs

Well-Known Member
First Name
Mark
Joined
Dec 14, 2021
Threads
59
Messages
3,562
Reaction score
10,688
Location
Seabeck, WA
Vehicle(s)
'22 Snazzberry Pearl JLR 2dr
Build Thread
Link
Clubs

Be careful with those HF crescent wrenches. They’re got garbage and you’ll round you’re nuts off if you’re not careful, and who wants rounded nuts?
Uh... me for one. I would think squared off nuts would be quite uncomfortable.

OP
OP
dlong1119

dlong1119

Well-Known Member
First Name
Dan
Joined
May 13, 2021
Threads
9
Messages
216
Reaction score
126
Location
Gainesville, FL
Vehicle(s)
21 Sahara 4xe (Billet), 21 Sahara 4xe (StingGray)
Vehicle Showcase
2
https://www.knipex.com/products

Knipex makes incredible tools. A big “pliers wrench” might do well for this application.

I have this set and they’re some of my most often used tools: https://a.co/d/4cBqb6m
Those look really nice and I'm familiar with the Knipex brand, but I don't think getting anywhere near 250 ft/lbs is going to happen with them. I can't find any torque specs, but I'd be very surprised if they could really even handle 100 ft/lb.


Sponsored

Riotfunk

Well-Known Member
Joined
Apr 30, 2023
Threads
5
Messages
303
Reaction score
516
Location
Ma
Vehicle(s)
22 Willys with 2 Doors
Put the adjustable wrench on a block and torque the shit out of it with the other. You only need small turn to get it to catch on the block and hold it.
Hell i’ve used a floor Jack to to hold one while I hung on the other. And yeah 250lbs plus on most of those

OP
OP
dlong1119

dlong1119

Well-Known Member
First Name
Dan
Joined
May 13, 2021
Threads
9
Messages
216
Reaction score
126
Location
Gainesville, FL
Vehicle(s)
21 Sahara 4xe (Billet), 21 Sahara 4xe (StingGray)
Vehicle Showcase
2
Put the adjustable wrench on a block and torque the shit out of it with the other. You only need small turn to get it to catch on the block and hold it.
Hell i’ve used a floor Jack to to hold one while I hung on the other. And yeah 250lbs plus on most of those
Yeah, that's probably going to be the plan.

Thanks, those look like nice sets. Unfortunately my only Northern tool is 45 minutes away, but if push comes to shove I can make a run down there. Any chance you could check the opening of the 1-7/16" and 1-13/16" wrenches with a set of calipers and post up the measurements?

I'm thinking the nuts must be 38mm and 47mm based on the SAE-metric conversion of the measurements I took, unless the Motobilt wrenches were just abnormally tight tolerances but that doesn't seem right based on research.


Jtaugner

Well-Known Member
Joined
Jun 17, 2022
Threads
7
Messages
263
Reaction score
362
Location
Upstate SC
Vehicle(s)
23 JLURD / 03 Cobra
Build Thread
Link
Yeah, that's probably going to be the plan.


Thanks, those look like nice sets. Unfortunately my only Northern tool is 45 minutes away, but if push comes to shove I can make a run down there. Any chance you could check the opening of the 1-7/16" and 1-13/16" wrenches with a set of calipers and post up the measurements?

I'm thinking the nuts must be 38mm and 47mm based on the SAE-metric conversion of the measurements I took, unless the Motobilt wrenches were just abnormally tight tolerances but that doesn't seem right based on research.
Sure, it'll be an hour or two since I work nights.

OP
OP
dlong1119

dlong1119

Well-Known Member
First Name
Dan
Joined
May 13, 2021
Threads
9
Messages
216
Reaction score
126
Location
Gainesville, FL
Vehicle(s)
21 Sahara 4xe (Billet), 21 Sahara 4xe (StingGray)
Vehicle Showcase
2
Sure, it'll be an hour or two since I work nights.
Awesome, thanks! And no worries, I didn't expect it until tomorrow at least, but that's even better!
Sponsored
