Wires through the firewall

Captain Skip

Well-Known Member
First Name
Skip
Joined
Oct 13, 2020
Messages
161
Reaction score
205
Location
New Hampshire
Vehicle(s)
2020 Wrangler JL Sport S
Occupation
Happily retired

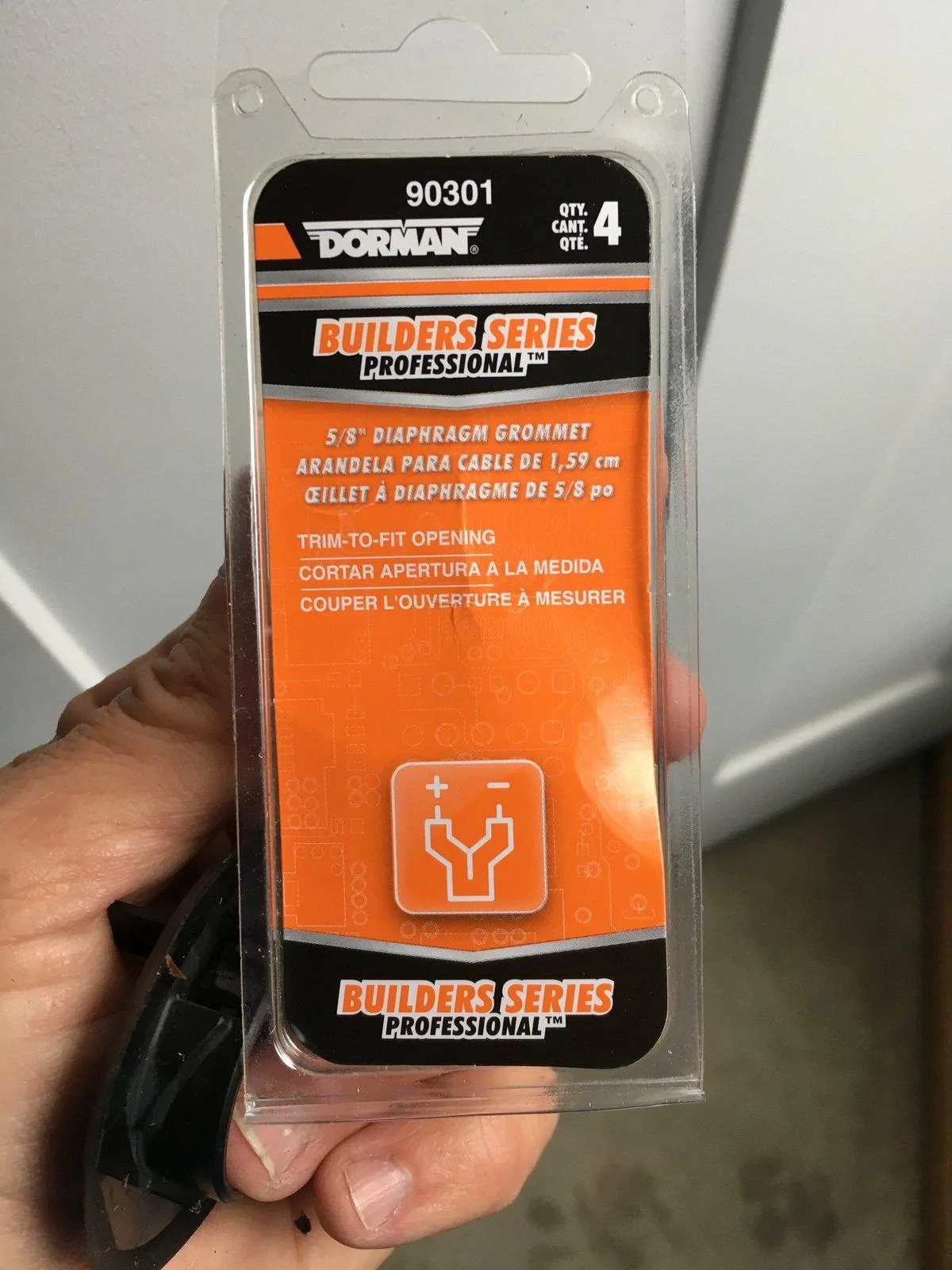

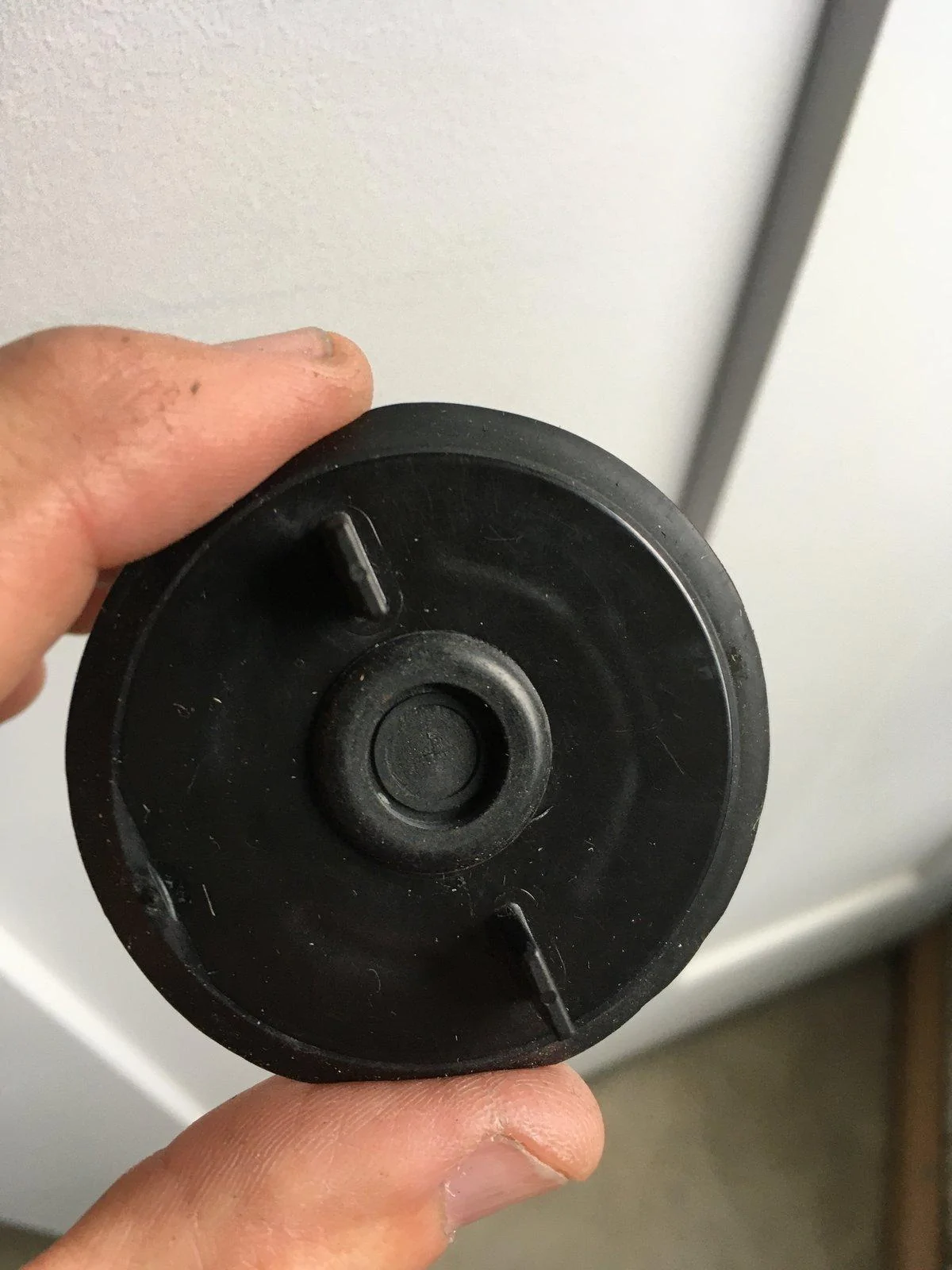

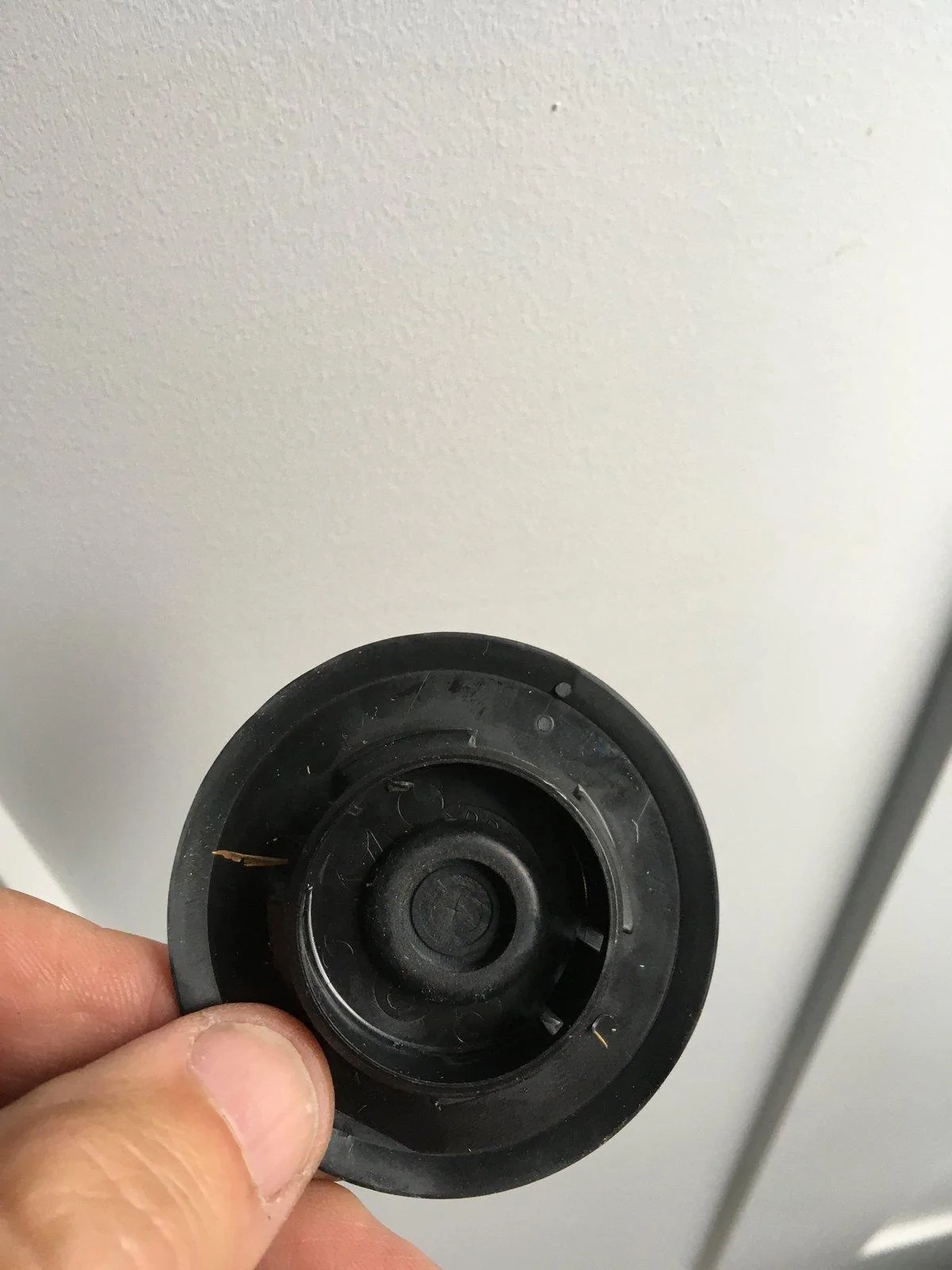

I’ve seen a number of posts about the plastic plug on the drivers side being a good spot to run wires through the firewall. If you have an automatic it’s perfect, if you have a manual that’s where your clutch lever comes through the firewall. I needed to run some wires for my tow harness to the brake pedal as I will be towing my JL behind my motor home. People have recommended pulling the plug out with pliers. Not necessary - I looked under the dash, found the plug and pushed on it with 2 fingers, popped right out. I didn’t like the idea of drilling a hole than slathering on silicone to waterproof it so I took a different approach. I picked up a package of diaphragm grommets at O’Reilly’s Auto. The center is 1/2” and requires a 5/8” hole to mount it. Wires poked through the center with no problem and the rubber stayed tight around the wires. No need for silicone and if I have to remove the wires or add more it’s no problem. Figured I would pass this along/
Advertisement



MEHillwalker80

Well-Known Member
First Name
Tom
Joined
Jan 24, 2020
Messages
312
Reaction score
508
Location
Maine
Vehicle(s)
2019 Wrangler Sport S JL 2 DR 1999 Chevy Suburban K1500
Good find...Thank you. I'll be buying those.


Brew211

Well-Known Member
First Name
Todd
Joined
Jun 18, 2018
Messages
626
Reaction score
515
Location
Peoria, Arizona
Vehicle(s)
2018 JLUR - Manual, Tundra
Vehicle Showcase
1
Great job! I have a manual too, can you show me a picture of where this is in the cab and engine bay?
Thank you


Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
8,025
Reaction score
10,245
Location
.
Vehicle(s)
2018 2dr. Rubi
Great job! I have a manual too, can you show me a picture of where this is in the cab and engine bay?
Thank you
@Brew211

You JL is a manual shift so you will not find this point of entry / this grommet that is found on an automatic tranny JL.

There are other ways to get to the cab. Do a forum search for same.

.


Punknhed

Well-Known Member
First Name
Chris
Joined
Nov 28, 2018
Messages
406
Reaction score
600
Location
Virginia
Vehicle(s)
2019 Wrangler unlimited sport
Copy, thank you!
on the right side of the fire wall there is a gromet with a "nipple" on it, that is where i ran my wires for my compressor thru the fire wall. it is a pain in the ass but it worked. (my Jeep is a stick too)
