Window Auto up modification

Timmybung

Well-Known Member
First Name
Tim
Joined
Feb 16, 2018
Messages
82
Reaction score
52
Location
NH
Vehicle(s)
2018 Jeep Wrangler Rubicon (4-door)
First off I'd like to thank user Fonzie for the inspiration; it was his original post that made me undertake this project. I'll try not to rehash things he covered on his thread since it got me most of the way into the project.

Once the dash was open all I did for the stock window wiring was confirm the two wires he'd identified as driver and passenger UP.

Once I had those identified I started sorting out the wiring on the 535T module. At first look the kit appears super intimidating given the sheer number of wires but several aren't used and several are common grounds that I twined together to a single ground which makes it way easier.


Above are the wiring diagrams from the manual. A couple notes: you won't use the "ground when armed from system" orange wire, and the red/white "(-) aux from system" wire is only connected to ground during programming; after that I taped up the lead and zip tied it out of the way.
There IS a programming step but it's super simple; more on that later.
A note about the dip switches on the module: all remain off (up position); no need to move any of them.
Regarding mounting location I also put it behind the glovebox; I basically zip tied it to a one of the silver AC tubes; there's a picture way below.
Regarding power and ground, both I got by tapping into the 12v port in the dash; it was easy and right there. Black was ground and 12v was the pink/yellow line. Obviously verify this for yourself.

You'll note I have what looks like a single ground; like I mentioned previously I spliced and the grounds into a single bunch and then connected them to a single black wire which I ran to ground.

Here are all the grounds twined together.
All connections I also wrapped in electrical tape and zip tied everything all over the place to help with strain relief.
When it came to actually splicing into the window switch wires it was anticlimactic. I cut each one and added bullet connectors, such that if I wanted to return it to stock the original wire now has a male and a female so they could go together. Then I connected the wires from the module per the instructions (like the previous poster I only wired the UP wires since it had factory Auto down. )


This picture shows pretty much the whole thing wired but before I put the module behind the glovebox. There's room for the wires to easily run behind the dash between the glovebox and the window controls. I left all wires their full length so I could easily work with the module on my lap but you could easily trim them if you want less wire hanging out back there.
Note: the yellow wire going into the dash is a wire with alligator clips on both ends I used to connect that red/white wire to ground for programming.

Here you can see the wires not used on the 8 and 5 pin connectors.


Here's where the module lives now.

That's pretty much it, hopefully I covered enough to help the next guy. All in all it took me maybe two hours, and I took my time to keep wiring and connections relatively neat and tidy.
When it came to the programming step it was pretty straightforward. Connect that red/white wire to ground and turn on the Jeep. Hold the switch to put the drivers window up, then don't touch anything (this wasn't 100% clear from the instructions). It'll cycle both windows up and down at least once, and it took longer than you'd expect between when you let go of the switch and it does its thing. The first time I messed it up because I assumed it was finished and hit the button, exiting programming mode.

Good luck, and let me know if there are any questions.
Advertisement


Last edited:

IronScott

Well-Known Member
First Name
Scott
Joined
Sep 21, 2018
Messages
1,007
Reaction score
1,176
Location
NW Arkansas
Vehicle(s)
2019 JLU Sahara, 1992 Jeep YJ, 2002 Chevy Silverado
Great work. I just don't understand why most American manufacturers don't include auto-up (some do driver only). Actually, I know it's because of safety but it's ridiculous they can't figure out a solution. The Germans have it figured out. I've had multiple German vehicles with auto-up and it's fantastic and I haven't lost an arm yet.


IndustrialAction

Well-Known Member
First Name
Patrick
Joined
Jun 21, 2018
Messages
571
Reaction score
761
Location
Slower Lower Delaware
Vehicle(s)
2019 Wrangler JLUR
Vehicle Showcase
1
Awesome write-up! Now that I've seen it though, I think I'll just hold the button, haha. Too much effort for too little reward in my opinion


fonzie

Well-Known Member
Joined
Mar 22, 2018
Messages
112
Reaction score
73
Location
TX
Vehicle(s)
Rubicon JL, & Gladiator
One note on the wire you marked as not needed: when you activate the auto-up, you can only stop the up moment by clicking up again. If you splice those wires (dont need to cut completely) you can stop the auto up by clicking the down button. Make sense? Good job BTW!


fonzie

Well-Known Member
Joined
Mar 22, 2018
Messages
112
Reaction score
73
Location
TX
Vehicle(s)
Rubicon JL, & Gladiator
One more note, the "ground when armed from system" orange wire, could potentially be used when you lock the jeep. If I can figure out the correct wire, the windows would roll up when the jeep is locked with the key fob! On my list of things to try some day... LOL

OP
OP

Timmybung

Well-Known Member
First Name
Tim
Joined
Feb 16, 2018
Messages
82
Reaction score
52
Location
NH
Vehicle(s)
2018 Jeep Wrangler Rubicon (4-door)
One note on the wire you marked as not needed: when you activate the auto-up, you can only stop the up moment by clicking up again. If you splice those wires (dont need to cut completely) you can stop the auto up by clicking the down button. Make sense? Good job BTW!
Interesting... I didn't realize that. Can you be more specific on which wire? And what to splice it with?
Thanks!


fonzie

Well-Known Member
Joined
Mar 22, 2018
Messages
112
Reaction score
73
Location
TX
Vehicle(s)
Rubicon JL, & Gladiator
Interesting... I didn't realize that. Can you be more specific on which wire? And what to splice it with?
Thanks!
Basically, splice the switch side wire from the 535t to the down wire on the Jeep, that's it. You do not need to cut the jeep wire. You basically just want a signal sent to the 535t to interrupt the auto up feature just in case you activate it by accident.

OP
OP

Timmybung

Well-Known Member
First Name
Tim
Joined
Feb 16, 2018
Messages
82
Reaction score
52
Location
NH
Vehicle(s)
2018 Jeep Wrangler Rubicon (4-door)
I want to make sure I'm getting this right; I'll use the driver's side wiring as an example.

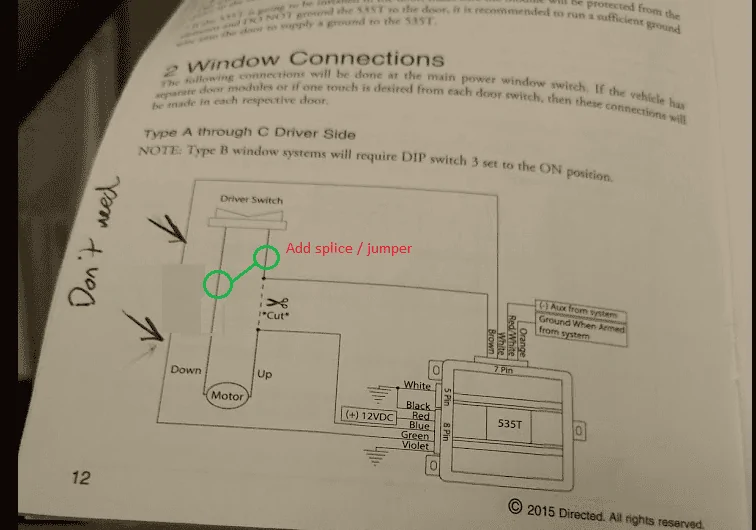

So if I got this right, basically use two wire taps to add a small section of wiring between the stock "DOWN" wire (OG/W (thick)) and the switch side of the "UP" wire (brown to the 535T). Image below:
