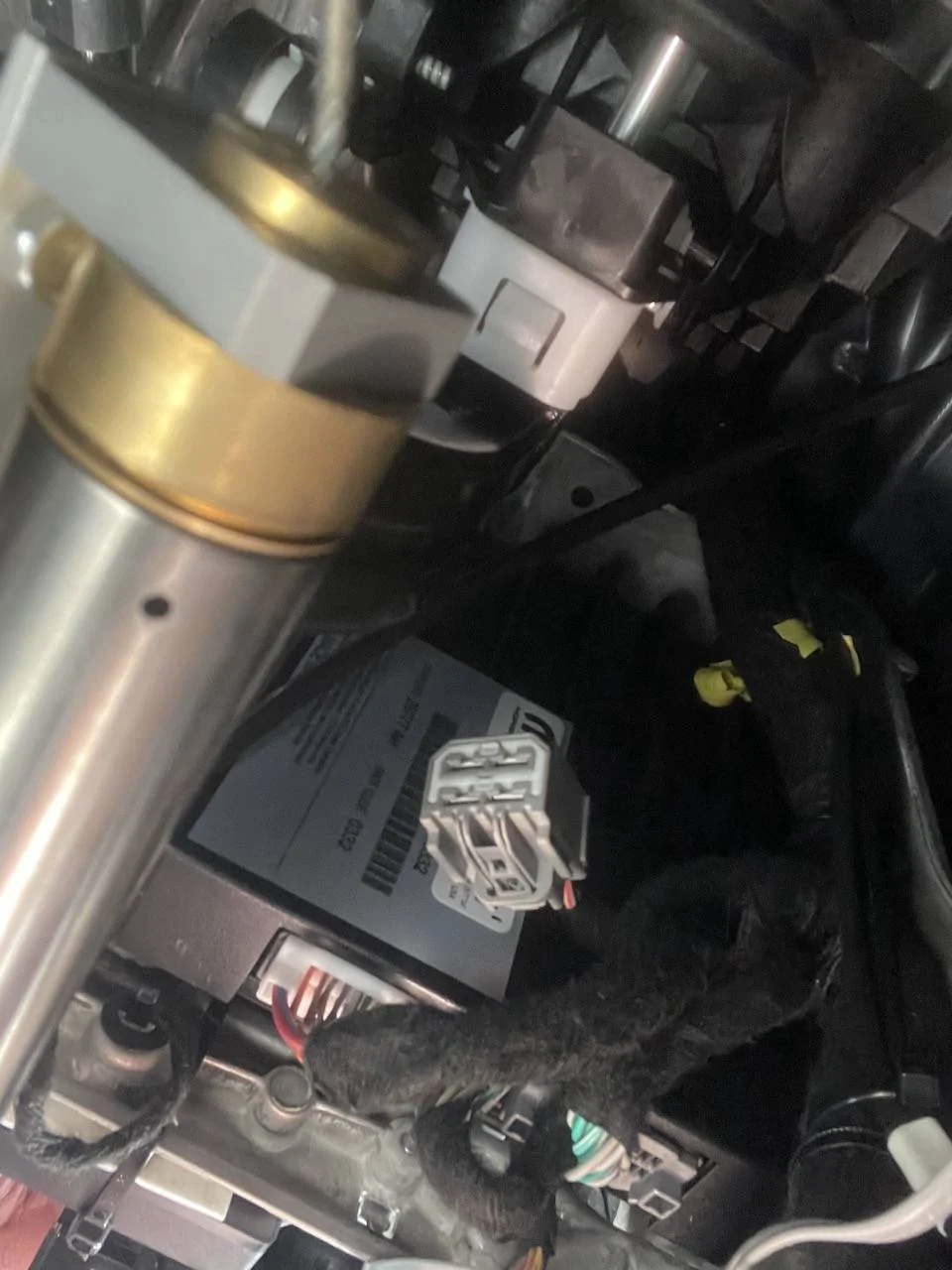

Underneath my dash I found this unplugged plug. Recently my engine and electronic stability control idiot lights are always on.

Getting a U1003 error code. I assume this is supposed to be plugged in and could be the root of my issue? Any ideas where?



A little more info... I also recently had an electronic braking system installed professionally, and part of that is the silver/gold cylinder to the left that attaches to the brake pedal arm. Wondering if the installer unplugged it?


OP
OP
dragoneggs

dragoneggs

Well-Known Member
First Name
Mark
Joined
Dec 14, 2021
Threads
41
Messages
1,174
Reaction score
1,884
Location
Seabeck, WA
Vehicle(s)
'22 Snazzberry JLR
125 views and no one... what's frustrating is that I don't see the receptacle end. Where does it go?


kah.mun.rah

Well-Known Member
First Name
Merenkahre Jr.
Joined
May 16, 2022
Threads
13
Messages
912
Reaction score
1,515
Location
Duat
Vehicle(s)
2021 Wrangler Unlimited Rubicon
Are you using a Tazer JL?


The Last Cowboy

Well-Known Member
First Name
Joe
Joined
Jul 2, 2020
Threads
18
Messages
3,431
Reaction score
6,507
Location
San Antonio, TX
Vehicle(s)
2020 JL Willys 2 door
Occupation
Wandering Vaquero
125 views and no one... what's frustrating is that I don't see the receptacle end. Where does it go?
The problem is the aftermarket equipment you had installed, which is not something that many here have experience with. I would look somewhere around the brake or throttle.

Another thought is that the brake controller equipment you had installed plugs in where that plug went and the loose plug may fit into it, that's just a wild ass guess though.

OP
OP
dragoneggs

dragoneggs

Well-Known Member
First Name
Mark
Joined
Dec 14, 2021
Threads
41
Messages
1,174
Reaction score
1,884
Location
Seabeck, WA
Vehicle(s)
'22 Snazzberry JLR
Are you using a Tazer JL?
Yes, actually I found the plug while removing my Tazer. So I can bring it back to the dealer to fix the ESC. But I didn't unplug that one.



OP
OP
dragoneggs

dragoneggs

Well-Known Member
First Name
Mark
Joined
Dec 14, 2021
Threads
41
Messages
1,174
Reaction score
1,884
Location
Seabeck, WA
Vehicle(s)
'22 Snazzberry JLR
The problem is the aftermarket equipment you had installed, which is not something that many here have experience with. I would look somewhere around the brake or throttle.

Another thought is that the brake controller equipment you had installed plugs in where that plug went and the loose plug may fit into it, that's just a wild ass guess though.
Yeah I think I will call my electric brake installer and see if he can shed some light on it. I wouldn't think though that they would disconnect it for the install.


Gregj

Well-Known Member
First Name
Greg
Joined
Dec 15, 2018
Threads
15
Messages
1,816
Reaction score
3,944
Location
West Texas
Vehicle(s)
JLU Rubicon, JLU Sport, upgrades in progress!
What color are the wires? I ask because it may be the trailer brake controller connector which is up under there.
Gregj

OP
OP
dragoneggs

dragoneggs

Well-Known Member
First Name
Mark
Joined
Dec 14, 2021
Threads
41
Messages
1,174
Reaction score
1,884
Location
Seabeck, WA
Vehicle(s)
'22 Snazzberry JLR
What color are the wires? I ask because it may be the trailer brake controller connector which is up under there.
Gregj
Thanks Greg. I will check tomorrow when I get home.


Gregj

Well-Known Member
First Name
Greg
Joined
Dec 15, 2018
Threads
15
Messages
1,816
Reaction score
3,944
Location
West Texas
Vehicle(s)
JLU Rubicon, JLU Sport, upgrades in progress!

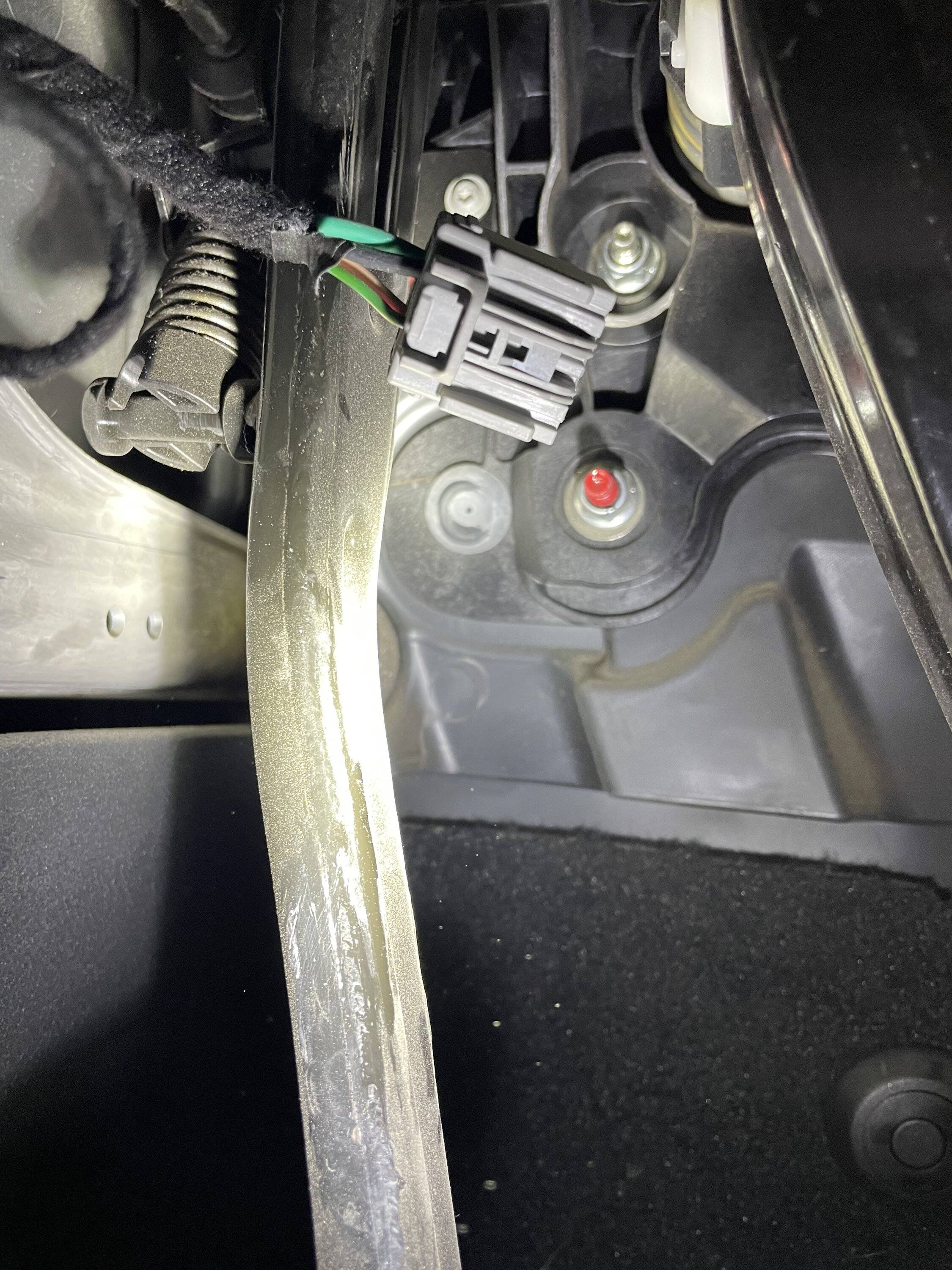

Here is a picture of mine.

Gregj
