What is this called?

cwadle

Well-Known Member
First Name
cameron
Joined
Jul 11, 2018
Messages
238
Reaction score
128
Location
Rochester Hills, MI
Vehicle(s)
2019 Granite JLUR
Vehicle Showcase
1

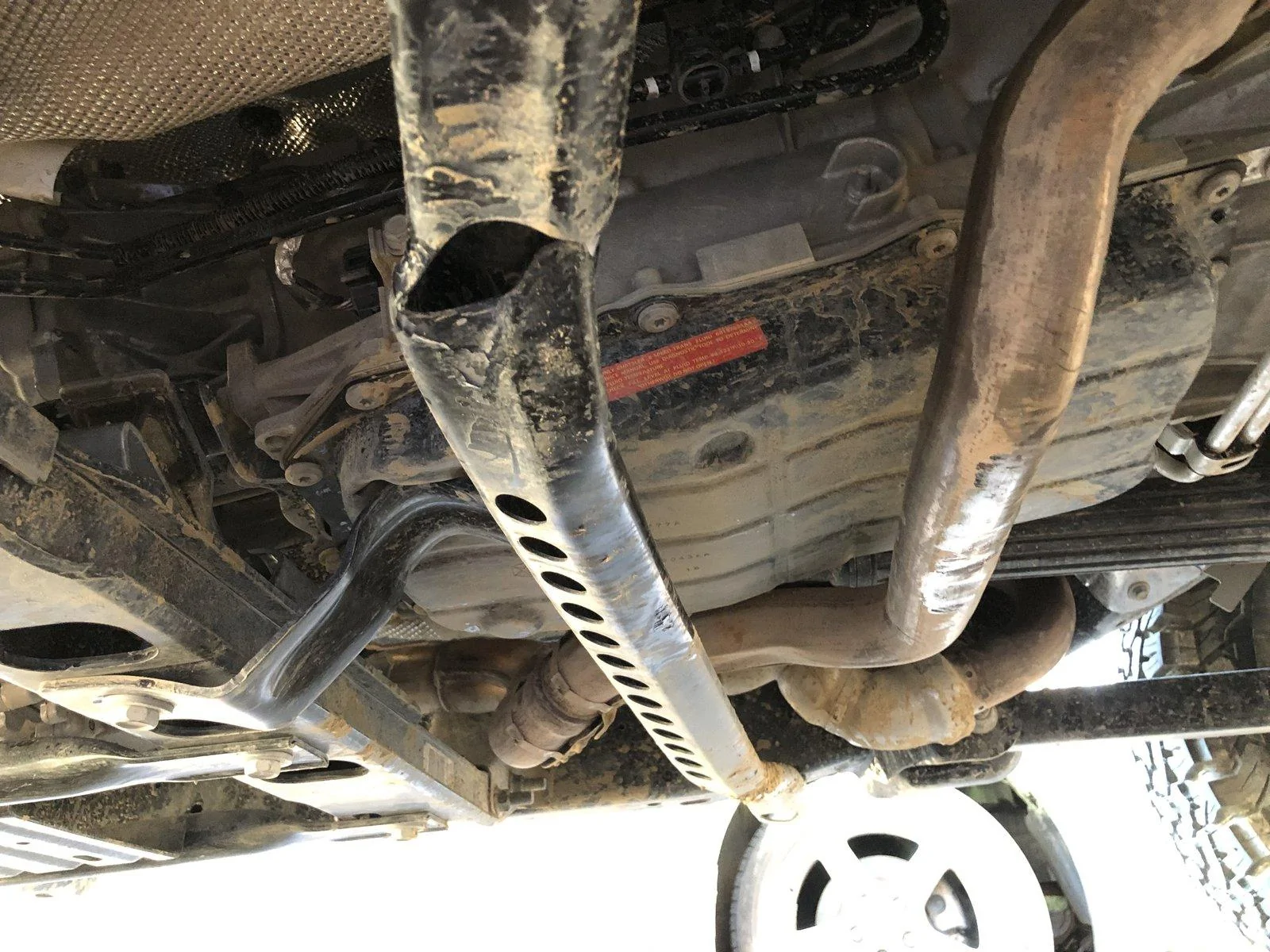

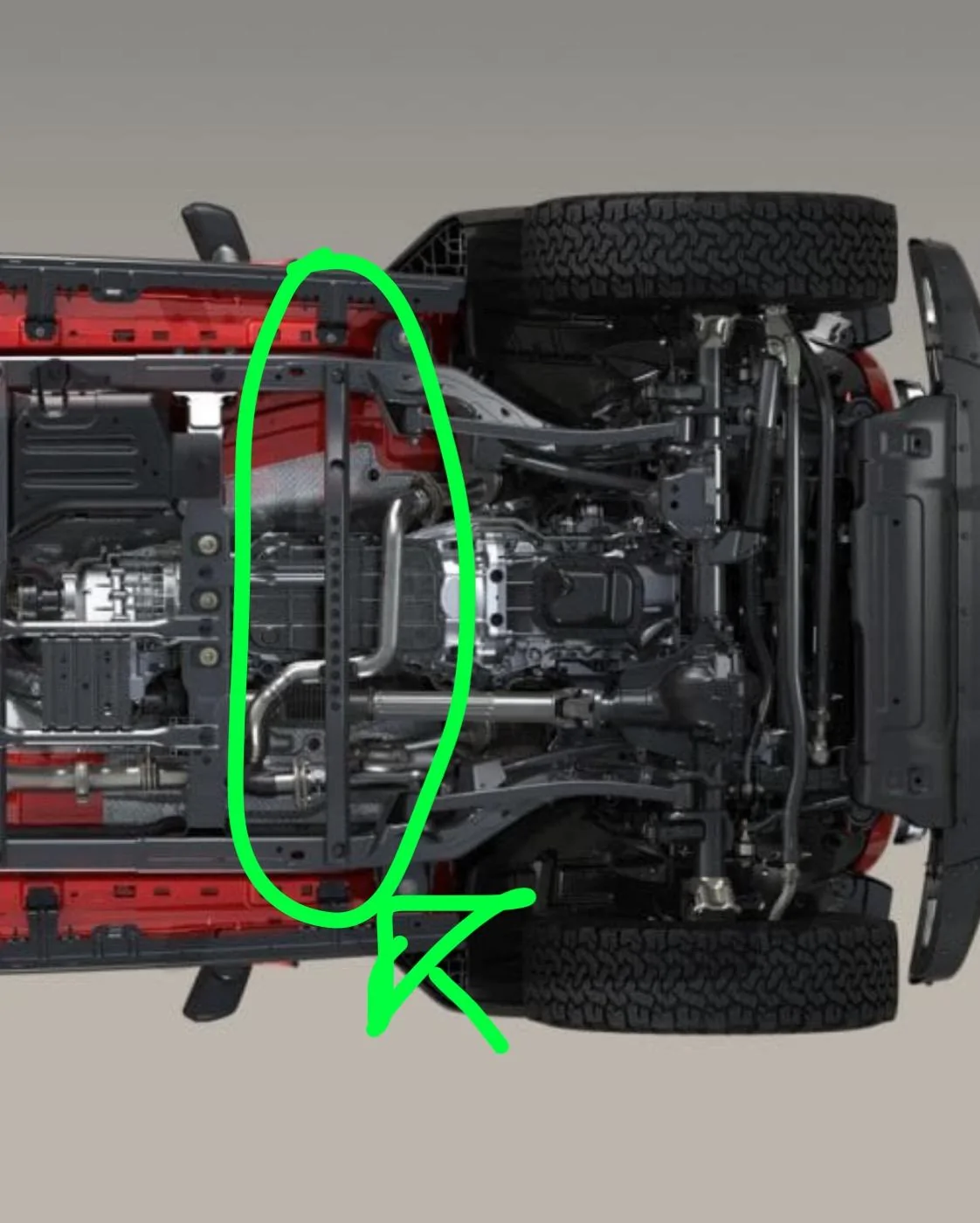

I damaged this crossmember under my jeep, I cant seem to even figure out what its called, to get it replaced.
If anyone knows where I can get a new one?



Advertisement



FrankieFJL

Well-Known Member
First Name
Frank
Joined
Mar 28, 2018
Messages
364
Reaction score
366
Location
Massachusetts
Vehicle(s)
2018 JL Rubicon
Occupation
IT Professional
Vehicle Showcase
1
It's a crossmember, I guess. Looks like you mashed your transmission pan too.

OP
OP
cwadle

cwadle

Well-Known Member
First Name
cameron
Joined
Jul 11, 2018
Messages
238
Reaction score
128
Location
Rochester Hills, MI
Vehicle(s)
2019 Granite JLUR
Vehicle Showcase
1
It's a crossmember, I guess. Looks like you mashed your transmission pan too.
Yeah, I removed the cross member yesterday, just cant find anywhere to buy a new one. Also, Do you think the pan needs to be replaced??


lightsout

Well-Known Member
First Name
Gary
Joined
Oct 1, 2018
Messages
1,505
Reaction score
1,335
Location
Seattle
Vehicle(s)
2021 4xe Rubicon, 2018 Wrangler Sahara JL, Tesla S
Build Thread
Link
At least it is bolt on and easily replaceable


RussJeep1

Banned
Banned
Banned
Joined
Oct 12, 2016
Messages
2,545
Reaction score
1,939
Location
Westchester, NY
Vehicle(s)
JLU Sahara
Somewhat relevant food for thought:


OP
OP
cwadle

cwadle

Well-Known Member
First Name
cameron
Joined
Jul 11, 2018
Messages
238
Reaction score
128
Location
Rochester Hills, MI
Vehicle(s)
2019 Granite JLUR
Vehicle Showcase
1
Yeah, I would be much more concerned with the big dent in the tranny pan than the bent up crossmember.
I haven't noticed any issues yet, What would be some symtoms? Should it be replaced?


digitalbliss

Well-Known Member
Joined
May 26, 2017
Messages
2,107
Reaction score
1,917
Location
North Alabama
Vehicle(s)
2018 JLUR, 1979 CJ7
I haven't noticed any issues yet, What would be some symtoms? Should it be replaced?
Honestly, I'm not sure. My concern would be the adequate/even flow of ATF. I've never looked inside this tranny pan nor have I seen pics.


Chocolate Thunder

Well-Known Member
First Name
Jeremy
Joined
Feb 20, 2018
Messages
4,053
Reaction score
6,354
Location
Texas
Vehicle(s)
2019 Wrangler Unlimited Rubicon
Build Thread
Link
That’s a transmission crossmember but I don’t know the exact nomenclature used in the Mopar parts system.

Regarding the transmission pan, if you use a jack you can unbolt it and lower it carefully, taking care not to spill any fluid. That will allow you to inspect everything inside on the bottom that you can see and check the fluid to see if there’s any small broken parts (I doubt it). Then you could reuse the same fluid and just bolt it up, or replace it with the exact amount of new fluid in the pan since there isn’t a filler neck up top.


IronScott

Well-Known Member
First Name
Scott
Joined
Sep 21, 2018
Messages
1,007
Reaction score
1,176
Location
NW Arkansas
Vehicle(s)
2019 JLU Sahara, 1992 Jeep YJ, 2002 Chevy Silverado
Here is a Poison Spyder one for the JL. They have a video of installing on a JK but I imagine it will be similar for the JL. Not cheap but not super expensive, either. Looks like a worthy upgrade to stock.


wv18jl

Well-Known Member
Joined
Nov 11, 2018
Messages
232
Reaction score
304
Location
WV
Vehicle(s)
2018 JL
I will be the lone voice of descent here.

I would swap that pan out asap.

Easy to do and way cheaper than finding out you were wrong later.

My understanding is that the pan contains the fillter.

Could have smashed filter as well.
