What does the Rancho Geometry Correction Bracket do!?!

RanchoShocks

Well-Known Member
Peak Sponsor (Level 2)
First Name
Matt
Joined
Oct 16, 2016
Threads
57
Messages
389
Reaction score
283
Location
CA
Website
www.gorancho.com
Vehicle(s)
2013 JKU

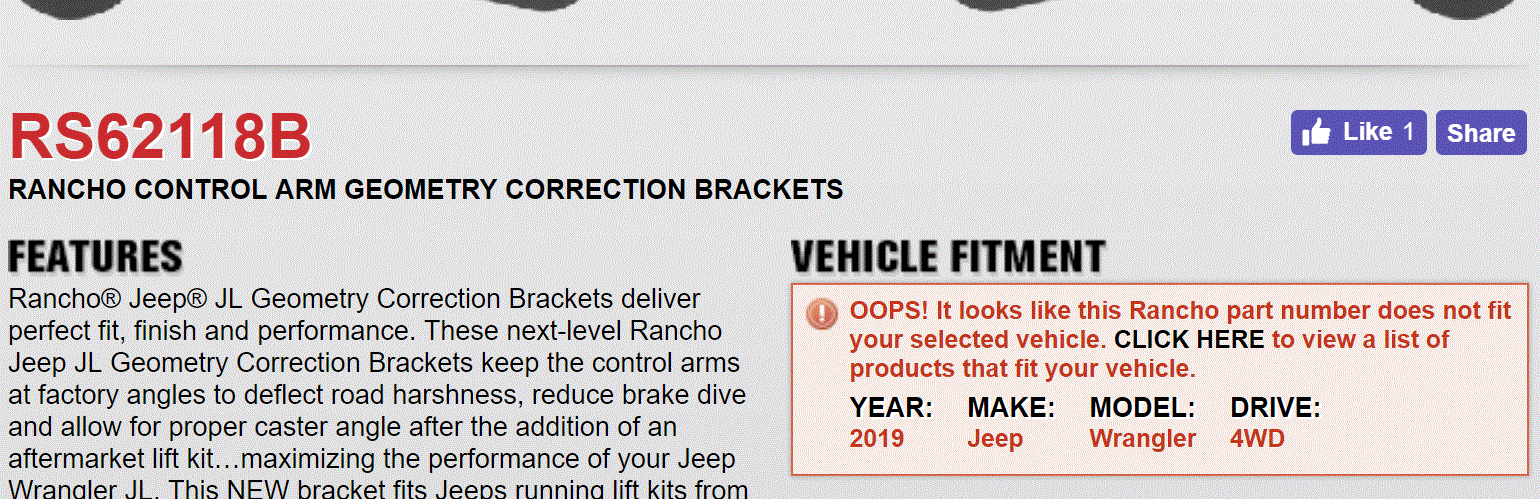

So you lifted your Jeep Wrangler JL and love it, but the ride feels a bit off and it's wandering all over the place. How do you get that original ride back? Follow along as Dr. Deathwobble explains how Rancho control arm geometry correction brackets help gets your Wrangler back to factory spec. Easy to install, the part number for for the Jeep JL it is RS62118B. Enjoy!

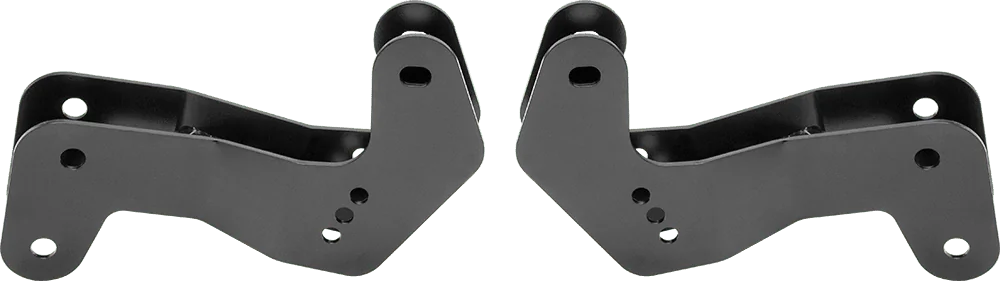

Rancho® Jeep® JL Geometry Correction Brackets deliver perfect fit, finish and performance. These next-level Rancho Jeep JL Geometry Correction Brackets keep the control arms at factory angles to deflect road harshness, reduce brake dive and allow for proper caster angle after the addition of an aftermarket lift kit…maximizing the performance of your Jeep Wrangler JL. This NEW bracket fits Jeeps running lift kits from 2 - 4.5-inches utilizing our unique 3-hole upper control arm locator. Rancho engineering fit and finish delivers a one-piece welded design that will bolt-up directly to the factory locations out of the box, saving you time and aggravation.

  • Compatible with 2 door, 4 door, non-Rubicon, and Rubicon Models
  • Works on 2 - 4.5-inch lift kits that utilize factory upper and lower control arms
  • Corrects control arm alignment geometry to factory specs eliminating the need for adjustable control arms or cam bolts for caster correction
  • Fixed adjustment location for each height with an option for additional caster if needed
  • One-piece welded design with a durable, black power-coated finish
  • No assembly required! Out of box and on to your Jeep…an easy DIY project!
  • Installs easily – 100-percent bolt-on system and detailed, full-color installation guide included!
Sponsored


Last edited by a moderator:

jeeeep

Member
Joined
May 6, 2019
Threads
0
Messages
6
Reaction score
2
Location
Tx
Vehicle(s)
2018 JLU
ordered a set for the JK! will likely order a set for the JL since the rebates are on :rock:


Sponsored

californiajeeping

Well-Known Member
Joined
Feb 1, 2019
Threads
46
Messages
2,035
Reaction score
1,746
Location
California
Vehicle(s)
JLUR
Is there another type of bracket to fix the wandering for a non-lifted JL? Maybe a new bracket that is at a different angle? Or better yet, an adjustable bracket?


jhernandez

Banned
Banned
Banned
First Name
Jay
Joined
Aug 12, 2019
Threads
6
Messages
115
Reaction score
6
Location
Illinois
Vehicle(s)
2019 JEEP WRANGLER SPORTS UNLIMITED 3.6 4 DOORS JL
So you lifted your Jeep Wrangler JL and love it, but the ride feels a bit off and it's wandering all over the place. How do you get that original ride back? Follow along as Dr. Deathwobble explains how Rancho control arm geometry correction brackets help gets your Wrangler back to factory spec. Easy to install, the part number for for the Jeep JL it is RS62118B. Enjoy!




Rancho® Jeep® JL Geometry Correction Brackets deliver perfect fit, finish and performance. These next-level Rancho Jeep JL Geometry Correction Brackets keep the control arms at factory angles to deflect road harshness, reduce brake dive and allow for proper caster angle after the addition of an aftermarket lift kit…maximizing the performance of your Jeep Wrangler JL. This NEW bracket fits Jeeps running lift kits from 2 - 4.5-inches utilizing our unique 3-hole upper control arm locator. Rancho engineering fit and finish delivers a one-piece welded design that will bolt-up directly to the factory locations out of the box, saving you time and aggravation.

  • Compatible with 2 door, 4 door, non-Rubicon, and Rubicon Models
  • Works on 2 - 4.5-inch lift kits that utilize factory upper and lower control arms
  • Corrects control arm alignment geometry to factory specs eliminating the need for adjustable control arms or cam bolts for caster correction
  • Fixed adjustment location for each height with an option for additional caster if needed
  • One-piece welded design with a durable, black power-coated finish
  • No assembly required! Out of box and on to your Jeep…an easy DIY project!
  • Installs easily – 100-percent bolt-on system and detailed, full-color installation guide included!
2019 jeep wrangler sports unlimited 4 doors v6
So if i install the 3.5 lift kit rancho rs9000xl this come with shocks, coil spring, sway bar link, bump stop, also going with nitto ridge grappler tires 35x12.50r20 and 20x10 xd kmc 173 fmj offset - 18mm. With this set up do i go with relocation bracket for control arms for front and rear also can i just use relocation bracket for front and rear track bar to correct all angle geometry ? Also which one is better bracket or adjustable control arms and track bar adjustable please help thanks.

OP
OP
RanchoShocks

RanchoShocks

Well-Known Member
Peak Sponsor (Level 2)
First Name
Matt
Joined
Oct 16, 2016
Threads
57
Messages
389
Reaction score
283
Location
CA
Website
www.gorancho.com
Vehicle(s)
2013 JKU
If you spend more time on the roads than trails, get the correction bracket. Better overall ride feel.
The JL really benefits from these.
You can use a relocation bracket for the track bars.
But upgrading those is nice too. Ours (and other after market manufacturers) are much beefier than stock.
Thanks Matt

2019 jeep wrangler sports unlimited 4 doors v6
So if i install the 3.5 lift kit rancho rs9000xl this come with shocks, coil spring, sway bar link, bump stop, also going with nitto ridge grappler tires 35x12.50r20 and 20x10 xd kmc 173 fmj offset - 18mm. With this set up do i go with relocation bracket for control arms for front and rear also can i just use relocation bracket for front and rear track bar to correct all angle geometry ? Also which one is better bracket or adjustable control arms and track bar adjustable please help thanks.
