Warn Power Interrupter in the 392 Engine Bay

[Usethis83]

Have any of you installed this on a 392? Got pics? I am finding the traditonal places left of the battery are too tight on the 392 compared to other motor options. Looking for creative solutions.

There was an unanswered thread on this very topic.

https://www.jlwranglerforums.com/fo...errupt-install-on-392-photos-requested.71940/

Sponsored



[alksion]

Have any of you installed this on a 392? Got pics? I am finding the traditonal places left of the battery are too tight on the 392 compared to other motor options. Looking for creative solutions.

There was an unanswered thread on this very topic.

https://www.jlwranglerforums.com/fo...errupt-install-on-392-photos-requested.71940/

I had it installed by a shop a few months back in my 392. I’ll try to snap a photo for you tomorrow.



[Usethis83]

I had it installed my a shop a few months back in my 392. I’ll try to snap a photo for you tomorrow.

Thanks. I have a plan, but always open to suggestions to see what others have done.



[Usethis83]

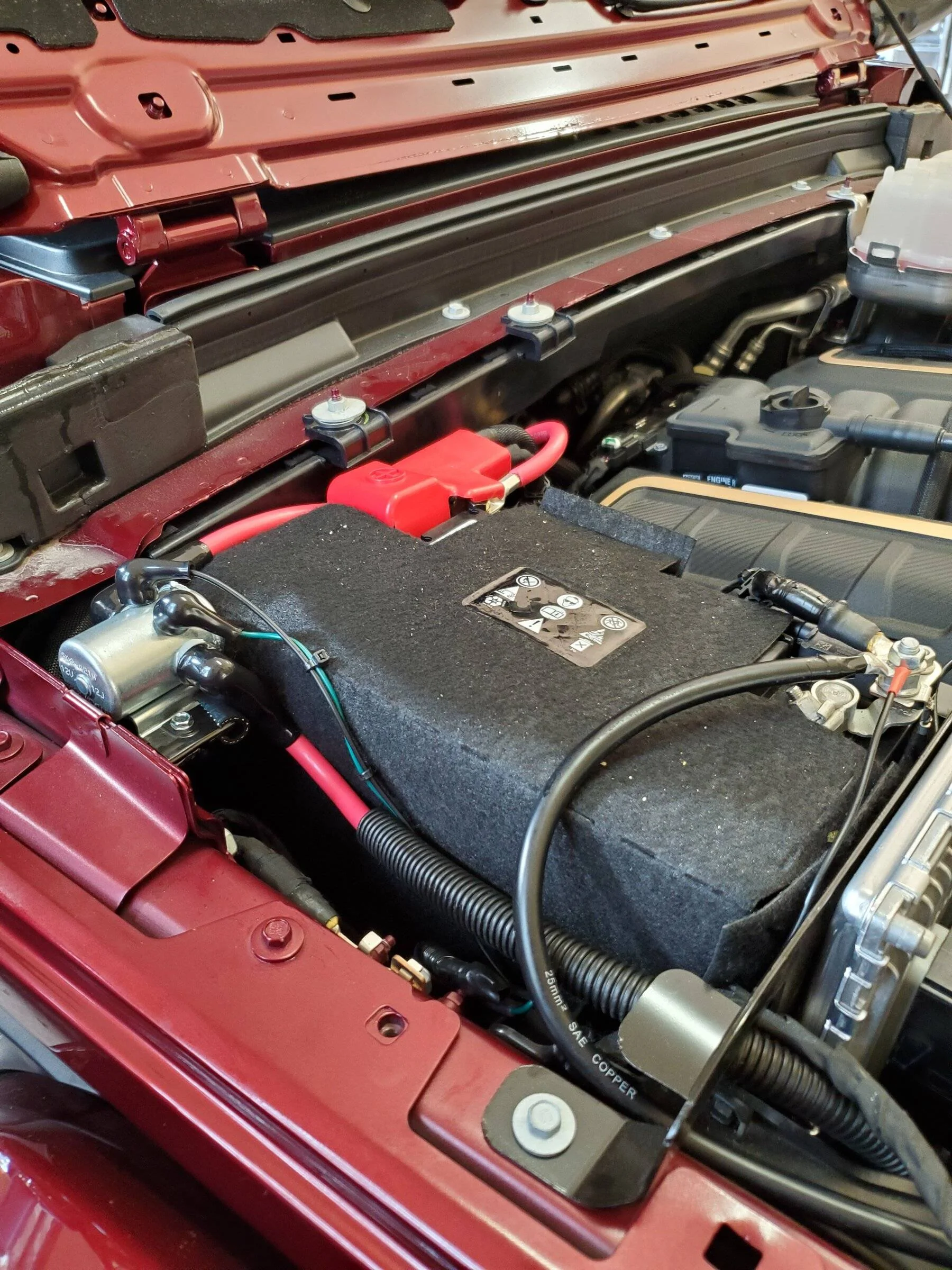

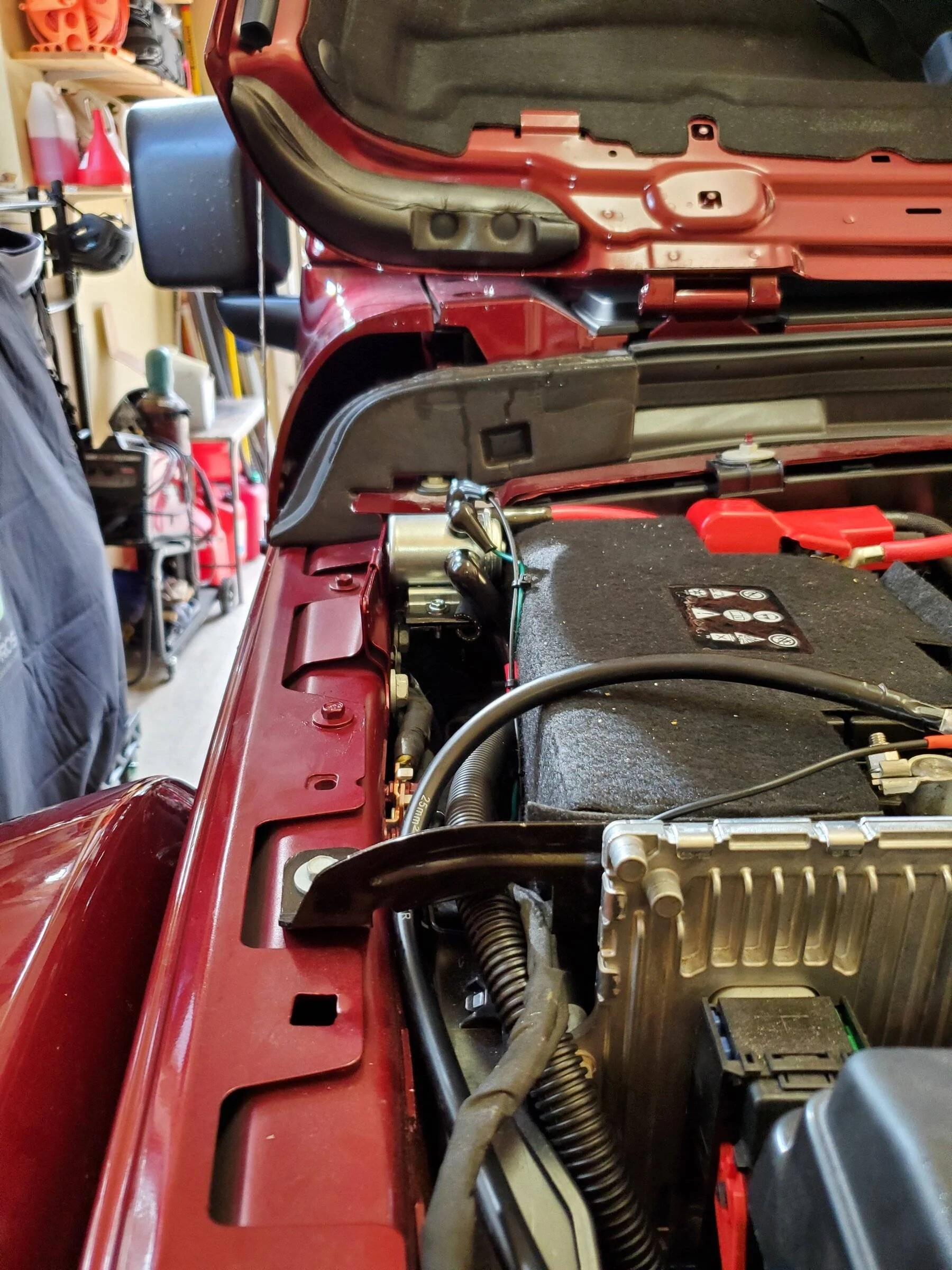

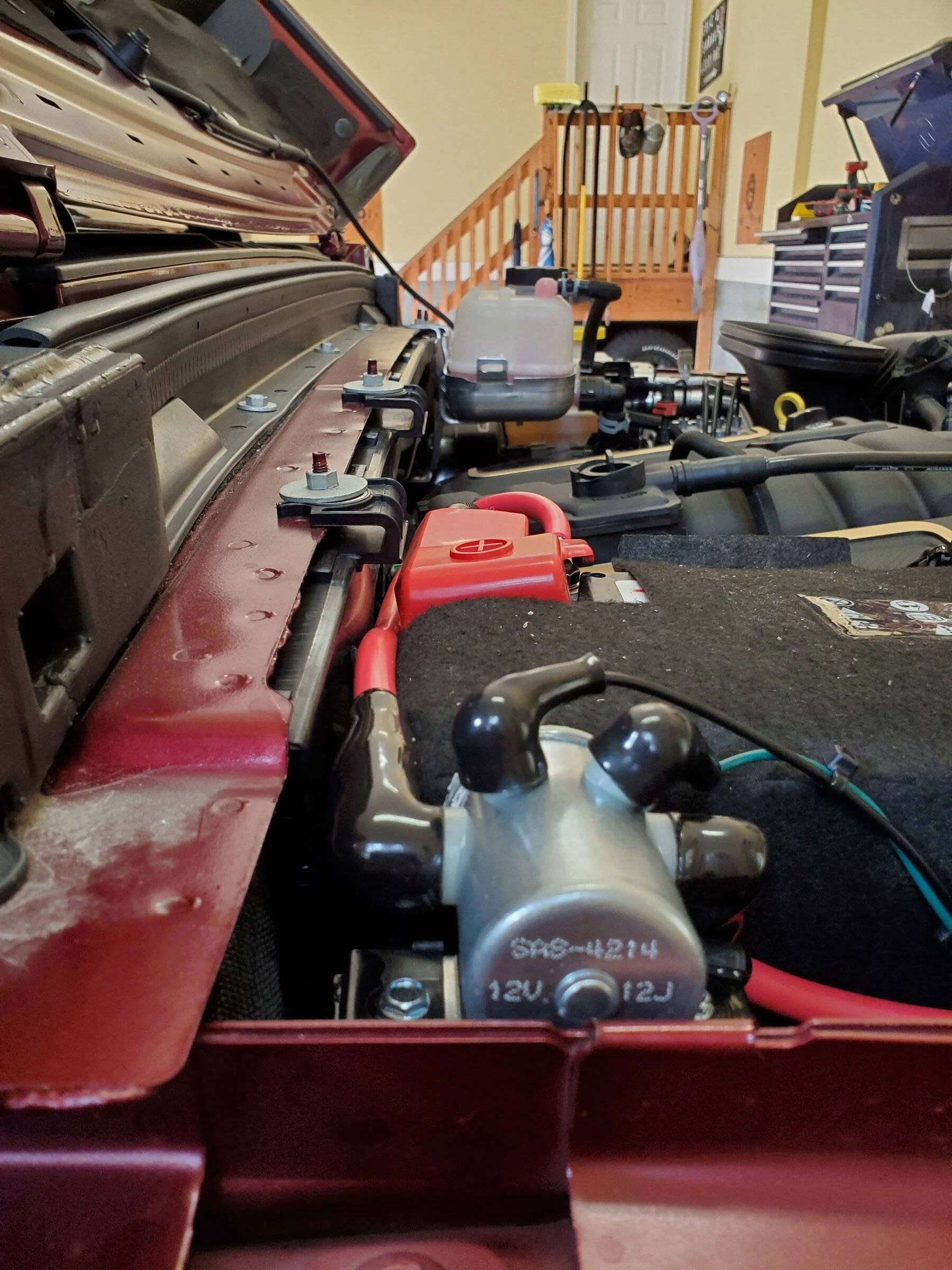

This is what I decided to do. I spent time on the bracket so it would fit just so. I also used nutzerts for the 10-24 mounting bolts so minimal tools needed to remove. It is high enough to service easlily, but does not hit the hood/firewall/fender. Also used 3M disconnect for the switch power using aux 4 in the cab. This way if i have to pull it on the trail it is a 3 minuten deal.



[Usethis83]



[Usethis83]



[Usethis83]



[Brew211]

Thanks for sharing. Do you know how they made or where they bought the mount?



[Usethis83]

Thanks for sharing. Do you know how they made or where they bought the mount?

I made it out some scrap angle i had.



[Left Field]

Thanks for blazing the trail & the nice install pictures! Your approach looks like a good way to go, very clean. I'll probably do the exact same.
