Installed my EVO 10s and Warn winch plate last night and wanted to pass along some information.

1) There was no issue with any of the bumper bolts as noted by some of the 3.6 and 2.0 users where the inner bumper bolts were a bear to reinstall. Mine went on just fine without any redneck engineering. Just make sure you have an 18mm deep socket for the bumper bolts.

2) 2 of the skid plate bracket bolts on the passenger side were stripped from the factory and I had to order new ones, which was frustrating as hell on a brand new $60k jeep.

3) The connection to the swaybar disconnect was barely hanging on as the clip used to secure it was not properly seated from the factory, so you may want to check this on yours.

4) The most difficult part was routing the positive and negative lines for the winch. The engine bay is extremely cramped and my poor fingers and knuckled paid the ultimate price.

@JeepCares how about some quality control here?

EDIT:

5) The addition of the winch and winch plate brought my front end down exactly .5"
Before: Ride height with 37" tires = 41.5" on stock Rubicon suspension
After: Ride height with 37" tires = 41" on stock Rubicon suspension





Advertisement


Last edited:
OP
Gonzanc

Gonzanc

Well-Known Member
First Name
Nick
Joined
Nov 20, 2019
Messages
183
Reaction score
205
Location
ATL
Vehicle(s)
'20 JLURD, '76 FJ40, '17 BMW 650i Gran coupe
  • Thread starter
  • Thread Starter
  • #2

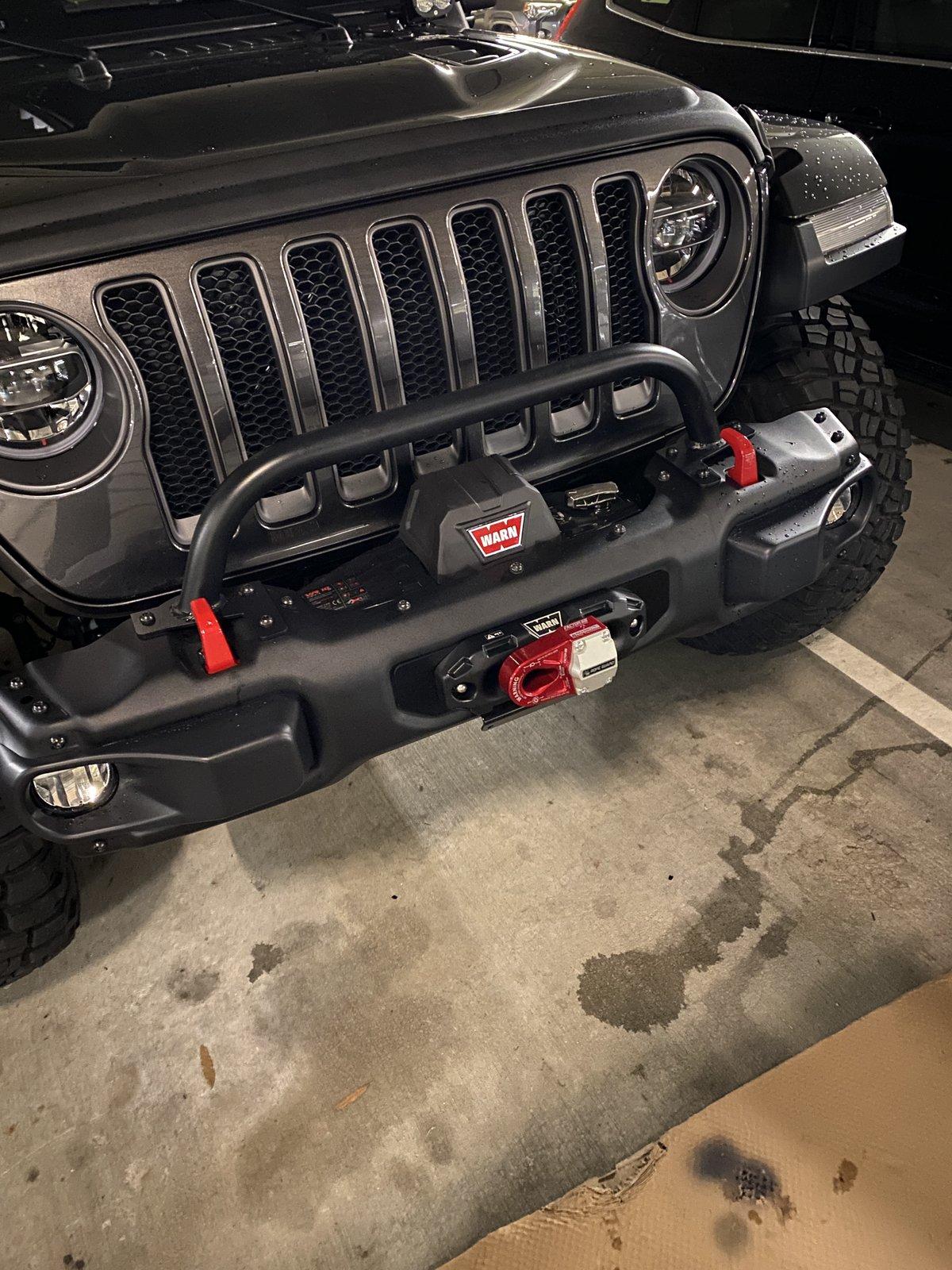

I’m heading out of town again, but here’s a pic to hold everyone over. After I install my tuffy security deck, I’ll do a post about all of the mods with more pics
