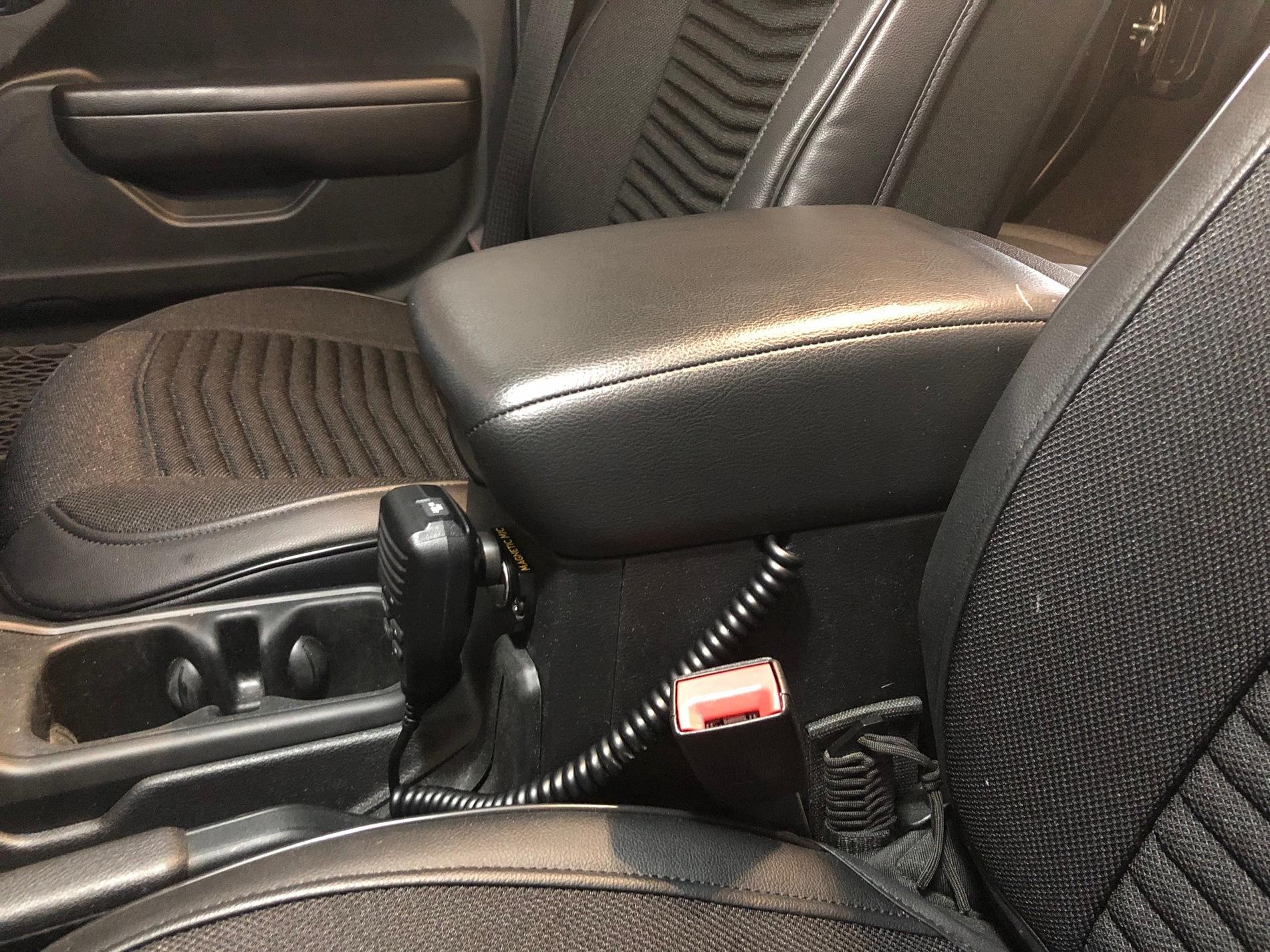

Finally completed my CMX-660 install.
Aux Audio runs under the center console and plugs into media center in dash.
I wanted to keep this as simple and out of site. I don't use it much, but when needed, it's there.
I'll have to grab a pic of the Firestik antenna mounted on the JCR Bumper. Worked out quite well. Actually have it on a quick disconnect and Spring.



Advertisement



jeepdriver99

Well-Known Member
First Name
JD
Joined
Jan 27, 2018
Messages
197
Reaction score
174
Location
Central Ohio
Vehicle(s)
18 JLR 2 Door, 21 JLU TD, 06 GC, 54 Willys SW
Occupation
Retired, W8BWD
That looks good. My only concern would be air circulation to keep it cool. It may generate a bit of heat when it's turned on.


JonW

Active Member
First Name
Jon
Joined
Jan 10, 2019
Messages
43
Reaction score
51
Location
Huntington Beach, CA
Website
www.socallx.com
Vehicle(s)
2012 Chrysler 300 SRT8, 2006 Toyota PreRunner, Researching a JL
That looks good. My only concern would be air circulation to keep it cool. It may generate a bit of heat when it's turned on.
Most radios don't generate much heat when only listening. The heat is generated when transmitting. If your transmit duty cycle is pretty low, it will be fine. If you're a chatterbox, it could be a problem.


jeepdriver99

Well-Known Member
First Name
JD
Joined
Jan 27, 2018
Messages
197
Reaction score
174
Location
Central Ohio
Vehicle(s)
18 JLR 2 Door, 21 JLU TD, 06 GC, 54 Willys SW
Occupation
Retired, W8BWD
Most radios don't generate much heat when only listening. The heat is generated when transmitting. If your transmit duty cycle is pretty low, it will be fine. If you're a chatterbox, it could be a problem.
I guess time will tell.


jeepdriver99

Well-Known Member
First Name
JD
Joined
Jan 27, 2018
Messages
197
Reaction score
174
Location
Central Ohio
Vehicle(s)
18 JLR 2 Door, 21 JLU TD, 06 GC, 54 Willys SW
Occupation
Retired, W8BWD
THAT will teach me. I didn't realize (didn't even cross my mind) that its a CB. 4 watts, you're both right that it shouldn't be a problem.


zyt

Well-Known Member
Joined
Dec 21, 2017
Messages
321
Reaction score
217
Location
Maryland
Vehicle(s)
Mazda Miata
Finally completed my CMX-660 install.
Aux Audio runs under the center console and plugs into media center in dash.
I wanted to keep this as simple and out of site. I don't use it much, but when needed, it's there.
I'll have to grab a pic of the Firestik antenna mounted on the JCR Bumper. Worked out quite well. Actually have it on a quick disconnect and Spring.



Off topic, what kind seat cover is it? looks pretty nice and fits well

OP
OP
ZeroFox

ZeroFox

Well-Known Member
Peak Sponsor (Level 2)
First Name
Michael
Joined
Oct 2, 2018
Messages
193
Reaction score
242
Location
Independence, KY
Website
diabolicalinc.com
Vehicle(s)
2019 Rubicon Unlimited
Occupation
Diabolical Inc
Vehicle Showcase
1
Off topic, what kind seat cover is it? looks pretty nice and fits well
The Seat Covers are Rixxu.

https://www.carid.com/rixxu/rixxu-classic-series-seat-covers-469994768.html

I searched for some time and these kept coming up. I like them as they do not cover the Molle panel on the back of the Rubicon seat. My only dislike is not the cover, but the fact that I'm over 6' and the seat needs to retract more. Installing the cover inhibits this but it's a very small change.


JonW

Active Member
First Name
Jon
Joined
Jan 10, 2019
Messages
43
Reaction score
51
Location
Huntington Beach, CA
Website
www.socallx.com
Vehicle(s)
2012 Chrysler 300 SRT8, 2006 Toyota PreRunner, Researching a JL
THAT will teach me. I didn't realize (didn't even cross my mind) that its a CB. 4 watts, you're both right that it shouldn't be a problem.
LOL, yeah, thinking it was a HAM radio it would likely be a problem there. 25-50 watts on a HAM doesn't take kindly to small spaces.


MandKM

Well-Known Member
First Name
Mark
Joined
Dec 14, 2018
Messages
264
Reaction score
502
Location
SoCal
Vehicle(s)
‘73 CJ5, ‘19 2-door JL Rubicon
Vehicle Showcase
1
Finally completed my CMX-660 install.
Aux Audio runs under the center console and plugs into media center in dash.
I wanted to keep this as simple and out of site. I don't use it much, but when needed, it's there.
I'll have to grab a pic of the Firestik antenna mounted on the JCR Bumper. Worked out quite well. Actually have it on a quick disconnect and Spring.



That is a clean install. How did you run your power and antenna? I assume you drilled a hole in the side of the storage compartment. Did you run into any issues? I expect that it has double walls.

OP
OP
ZeroFox

ZeroFox

Well-Known Member
Peak Sponsor (Level 2)
First Name
Michael
Joined
Oct 2, 2018
Messages
193
Reaction score
242
Location
Independence, KY
Website
diabolicalinc.com
Vehicle(s)
2019 Rubicon Unlimited
Occupation
Diabolical Inc
Vehicle Showcase
1
That is a clean install. How did you run your power and antenna? I assume you drilled a hole in the side of the storage compartment. Did you run into any issues? I expect that it has double walls.

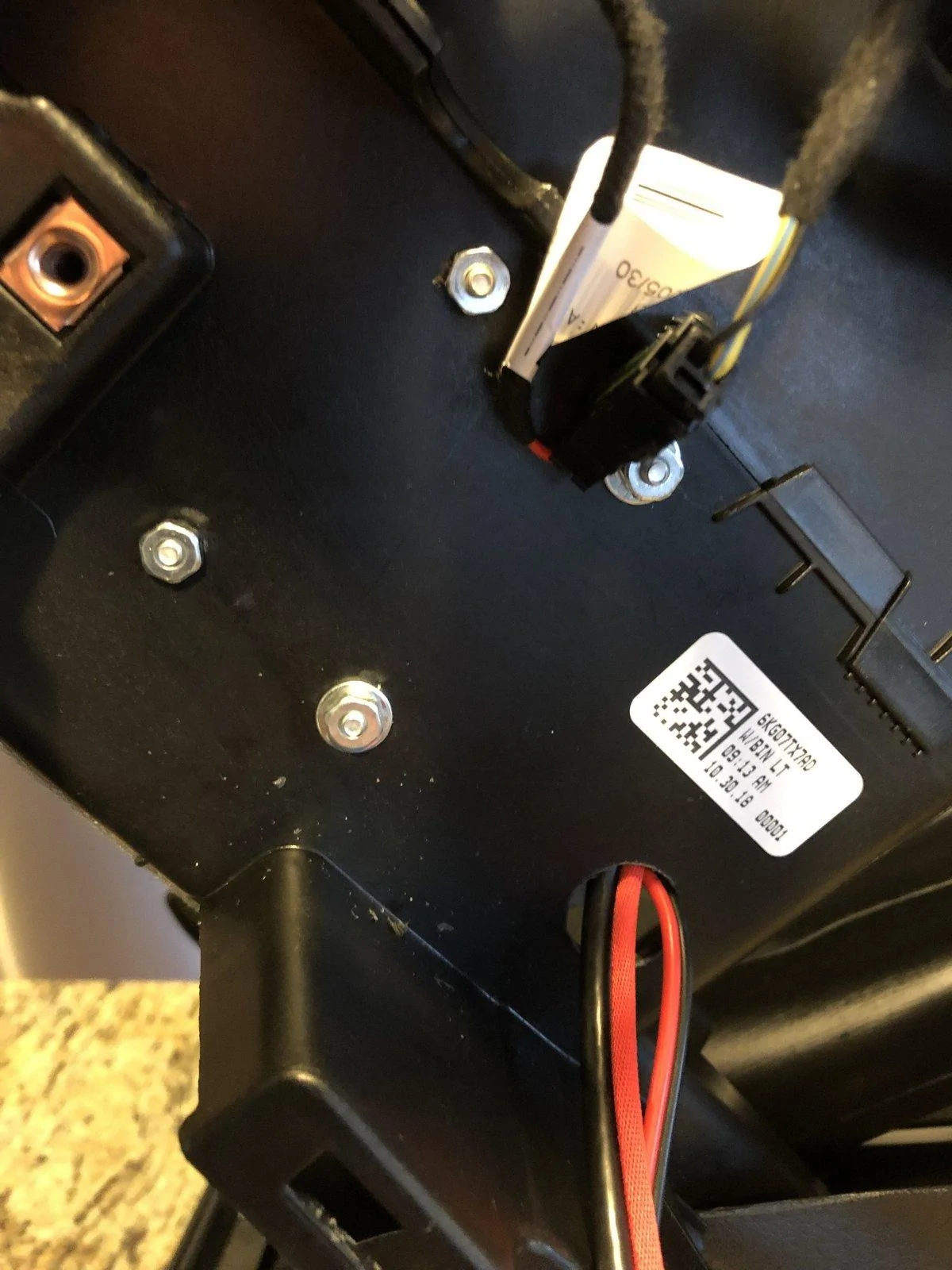

Taking the center console out of the vehicle was the easy part. Tearing it down sucked. Almost every screw had to come out to gain the access I wanted to mount the CB Mount Bracket. I also had to install a 90* Coax adapter to fit it in. It was a single ply of material at that point, and nothing went thru the outer shell so it's a clean look. The Coax is run under the carpet aft along passenger side to the drain plug in the rear. The PWR/GND are run forward along the console/under carpet. There is a ground stud at the base of the center pedestal, and the power wire is tied into the extra Ignition wire supplied with the Aux Switch Panel Option(or maybe these are standard?)

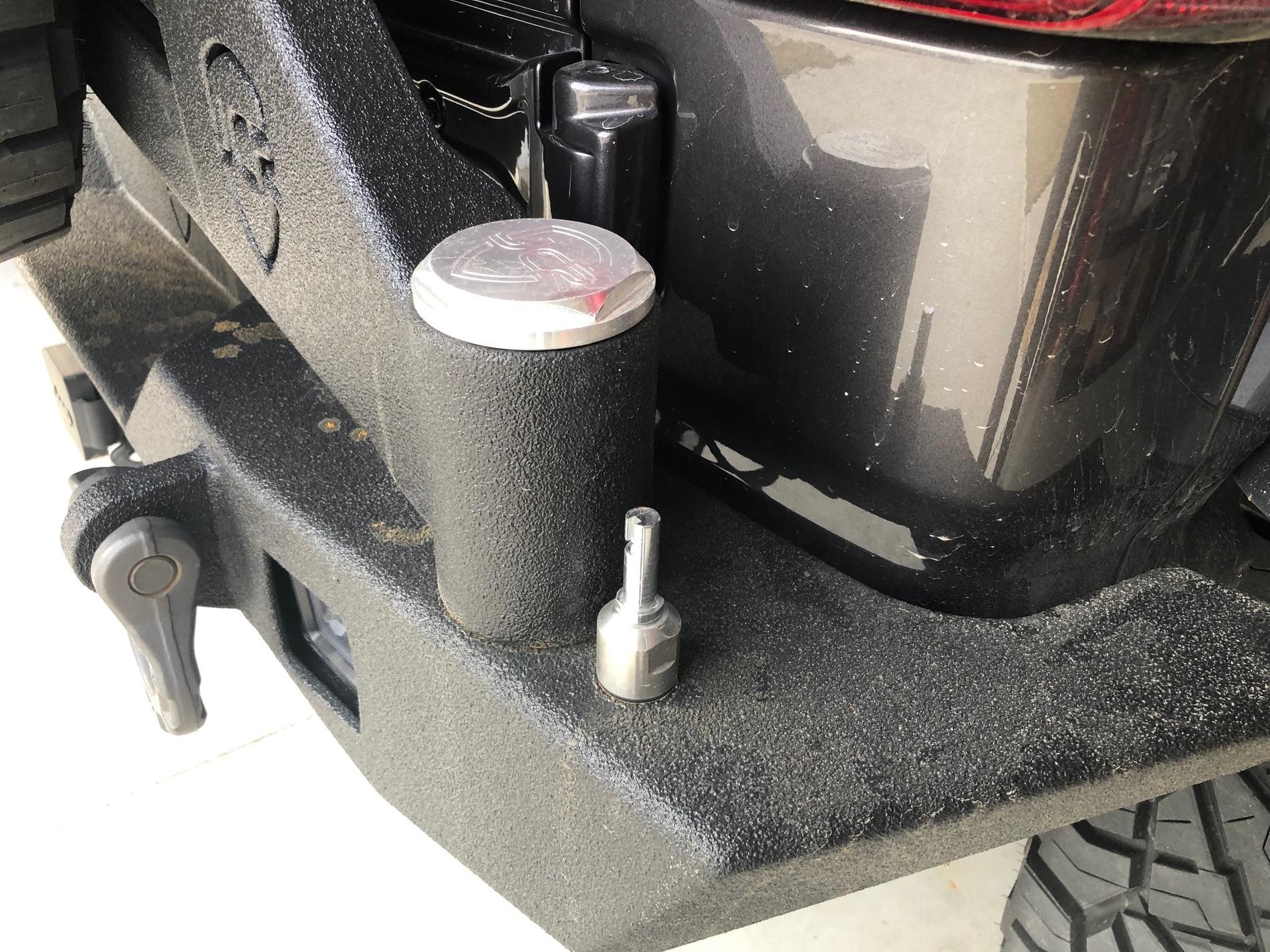

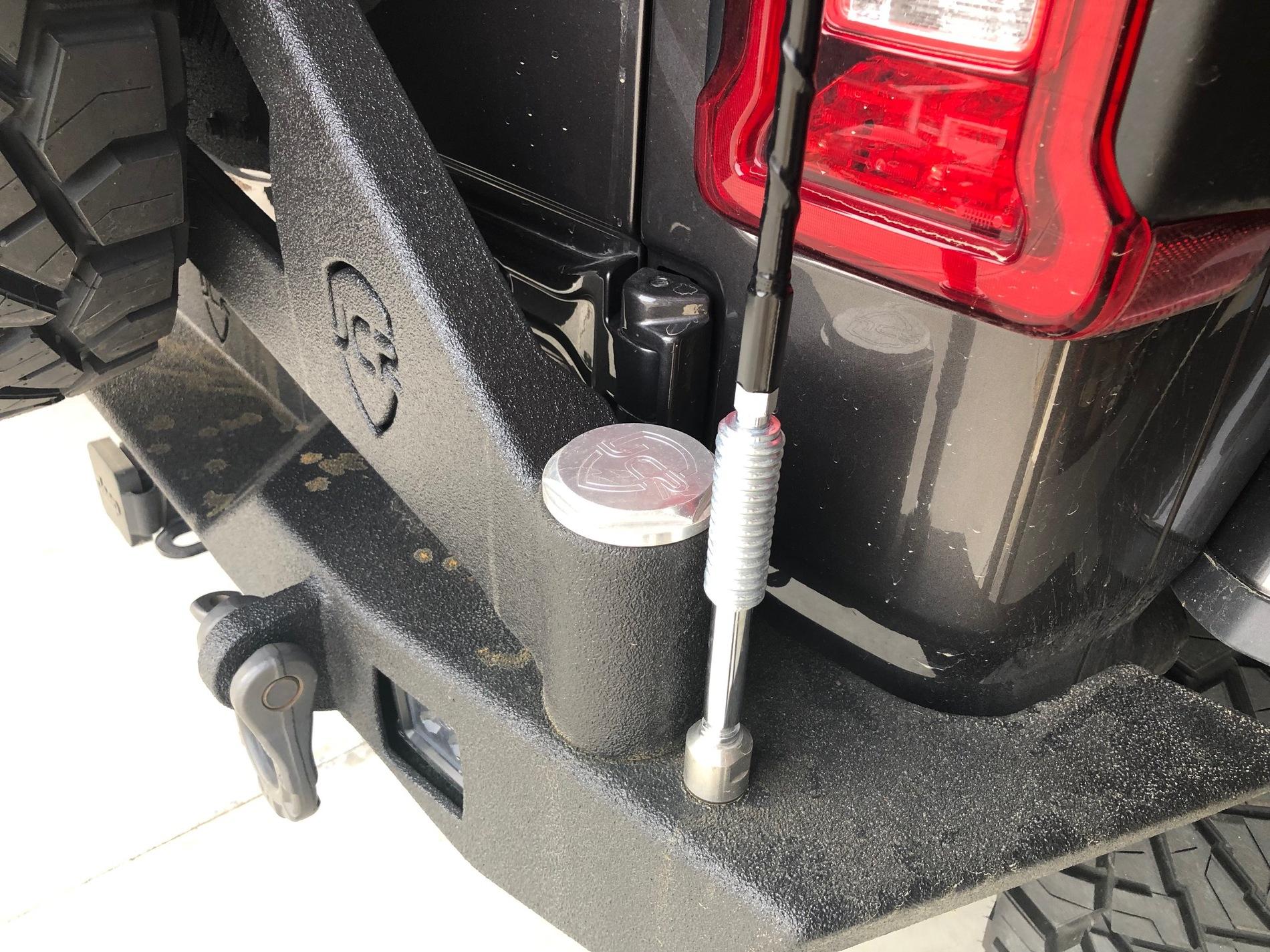

The Antenna was mounted to an existing hole in the JCR Bumper. Installed a heavy duty stud mount, quick release, and spring for the Firestik 4' antenna. Wishing I would have went 3' so I could leave it on to get it in the garage, but it will all be mute once the Rhino Rack is installed.
