    Picture heavy!

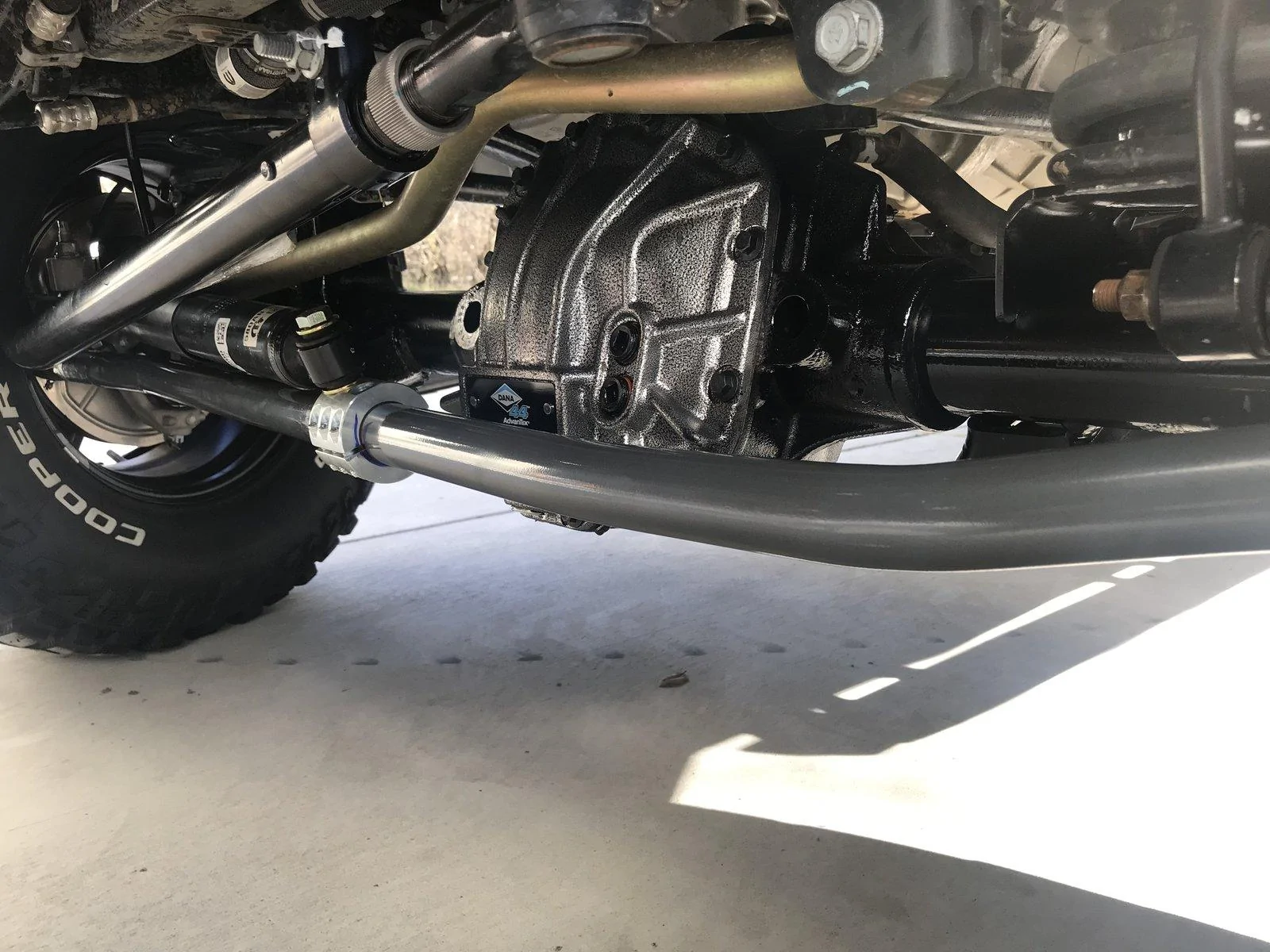

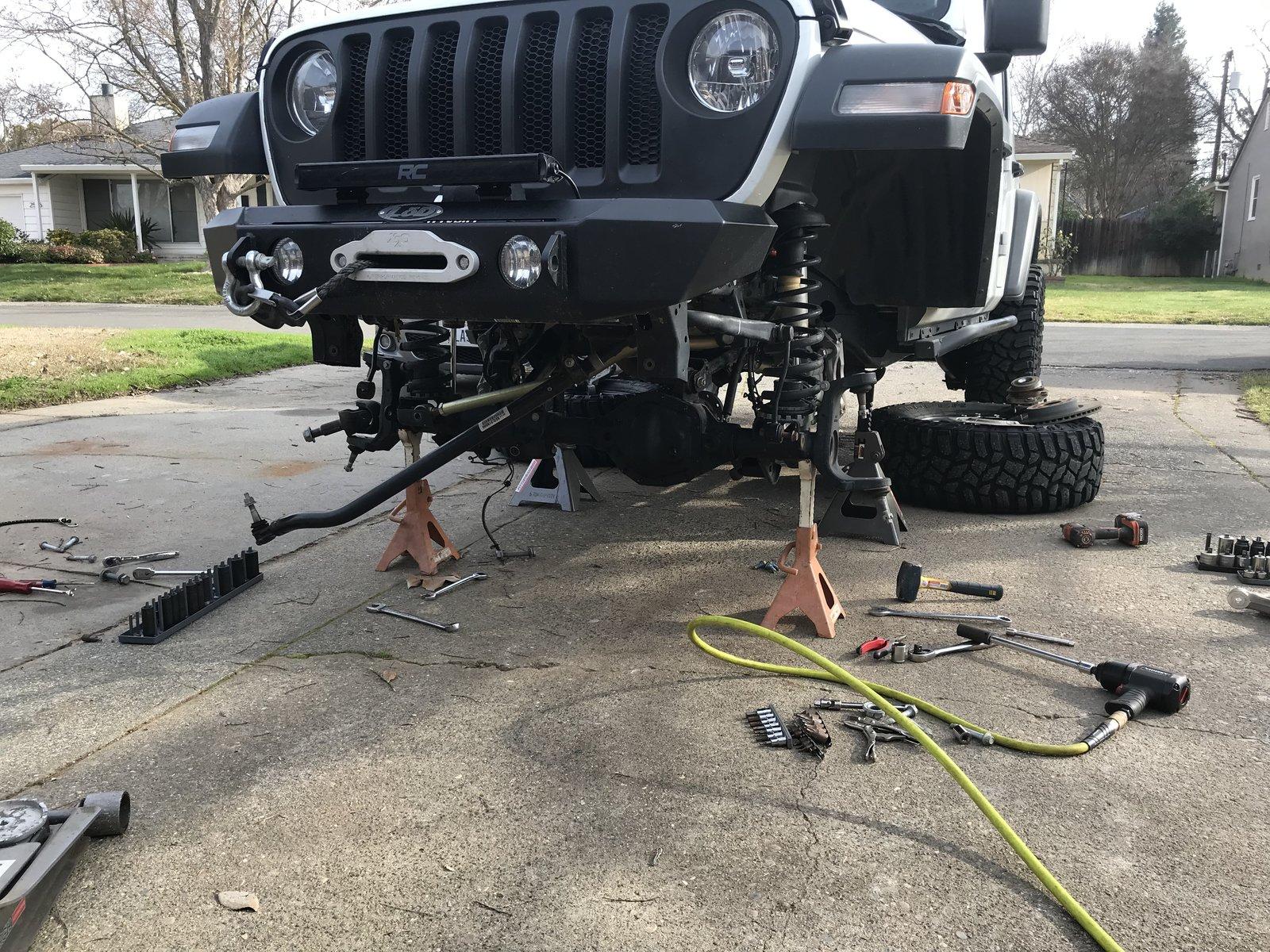

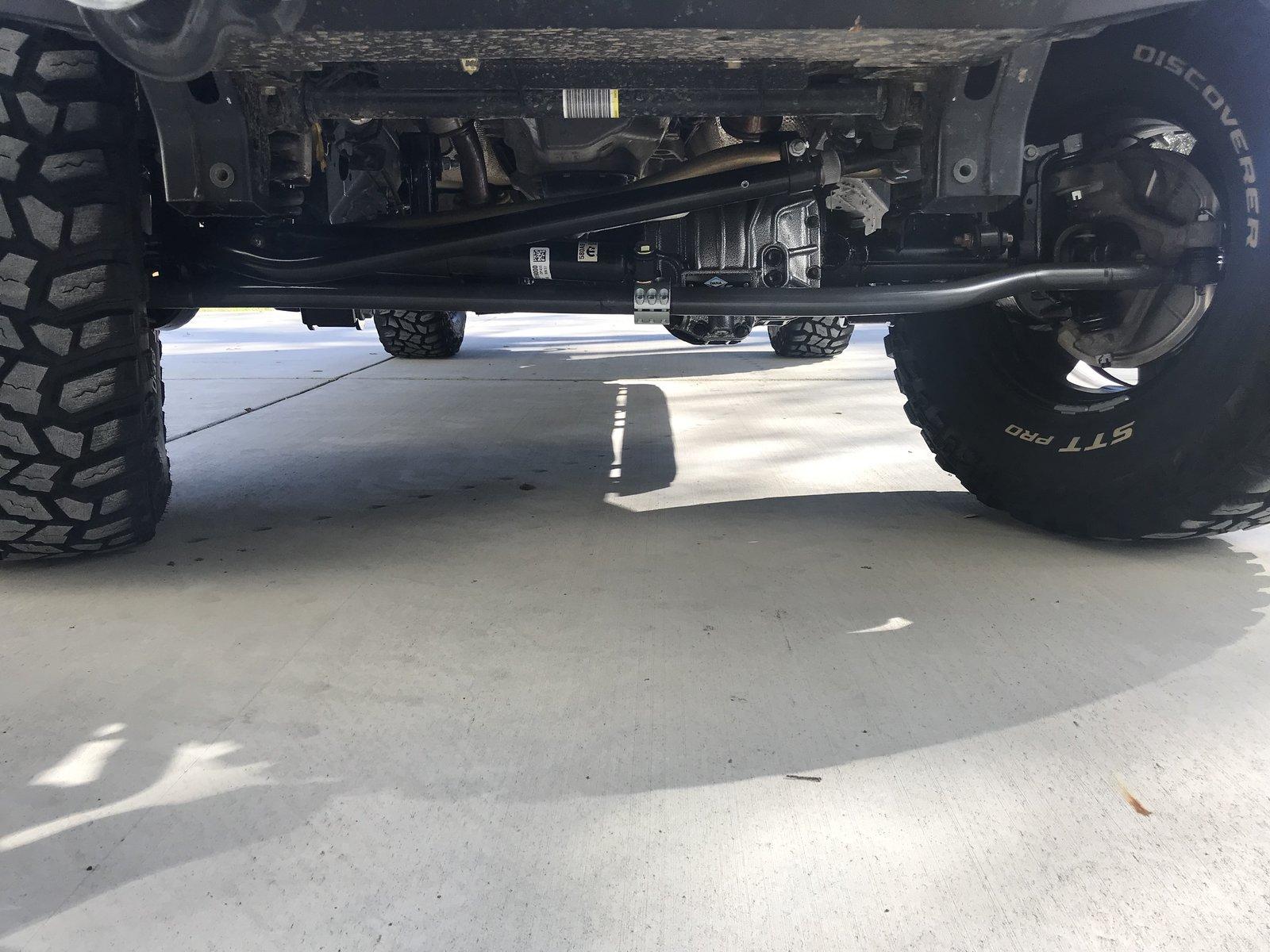

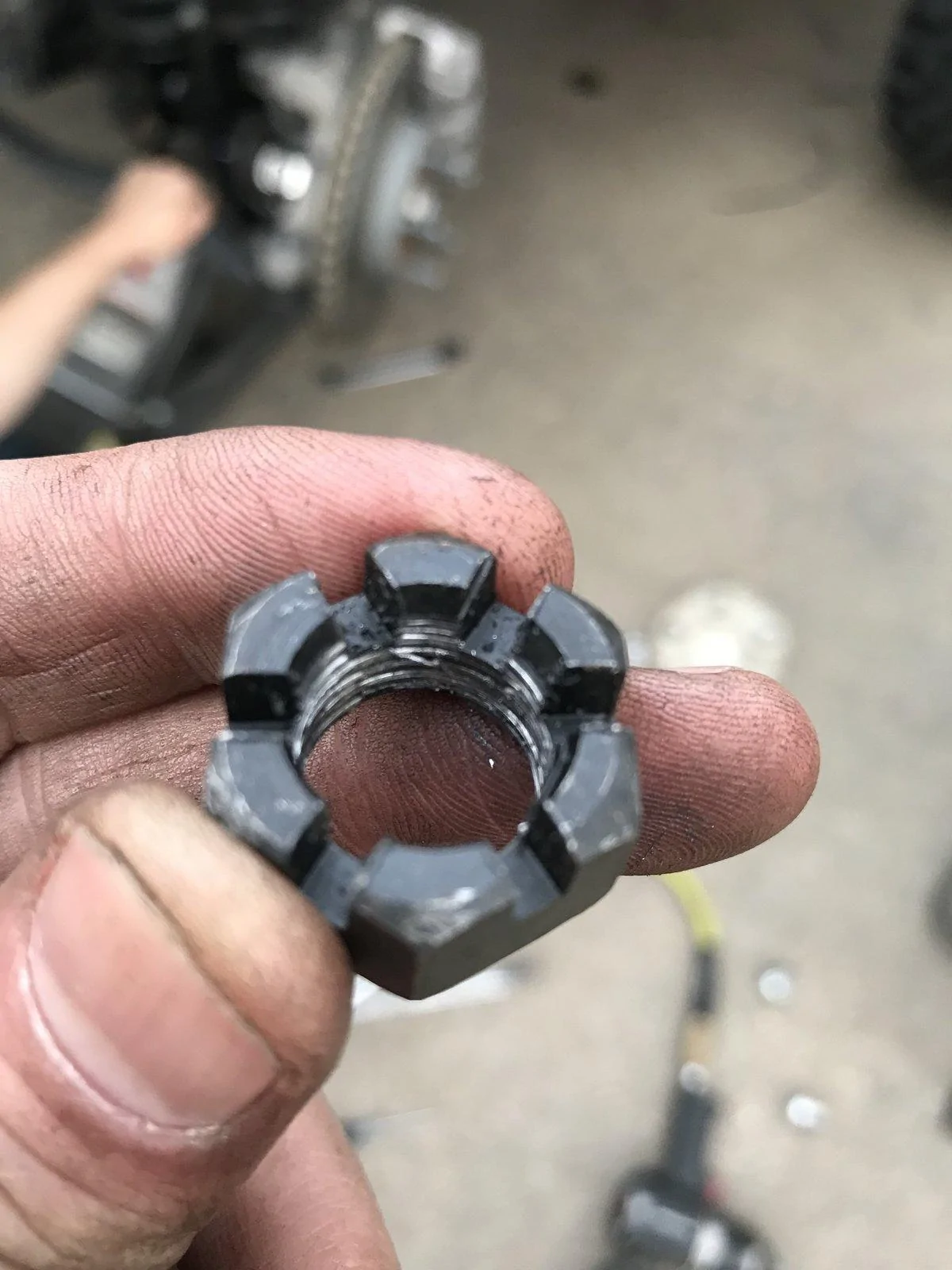

    Finished yesterday. The install went mostly trouble free apart from destroying one of the castle nut threads for the synergy tie rod. Not sure what happened there.

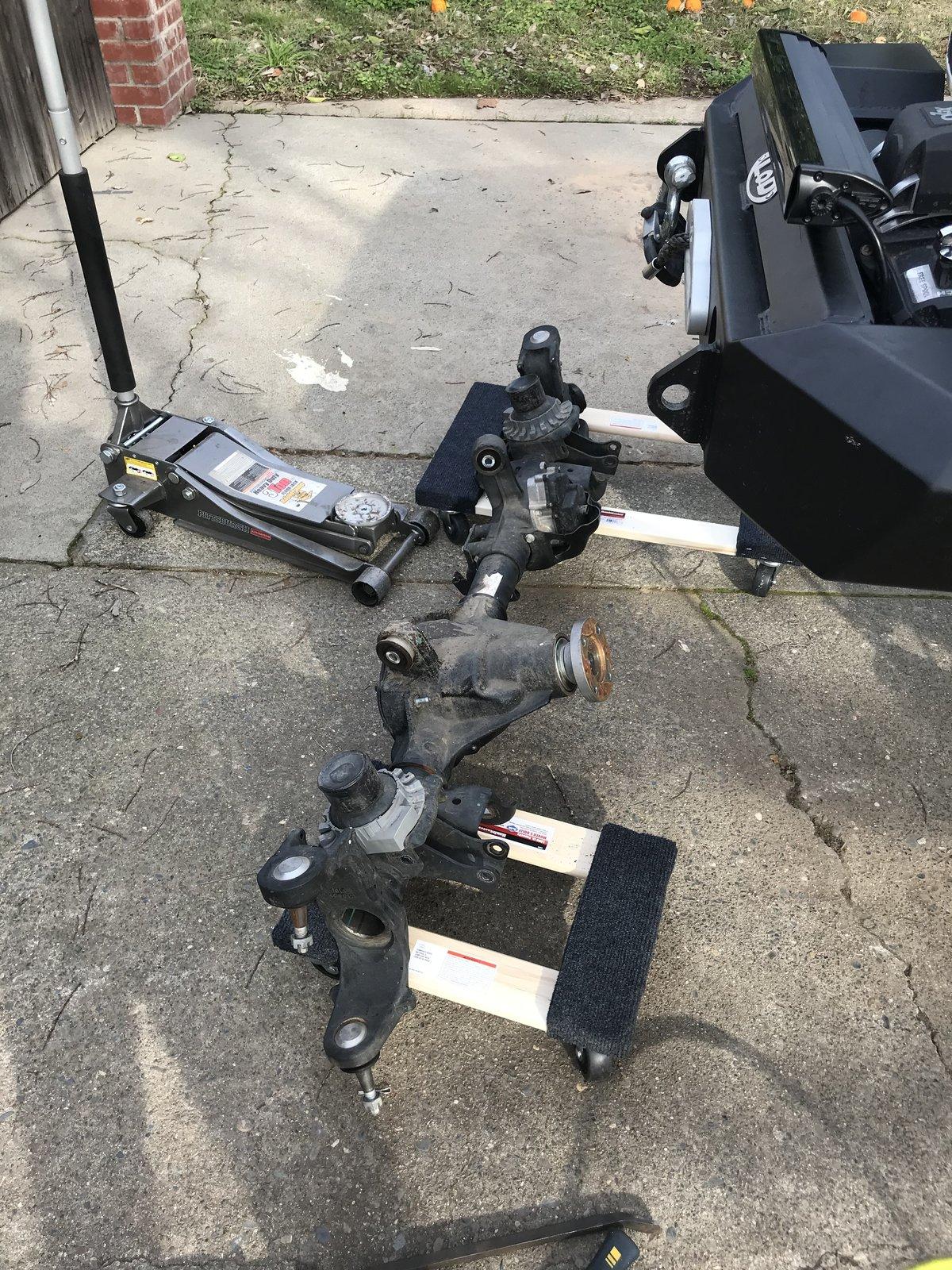

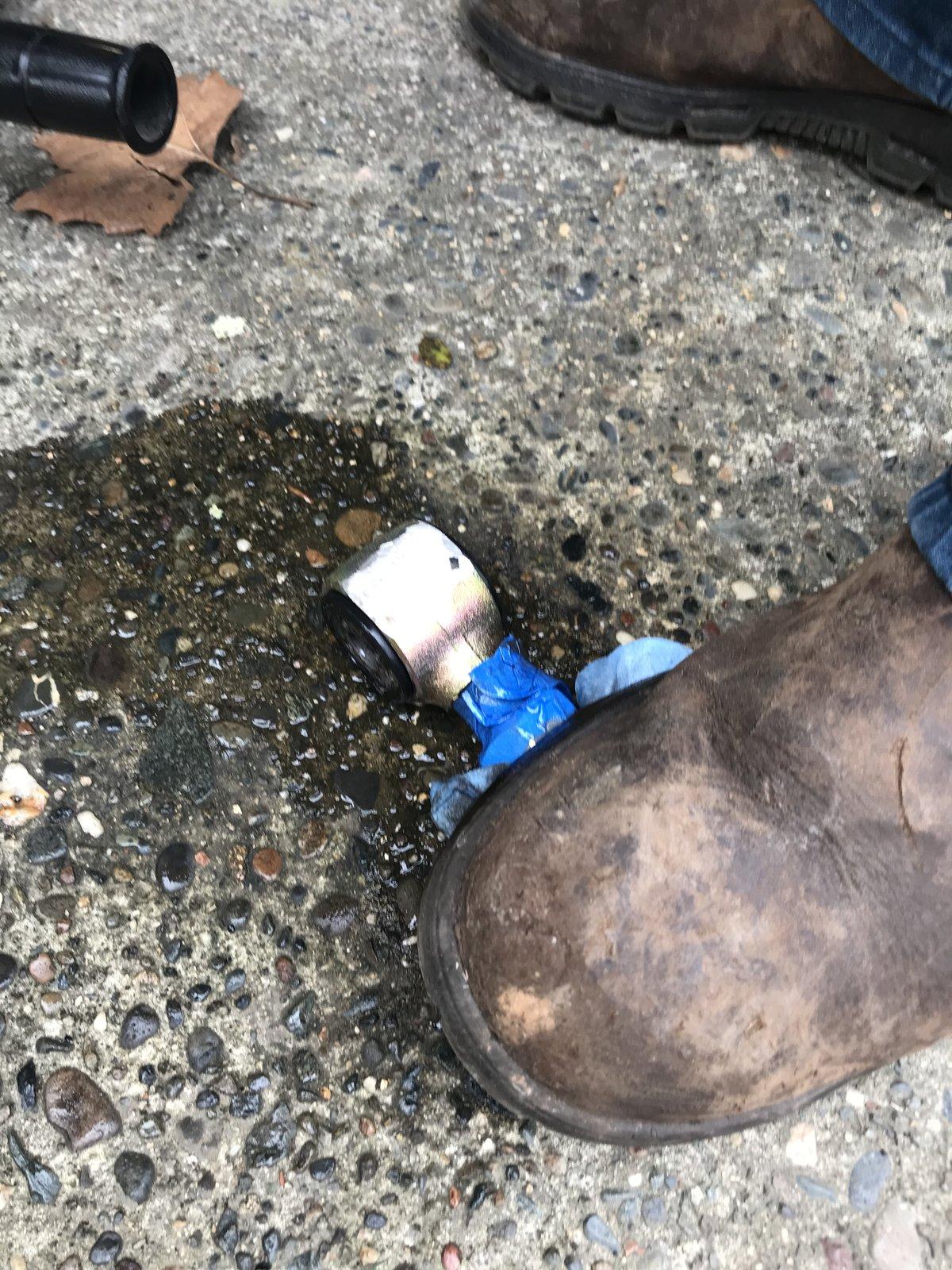

    *Also something thats different is the ball joints. The top is flat and the design is a bit different and the C’s are quite a bit larger.

    The axle needed holes drilled in the sprint perch for the bump stops.

    Syngery bracket for stabilizer works fine

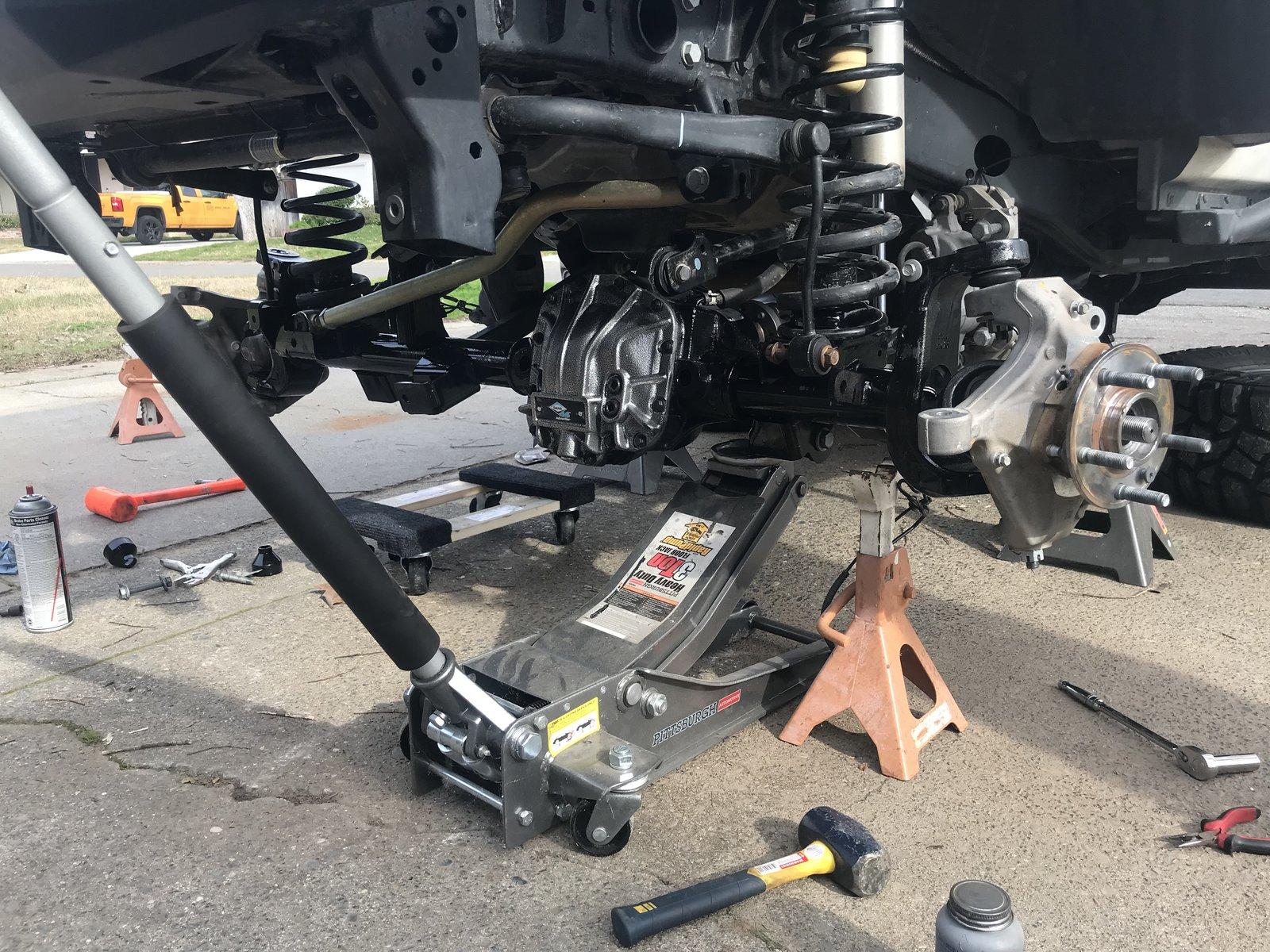

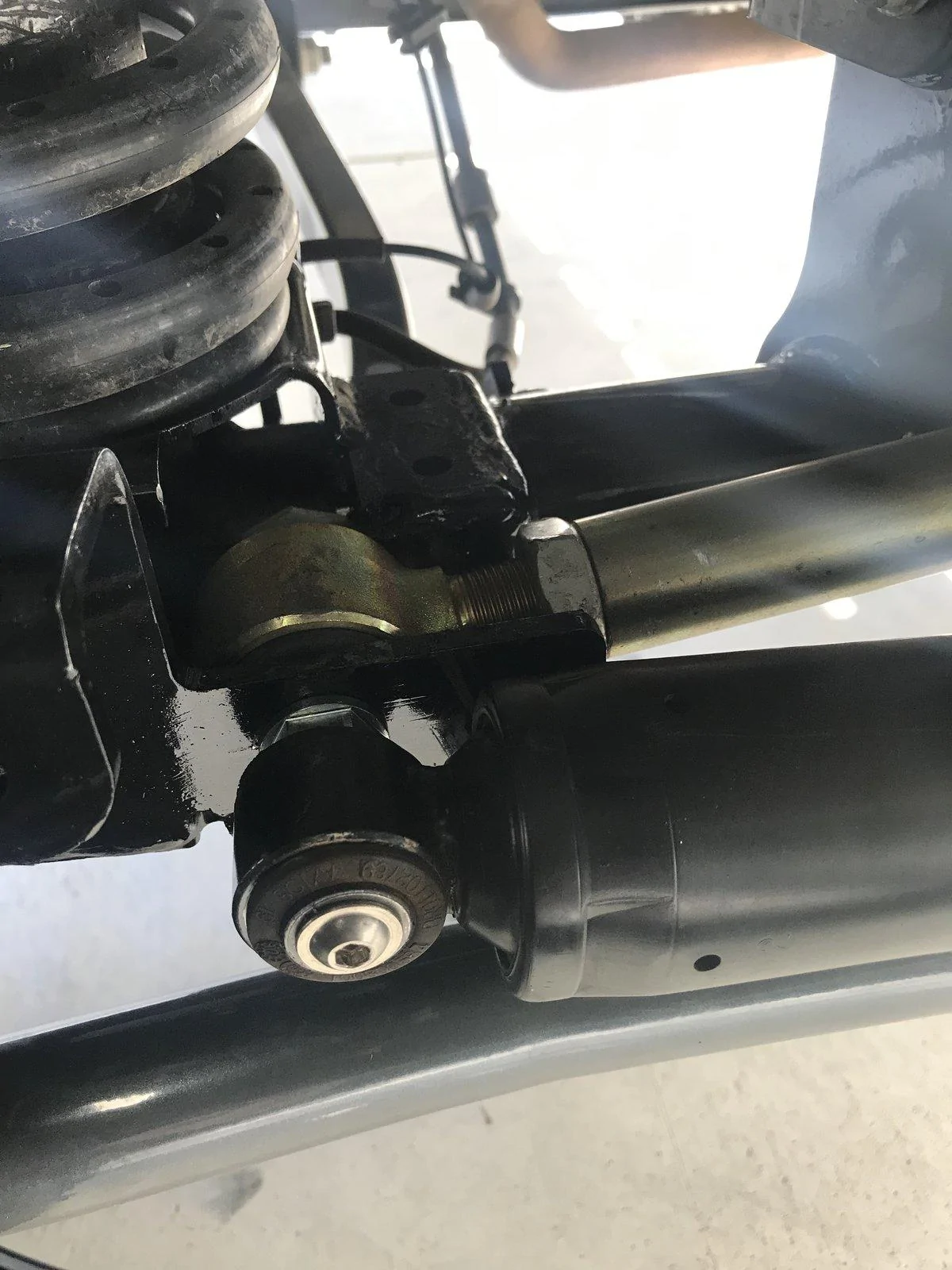

    The metal cloak track bar needed some extra grinding around the joint to fit into the bracket.

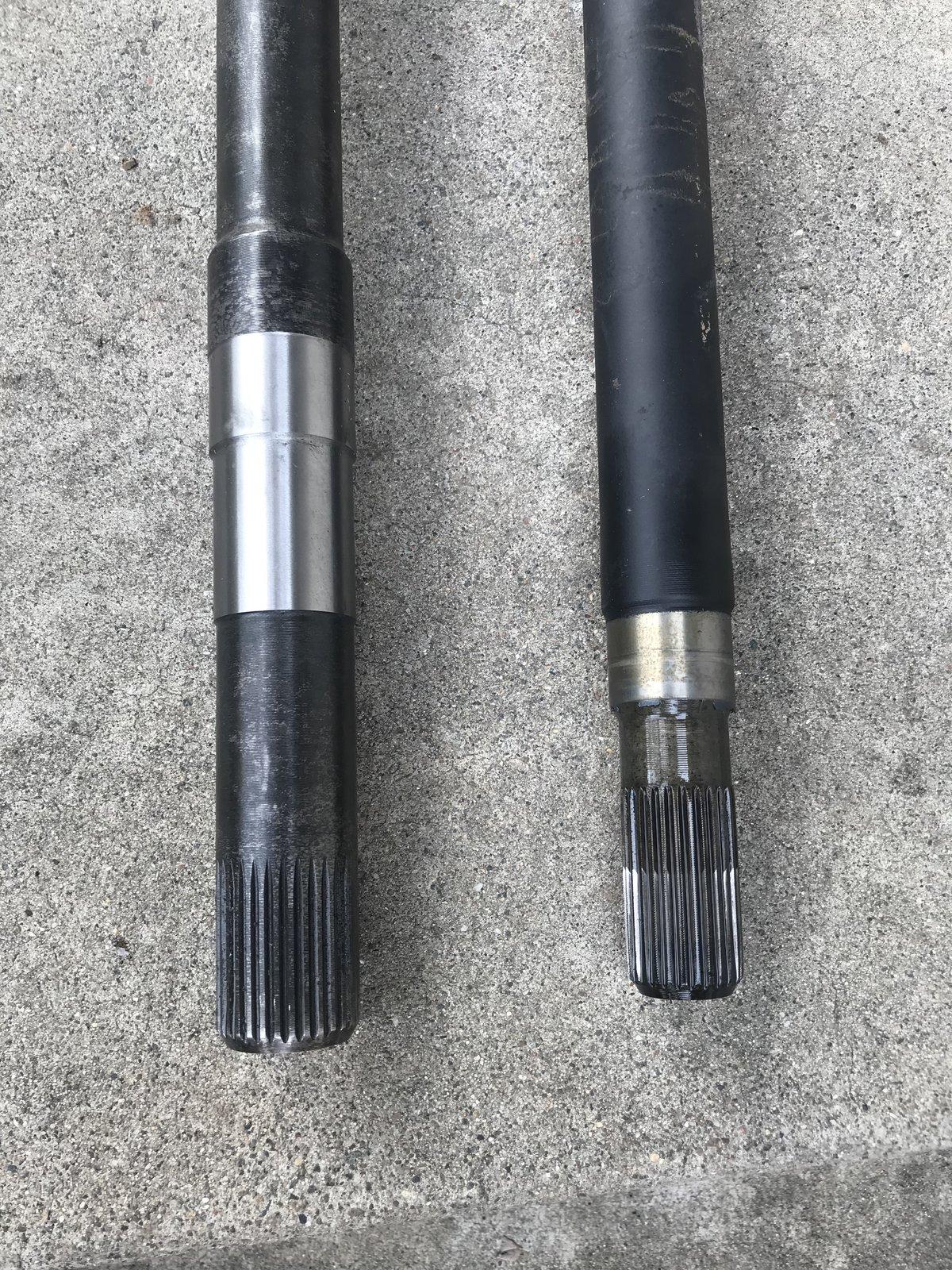

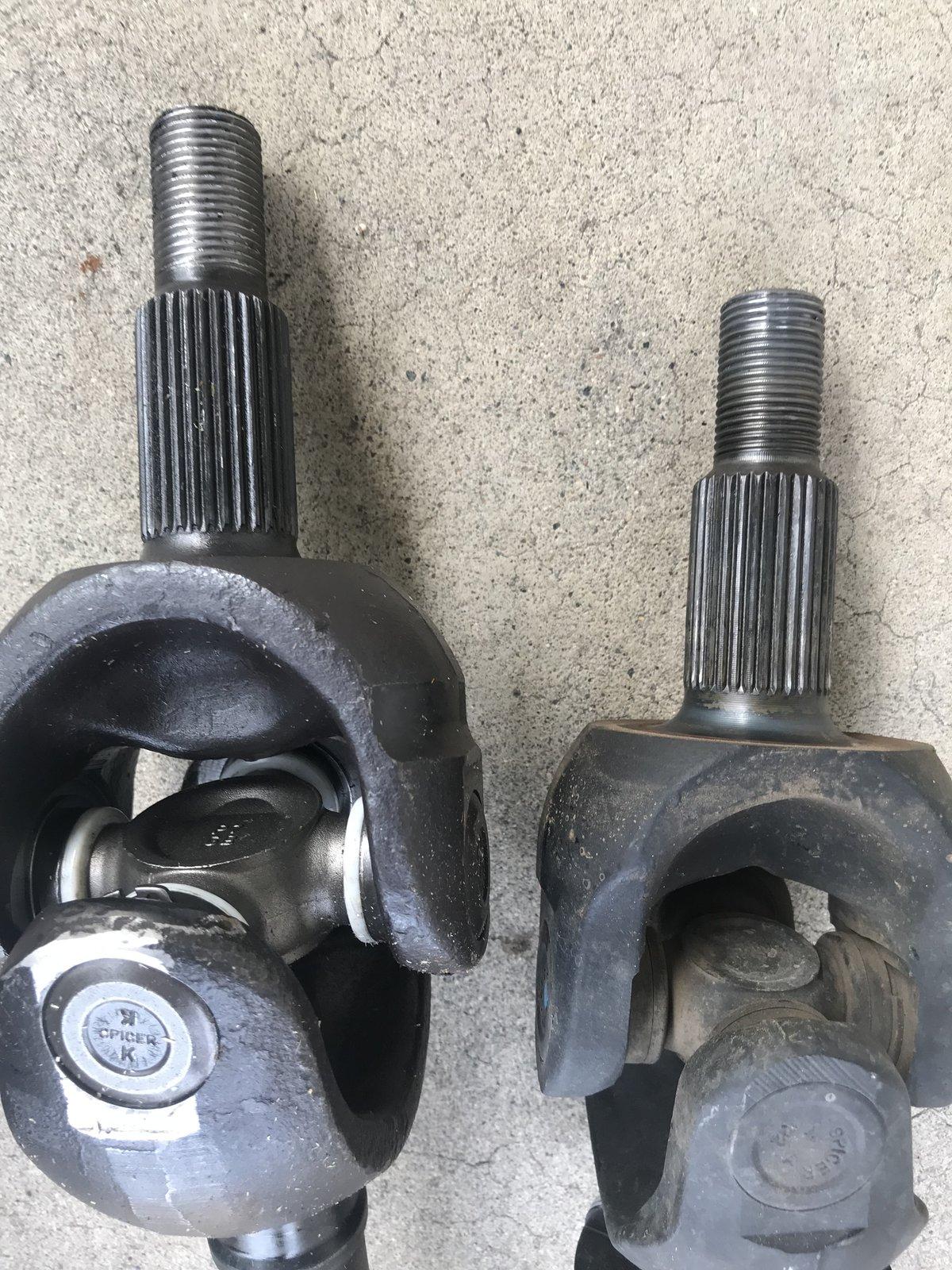

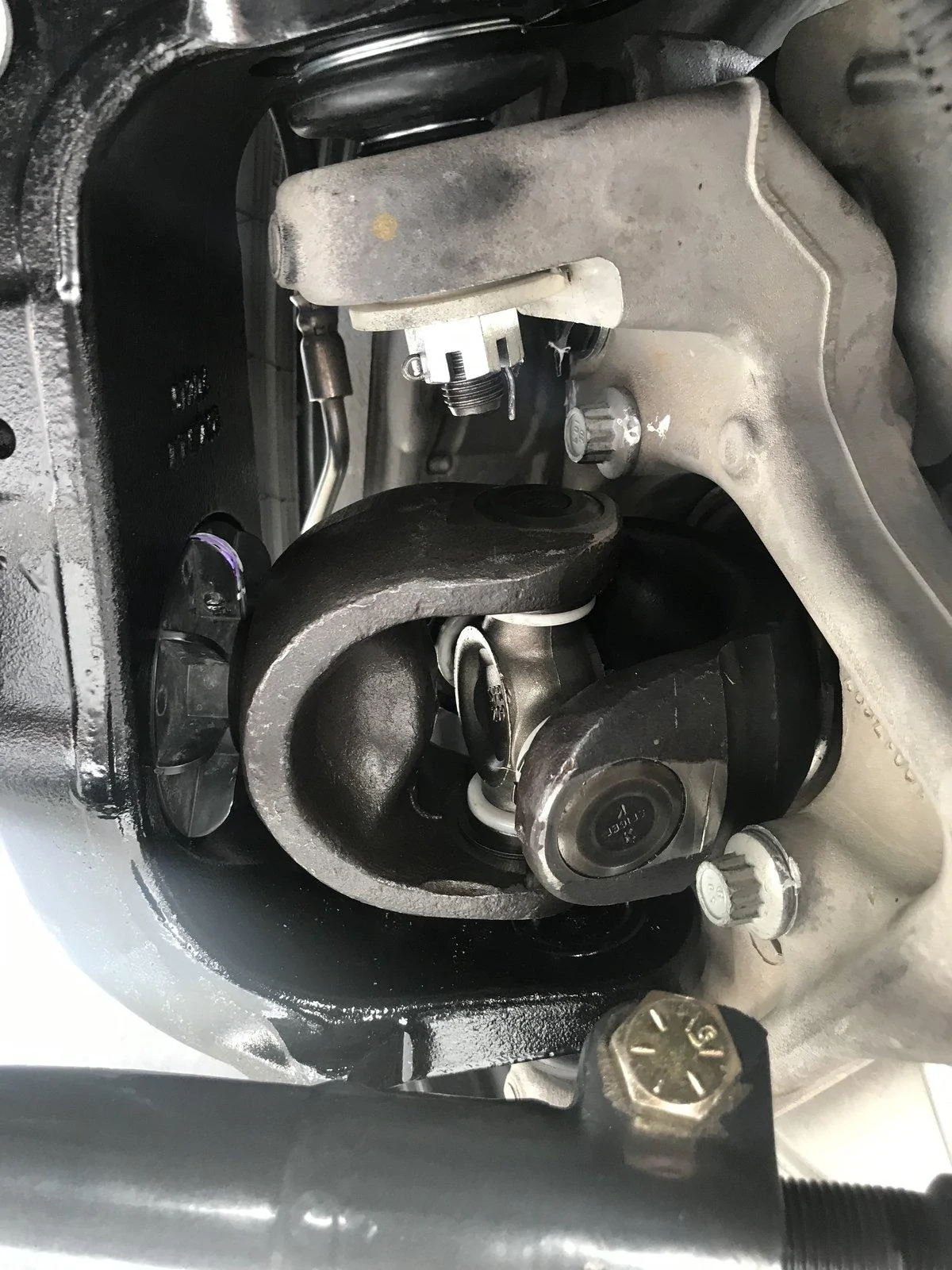

    Look at the size difference in shafts and U joints! 1410 vs 1350

    On the way home from my buddies I noticed a bad sound while braking as I pulled into my driveway. Lost a brake caliper bolt. I posted another thread about that though.

    Other than that everything feels great! The steering feels tight and does not wander.

    Anyone have any recommendations on how to run the e locker wire? Enough length for flex etc. plan is to wire into the aux 1 wire.












    Redneck_Jedi likes this.
  3. Litfuse

    Litfuse Well-Known Member

    Vehicle(s):
    2019 C7 Grand Sport, 2019 Ram 1500, 2017 Audi Q5.
    Joined:
    Jul 18, 2018
    Location:
    Columbia, IL
    Posts:
    734
    Liked:
    627
    Beefy!!!

    intentsrig likes this.
  4. Roky

    Roky Well-Known Member

    Vehicle(s):
    2018 JLUR
    Joined:
    Oct 4, 2018
    Location:
    North Central Florida
    Posts:
    1,999
    Liked:
    5,395
    Garage Profiles:
    1

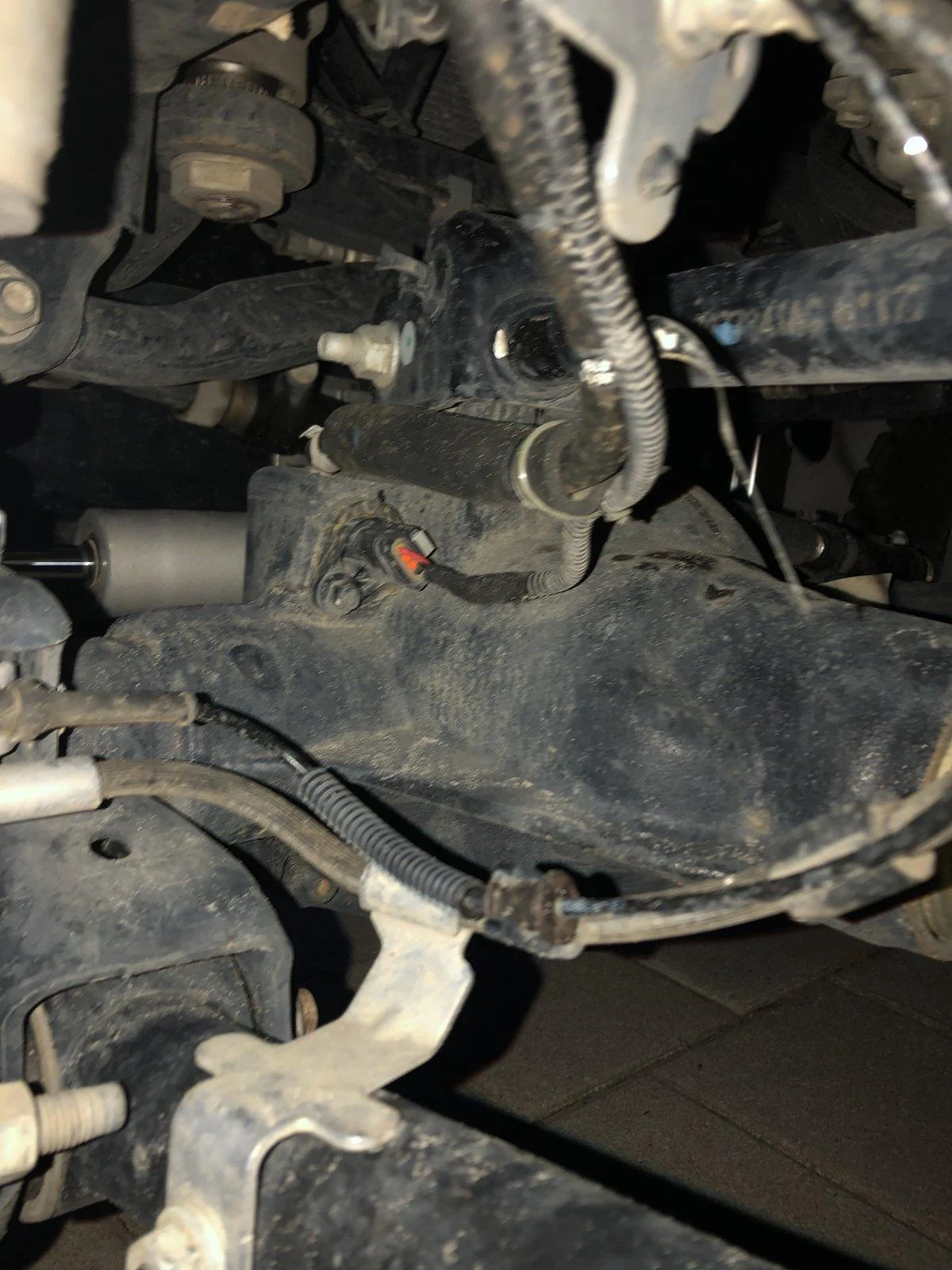

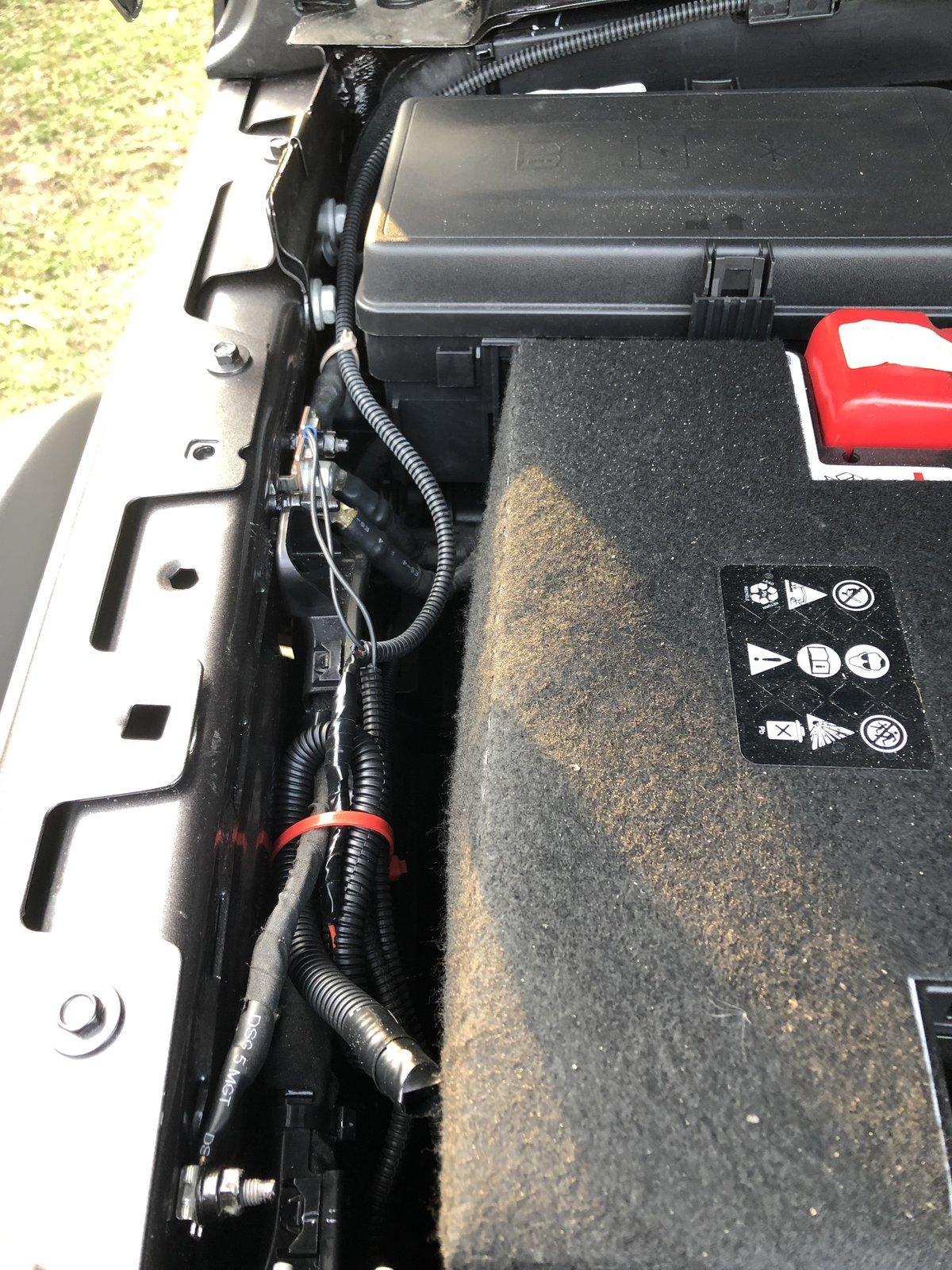

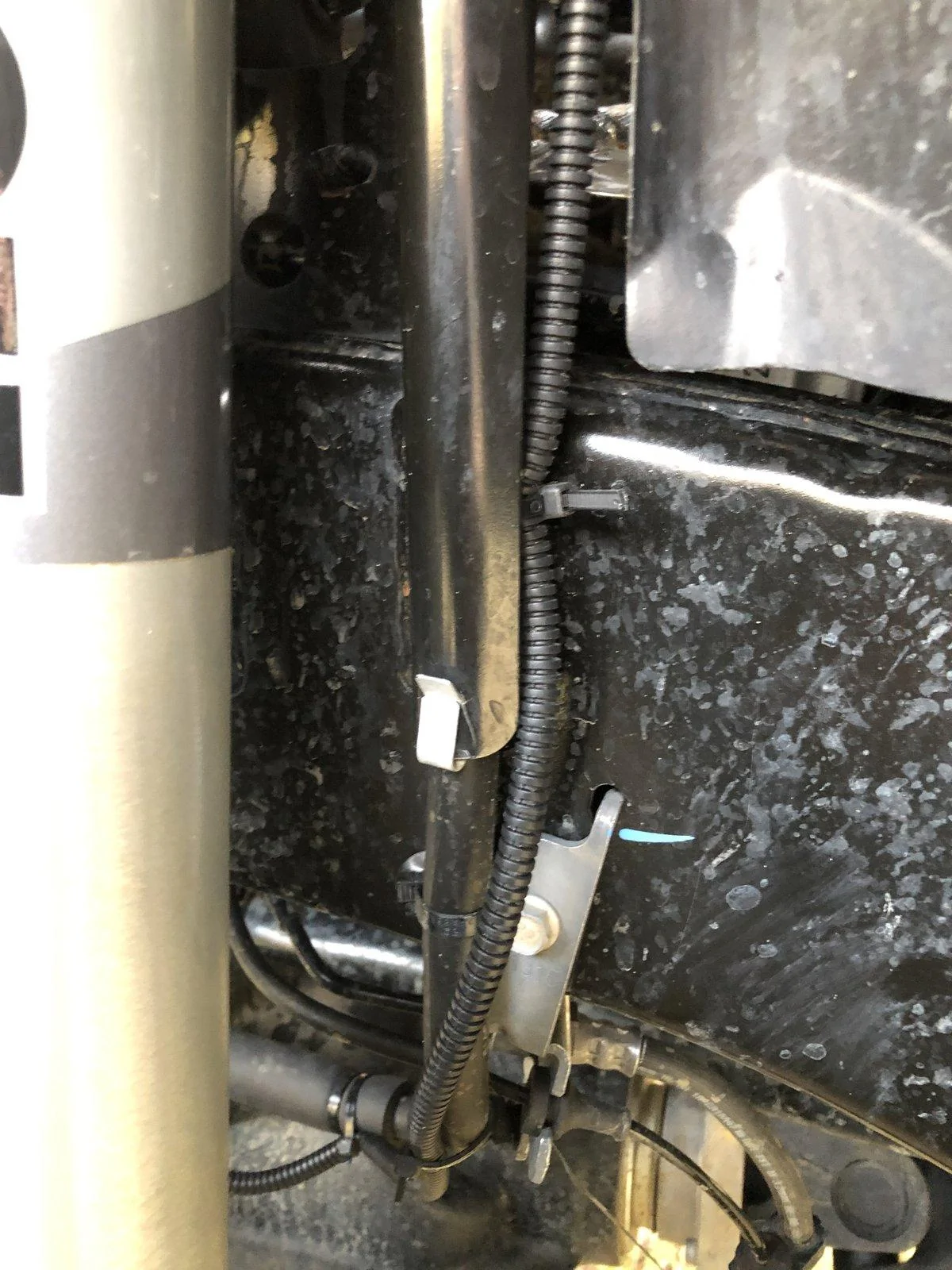

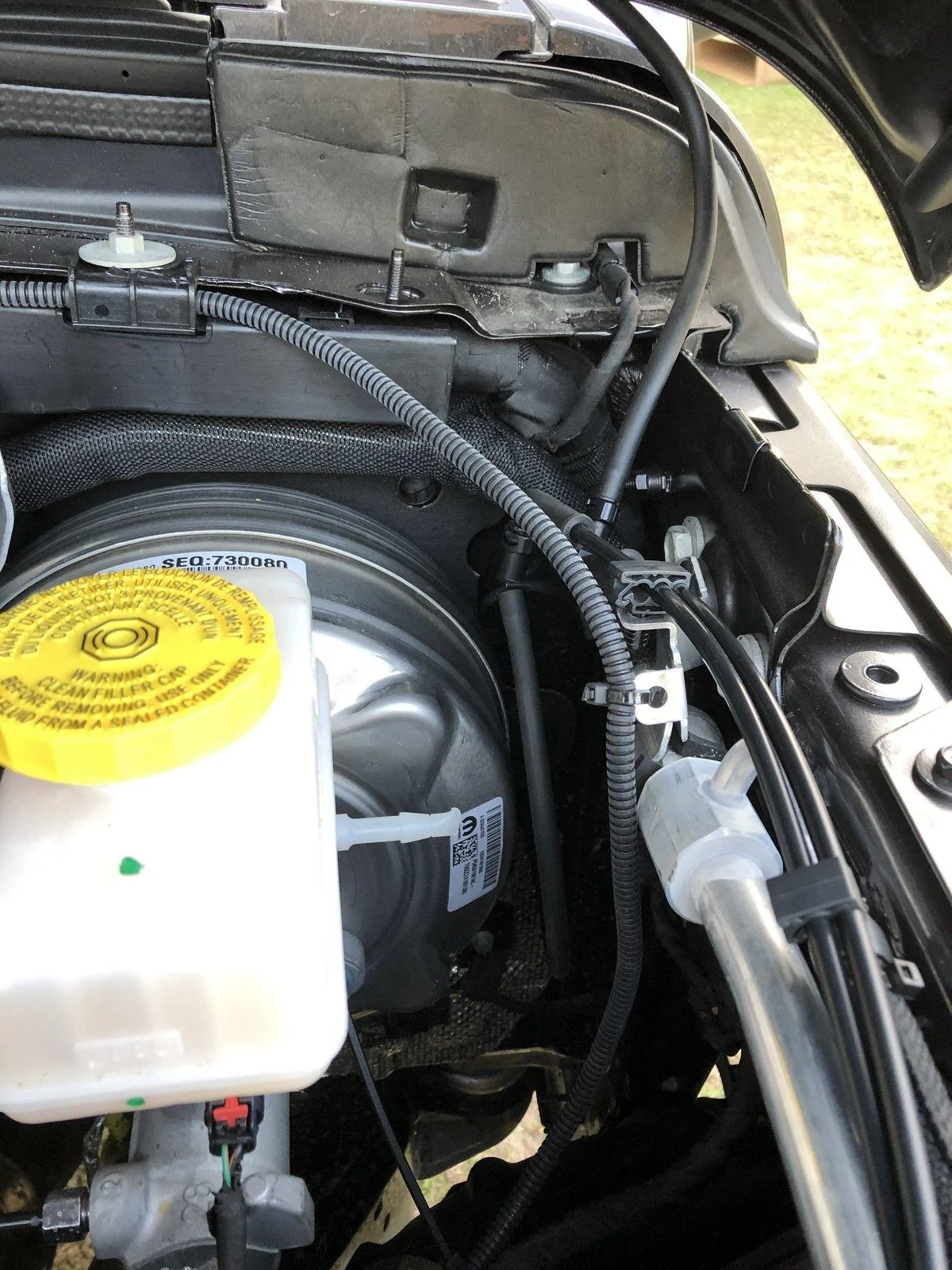

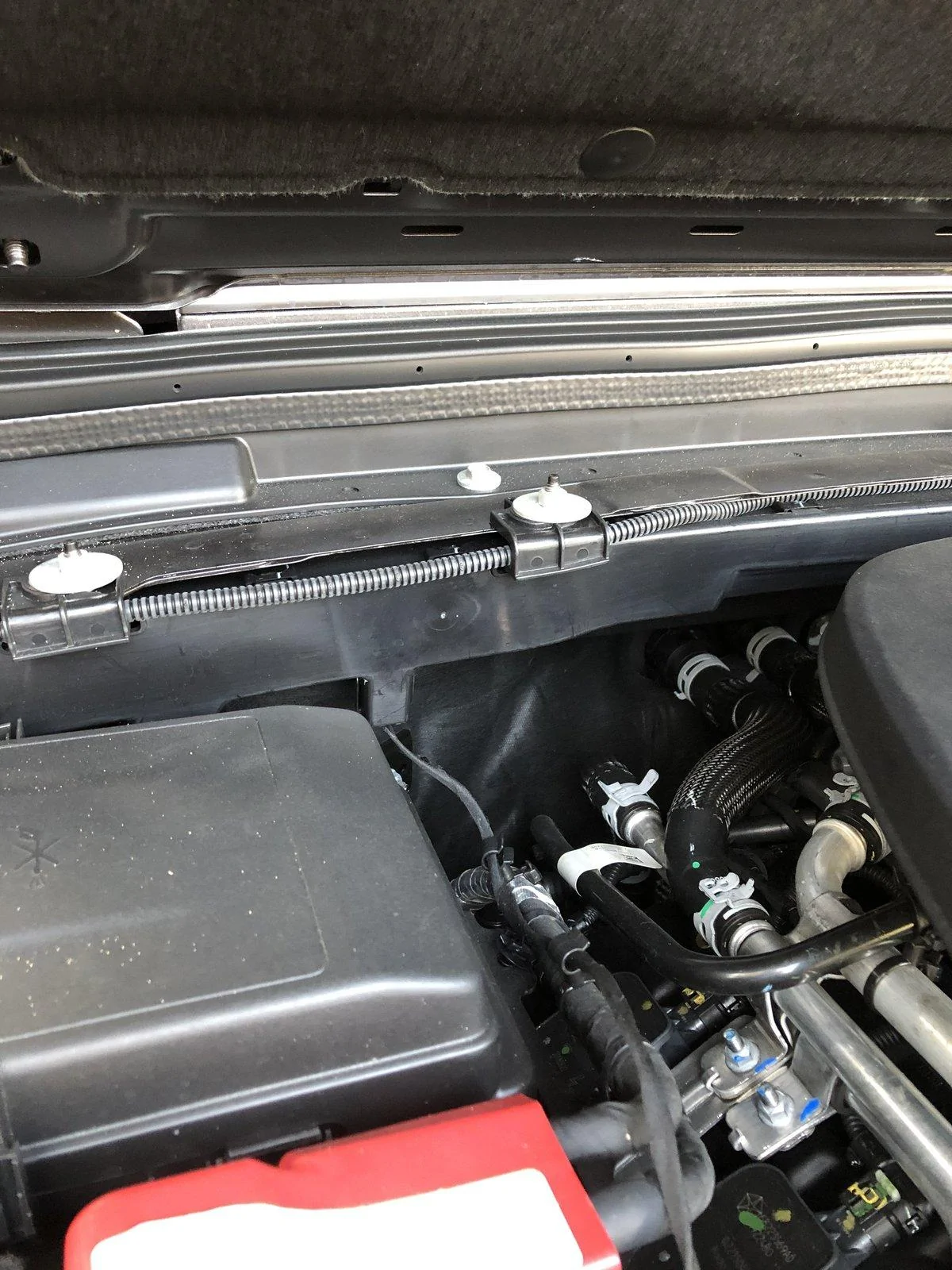

    I have my lockers wired to my aux switches 1 & 2 here’s how I routed the front one. It’s the 3/8” black wire loom. I zip tied to diff breather tube to get in engine bay then across where hood meets cowl over to battery. Bottom pic to top is sequence.

    2FF5E8A7-C1F2-4A1B-B283-53998ABB4ACE.jpeg 0B06CF68-0F29-4735-BB0D-EFEB06D7A794.jpeg D2F94E31-9AD6-42C0-B5BD-43F3DE7DFD0A.jpeg 268C9FEB-9A52-4B0D-A9B0-C17DFA4504DB.jpeg

    Redneck_Jedi likes this.
  5. OP
    OP
    intentsrig

    intentsrig Well-Known Member

    First Name:
    Brian
    Vehicle(s):
    JLU Sporticon
    Joined:
    Apr 8, 2018
    Location:
    California
    Posts:
    748
    Liked:
    547
    Oh perfect! I thought about going along the backside like that. How much slack did you leave for flexing?

  6. OP
    OP
    intentsrig

    intentsrig Well-Known Member

    First Name:
    Brian
    Vehicle(s):
    JLU Sporticon
    Joined:
    Apr 8, 2018
    Location:
    California
    Posts:
    748
    Liked:
    547
    Ohh yeah that makes sense. Thanks

  7. stil2low

    stil2low Well-Known Member

    First Name:
    Craig
    Vehicle(s):
    2015 Jeep jk
    Joined:
    Oct 18, 2018
    Location:
    Ontario Canada
    Posts:
    1,512
    Liked:
    7,458
    How are you finding getting the t case to shift? Read few guys had problems getting to 4 wheel once ditching the FAD

  8. rustyshakelford

    rustyshakelford Well-Known Member
    Rock Sponsor (Level 1)

    First Name:
    Brett
    Vehicle(s):
    JLUR-6speed JLUR-8 speed, F350
    Joined:
    Sep 14, 2018
    Location:
    Navasota, TX
    Posts:
    1,865
    Liked:
    1,863
    I wouldn’t tie up 1 or 2 on the switches. Save those for lights or something else with higher draw. 3/4 would be a good option. Glad the install went well

    Brett

  9. rustyshakelford

    rustyshakelford Well-Known Member
    Rock Sponsor (Level 1)

    First Name:
    Brett
    Vehicle(s):
    JLUR-6speed JLUR-8 speed, F350
    Joined:
    Sep 14, 2018
    Location:
    Navasota, TX
    Posts:
    1,865
    Liked:
    1,863
    Use a product like the tazer to remove the fad function. Pull the t-case into the appropriate range want

    Brett

  10. stil2low

    stil2low Well-Known Member

    First Name:
    Craig
    Vehicle(s):
    2015 Jeep jk
    Joined:
    Oct 18, 2018
    Location:
    Ontario Canada
    Posts:
    1,512
    Liked:
    7,458
    Not the electrical part, read few articles of guys having to pull a synchro out of the case to get a more smoother and easier shift

  11. OP
    OP
    intentsrig

    intentsrig Well-Known Member

    First Name:
    Brian
    Vehicle(s):
    JLU Sporticon
    Joined:
    Apr 8, 2018
    Location:
    California
    Posts:
    748
    Liked:
    547
    3/4 already used for air compressor and 20” light bar. No plans for a bigger windshield light. 3/4 are 15 amp so it’s ok.

  12. OP
    OP
    intentsrig

    intentsrig Well-Known Member

    First Name:
    Brian
    Vehicle(s):
    JLU Sporticon
    Joined:
    Apr 8, 2018
    Location:
    California
    Posts:
    748
    Liked:
    547
    No issues last night. Shifted in and out very easily even at a stop. I used the tazer to turn off the FAD function.

    stil2low likes this.
  13. OP
    OP
    intentsrig

    intentsrig Well-Known Member

    First Name:
    Brian
    Vehicle(s):
    JLU Sporticon
    Joined:
    Apr 8, 2018
    Location:
    California
    Posts:
    748
    Liked:
    547
    Also, with 5.13’s I have to push the brake pedal hard to the floor before it stalls!

    Can’t wait for a 4-1 or maybe an atlas 5-1 :devil:

  14. stil2low

    stil2low Well-Known Member

    First Name:
    Craig
    Vehicle(s):
    2015 Jeep jk
    Joined:
    Oct 18, 2018
    Location:
    Ontario Canada
    Posts:
    1,512
    Liked:
    7,458
    intentsrig likes this.
  15. OP
    OP
    intentsrig

    intentsrig Well-Known Member

    First Name:
    Brian
    Vehicle(s):
    JLU Sporticon
    Joined:
    Apr 8, 2018
    Location:
    California
    Posts:
    748
    Liked:
    547
    I saw that. I asked dana technical about it and they said no issues should arise. Considering it’s bolt in and nothing required. Dynatrac did it as a precautionary. Dana also sells FAD delete kits. Basically just a bolt on cover.

    In the instructions it said I need to use a programmer or have the dealer flash the computer to delete fad

    stil2low likes this.
