Trouble with Mopar 3 piece bumper

CJeep

Member
Joined
Dec 23, 2018
Threads
3
Messages
16
Reaction score
17
Location
Indiana
Vehicle(s)
2018 Jeep Wrangler Unlimited Sport

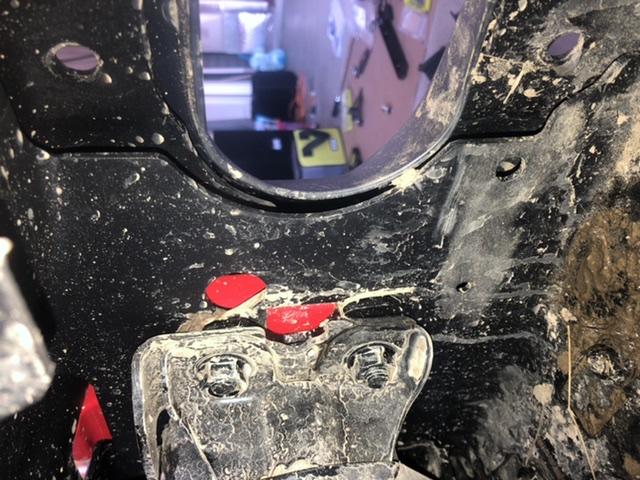

I ordered a 3 piece bumper with no fog lights because I was planning on reinstalling the stock ones. It looks like a hole is missing on the bumper to install the brackets. It has two holes horizontal but not one at the top. I’m debating just drilling the hole. Anyone else have this issue?
Sponsored



Billet_JLU

Well-Known Member
First Name
Austin
Joined
Jun 3, 2018
Threads
11
Messages
253
Reaction score
187
Location
Ohio
Vehicle(s)
2018 JLU sport s 1999 Cherokee Sport
Occupation
Mechanical Engineer
I think if you had plastic or steel bumpers, or halogen vs led fog lights, their may be some differences in the mounting brackets.

OP
OP

CJeep

Member
Joined
Dec 23, 2018
Threads
3
Messages
16
Reaction score
17
Location
Indiana
Vehicle(s)
2018 Jeep Wrangler Unlimited Sport

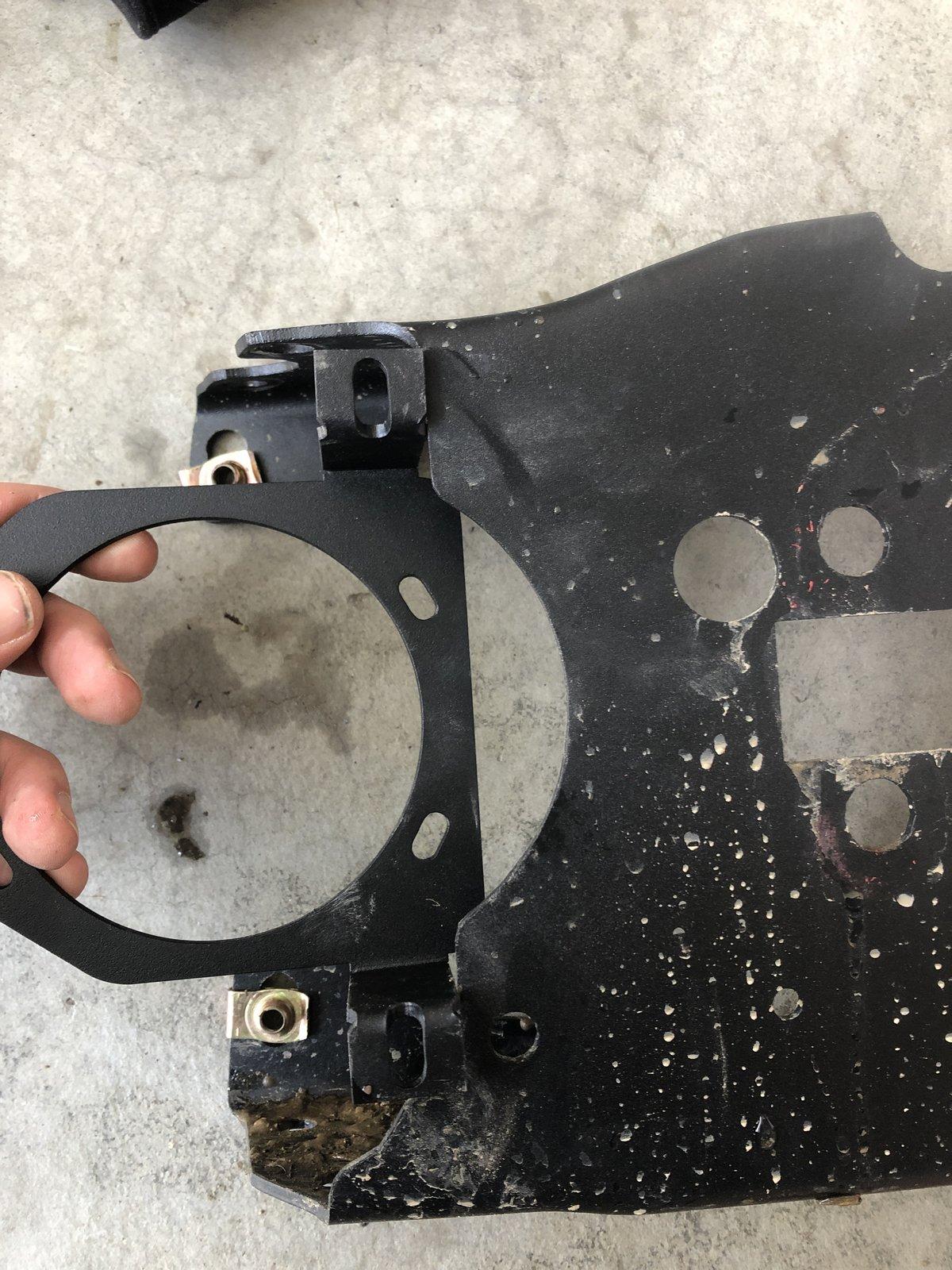

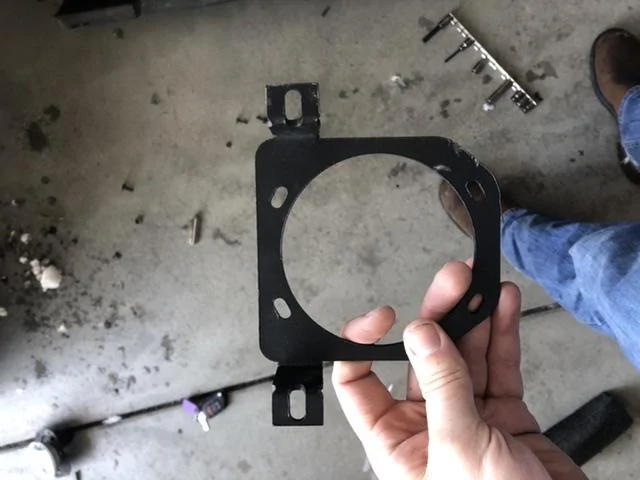

So here is what I have found. I swapped the stock piece (left) with the adapter piece (middle) to attach to bracket (right). Still missing a hole for the right bracket... bumper taken apart and the drilling will commence!


virginia_is_for_rubis

Well-Known Member
Joined
Aug 18, 2019
Threads
9
Messages
90
Reaction score
33
Location
Virginia
Vehicle(s)
2020 Wrangler Unlimited Rubicon
The LED package is required from factory in order to select the steel bumper. The LED fog have different fitment and the bumper only supports them, not the incandescent. You’ll need to buy the LED fogs or find/create a bracket that will change the mounting points.


cavguy

Well-Known Member
Joined
Apr 25, 2019
Threads
56
Messages
512
Reaction score
378
Location
Arizona
Vehicle(s)
2020 JLUR
Wait... Are you sure you are mounting the lights in the correct spot? Seems like they mount using the "push nuts" on the backside of that last pic you have.

Seems to me like what you have should work to mount the halogen fogs to the steel bumper, at least according to what I have read in other posts.

Or maybe perhaps your bumper is missing a part? Check out the pics here of the steel bumper.
https://www.jlwranglerforums.com/forum/threads/jeep-jl-steel-bumper-damaged-100-will-part-out.46131/


Sponsored

OP
OP

CJeep

Member
Joined
Dec 23, 2018
Threads
3
Messages
16
Reaction score
17
Location
Indiana
Vehicle(s)
2018 Jeep Wrangler Unlimited Sport
Wait... Are you sure you are mounting the lights in the correct spot? Seems like they mount using the "push nuts" on the backside of that last pic you have.

Seems to me like what you have should work to mount the halogen fogs to the steel bumper, at least according to what I have read in other posts.

Or maybe perhaps your bumper is missing a part? Check out the pics here of the steel bumper.
https://www.jlwranglerforums.com/forum/threads/jeep-jl-steel-bumper-damaged-100-will-part-out.46131/
Thanks for the photo! It is definitely missing the nut and the hole for it. Otherwise, I have all the brackets.


virginia_is_for_rubis

Well-Known Member
Joined
Aug 18, 2019
Threads
9
Messages
90
Reaction score
33
Location
Virginia
Vehicle(s)
2020 Wrangler Unlimited Rubicon
Wait... Are you sure you are mounting the lights in the correct spot? Seems like they mount using the "push nuts" on the backside of that last pic you have.

Seems to me like what you have should work to mount the halogen fogs to the steel bumper, at least according to what I have read in other posts.

Or maybe perhaps your bumper is missing a part? Check out the pics here of the steel bumper.
https://www.jlwranglerforums.com/forum/threads/jeep-jl-steel-bumper-damaged-100-will-part-out.46131/
The OEM LED fog lights and regular fog lights have different mounting points. The steel bumper only supports the mounting points for the OEM LED, not the OEM regular. OP will need a custom bracket to change the mounting or will have to buy the LED fogs

OP
OP

CJeep

Member
Joined
Dec 23, 2018
Threads
3
Messages
16
Reaction score
17
Location
Indiana
Vehicle(s)
2018 Jeep Wrangler Unlimited Sport
I have the adapter to work with the bracket that came with the bumper. The problem is the bracket that came with the bumper (used with LEDs) does not work with the bumper. I found a fix for it and will post pics later.


cavguy

Well-Known Member
Joined
Apr 25, 2019
Threads
56
Messages
512
Reaction score
378
Location
Arizona
Vehicle(s)
2020 JLUR

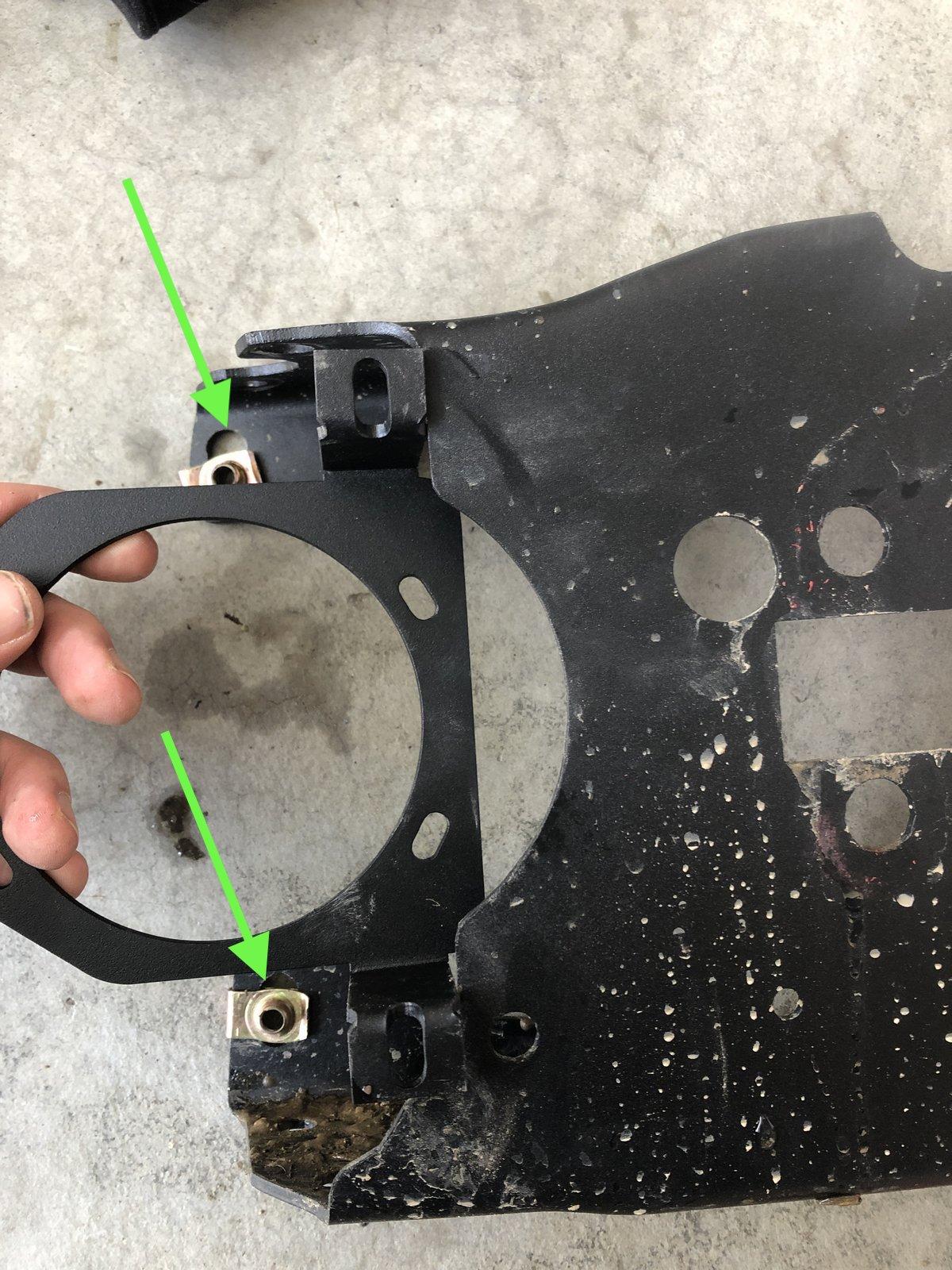

I was thinking that the green arrows in the pic below point to holes are where your bracket should mount (I could be wrong).



hoag4147

Well-Known Member
First Name
Rick
Joined
Dec 13, 2019
Threads
64
Messages
4,396
Reaction score
5,996
Location
Colleyville, TX
Vehicle(s)
2022 JLUR XR
Vehicle Showcase
2
I have the adapter to work with the bracket that came with the bumper. The problem is the bracket that came with the bumper (used with LEDs) does not work with the bumper. I found a fix for it and will post pics later.
Pics?
