Installing my LOD Destroyer Sliders.

I found the TQ value for the gas tank skid to frame bolts, 48 ft-lbs.

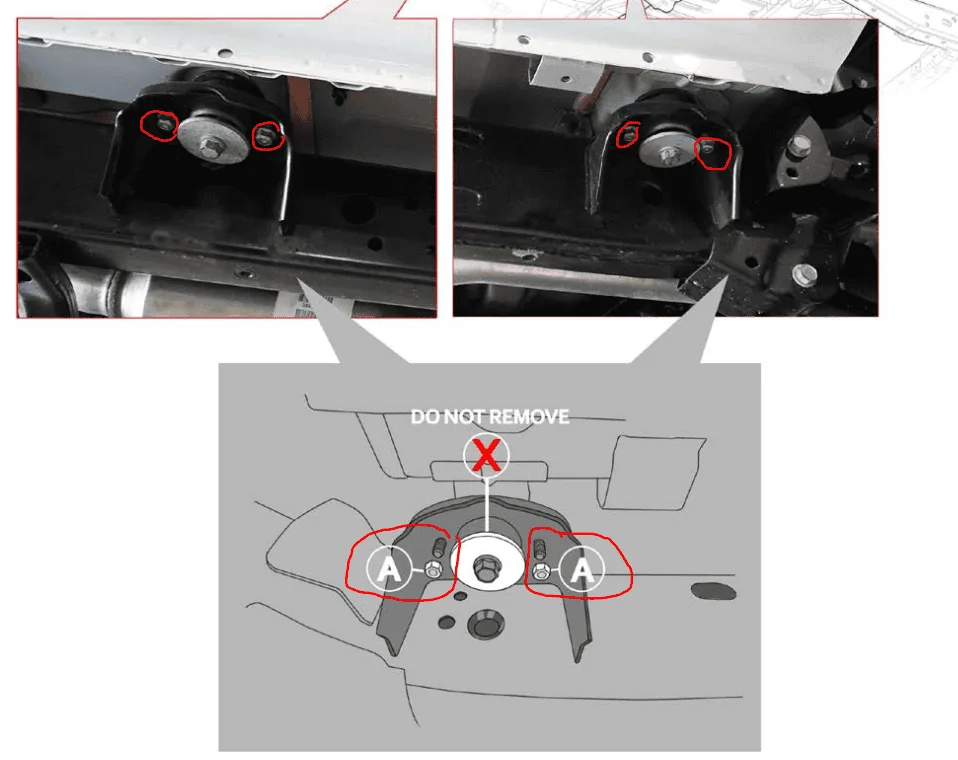

Anyone know what the TQ should be on the two nuts marked A for these locations?

Any info would be appreciated. Note the directions provide no TQ values.

Thanks

Sponsored


OP
OP
VNT

VNT

Well-Known Member
First Name
Mike
Joined
Jul 22, 2018
Threads
9
Messages
864
Reaction score
1,040
Location
Maine
Vehicle(s)
SRT Challenger, 2015 Hemi Overland, 02 WJ 4.7, 2000 Durango, PT Cruisers, 2018 Punkn Sahara 2020 OB Rubicon
Token

Thanks I found that but not sure from the description which is correct, I assume it is the 35 Ft-lbs, nuts on the mounts at the B and C Pillars. I removed them last night and they certainly werent tourqued to high so 35 ft-lbs is probably correct. Hope to put the sliders on tonight if my pal shows up, need a 2nd pair of hands to lift and hold in place.
