Teraflex st2 front sway bar

Shellbird01

Well-Known Member
First Name
Bob
Joined
Apr 8, 2018
Messages
66
Reaction score
29
Location
Ontario Canada
Vehicle(s)
2018 Wrangler JL Shara Unlimited

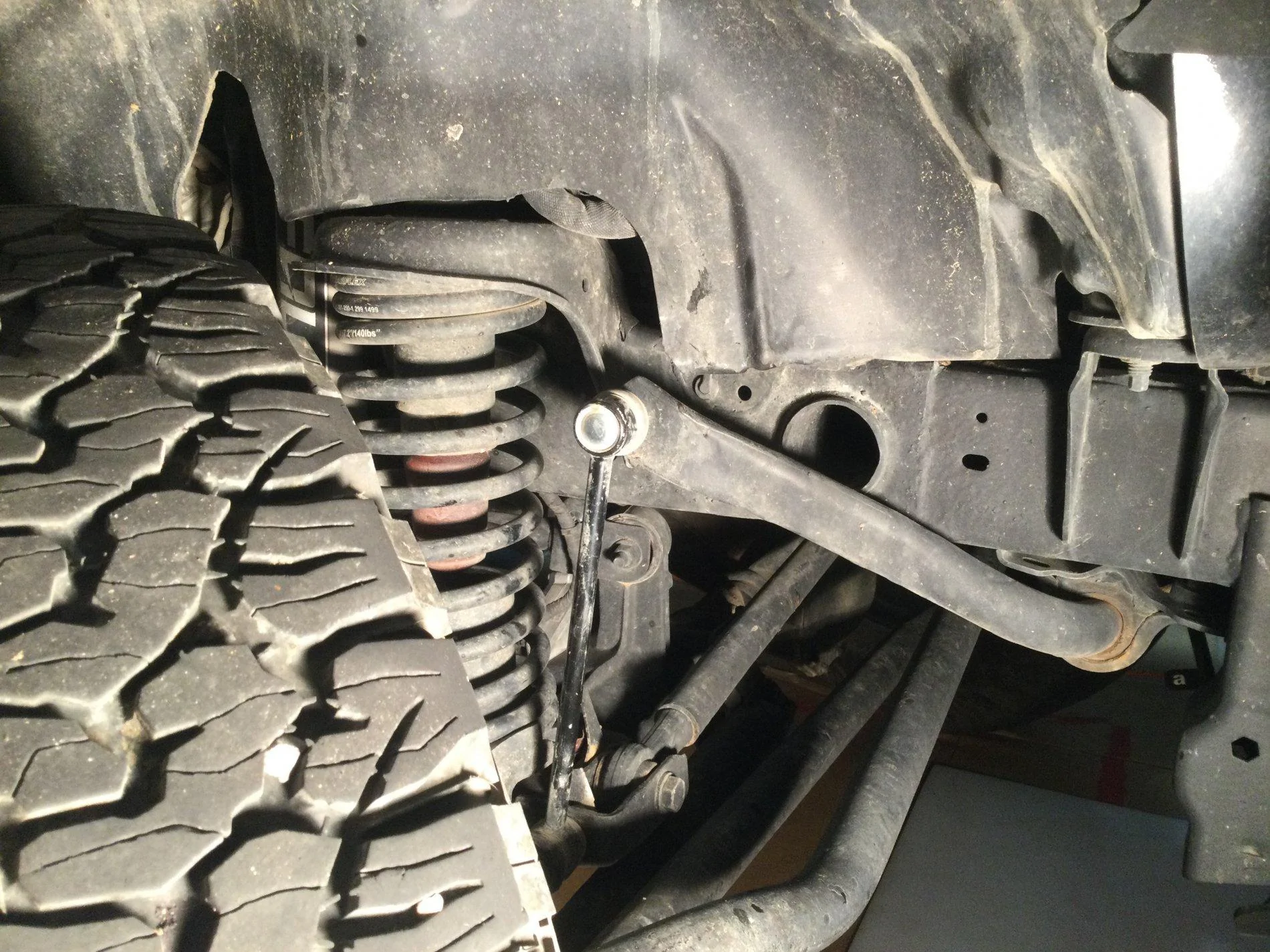

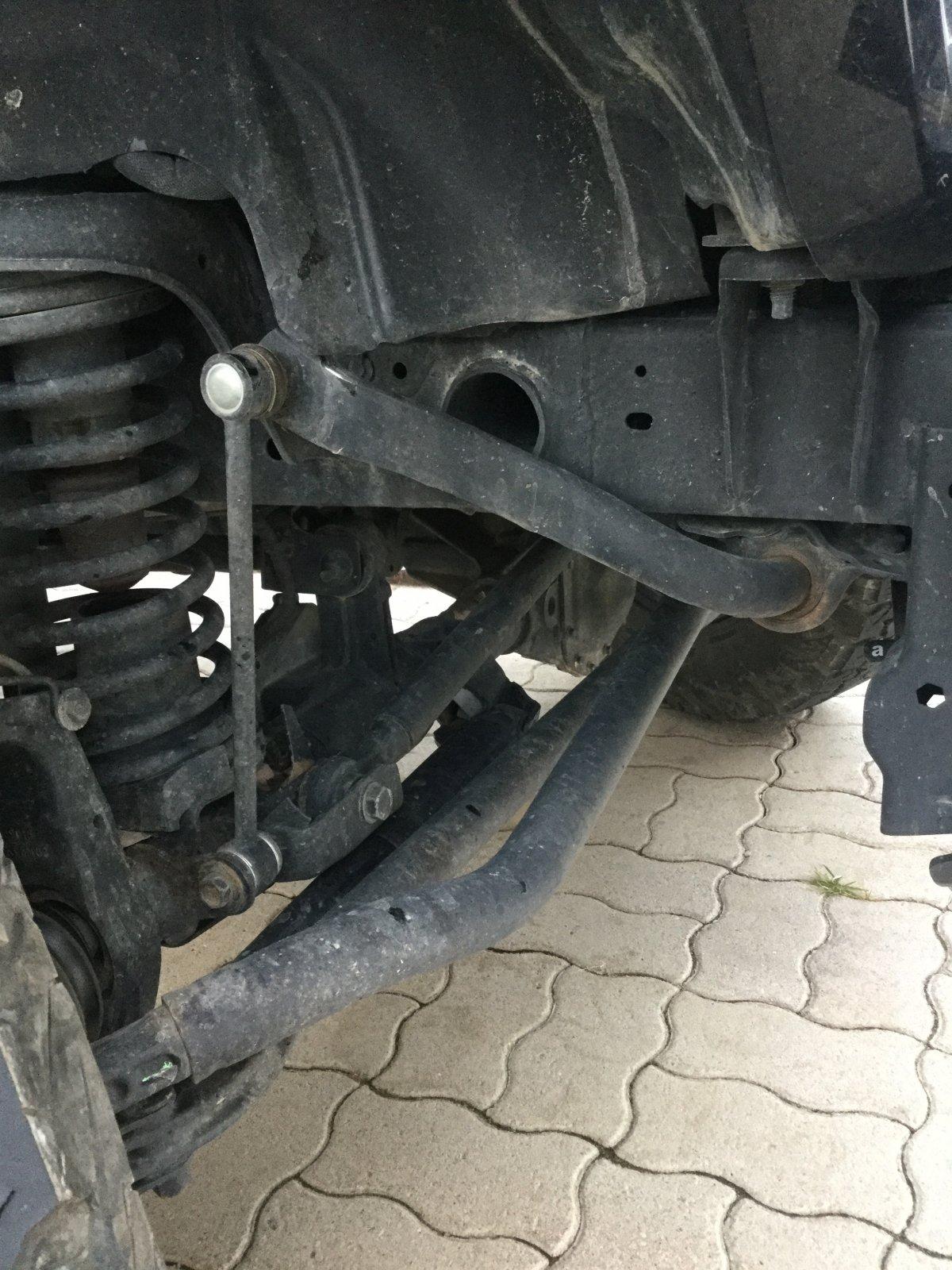

I installed this kit on my Sahara in April (love it) it seems my sway bar sits much higher than other Jeeps but I used the links that came with the kit (I recall the box said JK for the links only). are they too high? Am I going to have issues?

Advertisement


Last edited:

chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Messages
2,156
Reaction score
4,384
Location
K-Vegas, NC
Vehicle(s)
2019 JLUR (Pain Train), 2021 Charger Redeye
Occupation
Super Nerd
I installed this kit on my Sahara in April (love it) it seems my sway bar sits much higher than other Jeeps but I used the links that came with the kit (I recall the box said JK for the links only). are they too high? Am I going to have issues?

Double check that you have the shorter links up front. The front should have 10.75" and the rear should have 11.50".


BlackGenesis

Well-Known Member
First Name
Andrey
Joined
Dec 4, 2019
Messages
611
Reaction score
608
Location
Muskegon Michigan.
Vehicle(s)
18 Sahara unlimited
Sway bar Should be parallel with the ground - for best performance.
You will not get much flex the way it sits, unless you prefer stiff.

OP
OP
Shellbird01

Shellbird01

Well-Known Member
First Name
Bob
Joined
Apr 8, 2018
Messages
66
Reaction score
29
Location
Ontario Canada
Vehicle(s)
2018 Wrangler JL Shara Unlimited
The front are longer than the back, time to switch


Petey

Well-Known Member
First Name
Pete
Joined
Oct 10, 2020
Messages
448
Reaction score
231
Location
Miami
Vehicle(s)
2020 jl sport manual
Sway bar Should be parallel with the ground - for best performance.
You will not get much flex the way it sits, unless you prefer stiff.
I agree, those things look like they don't have to much travel left before they start getting in the position where they just become a straight rod


chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Messages
2,156
Reaction score
4,384
Location
K-Vegas, NC
Vehicle(s)
2019 JLUR (Pain Train), 2021 Charger Redeye
Occupation
Super Nerd
I‘ll post another pic when it’s done
Sounds good.

The bar will never be parallel to the ground. Just make sure you have the shorter links up front and everything will work as designed.

OP
OP
Shellbird01

Shellbird01

Well-Known Member
First Name
Bob
Joined
Apr 8, 2018
Messages
66
Reaction score
29
Location
Ontario Canada
Vehicle(s)
2018 Wrangler JL Shara Unlimited

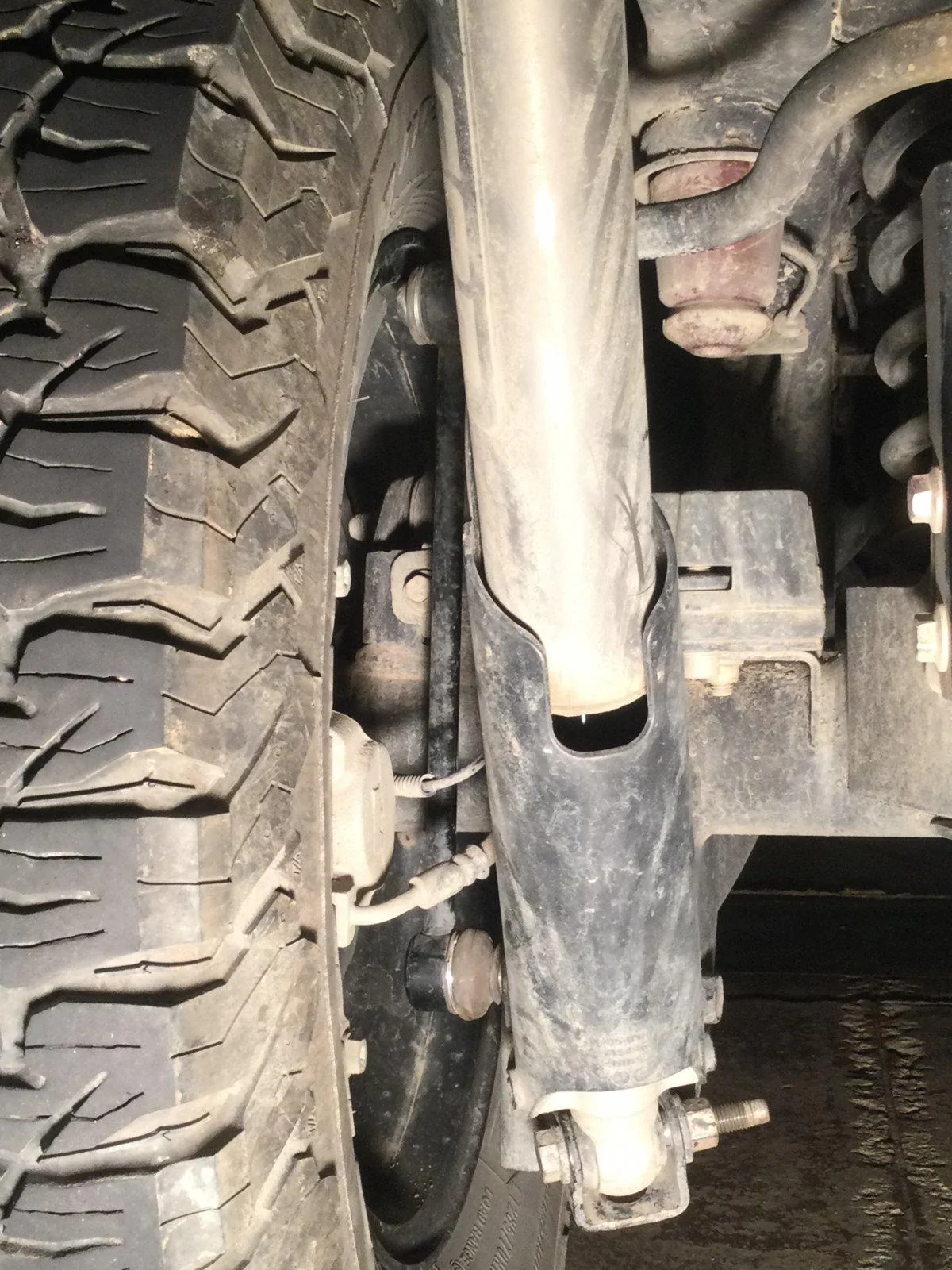

It’s definitely lower. The back looks close to the tire balancing weights, I’ll keep an eye on those. When I installed the lift it was stiffer than I expected but folks on line said it would be stiff. Opinions? Should I consider adjustable. Does it improve the ride.

Thanks for the input




Last edited:

SleepEatJeepRepeat

Well-Known Member
First Name
Michael
Joined
Mar 25, 2019
Messages
1,426
Reaction score
1,290
Location
Newport Beach, Ca
Vehicle(s)
2021 JLUR, 2020 Audi Q7
Occupation
Looking at Jeep stuff all day
Vehicle Showcase
1
Anyone try running 37" K02 with the st2 using the bumpstop shims and have photo's feedback, reports of rubbing?
