I was wiring up some interior LED lights in my wife’s jeep this morning and decided to tap into the cigarette lighter behind the front dash panel, did not realize it would be such a pain to get to.

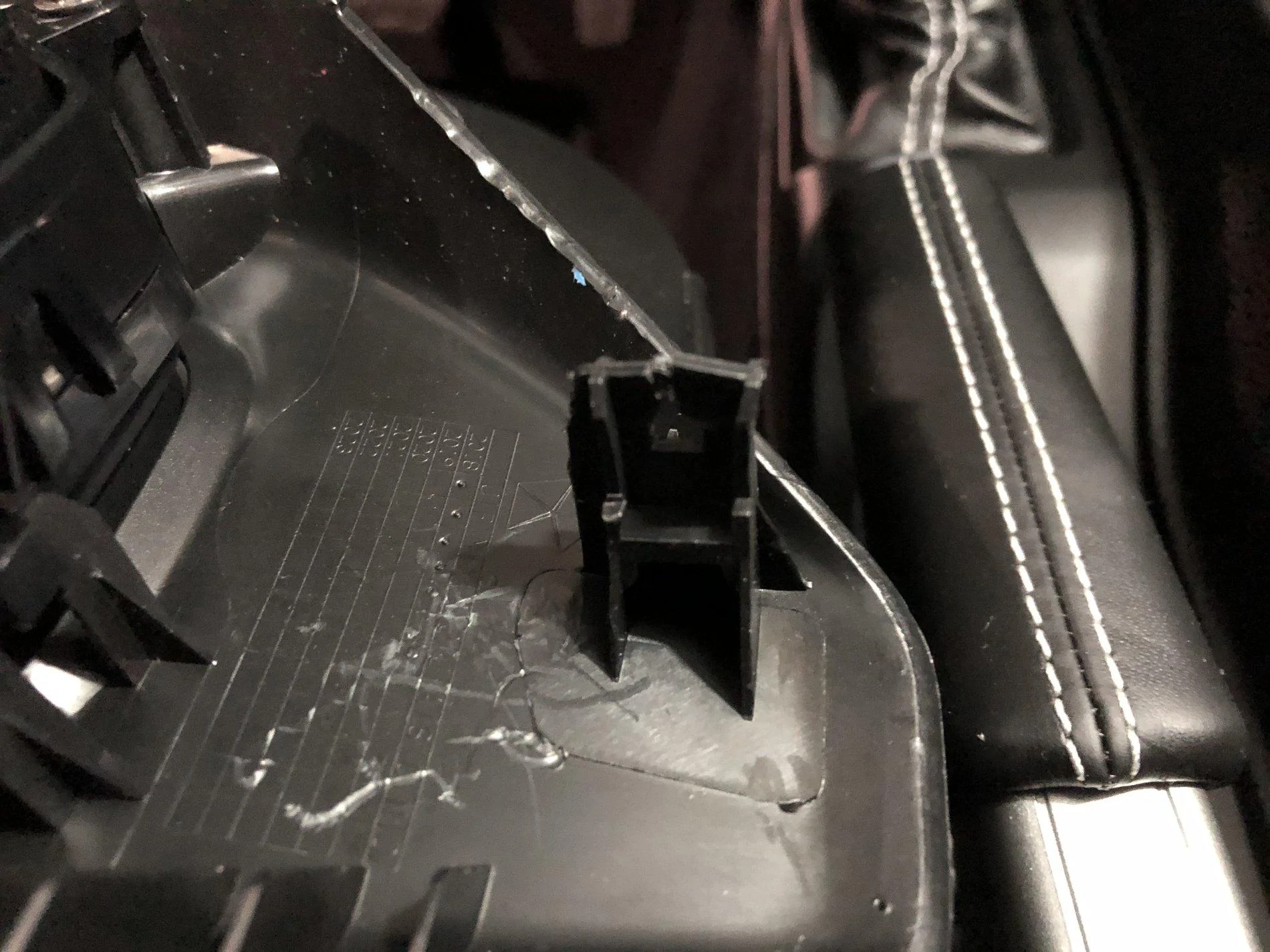

to remove the bezel that holds the air-conditioning controls, you have to start on the right side and pop it loose, but if for some reason mine did not want to come out and I ended up breaking one of the clips, but I should be able to fix it. Just felt like I was going to rip the dash apart trying to open it. I could not find a wiring diagram for the cigarette lighter, so I just rolled the dice on which one was hot and which one was the illumination ring.

finally got the wiring set up done, so I mounted an extension cigarette lighter under the right hand/passenger side foot well. Since the lights she bought has a remote controller, we can leave them on constantly when the jeep is powered on and just turn them off with the remote.






Advertisement



dsgrey

Well-Known Member
First Name
Kevin
Joined
Apr 19, 2019
Messages
478
Reaction score
364
Location
Texas
Vehicle(s)
2019 JLU
Vehicle Showcase
1

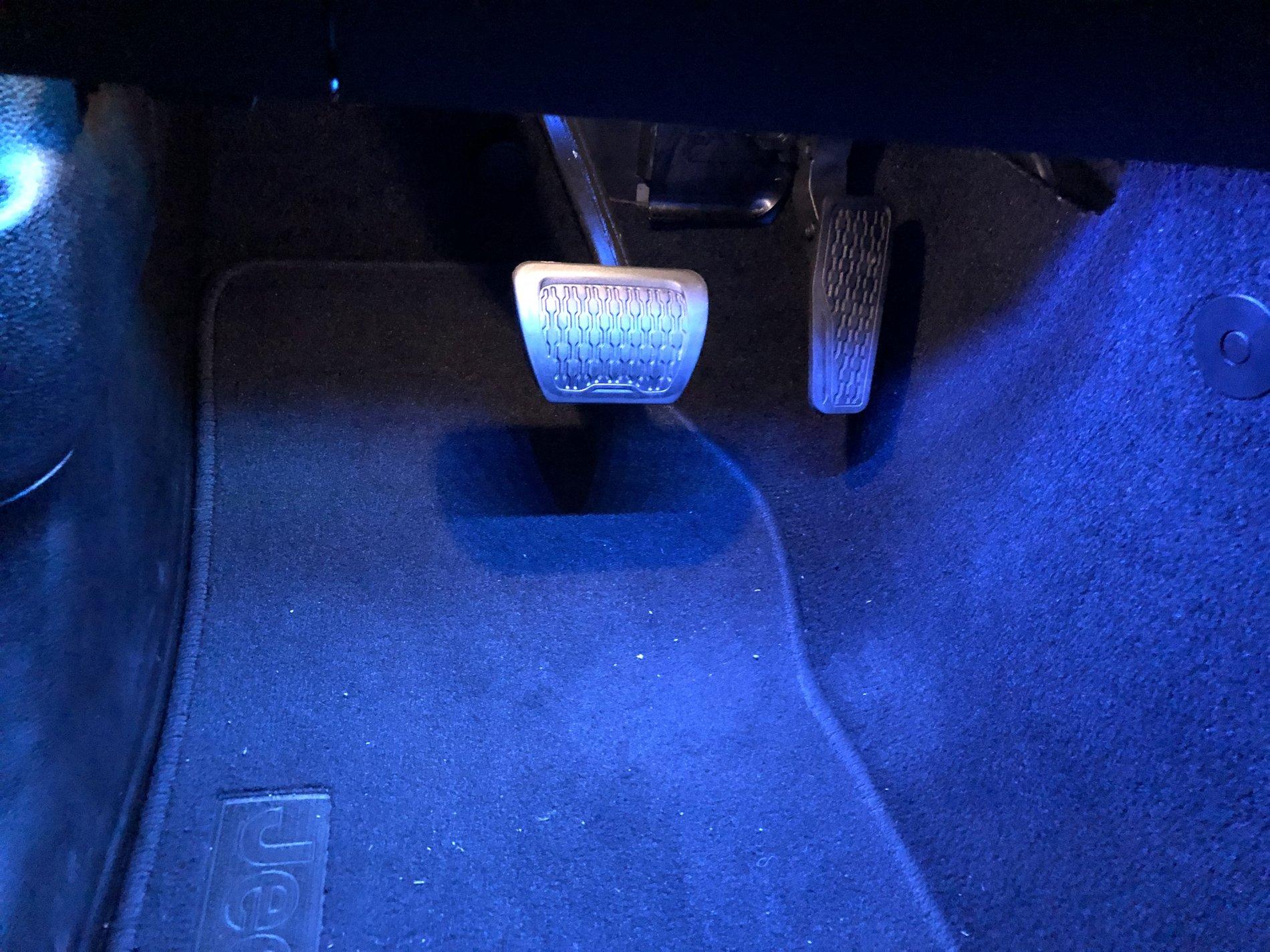

Nice LED lights!

I thought about tapping into that for my dash cam but after looking at the dash, passenger side firewall plug and the driver's side plug I determined it was very easy to use the driver's side plug to the fuse box. Plus it allows an easy switch from a constant hot or ignition hot fuse such as the radio fuse or seat warmer fuses respectively.


firemk

Active Member
First Name
Mike
Joined
Sep 10, 2019
Messages
40
Reaction score
32
Location
Sanger, TX
Vehicle(s)
2018 Wrangler Unlimited Sport S (Punk'n)
I see the Aux switch panel in your photo. You do realize that wiring for these 4 switches as well as two additional non-switched wires are already ran in the passenger compartment on the passenger side, correct? If not, look in your owners manual for the information.

OP
JSFoster75

JSFoster75

Well-Known Member
First Name
Scott
Joined
Oct 6, 2019
Messages
590
Reaction score
457
Location
Bluff City, TN
Vehicle(s)
2018 Jeep Wrangler JL Unlimited Sahara x2
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #4
I see the Aux switch panel in your photo. You do realize that wiring for these 4 switches as well as two additional non-switched wires are already ran in the passenger compartment on the passenger side, correct? If not, look in your owners manual for the information.
yes, we are going to use those for other things though.


ThinkOutdoors

Member
First Name
Sebastian
Joined
May 3, 2019
Messages
17
Reaction score
9
Location
New Jersey
Website
www.youtube.com
Vehicle(s)
Jeep Wrangler JLU 2018
Hey @JSFoster75, which wire did you tap into for the positive connection? I tapped into the rear cargo trunk cigarette lighter for my brawlee light and want to tap into the front for some USB ports in the rear center console. There's a negative, pink & yellow, and orange & brown cable. Any chance you remember?


emgeesea

Well-Known Member
First Name
Marc
Joined
Apr 19, 2020
Messages
159
Reaction score
159
Location
Portland, OR
Vehicle(s)
2020 Willys
Vehicle Showcase
1
Hey @JSFoster75, which wire did you tap into for the positive connection? I tapped into the rear cargo trunk cigarette lighter for my brawlee light and want to tap into the front for some USB ports in the rear center console. There's a negative, pink & yellow, and orange & brown cable. Any chance you remember?
I just tapped into the cigarette socket wiring to power a front camera display monitor. I don't recall the color, but one of either the pink/yellow or orange/brown wires is substantially larger than the other. I assumed that would be the positive power wire and the other would be the illumination ring wire. After reassembling, this was correct!

Probably too late for you, but in case anyone else comes across this post.


426 smartin

Member
First Name
Scott
Joined
Apr 27, 2020
Messages
11
Reaction score
8
Location
kentucky
Vehicle(s)
2018 JL 2015 JK
Hey @JSFoster75, which wire did you tap into for the positive connection? I tapped into the rear cargo trunk cigarette lighter for my brawlee light and want to tap into the front for some USB ports in the rear center console. There's a negative, pink & yellow, and orange & brown cable. Any chance you remember?
pink & yellow
