Tailgate Release Handle

banessi

Well-Known Member
First Name
Blair
Joined
Nov 13, 2017
Threads
6
Messages
334
Reaction score
523
Location
Ellicott City, MD
Vehicle(s)
2018 Wrangler JLU Rubicon (Hard Top, Granite), 2013 Wrangler JK Sahara (Soft Top, Commando Green)
Vehicle Showcase
3
Has anybody messed with the tailgate latch at all? I've been sleeping in the back of the JL and I wanted to be able to open the tailgate from inside. I found this video of somebody doing this in a JK. I was hoping somebody had looked at this and maybe even did it already. I'd love to be able to release it with the standard trunk pull like in the video but it would be even better to have an actual handle to easily close it from inside too. Any thoughts/ideas?

Sponsored


Last edited:
OP
OP
banessi

banessi

Well-Known Member
First Name
Blair
Joined
Nov 13, 2017
Threads
6
Messages
334
Reaction score
523
Location
Ellicott City, MD
Vehicle(s)
2018 Wrangler JLU Rubicon (Hard Top, Granite), 2013 Wrangler JK Sahara (Soft Top, Commando Green)
Vehicle Showcase
3

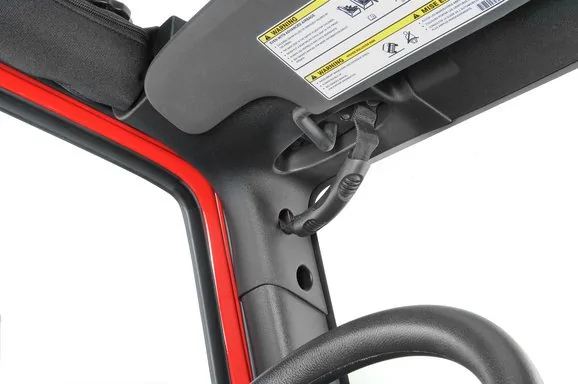

Not yet. I'm a little surprised there isn't an aftermarket solution out there for at least JKs. One of these days I'm going to pop that back plate off and look and the innards. I might wait until the Trail Rail system comes out and do both at the same time. I'll probably just do something similar to what he did but attach some kind of handle to actually yank the door closed. I was thinking about using a soft handle from a JK like this and bolting to the back gate to close (https://www.quadratec.com/products/14018_1113.htm). I could thread a release through the same handle.


OP
OP
banessi

banessi

Well-Known Member
First Name
Blair
Joined
Nov 13, 2017
Threads
6
Messages
334
Reaction score
523
Location
Ellicott City, MD
Vehicle(s)
2018 Wrangler JLU Rubicon (Hard Top, Granite), 2013 Wrangler JK Sahara (Soft Top, Commando Green)
Vehicle Showcase
3

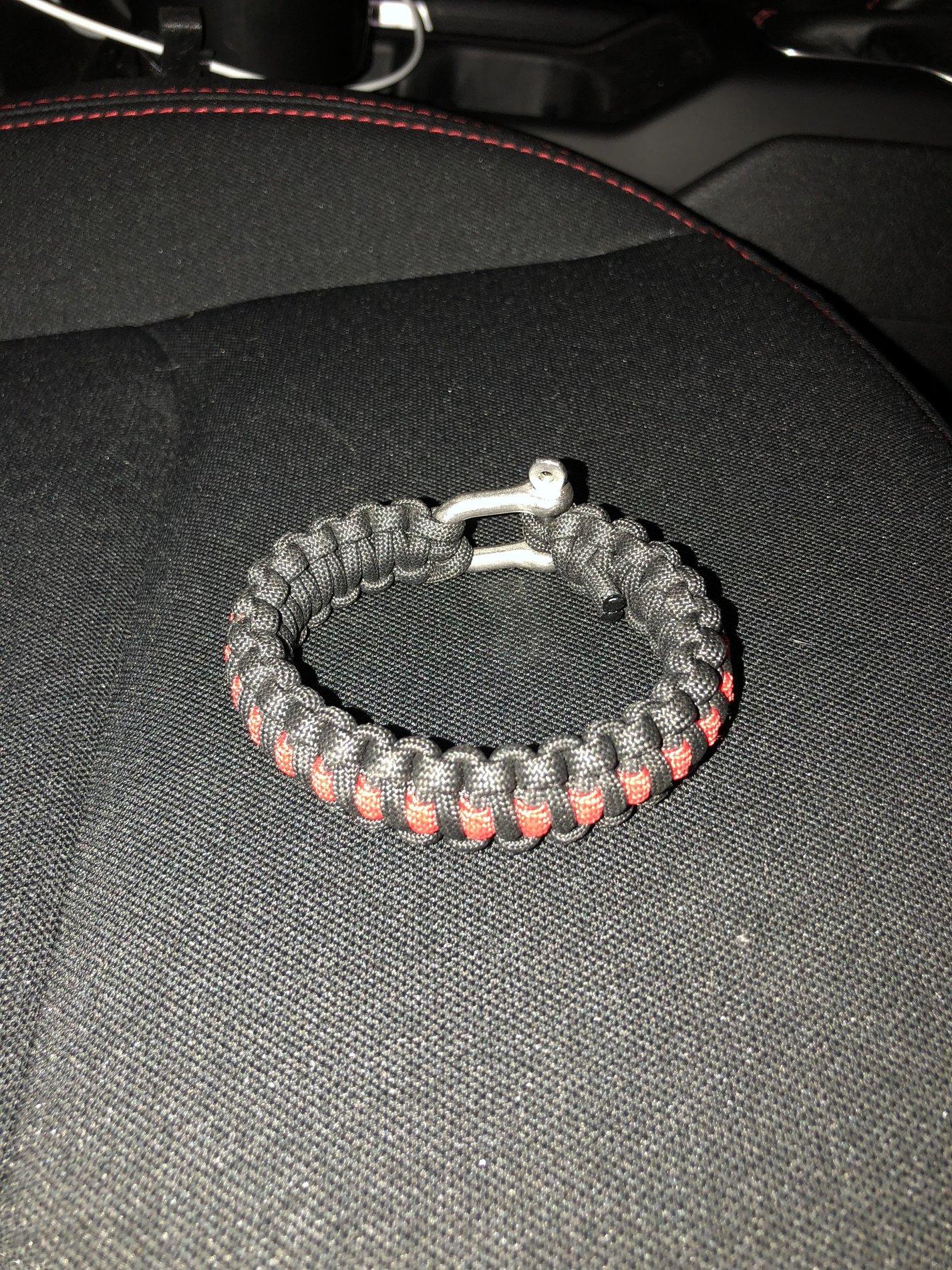

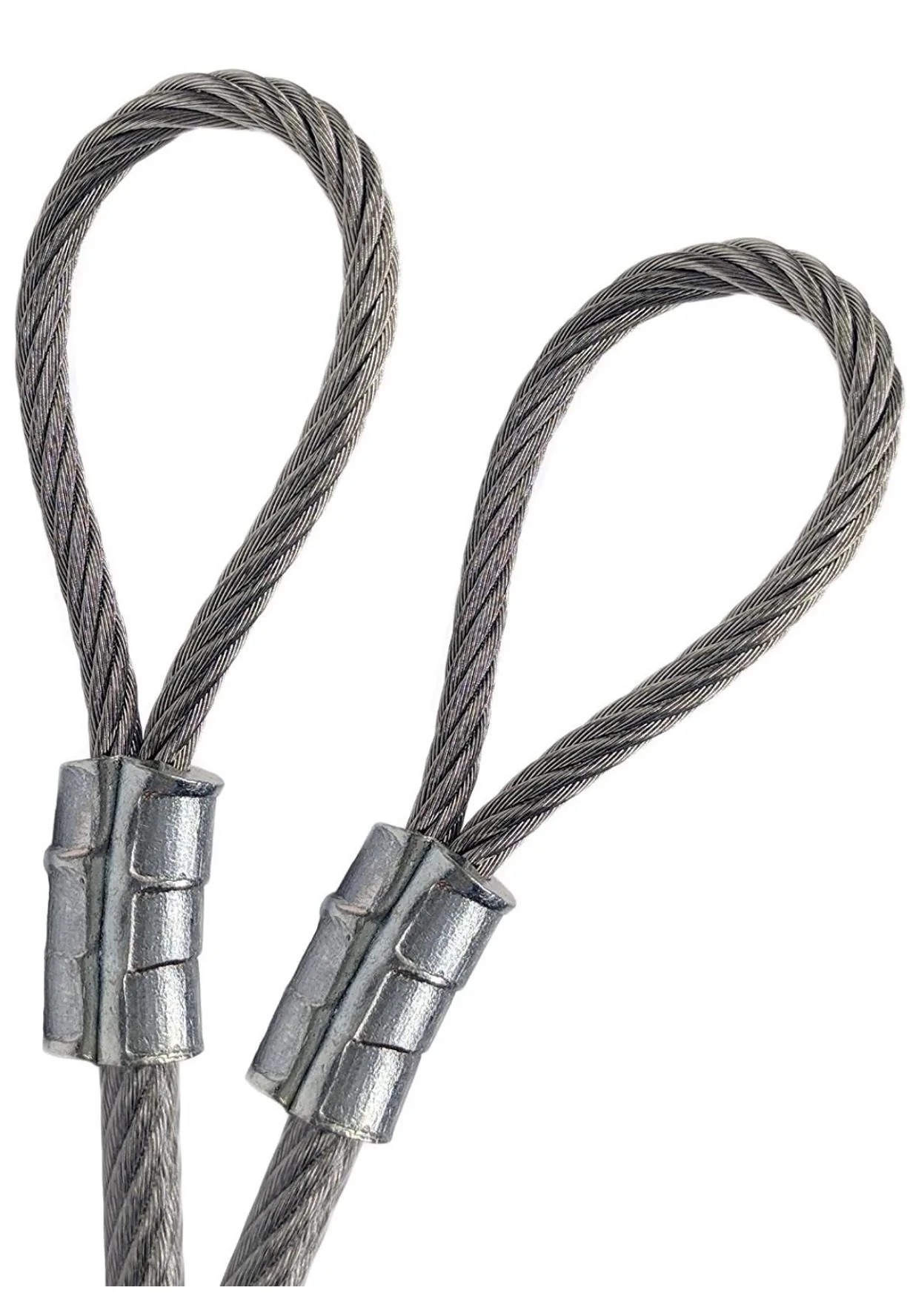

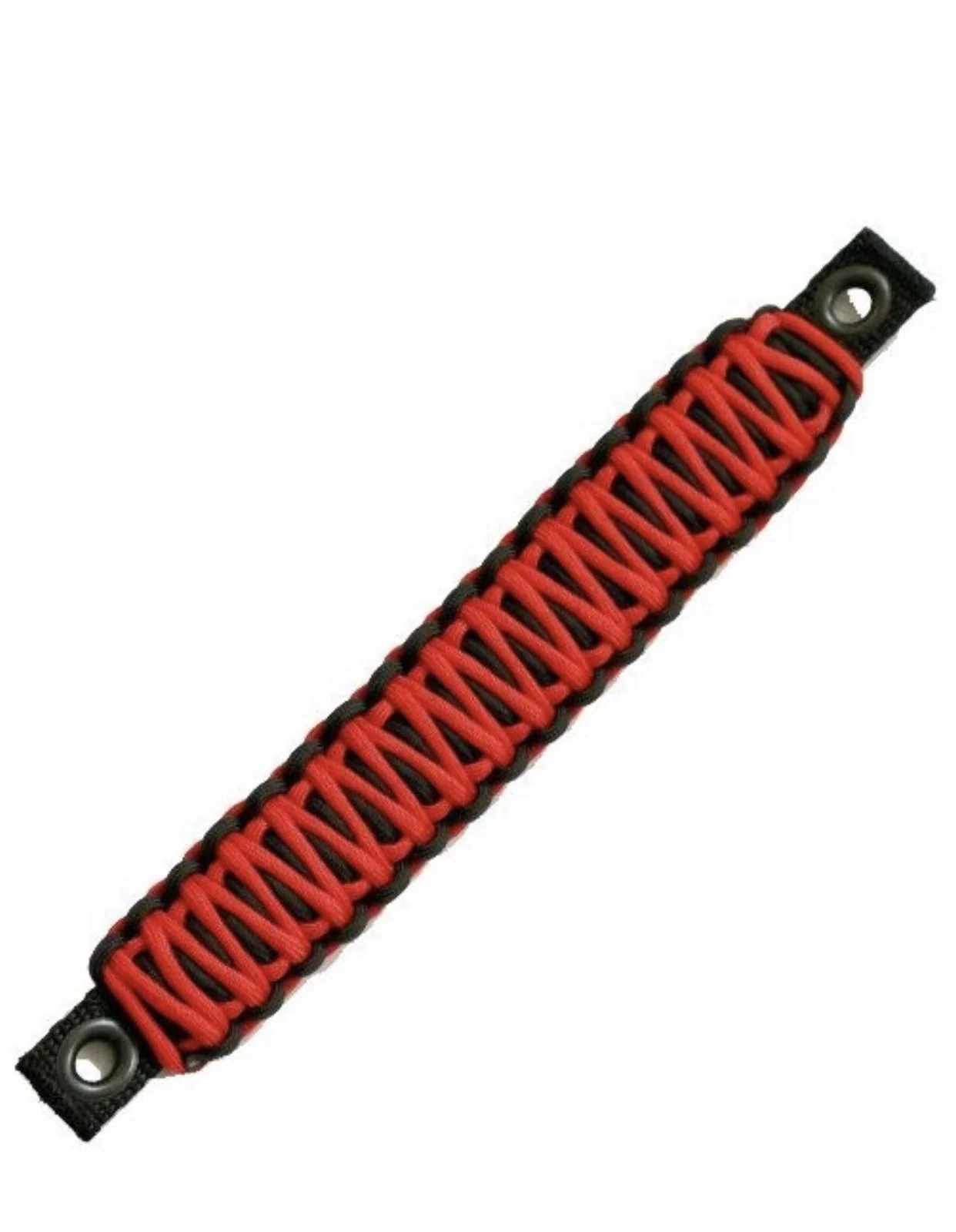

I think I may have a plan. Assuming a similar release to the JK I’ll use a coated cable like the one below (one foot lengths on Amazon) and connect that to this paracord bracelet I already had. For the handle to close the gate I’m thinking about using this other paracord handle to some of the anchor points for the Trail Rail Management System. Once that or some aftermarket solution is purchased I can move the handle to that. I’ll do some investigation and will post further.







Sponsored

OP
OP
banessi

banessi

Well-Known Member
First Name
Blair
Joined
Nov 13, 2017
Threads
6
Messages
334
Reaction score
523
Location
Ellicott City, MD
Vehicle(s)
2018 Wrangler JLU Rubicon (Hard Top, Granite), 2013 Wrangler JK Sahara (Soft Top, Commando Green)
Vehicle Showcase
3
Pulled the trigger on this project today. Very happy how things turned out. Here’s my write up.

I used the parts I had mentioned above. Used a paracord bracelet for the release. Bought a six inch cable (King Marine Bimini Top 6" Nylon Clear Coated SS Cable with loop - 2 pack https://www.amazon.com/dp/B071DVJBKZ/ref=cm_sw_r_cp_api_i_Zd77AbGKV30CM) and shackles (Cosmos ® 10 PCS ½ inch Silver Color Stainless Steel D Shackles with Cosmos Fastening Strap https://www.amazon.com/dp/B008KYDZE6/ref=cm_sw_r_cp_api_i_ne77AbGD08EPR) along with this handle (Bartact TAOGHRPBR - Jeep Wrangler JK Rear Side Sound Bar Paracord Grab Handles (PAIR) - Made in USA - BLACK/RED https://www.amazon.com/dp/B00PO17GDO/ref=cm_sw_r_cp_api_i_6e77AbN1ZSCMS).

I popped off the rear trim using a trim tool. Popped off easily. I used a shackle to attach the cable to the mechanism pictured. I initially tried the plug port in the pics but didn’t have the downward angle I needed to release. So I drilled a hole in the plastic and put a rubber grommet in the plastic.

For the handle I used the two unused threaded holes. The top hole is an M8 and the bottom is an M6. Both are fine (28) thread. I had an M8 but didn’t have an M6 that was long enough. I bought a 35mm and it worked but would have preferred a 40 or 45 for mor depth in the threads.

I drilled through the plastic and screwed them through after replacing the trim. Painted the washer and bolts but the paint came off when torquing down. Will paint in place. I hope some of you can make used of this. Used the extra handle and a shackle as a handle for my Hydroflask. See pics below.



















View attachment 41333









Attachments

  • 0 bytes Views: 0
Last edited:

wanderer

Well-Known Member
First Name
Ralph
Joined
Aug 10, 2017
Threads
122
Messages
1,418
Reaction score
772
Location
Carlsbad CA
Vehicle(s)
2018 jlu rubicon. Surfboard. Bare feet, moose drawn air sled, Interstellar time warp space transport fighter
Occupation
Engineering Geologist
pretty cool


Euro JEEP

Well-Known Member
First Name
Stefan
Joined
Jul 10, 2017
Threads
11
Messages
431
Reaction score
270
Location
Spain
Vehicle(s)
Jeep TJ
Pulled the trigger on this project today. Very happy how things turned out. Here’s my right up.

I used the parts I had mentioned above. Used a paracord bracelet for the release. Bought a six inch cable (King Marine Bimini Top 6" Nylon Clear Coated SS Cable with loop - 2 pack https://www.amazon.com/dp/B071DVJBKZ/ref=cm_sw_r_cp_api_i_Zd77AbGKV30CM) and shackles (Cosmos ® 10 PCS ½ inch Silver Color Stainless Steel D Shackles with Cosmos Fastening Strap https://www.amazon.com/dp/B008KYDZE6/ref=cm_sw_r_cp_api_i_ne77AbGD08EPR) along with this handle (Bartact TAOGHRPBR - Jeep Wrangler JK Rear Side Sound Bar Paracord Grab Handles (PAIR) - Made in USA - BLACK/RED https://www.amazon.com/dp/B00PO17GDO/ref=cm_sw_r_cp_api_i_6e77AbN1ZSCMS).

I popped off the rear trim using a trim tool. Popped off easily. I used a shackle to attach the cable to the mechanism pictured. I initially tried the plug port in the pics but didn’t have the downward angle I needed to release. So I drilled a hole in the plastic and put a rubber grommet in the plastic.

For the handle I used the two unused threaded holes. The top hole is an M8 and the bottom is an M6. Both are fine (28) thread. I had an M8 but didn’t have an M6 that was long enough. I bought a 35mm and it worked but would have preferred a 40 or 45 for mor depth in the threads.

I drilled through the plastic and screwed them through after replacing the trim. Painted the washer and bolts but the paint came off when torquing down. Will paint in place. I hope some of you can make used of this. Used the extra handle and a shackle as a handle for my Hydroflask. See pics below.



















View attachment 41333







One of the best and most useful mods I have seen.


JIMBOX

Well-Known Member
First Name
JAMES
Joined
Feb 19, 2018
Threads
10
Messages
1,723
Reaction score
1,798
Location
FERNLEY NV
Vehicle(s)
CHEROKEE TRAILHAWK/ JEEP GLADIATOR
Occupation
RETIRED
I used the same system on my Xterra/JKUR and had real success, but-

If you have children, or ever carry children, you could have TROUBLE-

Check with your insurance co,

Ever notice why this tailgate internal release is never offered by any AMERICAN MFG, without a failproof lock ??

Whatever

JIMBO


Billy

Well-Known Member
Joined
Jul 20, 2016
Threads
15
Messages
13,641
Reaction score
87,443
Location
Bend, OR
Vehicle(s)
1997 TJ, 2022 JTRD
Vehicle Showcase
1
I used the same system on my Xterra/JKUR and had real success, but-

If you have children, or ever carry children, you could have TROUBLE-

Check with your insurance co,

Ever notice why this tailgate internal release is never offered by any AMERICAN MFG, without a failproof lock ??

Whatever

JIMBO
Seems like a really bad idea to carry small children in the cargo area.

Just sayin...


Sponsored

JIMBOX

Well-Known Member
First Name
JAMES
Joined
Feb 19, 2018
Threads
10
Messages
1,723
Reaction score
1,798
Location
FERNLEY NV
Vehicle(s)
CHEROKEE TRAILHAWK/ JEEP GLADIATOR
Occupation
RETIRED
That's absolutely true--

All children, no matter what age, should be LOCKED in car seats/seatbelts--

No argument there---right ??

All children, ALLWAYS STAY WHERE YOU PUT THEM--RIGHT ??

Whatever

JIMBO


Billy

Well-Known Member
Joined
Jul 20, 2016
Threads
15
Messages
13,641
Reaction score
87,443
Location
Bend, OR
Vehicle(s)
1997 TJ, 2022 JTRD
Vehicle Showcase
1
Dude. Levity...

:cwl::cwl::cwl::cwl:


Krondor

Well-Known Member
First Name
Gary
Joined
Jan 23, 2018
Threads
49
Messages
24,213
Reaction score
172,954
Location
Colorado
Vehicle(s)
2018 Jeep Wrangler JL - Punk'n Edition
Build Thread
Link
lol

Serious?


OP, love the mod for creativity and style. I'm not going to be able to sleep in the back of my 2 door, but that was a great solution and write up.


Rick12785

Well-Known Member
First Name
Rick
Joined
Mar 21, 2018
Threads
9
Messages
123
Reaction score
234
Location
Charlotte, NC
Vehicle(s)
2018 JL Sahara
Great mod and excellent work! Does this emergency release work when the doors are locked? Just thinking someone can easily unlock the tailgate even when all the doors are locked.

OP
OP
banessi

banessi

Well-Known Member
First Name
Blair
Joined
Nov 13, 2017
Threads
6
Messages
334
Reaction score
523
Location
Ellicott City, MD
Vehicle(s)
2018 Wrangler JLU Rubicon (Hard Top, Granite), 2013 Wrangler JK Sahara (Soft Top, Commando Green)
Vehicle Showcase
3
Great mod and excellent work! Does this emergency release work when the doors are locked? Just thinking someone can easily unlock the tailgate even when all the doors are locked.
No, if the car is locked the emergency release will not work. This solves both the break in (as much as that is solved in a Wrangler) and concerns over roving herds of cargo area based children.
