I put Milestars on my Jeep. 285/70/17. They seemed a little stiff, aired them down to 32psi, and they weren’t bad on stock suspension. A little stiff, but not a deal breaker.
Then the Dynatrac Enduro sport 2” lift went on. All springs are indexed correctly, Rear links to the front, new ones included with kit in the rear. All shocks are located in the correct position 77s in front 78s in rear, per the instructions.
Steering is just a tinge off to the right, but nothing that would wear anything.

BUT, the whole thing rides like complete shit Ferris! It’s bad. Really bad. The front seems okay, but the rear is so stiff that its jarring. I’m not new to lifted rides, but this is the worst. Its synonymous with driving 90MPH in a Amish buggy on concrete washboard roads. Just made 1100 miles Texas to Michigan, and i will not drive it like it is any further.

Hit a bump and it feels unsettled. Almost like all 4 wheels want to do their own thing. I checked and rechecked, everything is tight and torqued to specs. FWIW, i did not unbolt the trac bar to install. Dropped the links, brake lines, shocks and drooped to get springs out. Nubs are lined up in the cups, and springs are indexed. I don’t know…. The spare is off, and the seats are out, but i added about 75lbs of luggage, so I’m about 80lbs light on the rear i guess. But that shouldn’t make the ass end that stiff?



word302

Well-Known Member
Joined
Sep 13, 2017
Threads
10
Messages
4,478
Reaction score
4,856
Location
Oregon
Vehicle(s)
JLU
I put Milestars on my Jeep. 285/70/17. They seemed a little stiff, aired them down to 32psi, and they weren’t bad on stock suspension. A little stiff, but not a deal breaker.
Then the Dynatrac Enduro sport 2” lift went on. All springs are indexed correctly, Rear links to the front, new ones included with kit in the rear. All shocks are located in the correct position 77s in front 78s in rear, per the instructions.
Steering is just a tinge off to the right, but nothing that would wear anything.

BUT, the whole thing rides like complete shit Ferris! It’s bad. Really bad. The front seems okay, but the rear is so stiff that its jarring. I’m not new to lifted rides, but this is the worst. Its synonymous with driving 90MPH in a Amish buggy on concrete washboard roads. Just made 1100 miles Texas to Michigan, and i will not drive it like it is any further.

Hit a bump and it feels unsettled. Almost like all 4 wheels want to do their own thing. I checked and rechecked, everything is tight and torqued to specs. FWIW, i did not unbolt the trac bar to install. Dropped the links, brake lines, shocks and drooped to get springs out. Nubs are lined up in the cups, and springs are indexed. I don’t know…. The spare is off, and the seats are out, but i added about 75lbs of luggage, so I’m about 80lbs light on the rear i guess. But that shouldn’t make the ass end that stiff?
Did you torque the control arms with the weight of the Jeep on the axles/tires? I only ask because you might have the factory control arms preloaded. Cycle the suspension one corner at a time and see if anything is binding.

OP
OP
Mudduck

Mudduck

Well-Known Member
First Name
Jay
Joined
Dec 30, 2021
Threads
14
Messages
392
Reaction score
777
Location
Michigan
Vehicle(s)
2021 Willys 4door
Did you torque the control arms with the weight of the Jeep on the axles/tires? I only ask because you might have the factory control arms preloaded. Cycle the suspension one corner at a time and see if anything is binding.
Ill jack each corner up tomorrow and loosen/RE torque them.

OP
OP
Mudduck

Mudduck

Well-Known Member
First Name
Jay
Joined
Dec 30, 2021
Threads
14
Messages
392
Reaction score
777
Location
Michigan
Vehicle(s)
2021 Willys 4door
Did you torque the control arms with the weight of the Jeep on the axles/tires? I only ask because you might have the factory control arms preloaded. Cycle the suspension one corner at a time and see if anything is binding.

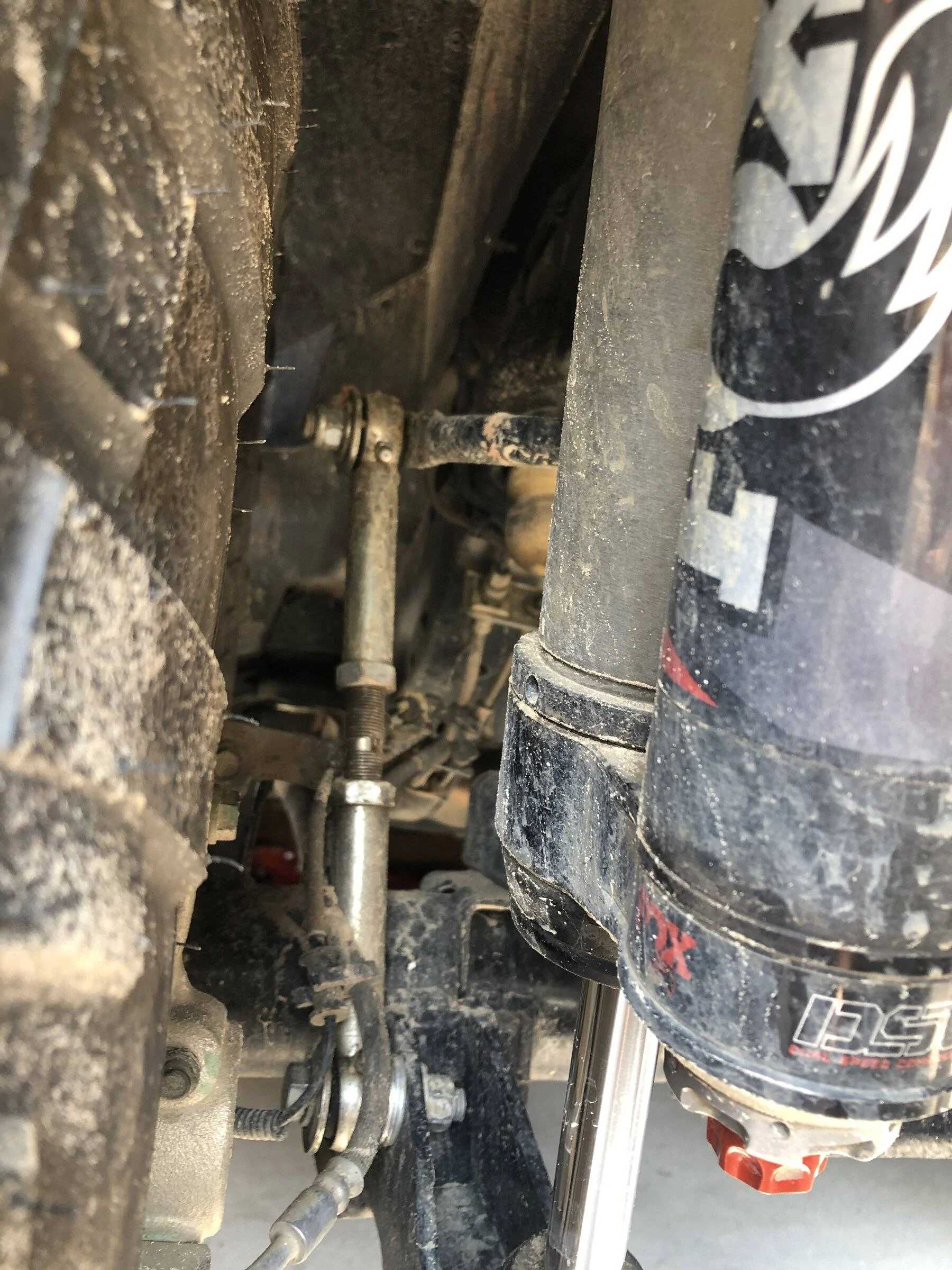

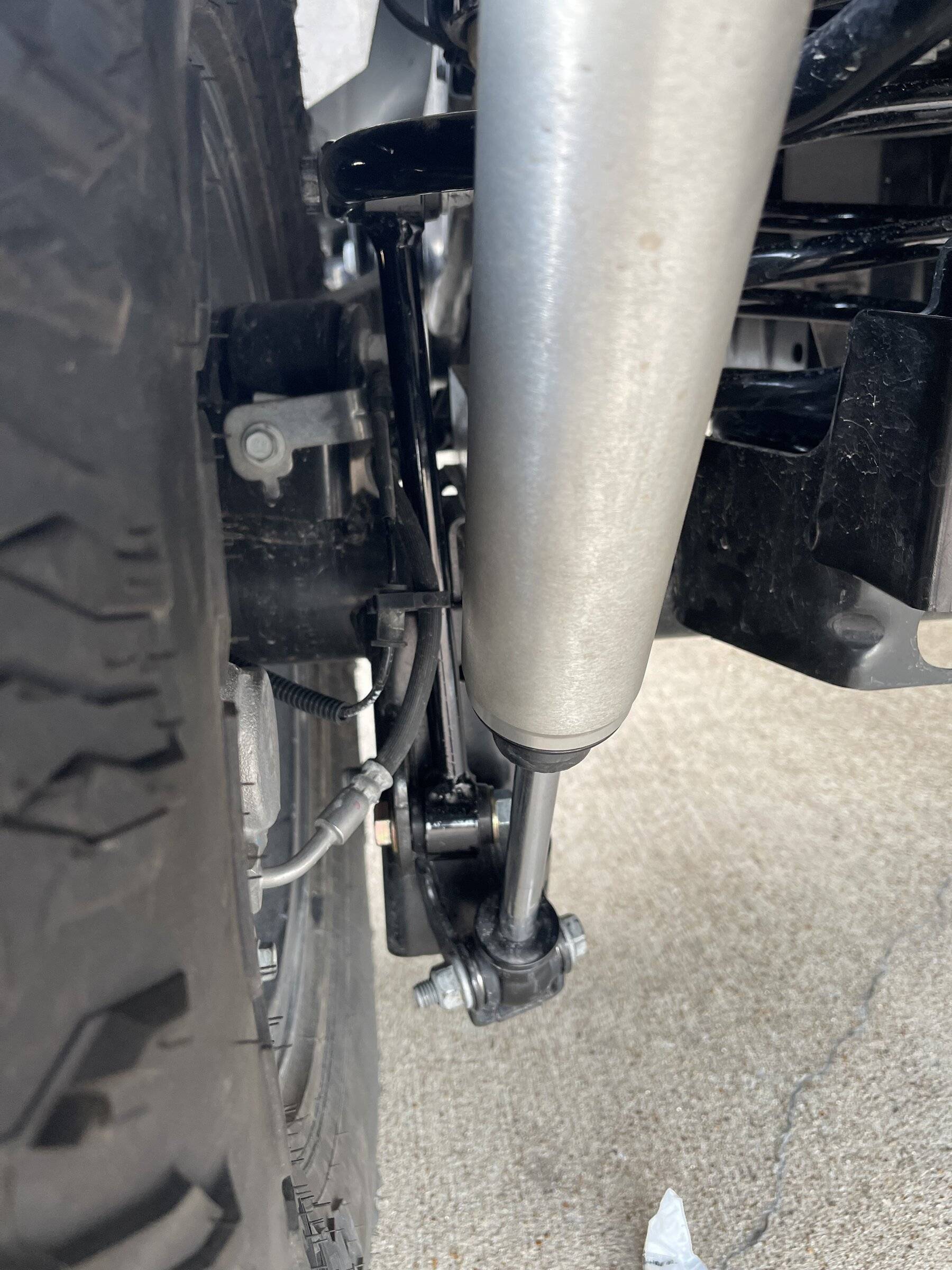

Pretty sure this is my issue. My buddy helped me out with this, but I’m 9000% sure this is my binding point. I don’t think the rear links go this way.



Roky

Well-Known Member
First Name
Roky
Joined
Oct 4, 2018
Threads
45
Messages
7,061
Reaction score
19,267
Location
Central Florida
Vehicle(s)
2018 JLUR
Build Thread
Link
Vehicle Showcase
1
Pretty sure this is my issue. My buddy helped me out with this, but I’m 9000% sure this is my binding point. I don’t think the rear links go this way.

You are correct….. they go outside/outside .
