SumoSprings for 4xe?

robynE

Well-Known Member
First Name
Robyn
Joined
Jan 1, 2019
Threads
23
Messages
400
Reaction score
526
Location
Maryland
Vehicle(s)
2021 JLU Sahara 4xe
Hi,

I'm hearing that SumoSprings might be an easy upgrade to help with squat while towing.

Is this something that would work/help on a 4xe, or does it already come with some kind of upgraded suspension that would make Sumosprings really not necessary? I see it just has the stock "yellow" small bumpstops.

I don't have the camper yet, so I don't know how much squat I will even have, but I would want to get the springs installed before going to pick it up even.

Thanks


Last edited:

Terminex

Well-Known Member
First Name
Matt
Joined
Apr 19, 2019
Threads
11
Messages
693
Reaction score
627
Location
Omaha
Vehicle(s)
2021 JLUR 4XE
Occupation
Fixing stupid....
No.

i have sumosprings on my RV. They are elastomer units and would add significant stiffness to the rear.

you want airlift bags. They are inflatable to different pressure to help combat squat due to weight.

i had a set in my2019, and i have a set in my 2021, they work great as long as you do not try to do serious trails with them installed.


Jeeperz Kreeperz

Well-Known Member
Joined
Jan 15, 2018
Threads
39
Messages
387
Reaction score
402
Location
New Hampshire
Vehicle(s)
2021 JLUR 4xe
@robynE I have both the Supersprings Sumo Springs in the rear, and the AirLift 1000 airbags for the rear. To echo what @Terminex said, you will likely want the AirLift Airbag 1000 if you are concerned about towing. Do some searching on the forum. I’ve done a detailed write-up on the correct Airlift kit, and even some installation tips.

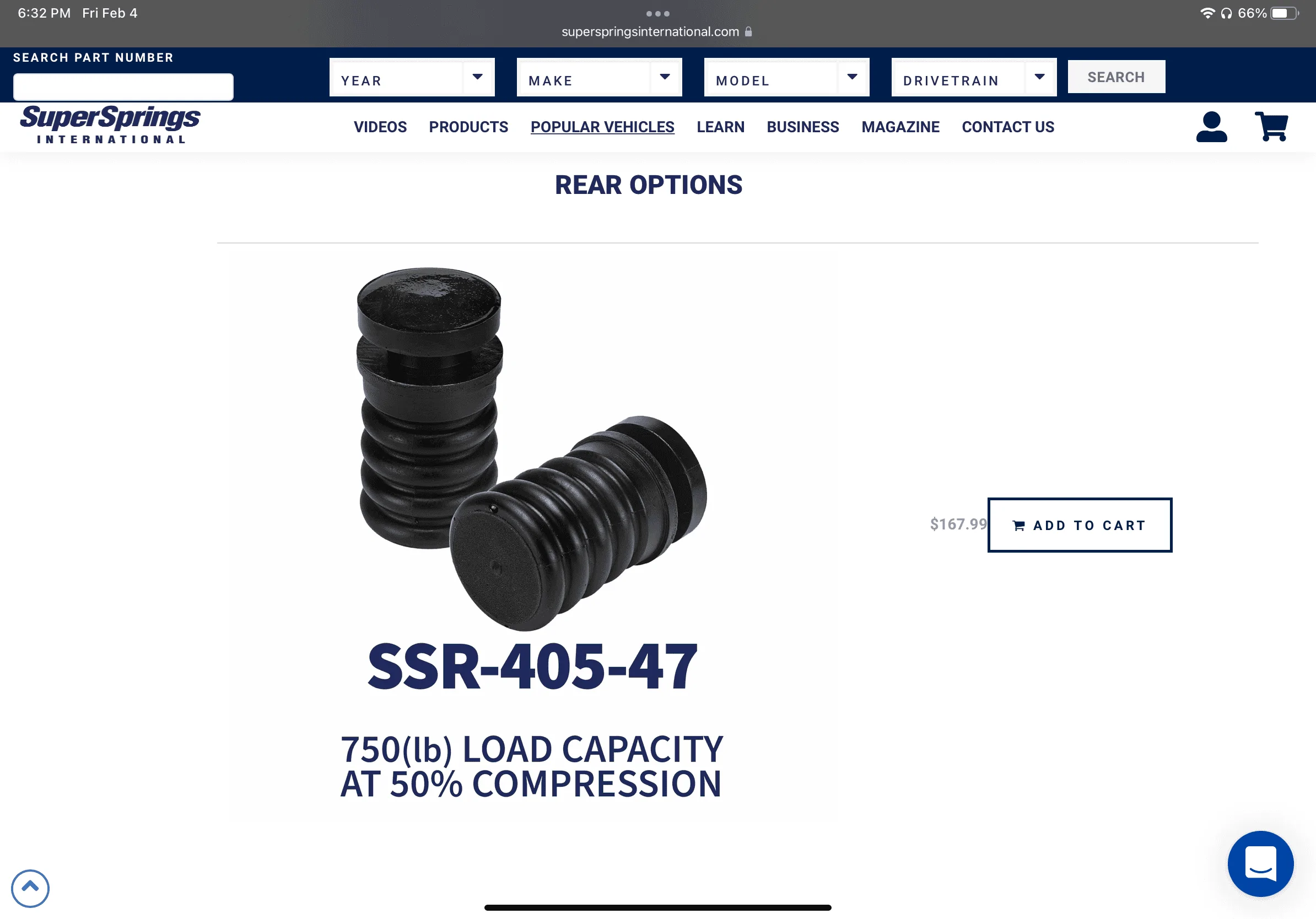

It’s important to note that supersprings makes all different kinds of these products. Some of them are in contact on top and bottom, and working at all times, and others (like the sumo springs for the Wrangler JL) are only attached at the top, and are only “working” under very heavy loads or bottom-outs. They are just replacement bump stops that are longer, and made of a stiffer material, with a higher load rating. See pic below:


It would require the spring to push through much of its travel before the sumo springs would make contact, and have any effect.

The airbags, on the other hand, sit inside the rear coil springs, and are in constant contact with the top and bottom of the spring mount, as well as with the interior of the coil spring as it spirals all the way from top to bottom. I can dial in the pressure on the airbags with a bicycle pump and instantly stiffen the rear suspension. A real game-changer if you are camping with heavy loads, have a roof-top tent, and/or are towing.

I only have the sumo springs because I bought them second-hand, but unused for a price I couldn’t resist. But they don’t really help with squat or body roll. So I got the Airlift airbags shortly thereafter, and honestly, I doubt the sumo springs have ever “bumped” even once! But I suppose if I had an Airlift airbag failure the sumo spring bump stop would be a good backup

Last edited:
OP
OP
robynE

robynE

Well-Known Member
First Name
Robyn
Joined
Jan 1, 2019
Threads
23
Messages
400
Reaction score
526
Location
Maryland
Vehicle(s)
2021 JLU Sahara 4xe
Great info! I will definitely take a look at the site bags. The tongue weight of camper dry is going to be just under 300. I'm a very minimalist solo camper so don't expect tongue weight to go much higher. I was hoping the sumos would be good enough to prevent too much squat but doesnt sound like they are going to do much. Thanks for the detailed replies.


Terminex

Well-Known Member
First Name
Matt
Joined
Apr 19, 2019
Threads
11
Messages
693
Reaction score
627
Location
Omaha
Vehicle(s)
2021 JLUR 4XE
Occupation
Fixing stupid....
I cannot stress enough to buy a tongue scale. Eveyone gets the tongue weight wrong. Until you actually weigh it, you do not know how much tongue weight you have.

setting it up right from the beginning will make the experience MUCH better.



GATORB8

Well-Known Member
First Name
Matt
Joined
May 30, 2021
Threads
12
Messages
3,967
Reaction score
4,509
Location
CLT NC
Vehicle(s)
21 JLURe
We’ve only towed a Rove Lite ~1800 LB camper (outdoorsy rental), but couple notes.

Headlight adjustment is super easy with a long screwdriver. Be worth a quick check so you don’t get flashed anytime you’re towing at night.

I ended up with an adjustible hitch to get a nice level trailer, the pump out was pretty low, so it helped clearance to get the tongue down level.

The Rove Lite has a pretty short tongue and a spare mounted on it, had to be cautious on turns backing in.


OP
OP
robynE

robynE

Well-Known Member
First Name
Robyn
Joined
Jan 1, 2019
Threads
23
Messages
400
Reaction score
526
Location
Maryland
Vehicle(s)
2021 JLU Sahara 4xe
Absolultly agree! I bought one before I bought my last camper! Excellent advice that I always give as well.
