Stripped bolt on Mopar Hinge Reinforcement Kit - Ugh!

OP
BobK

BobK

Well-Known Member
First Name
Bob
Joined
May 24, 2018
Messages
385
Reaction score
173
Location
Parker, TX
Vehicle(s)
2018 JL Rubicon Unlimited
Occupation
Semi-Retired
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #31

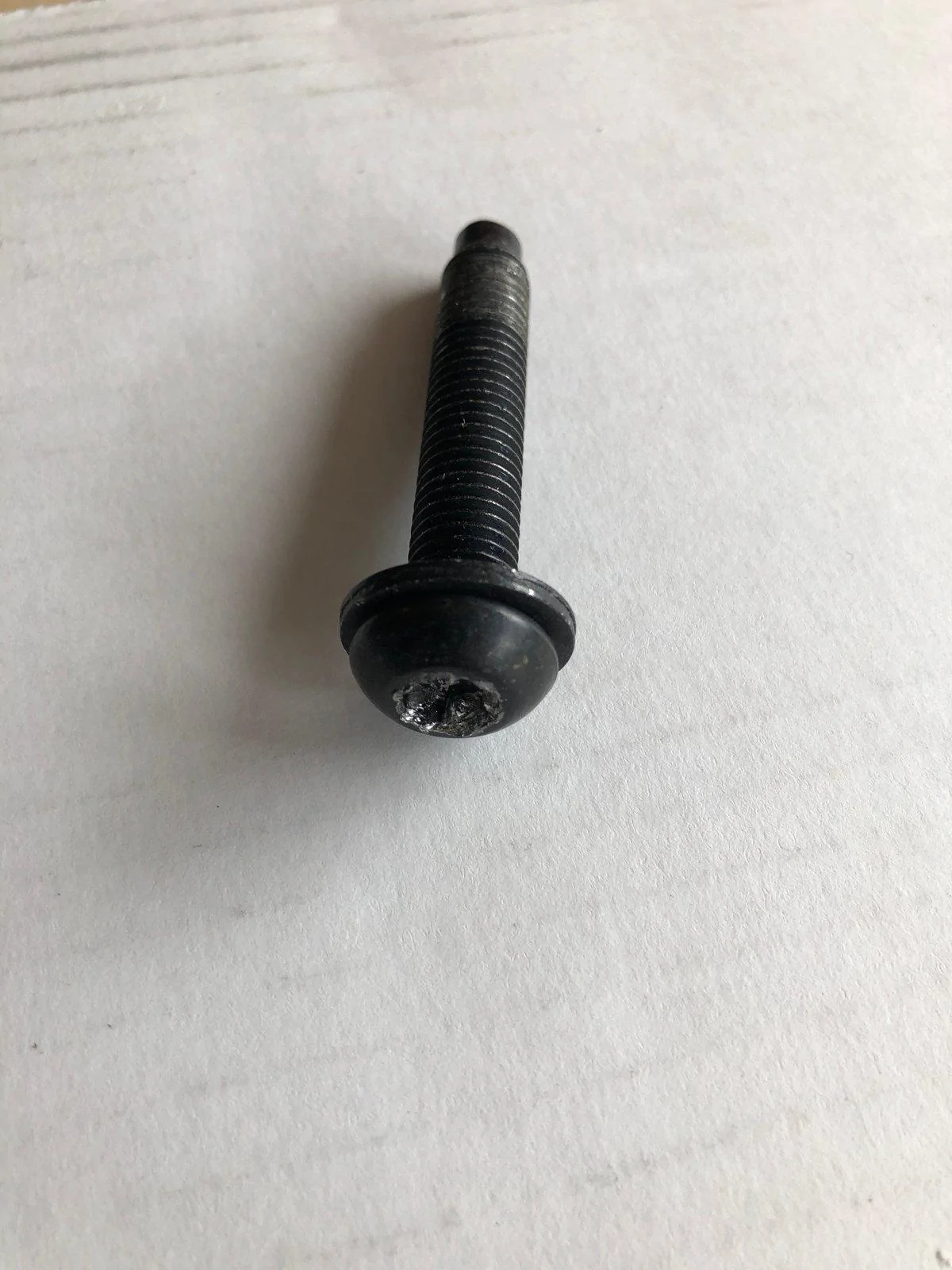

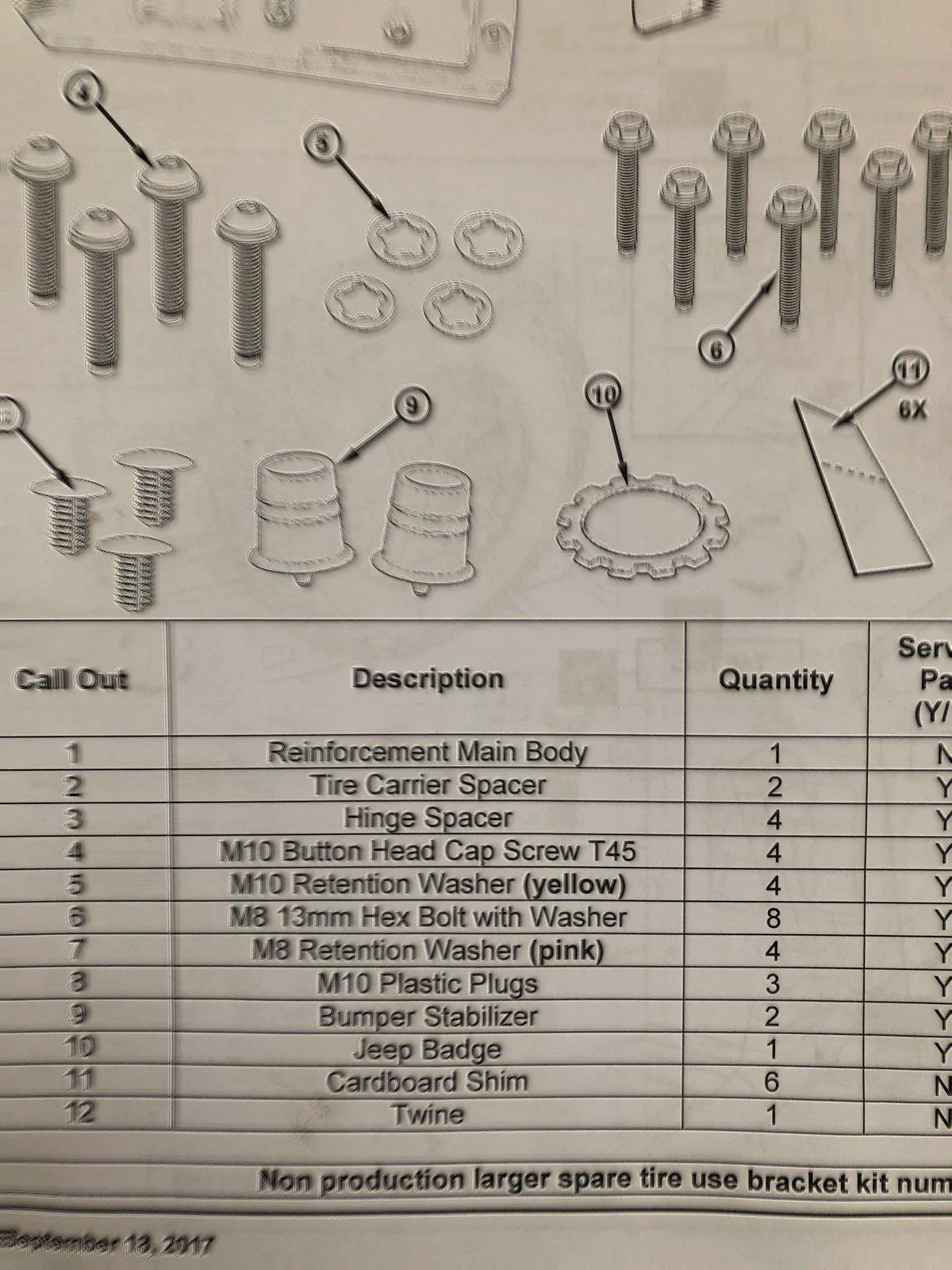

So today, my OCD got the best of me and I fully replaced the half-a**ed torx bolts that Mopar supplies with the reinforced hinge kit. No one should try and torque down to 35 pounds on a torx head bolt. I had one round off (see above) then I bought an allen head one and nearly did the same thing prior to getting to full torque setting.

I noticed that the replacement bolt had started to show some rust around the rounded off head and I had to use an easy-out extractor to get the frigging thing out.....what a treat that was, but it came out.

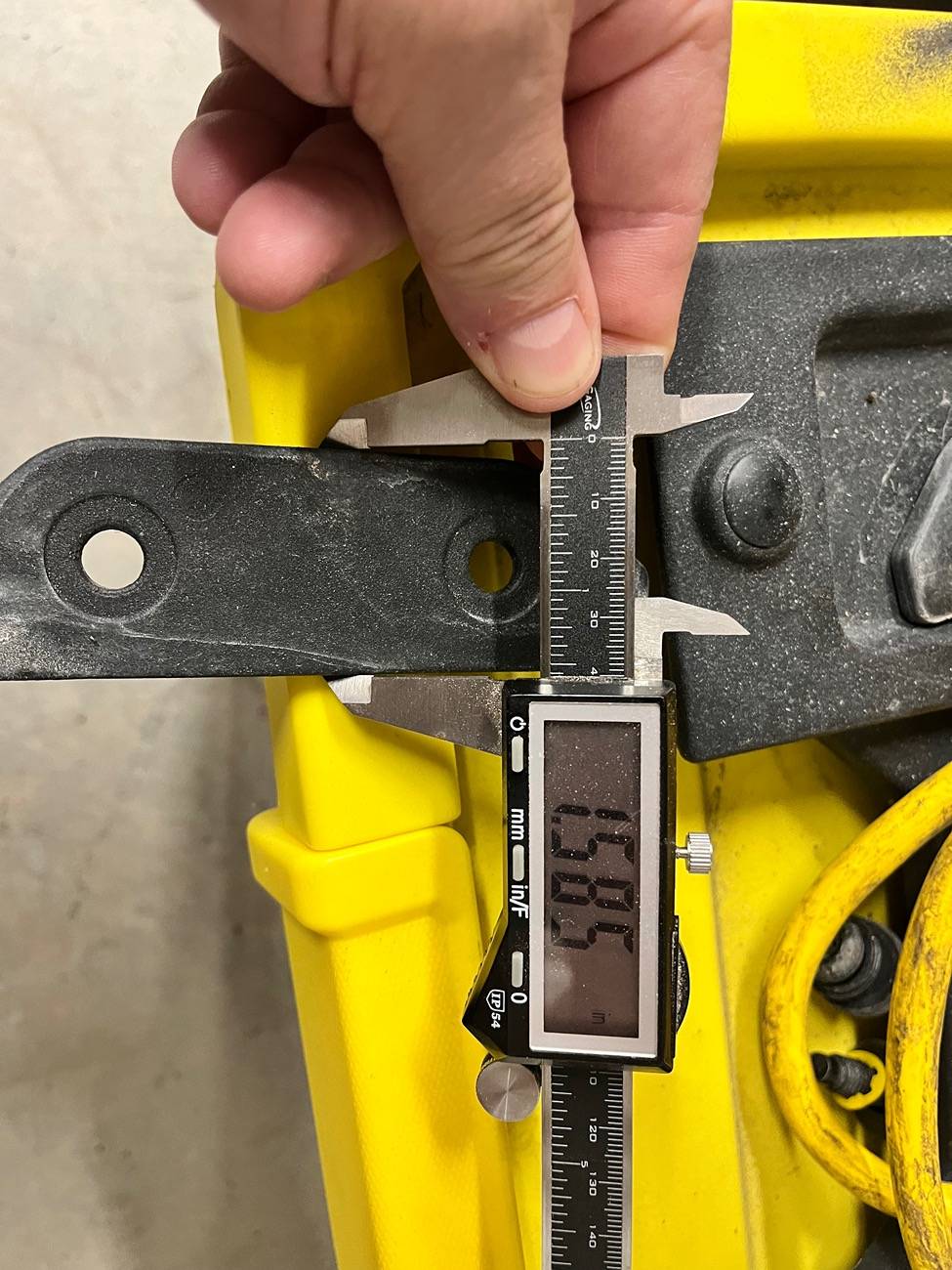

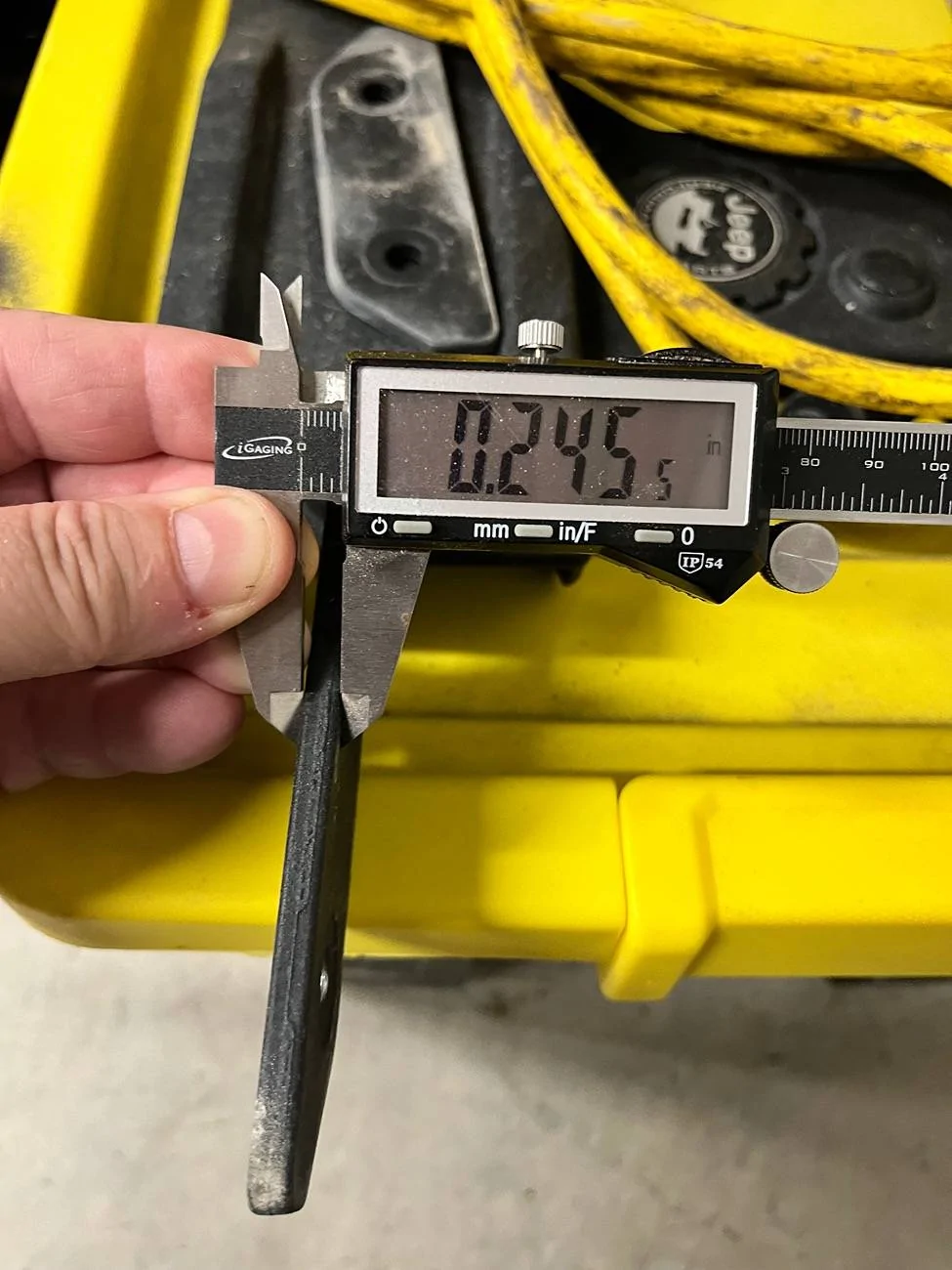

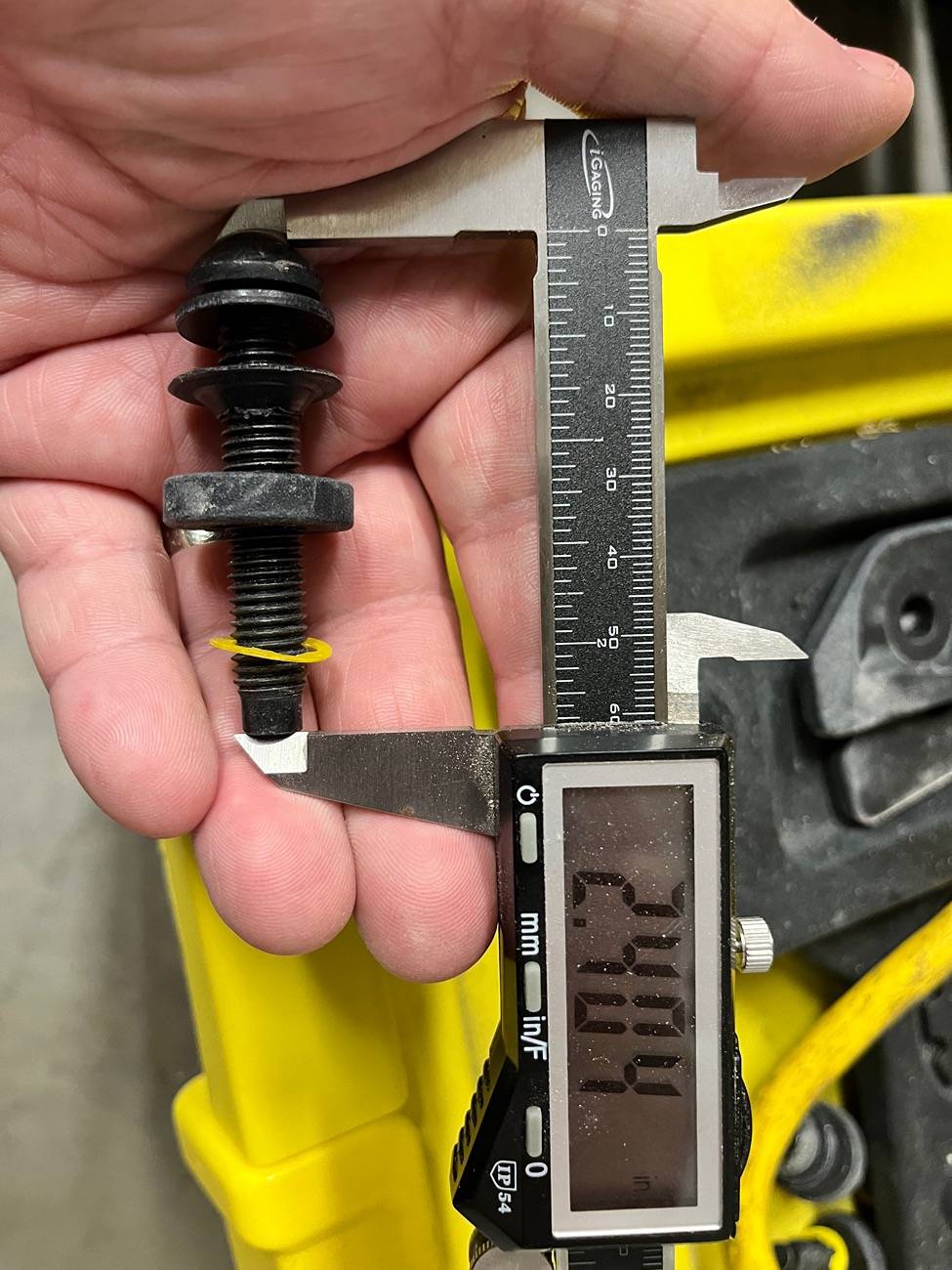

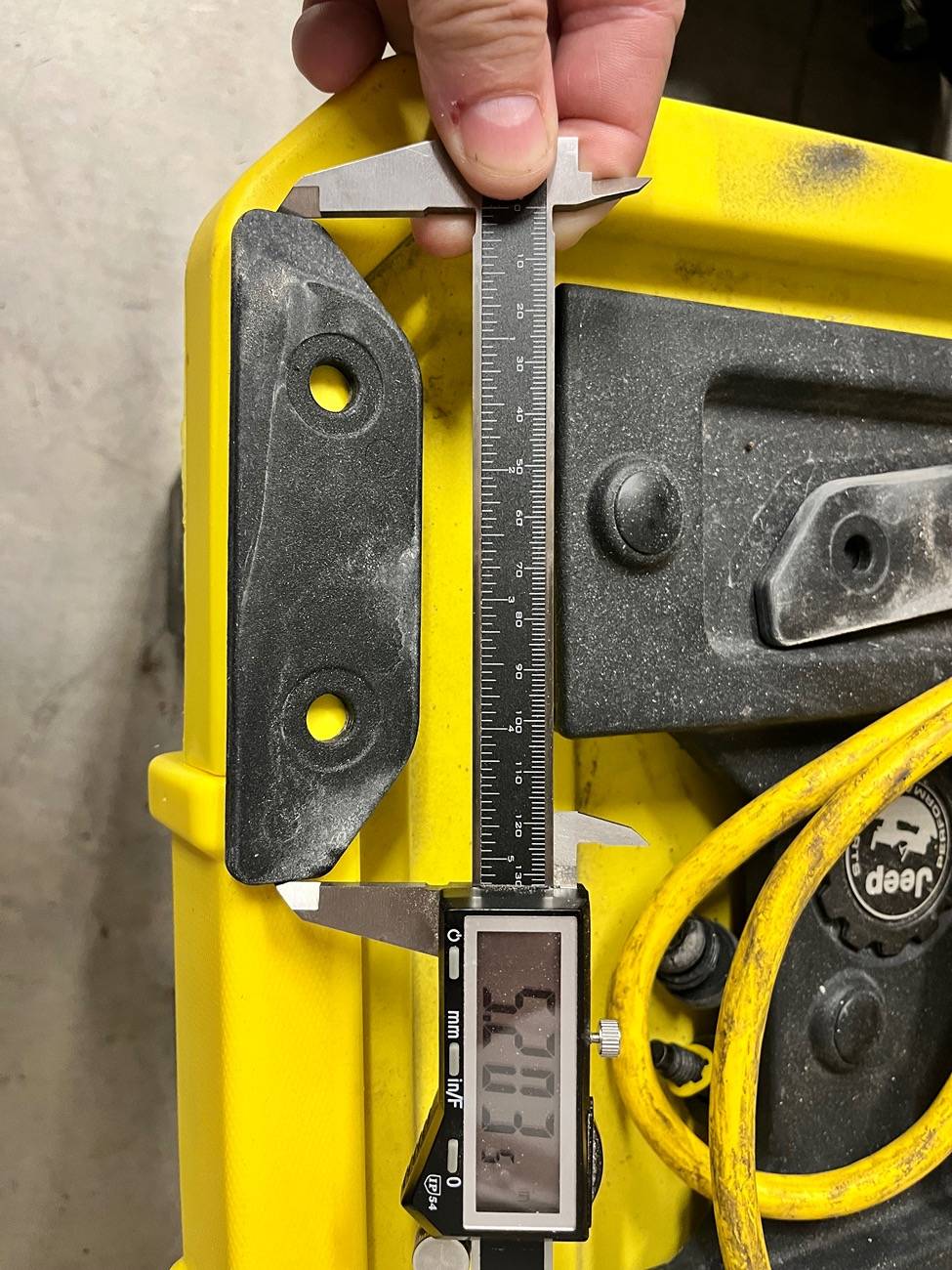

I ended up finding boltdepot.com that allowed me to buy the correct size bolt in a hex head. The only down side was that I had to spray paint them since they were not black oxide and they were unable to find any black oxide bolts with the specs we need.

Here is my order:

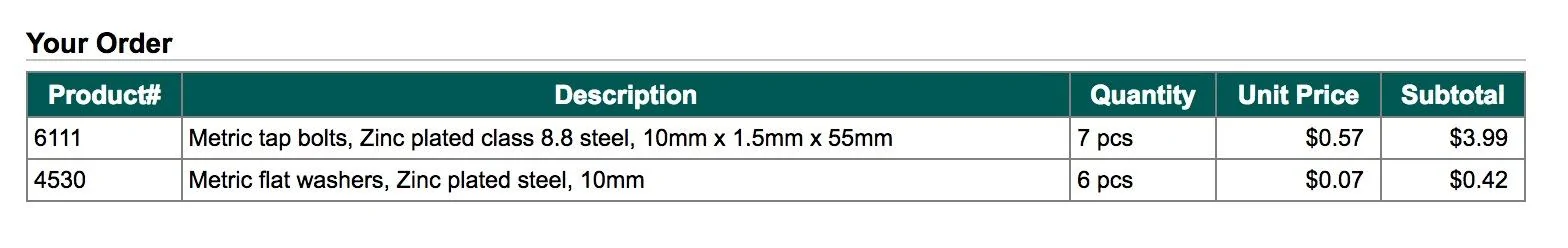

Screen Shot 2018-07-16 at 6.05.22 PM.jpg

Here is the paint job:

IMG_0274 2.jpg

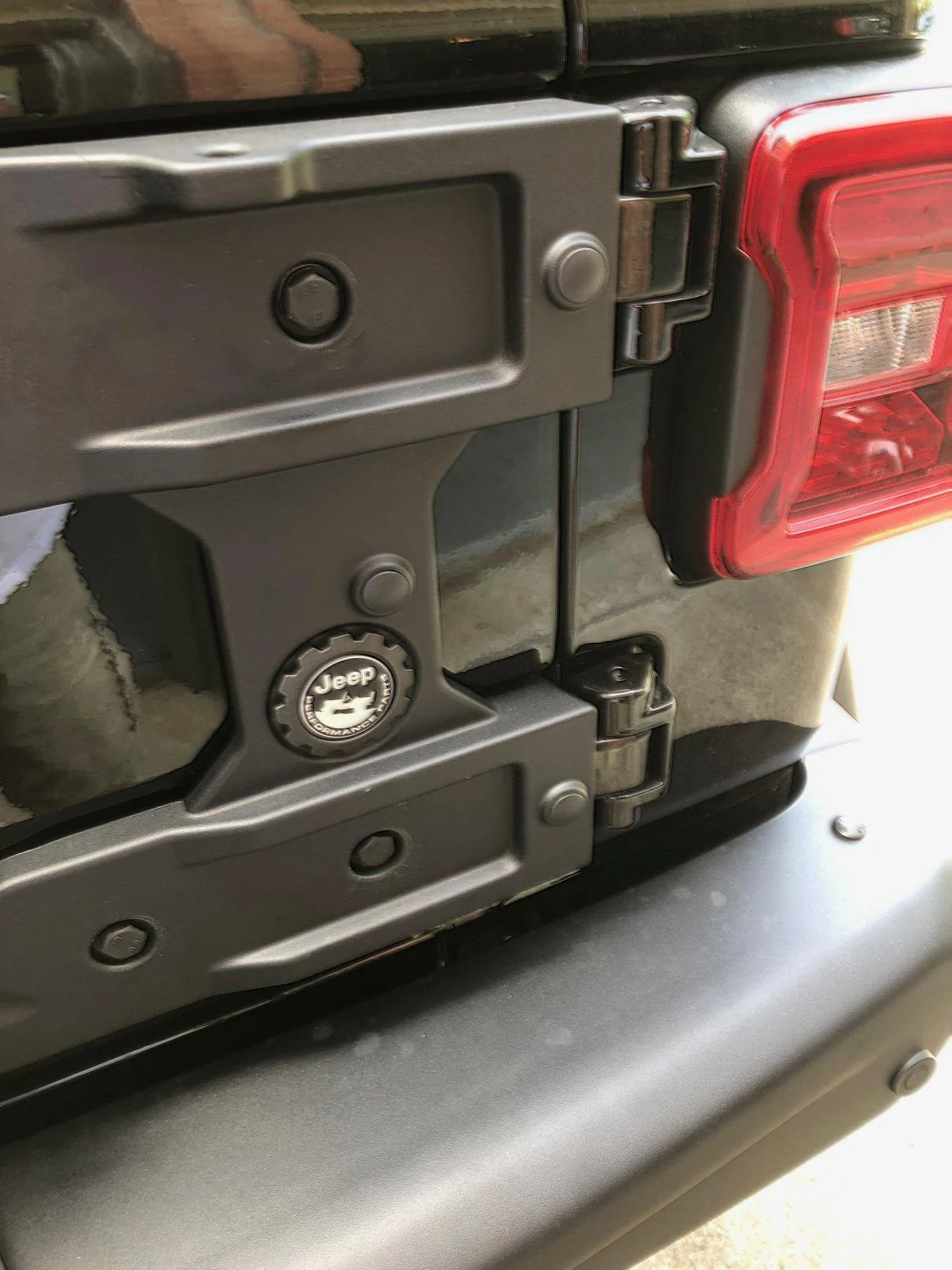

Here is the finished product:






Advertisement



RL48

New Member
First Name
Rich
Joined
Nov 14, 2018
Messages
3
Reaction score
0
Location
NJ
Vehicle(s)
2018 - JLUR
So today, my OCD got the best of me and I fully replaced the half-a**ed torx bolts that Mopar supplies with the reinforced hinge kit. No one should try and torque down to 35 pounds on a torx head bolt. I had one round off (see above) then I bought an allen head one and nearly did the same thing prior to getting to full torque setting.

I noticed that the replacement bolt had started to show some rust around the rounded off head and I had to use an easy-out extractor to get the frigging thing out.....what a treat that was, but it came out.

I ended up finding boltdepot.com that allowed me to buy the correct size bolt in a hex head. The only down side was that I had to spray paint them since they were not black oxide and they were unable to find any black oxide bolts with the specs we need.

Here is my order:
Screen Shot 2018-07-16 at 6.05.22 PM.jpg

Here is the paint job:

IMG_0274 2.jpg



Here is the finished product:

Thank You, i purchased these Bolts and they worked perfect. Way better then the ones provided


The4x4Guys

Well-Known Member
First Name
Bob
Joined
May 23, 2018
Messages
69
Reaction score
42
Location
Parker, TX
Vehicle(s)
2018 Jeep Wrangler (JL) Unlimited Rubicon
Vehicle Showcase
1
Thank You, i purchased these Bolts and they worked perfect. Way better then the ones provided
Glad it helped!


telix

Active Member
First Name
Chris
Joined
Jul 12, 2019
Messages
32
Reaction score
10
Location
Los Gatos, CA
Vehicle(s)
2019 Granite Jeep Wrangler JLU Rubicon, 2016 BMW X3, 1990 Jeep Wrangler Islander
Exact same problem here. The mopar part 68413358 to get new bolt would be $100 and more parts that I do not need. Thanks for the tip on the bolt depot. I may look into getting those. but I do wish I could just get that piece and not have to take the whole thing apart for this one bolt.

Edit: the more I look at the BobK's photo the more I like it. It does look better than the other torx bolts and a better design for torque. Went ahead and ordered them up from bolt depot and will do the same fix. Thanks BobK for the part numbers and photos

Last edited:
