Spring and shock mounting order/sequencing/placement

Spearmin

Well-Known Member
First Name
Eric
Joined
Jul 23, 2019
Messages
1,149
Reaction score
1,139
Location
NY
Vehicle(s)
JLU
So I bout a set of Rubicon takeoffs springs and shocks. My question is, how do I know which spring goes where. Which one is front drivers, front passenger, RD, RP? Are the springs marked/tagged or something. They haven't arrived yet.
Advertisement



Token

Well-Known Member
First Name
Dave
Joined
Apr 11, 2019
Messages
274
Reaction score
370
Location
Toronto
Vehicle(s)
2019 JLUR
They were tagged with the part numbers when they left the manufacturer. Whether those tags are still present when you bought them used from someone else... Who knows.

OP
OP

Spearmin

Well-Known Member
First Name
Eric
Joined
Jul 23, 2019
Messages
1,149
Reaction score
1,139
Location
NY
Vehicle(s)
JLU
Assuming they are, will the part numbers tell me which spring and shock goes where?

OP
OP

Spearmin

Well-Known Member
First Name
Eric
Joined
Jul 23, 2019
Messages
1,149
Reaction score
1,139
Location
NY
Vehicle(s)
JLU
Hmmmm, that's helpful but its only telling me spring height. It doesn't tell me the spring order front driver, front passenger, etc. The reason I'm asking is because I want to idiot prof it for the installers. I definitely don't want them putting the wrong spring on the wrong corner with some sort of "a spring is a spring mentality."


BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Messages
572
Reaction score
843
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon


BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Messages
572
Reaction score
843
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon
Assuming you have the spring part numbers you should be able to:
1) identify what they came from
2) tag the springs with a position


txj2go

Well-Known Member
Joined
Apr 7, 2020
Messages
628
Reaction score
508
Location
DFW
Vehicle(s)
CTS-V, 2018 JLU Sport Firecracker Red

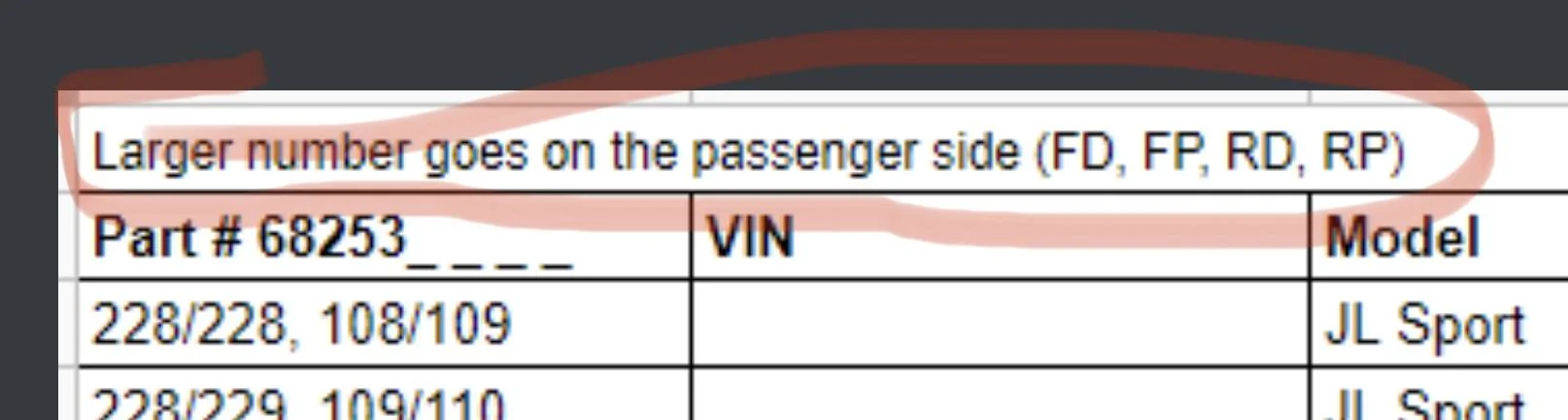

Front to back is very obvious because the lengths are quite a bit different. Shocks are the same side to side but springs likely aren't. If the springs have numbers then the bigger number goes on the passenger side. If the springs dont have numbers then measure them- one might be a fraction of an inch longer, put it on the right. And likely the springs have a lot of numbers so match up the numbers that are the right format. Someone had this combination of springs:
