Splicing into third brake light harness.

lalalofsky

Well-Known Member
First Name
Ben
Joined
Sep 27, 2020
Messages
201
Reaction score
33
Location
Lawrence, Kansas
Vehicle(s)
2020 JLU Sport
Has any on spliced Into the third brake light harness to add a spare tire light. I want to keep my factory third brake light but also add this one. I’ll be using a two flat pin to allow myself to remove the brake light if i choose to.





Advertisement



dpike

Well-Known Member
Joined
May 28, 2020
Messages
226
Reaction score
221
Location
New Jersey
Vehicle(s)
'20 JLUR
You can get a clip in splice harness from QT so you don't have to tap the oe wires. I used it on mine for my spare tire brake light and it works great.


Boatbuilder88

Well-Known Member
Joined
Mar 13, 2017
Messages
841
Reaction score
1,430
Location
New Jersey
Vehicle(s)
'19 Wrangler JL Sting Gray
Vehicle Showcase
1
I used quick release connectors to connect a spare tire brake light ring.



Boatbuilder88

Well-Known Member
Joined
Mar 13, 2017
Messages
841
Reaction score
1,430
Location
New Jersey
Vehicle(s)
'19 Wrangler JL Sting Gray
Vehicle Showcase
1
Did you make a ”Y” style connector? Do you have a photo of where you spliced and your connections.

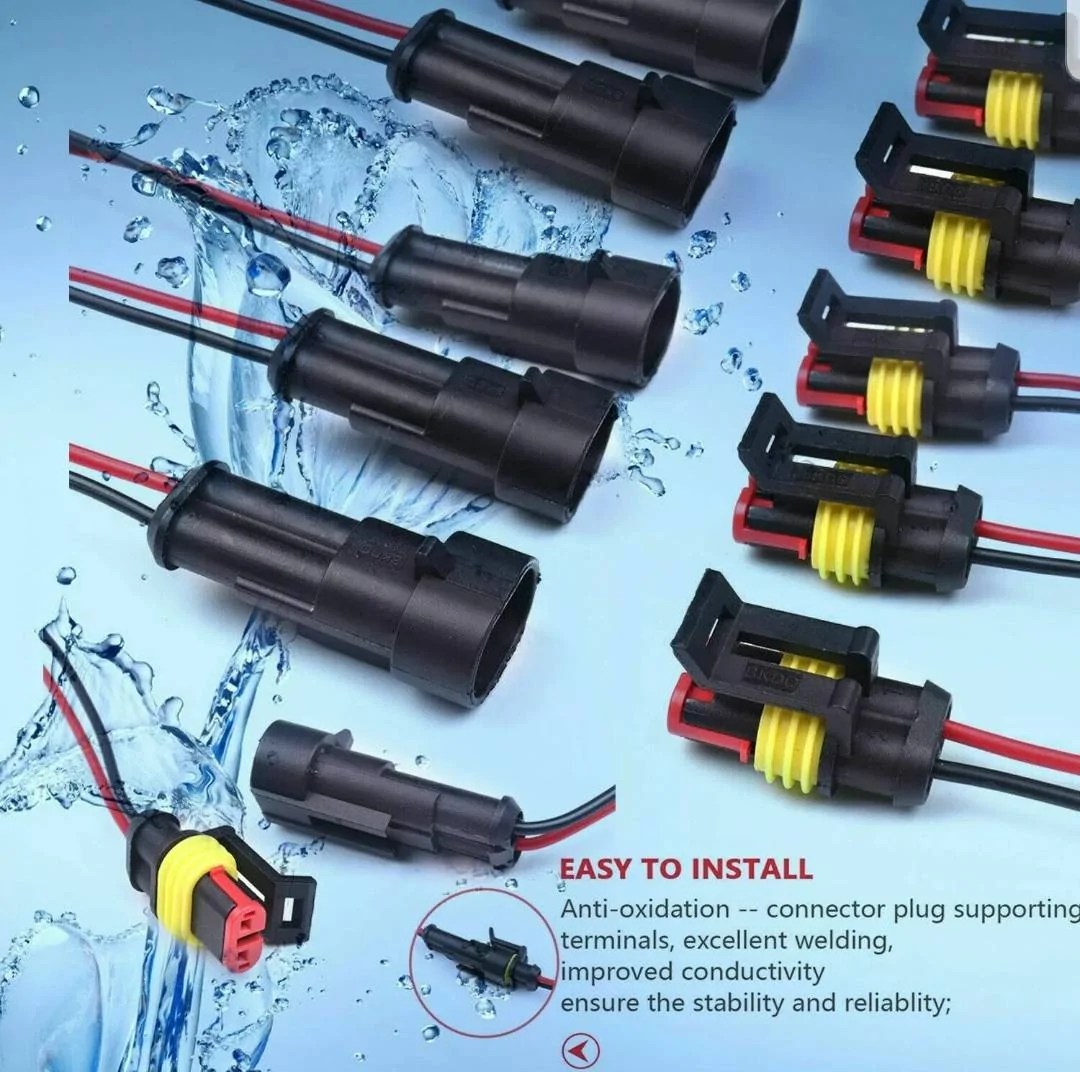

At first, I wasn't sure if I wanted to keep the OEM brake light installed so I just used a t-tap to connect my spare tire brake light ring and ran both for a while. After a few days, I decided to remove the OEM light so I cut the t-tap off and used the waterproof quick connectors. While I was at it, I added a quick connect to the OEM also in case it is needed to pass state inspection.
