Speaker sizes in new JL

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
I purchased a beautiful black Sahara JL (my daughter has named it "The Dark Knight")and love it. I opted for the base system as I knew I would be installing my own speakers and subwoofer. I'm away from home at the moment and would like to start the process of ordering the speakers so they will be home once I arrive later this week. My question is.......does anyone know the speaker sizes for the roll bar and knee panel? Thanks in advance for your help.
Sponsored


OP
OP

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
The speakers, in the roll bar, appear to be 4". Had my wife measure and send me a pic.

Last edited:

Redneck_Jedi

Well-Known Member
Joined
Jun 9, 2017
Threads
26
Messages
928
Reaction score
1,132
Location
Currently Roaming
Vehicle(s)
2019 Jeep Wrangler Sport S 2 Dr.
Vehicle Showcase
1
I purchased a beautiful black Sahara JL (my daughter has named it "The Dark Knight")and love it. I opted for the base system as I knew I would be installing my own speakers and subwoofer. I'm away from home at the moment and would like to start the process of ordering the speakers so they will be home once I arrive later this week. My question is.......does anyone know the speaker sizes for the roll bar and knee panel? Thanks in advance for your help.
I have to credit Dreadnought_Leviathan for finding this info.....

His original post: https://www.jlwranglerforums.com/forum/threads/after-a-lot-of-digging-premium-audio-details.3155/

"Here are some specs that I found after speaking with a Jeep associate. She suggested I check out the FCA media website to find some details. I even called Alpine and they couldn't give me any specifics.

Premium Sound System
The new 2018 Jeep Wrangler offers two sound systems:
  • Standard eight speakers
    • Two 2.5-inch speakers in the instrument panel
    • Two 4.5-inch front door speakers
    • Two 2.5-inch sound bar speakers
    • Two 4.5-inch sound bar subwoofers
  • Available premium Alpine audio system with nine speakers
    • Two 3.5-inch speakers in the instrument panel
    • Two 4.5-inch front door speakers
    • Two 3.5-inch sound bar speakers
    • Two 4.5-inch sound bar subwoofers
    • One 10-inch quad voice coil subwoofer
Still unsure about the details of the sub. If anyone has information regarding the specifications (impedance, wattage, etc) please post it here.

Here's a link to the site where I found the info:

http://media.fcanorthamerica.com/newsrelease.do?id=18672&mid=102 "


Karl_in_Chicago

Well-Known Member
First Name
Karl
Joined
Nov 4, 2017
Threads
14
Messages
827
Reaction score
810
Location
Chicago
Vehicle(s)
Acura RL, Chevrolet Corvette, Harley-Davidson FLHTC Electra-Glide Classic
I have to credit Dreadnought_Leviathan for finding this info.....

His original post: https://www.jlwranglerforums.com/forum/threads/after-a-lot-of-digging-premium-audio-details.3155/

"Here are some specs that I found after speaking with a Jeep associate. She suggested I check out the FCA media website to find some details. I even called Alpine and they couldn't give me any specifics.

Premium Sound System
The new 2018 Jeep Wrangler offers two sound systems:
  • Standard eight speakers
    • Two 2.5-inch speakers in the instrument panel
    • Two 4.5-inch front door speakers
    • Two 2.5-inch sound bar speakers
    • Two 4.5-inch sound bar subwoofers
  • Available premium Alpine audio system with nine speakers
    • Two 3.5-inch speakers in the instrument panel
    • Two 4.5-inch front door speakers
    • Two 3.5-inch sound bar speakers
    • Two 4.5-inch sound bar subwoofers
    • One 10-inch quad voice coil subwoofer
Still unsure about the details of the sub. If anyone has information regarding the specifications (impedance, wattage, etc) please post it here.

Here's a link to the site where I found the info:

http://media.fcanorthamerica.com/newsrelease.do?id=18672&mid=102 "
Uh huh - where exactly are those door speakers, anyway?


Redneck_Jedi

Well-Known Member
Joined
Jun 9, 2017
Threads
26
Messages
928
Reaction score
1,132
Location
Currently Roaming
Vehicle(s)
2019 Jeep Wrangler Sport S 2 Dr.
Vehicle Showcase
1

Sponsored

OP
OP

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
Thanks redneck_jedi

Though I can't seem to find any 4.5in speakers. 4 n speakers are more readily available.

OP
OP

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
I just spoke with the 3 different dealers it seems as though the speakers are only 3.5" in the roll bar. They pulled it up via my vin#.


JHJLUR

Well-Known Member
First Name
Justin
Joined
Dec 27, 2017
Threads
4
Messages
554
Reaction score
648
Location
SE PA
Vehicle(s)
17 GC Overland, 18 JLUR
I just spoke with the 3 different dealers it seems as though the speakers are only 3.5" in the roll bar. They pulled it up via my vin#.
if you have the primium system, there should be 2X 3.5's and 2x4.5's

OP
OP

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
According to media.fcanorthamerica.com I should have 2x2.5 and 2x4.5 (base system) but the dealer says they are 3.5 not 4.5

OP
OP

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL

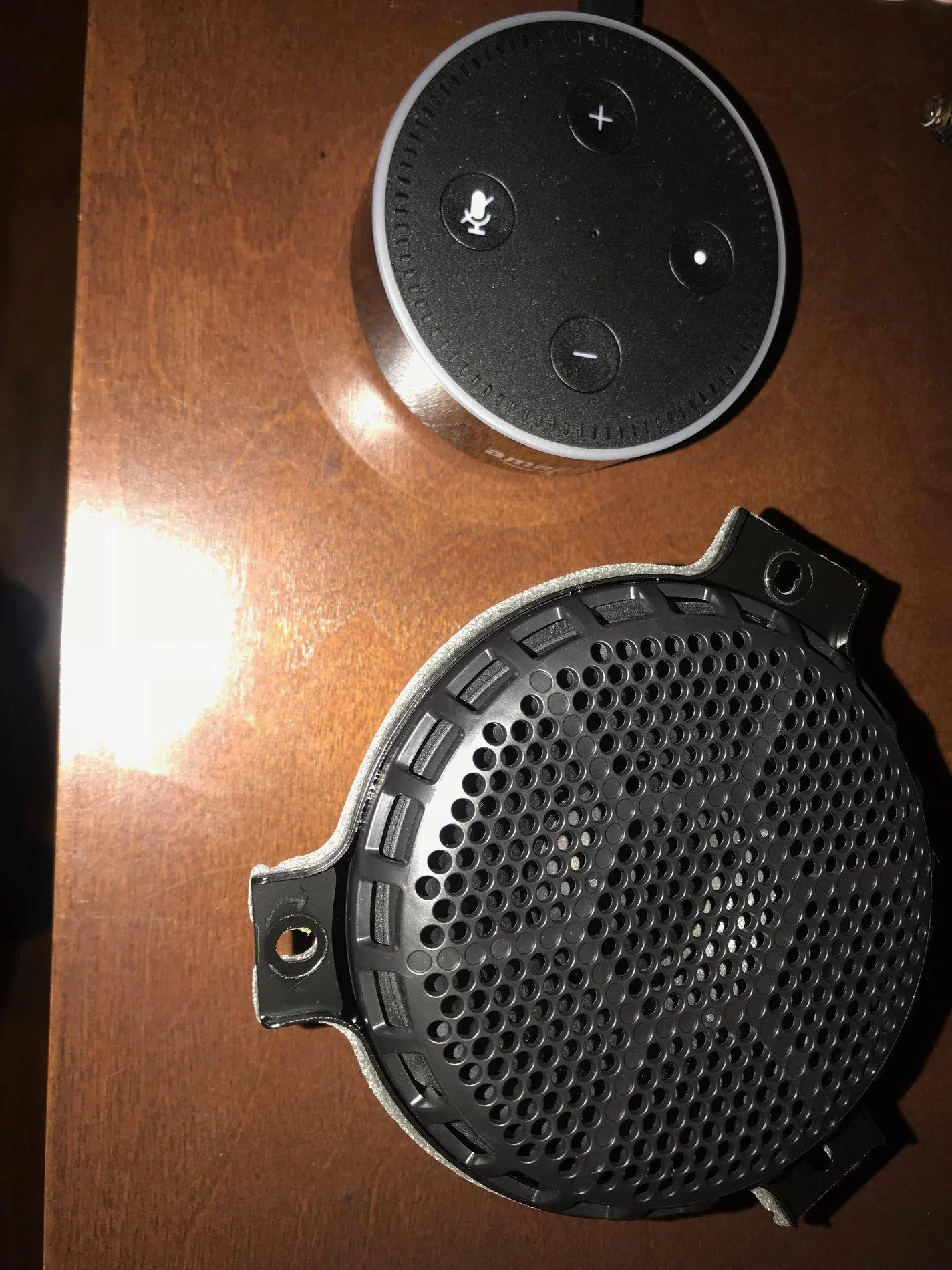

Here are pics of the speaker in the roll bar.




Last edited:

Sponsored

JHJLUR

Well-Known Member
First Name
Justin
Joined
Dec 27, 2017
Threads
4
Messages
554
Reaction score
648
Location
SE PA
Vehicle(s)
17 GC Overland, 18 JLUR
Here are pics of the speaker in the roll bar.







That Dot is 3.3 inches in diameter, so I guess the look roughly the same size, hard to tell from the angle... it’s odd, but wouldn’t shock me that the base system has 3.5’s, do we have any confirmation first hand of the 4.5’s in the upgraded system?

OP
OP

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
I'm measuring 4.5 inches from the center of one ear to the edge of the speaker. I then measure from one round edge to the other as 4in.


Dynomite1371

Well-Known Member
First Name
Ed
Joined
Dec 13, 2017
Threads
20
Messages
1,393
Reaction score
2,093
Location
Maryland
Vehicle(s)
2018 JLUR, Granite, Steel bumper, Safety, Cold Weather, Tow package, Premium Alpine, Black Leather and Mopar "self draining" Mats
Occupation
Police Officer
I'm measuring 4.5 inches from the center of one ear to the edge of the speaker. I then measure from one round edge to the other as 4in.
You replacing them?

OP
OP

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
I plan on it. Since I have the speaker out I’m stopping by a car audio shop on today. I’ll post back once I get home.

OP
OP

vilacr

Well-Known Member
Joined
Jan 23, 2018
Threads
2
Messages
108
Reaction score
32
Location
Alabama
Vehicle(s)
2018 Jeep Wrangler Sahara JL
Confirmed the speakers are 4" not 4.5". Jeep is measuring from the center of the ear to get the 4.5". The JBL club 4020 does fit, though a bracket and connections are needed.
