I have a NEBO rechargeable light which has been stored in a molle pouch on tailgate.

I installed a USB adapter and plugged it into the cigarette lighter outlet in the cargo area. From there, I plugged in the light so it charges everytime I turn the Jeep on and drive.(many times I've gone to use the light and it's been dead or nearly from sitting).

What's puzzling me is - Jeep is completely off and the alarm set....but the adapter light is on and so is the red charging indicator light on the flashlight(?).

Is it charging while Jeep is off?

Will it drain the battery?

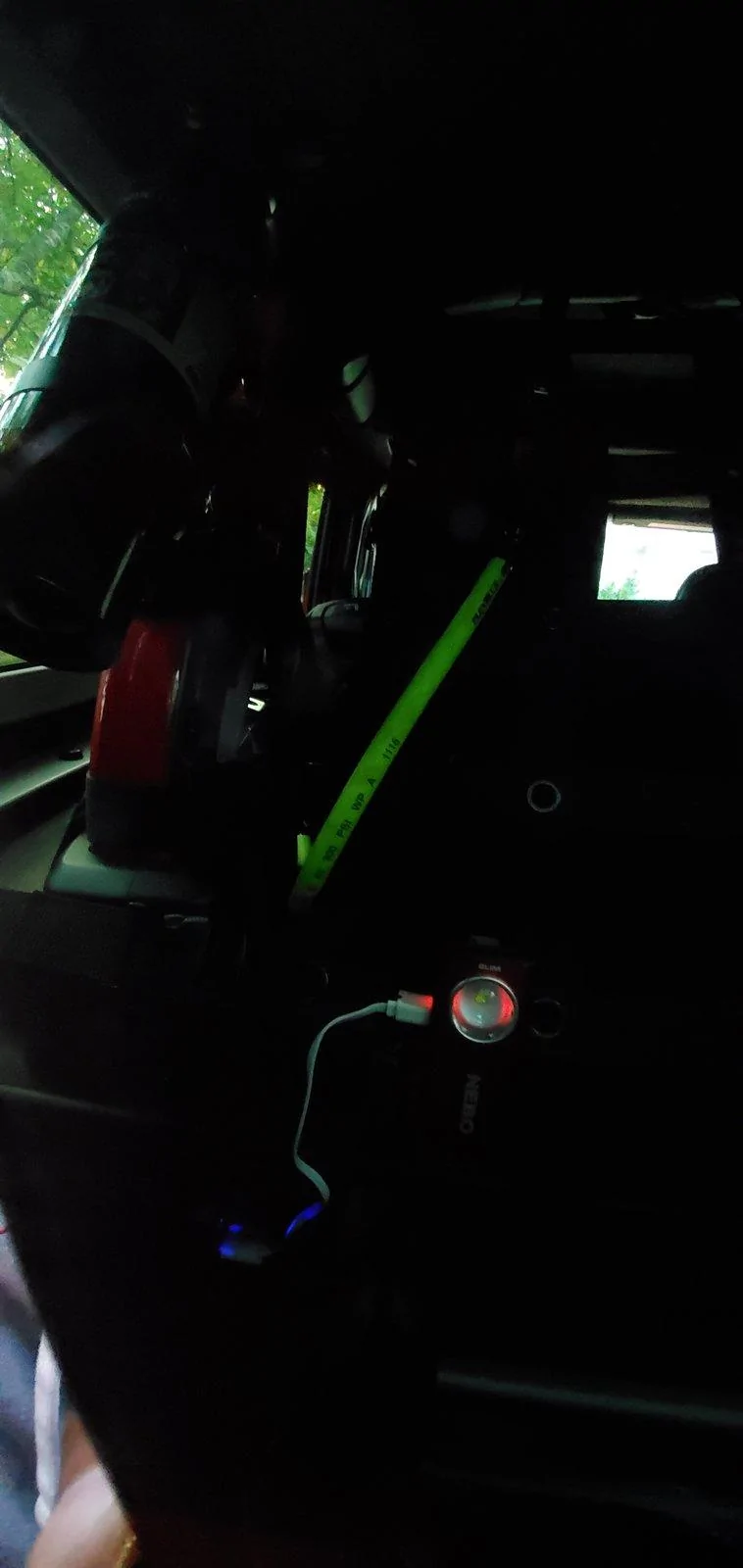

Attached is a photo showing this taken outside the rear window glass about 10mins after the Jeep has been off.





Advertisement



Jaym

Well-Known Member
First Name
James
Joined
Nov 25, 2018
Messages
142
Reaction score
187
Location
Salt Lake City
Vehicle(s)
2018 JLU Rubicon
I believe the rear 12 volt outlet is "always on"--so, technically, yes, it could drain your battery. The amount of power that small LED Light pulls though is unlikely, but, you never know.

You're better off getting another 12V adapter and wiring it to one of the wires under your dash if you have aux buttons.


Durango

Well-Known Member
First Name
Brian
Joined
Jul 2, 2019
Messages
266
Reaction score
141
Location
Central California
Vehicle(s)
2020 Jeep Wrangler Rubicon Unlimited, 2019 Ram 1500 Quadcab 4X4, 2018 Challenger Hellcat, 2018 Charger SRT, 2018 American Dream, 2017 Ram 1500 Reg Cab 4X4, 2020 Redwood 3951MB, 2019 Mercedes 4WD Van
I know on my '20 Rubi that outlet in back is on all the time - which for me is ideal. (but the one up front is not)


cosine

Well-Known Member
First Name
Chris
Joined
Jun 1, 2019
Messages
3,169
Reaction score
9,972
Location
NY
Vehicle(s)
2019 Wrangler Sport jl
Occupation
Gone Postal
correct, the rear cargo 12v outlet is allways on. the front 12v on the dash is on when the jl is running. unless you have the bypass wire. as for the usb on the dash, i assume that the jl has to be runn9ng in order to charge. i havent check tha tout. what i do notice with usb port is that it charges very slowly. i've used it a coulpe of times to charge up my cellphone from 25% to full. it takes 3+ hrs where if i charge it from the 12v which takes 45 or so mins.

OP
OP
¤|||||||¤

¤|||||||¤

Banned
Banned
First Name
Noah
Joined
Oct 5, 2019
Messages
417
Reaction score
492
Location
Mass
Vehicle(s)
2018 Rubicon JL
  • Thread starter
  • Banned
  • #5
I believe the rear 12 volt outlet is "always on"--so, technically, yes, it could drain your battery. The amount of power that small LED Light pulls though is unlikely, but, you never know.

You're better off getting another 12V adapter and wiring it to one of the wires under your dash if you have aux buttons.
Interesting...why would they do that?

Wonder if theres an auto-shutoff if the battery voltage drops to much(my blackvue dashcam have that feature while in "park mode").

OP
OP
¤|||||||¤

¤|||||||¤

Banned
Banned
First Name
Noah
Joined
Oct 5, 2019
Messages
417
Reaction score
492
Location
Mass
Vehicle(s)
2018 Rubicon JL
  • Thread starter
  • Banned
  • #6
correct, the rear cargo 12v outlet is allways on. the front 12v on the dash is on when the jl is running. unless you have the bypass wire. as for the usb on the dash, i assume that the jl has to be runn9ng in order to charge. i havent check tha tout. what i do notice with usb port is that it charges very slowly. i've used it a coulpe of times to charge up my cellphone from 25% to full. it takes 3+ hrs where if i charge it from the 12v which takes 45 or so mins.
Do you have a Samsung phone?

I need to use the outlet with the samsung fast charger adapter to charge my phone.

USB is useless for the phone.


Arterius2

Well-Known Member
First Name
Jerry
Joined
Dec 29, 2018
Messages
3,482
Reaction score
4,442
Location
Vancouver, BC
Vehicle(s)
2018 JLU Sahara 2.0L
I have a NEBO rechargeable light which has been stored in a molle pouch on tailgate.

I installed a USB adapter and plugged it into the cigarette lighter outlet in the cargo area. From there, I plugged in the light so it charges everytime I turn the Jeep on and drive.(many times I've gone to use the light and it's been dead or nearly from sitting).

What's puzzling me is - Jeep is completely off and the alarm set....but the adapter light is on and so is the red charging indicator light on the flashlight(?).

Is it charging while Jeep is off?

Will it drain the battery?

Attached is a photo showing this taken outside the rear window glass about 10mins after the Jeep has been off.

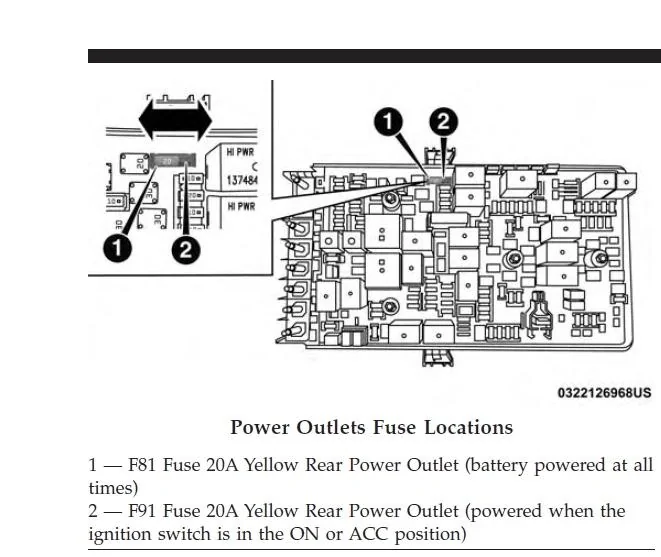

I have the same setup and my light has never encountered dead battery. I believe you can set the behaviour of the rear 12v outlet to be either ignition or always on by moving between fuse 81 and 91.

OP
OP
¤|||||||¤

¤|||||||¤

Banned
Banned
First Name
Noah
Joined
Oct 5, 2019
Messages
417
Reaction score
492
Location
Mass
Vehicle(s)
2018 Rubicon JL
  • Thread starter
  • Banned
  • #8
I have the same setup and my light has never encountered dead battery. I believe you can set the behaviour of the rear 12v outlet to be either ignition or always on by moving between fuse 81 and 91.
WOW!!!!!!!!

I love this guy!! THANK YOU!!

Just made my day!!!

OP
OP
¤|||||||¤

¤|||||||¤

Banned
Banned
First Name
Noah
Joined
Oct 5, 2019
Messages
417
Reaction score
492
Location
Mass
Vehicle(s)
2018 Rubicon JL
  • Thread starter
  • Banned
  • #9
I have the same setup and my light has never encountered dead battery. I believe you can set the behaviour of the rear 12v outlet to be either ignition or always on by moving between fuse 81 and 91.
Yep!!

This is confirmed just did it!!

So cool...thanks again!!


cosine

Well-Known Member
First Name
Chris
Joined
Jun 1, 2019
Messages
3,169
Reaction score
9,972
Location
NY
Vehicle(s)
2019 Wrangler Sport jl
Occupation
Gone Postal
Do you have a Samsung phone?

I need to use the outlet with the samsung fast charger adapter to charge my phone.

USB is useless for the phone.
yeah, samsung j6 luna pro. nothing fancy. mostly calls, camera, and little text. plain and simple


Hgrace

Well-Known Member
First Name
Harry
Joined
Jul 8, 2018
Messages
320
Reaction score
244
Location
Southern California
Vehicle(s)
2019 JUL Sport S, Fleetwood 33 Terra SE. Lincoln MKC. Chevy 2500 HD
Do you have a Samsung phone?

I need to use the outlet with the samsung fast charger adapter to charge my phone.

USB is useless for the phone.
My Samsung 8 9 and 10 all charge just fine. I use the center console usb mostly


cosine

Well-Known Member
First Name
Chris
Joined
Jun 1, 2019
Messages
3,169
Reaction score
9,972
Location
NY
Vehicle(s)
2019 Wrangler Sport jl
Occupation
Gone Postal
My Samsung 8 9 and 10 all charge just fine. I use the center console usb mostly
does it charge slower then charging it on a 12v .

OP
OP
¤|||||||¤

¤|||||||¤

Banned
Banned
First Name
Noah
Joined
Oct 5, 2019
Messages
417
Reaction score
492
Location
Mass
Vehicle(s)
2018 Rubicon JL
My Samsung 8 9 and 10 all charge just fine. I use the center console usb mostly
I'm sure it charges, but very slowly without using the actual "fast charger".(well, I'm certain because I have the S10+ lol)


Hgrace

Well-Known Member
First Name
Harry
Joined
Jul 8, 2018
Messages
320
Reaction score
244
Location
Southern California
Vehicle(s)
2019 JUL Sport S, Fleetwood 33 Terra SE. Lincoln MKC. Chevy 2500 HD
I'm sure it charges, but very slowly without using the actual "fast charger".(well, I'm certain because I have the S10+ lol)
Of course it won't charge as fast as the Fast Charger will. But it's no slower than any USB.
I use Fast Charging with Anker or Samsung induction chargers at home and in my motorhome.
I can deal with standard charging rates in my Jeep.
I'm not sure but I believe the fast wired chargers use more than 2 of the conductors.
