I have a 2019 JLUR, all stock with 19,000 miles.
Noticed tire feathering.
Took it to the dealer for them to check suspension and alignment.
They said they adjusted a little, nothing out of the ordinary.
Now my steering wheel is about 15-20 degrees to the left when driving straight.

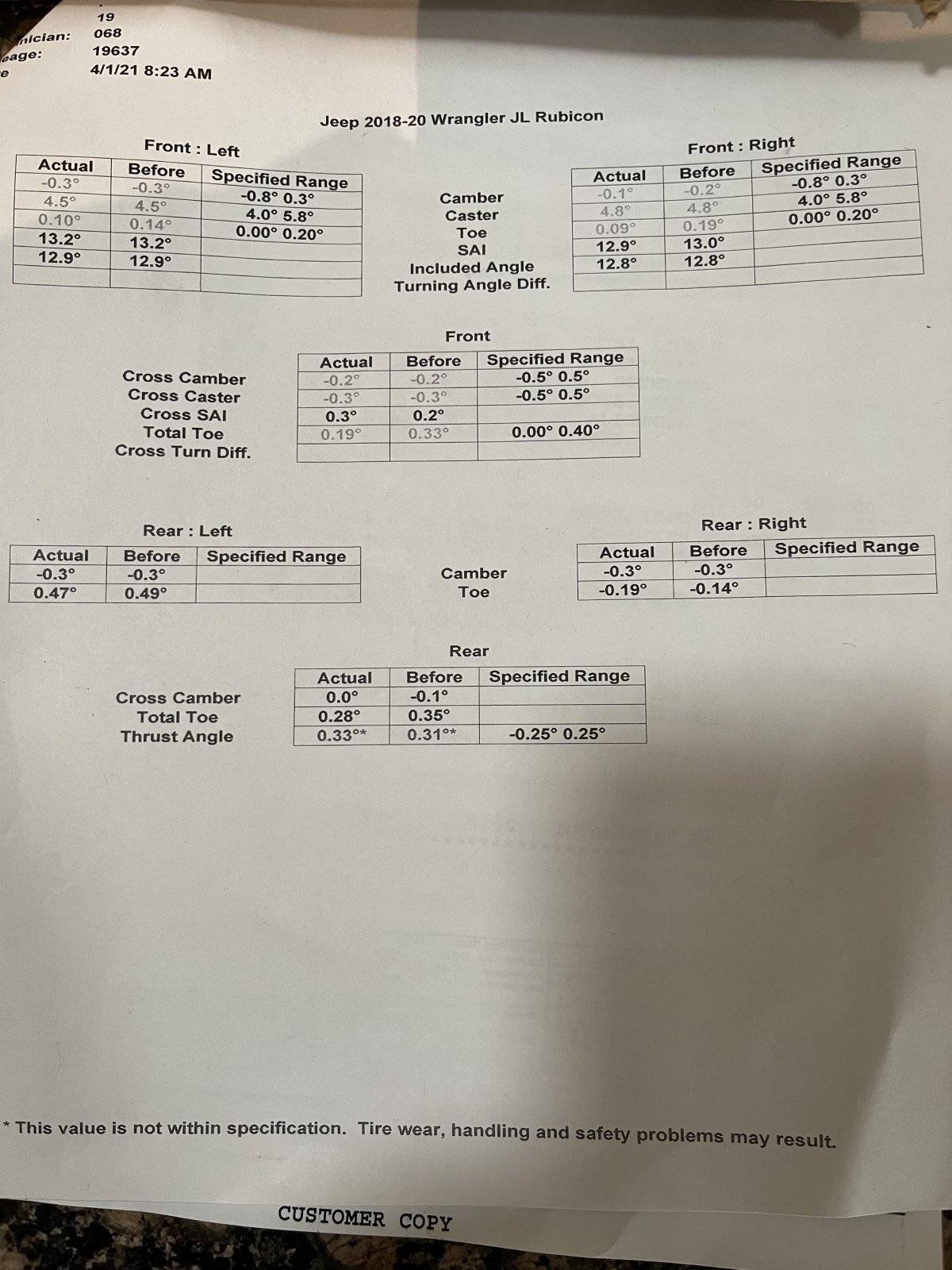

got the alignment report, noticed rear thrust angle is out of spec

should I be worried?

Got steering gearbox replaced back in October, no alignment.
Also, they made me pay for this alignment.
Any thing jump out as odd?

Advertisement


OP
OP

Doubleaaron

Well-Known Member
Joined
Apr 18, 2019
Messages
56
Reaction score
39
Location
New Mexico
Vehicle(s)
2019 Rubicon JLU
Also, have had a squeak in the suspension for quite some time.

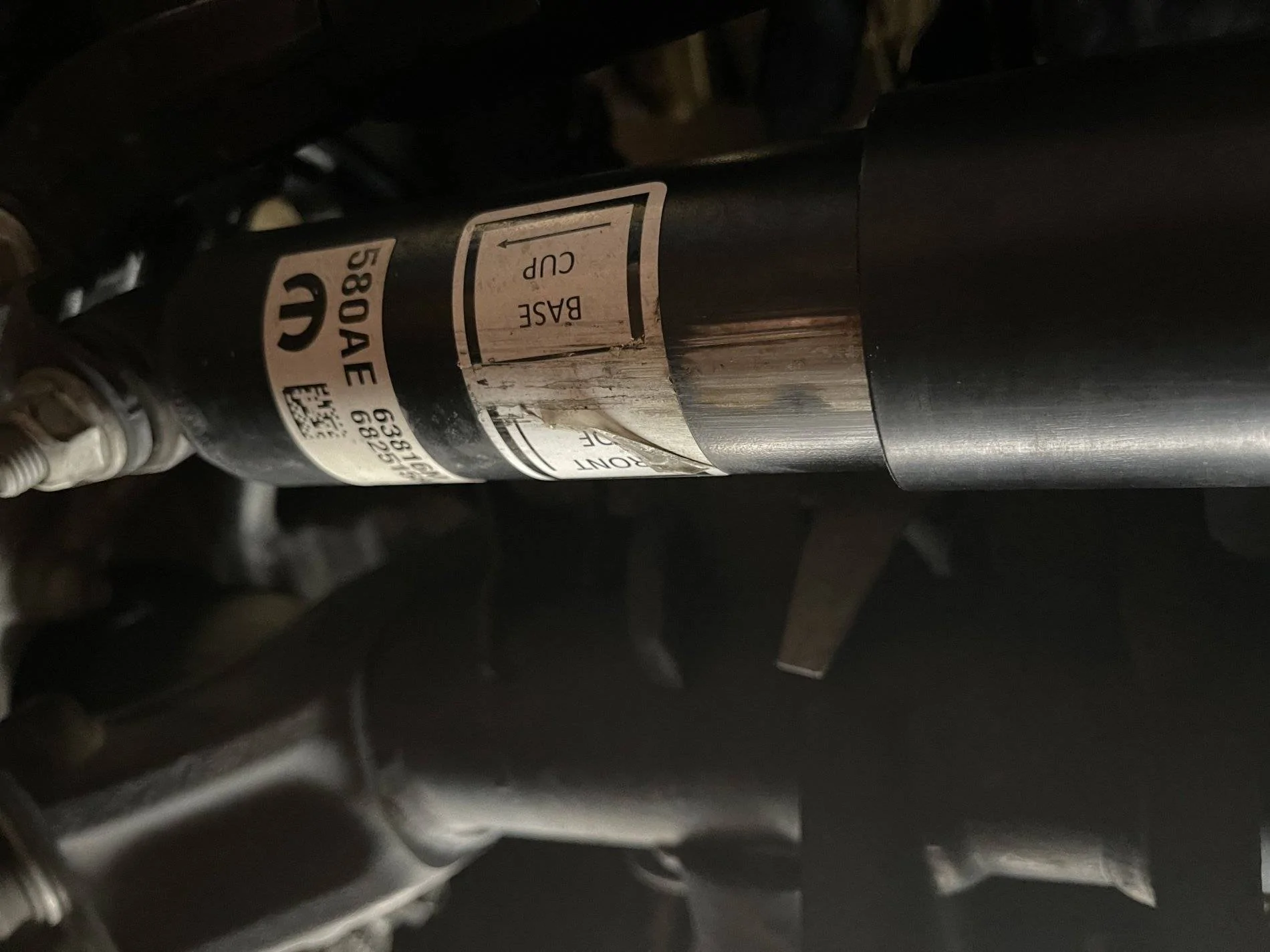

Asked the dealer to look at my steering stabilizer, the plastic tube is rubbing on the shock, paint worn. They said they could not see it. This dealer sucks.



#4Jeep 1st Wrangler

Well-Known Member
First Name
mark
Joined
Jul 2, 2019
Messages
199
Reaction score
447
Location
north olmsted ohio
Vehicle(s)
2019 Wrangler Unlimited Rubicon
I have a 2019 JLUR, all stock with 19,000 miles.
Noticed tire feathering.
Took it to the dealer for them to check suspension and alignment.
They said they adjusted a little, nothing out of the ordinary.
Now my steering wheel is about 15-20 degrees to the left when driving straight.

got the alignment report, noticed rear thrust angle is out of spec

should I be worried?

Got steering gearbox replaced back in October, no alignment.
Also, they made me pay for this alignment.
Any thing jump out as odd?

I'd be concerned about the Thrust Angle of the rear wheels. ( out of specs)
Right rear toe-in positive/Left rear toe-out...axle is not centered in vehicle..
Did you ever slide into curb?..
Check rear trailering arms for any damage?...../--|--/ (axle position)

OP
OP

Doubleaaron

Well-Known Member
Joined
Apr 18, 2019
Messages
56
Reaction score
39
Location
New Mexico
Vehicle(s)
2019 Rubicon JLU
I'd be concerned about the Thrust Angle of the rear wheels. ( out of specs)
Right rear toe-in positive/Left rear toe-out...axle is not centered in vehicle..
Did you ever slide into curb?..
Check rear trailering arms for any damage?...../--|--/ (axle position)
Nope. Never hit any curbs. Thanks for the advice


BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Messages
746
Reaction score
1,044
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon
Could the wacky thrust angle be from worn out bushings in the lower control arms? I thought you could only adjust this with adjustable aftermarket ones.


Petey

Well-Known Member
First Name
Pete
Joined
Oct 10, 2020
Messages
448
Reaction score
231
Location
Miami
Vehicle(s)
2020 jl sport manual
I'd be concerned about the Thrust Angle of the rear wheels. ( out of specs)
Right rear toe-in positive/Left rear toe-out...axle is not centered in vehicle..
Did you ever slide into curb?..
Check rear trailering arms for any damage?...../--|--/ (axle position)
It would seem to me that it might be dog tracking

OP
OP

Doubleaaron

Well-Known Member
Joined
Apr 18, 2019
Messages
56
Reaction score
39
Location
New Mexico
Vehicle(s)
2019 Rubicon JLU
Went back to the dealer. They said the only way they could fix the rear thrust angle would be to replace the axle, it could make it worse, and they were not going to do that.
Kind of sucks, still under warranty, and it is not to spec.

should I be worried? It does pull to the right, figured it is mostly due to the crown in the road.
I was able to adjust the drag link. Better than wasting a day at the dealership. the clamp was quite loose.
