Rubi Springs

First Name
Joe
Joined
May 5, 2018
Messages
17
Reaction score
5
Location
Midlothian, TX
Vehicle(s)
2018 JL Unlimited
I have set of Rubicon springs and shocks to install on my JLUS. How do I determine which spring goes to which corner? They weren't marked by previous owner when removed. Any help appreciated.


cabnfvr

Well-Known Member
First Name
Tim
Joined
Apr 11, 2018
Messages
232
Reaction score
286
Location
Laurel Park NC
Vehicle(s)
2018 JLUL Sport
Occupation
Retired but working with benefits.
I have set of Rubicon springs and shocks to install on my JLUS. How do I determine which spring goes to which corner? They weren't marked by previous owner when removed. Any help appreciated.

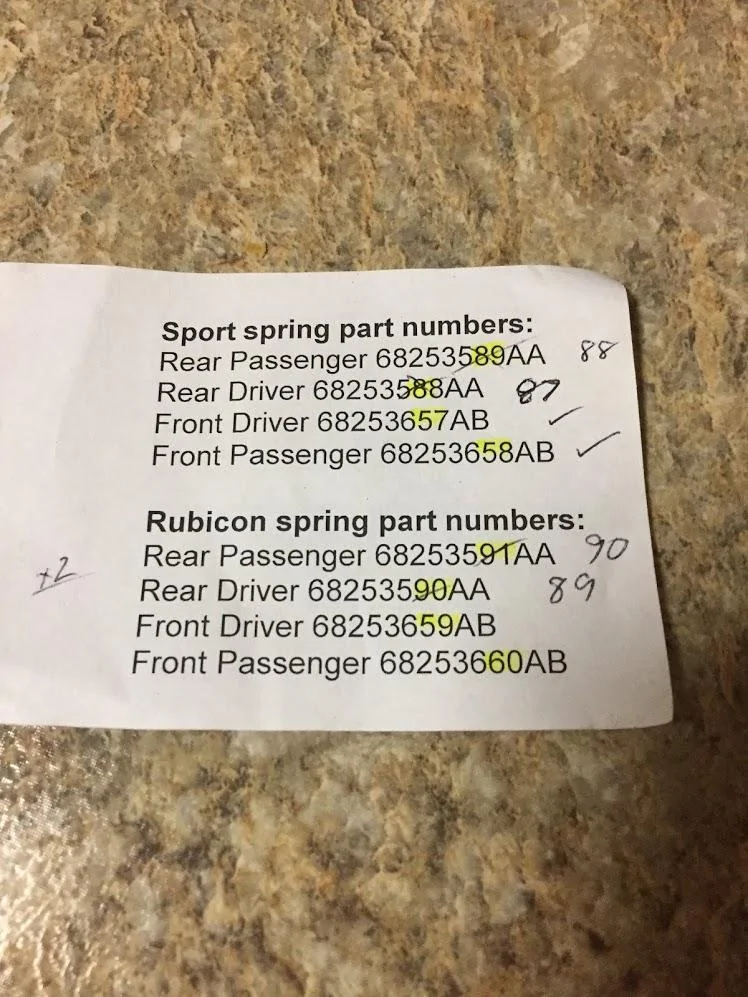

Here ya go. Use the number sequence as locators using the pic below as a guide. The length increases as the numbers go up. If your labels are removed you can still figure it out by laying the springs on the floor against a wall and sorting them by length.
MR8KzApd5dCEZT_xhNe59OOs7StxUsyqs-GooSIOLh1UmnGcVgyJuEEEZEoRWEH78bnOWgpNTDOg1iBQH8c=w748-h997-no.jpg


p.s. There is no such thing as a Sport spring and a Rubicon spring. The original numbers were provided by another site member and labelled accordingly for convenience. My handwritten numbers are what were on our Sport and the Rubi springs I bought.
