Rock Light Install Location Help

Rock Light Location?

  • Fenders

    Votes: 3 37.5%
  • Inboard Wheels

    Votes: 5 62.5%
  • Outboard Wheels

    Votes: 0 0.0%

  • Total voters
    8

At Risk Ute

Well-Known Member
First Name
Christian
Joined
Jun 7, 2019
Threads
42
Messages
1,168
Reaction score
2,746
Location
USA
Website
milehightrails.com
Vehicle(s)
‘94 YJ, ‘21 JLR, ‘22 JLUR XR, ‘23 392 XR
Occupation
Retired Navy

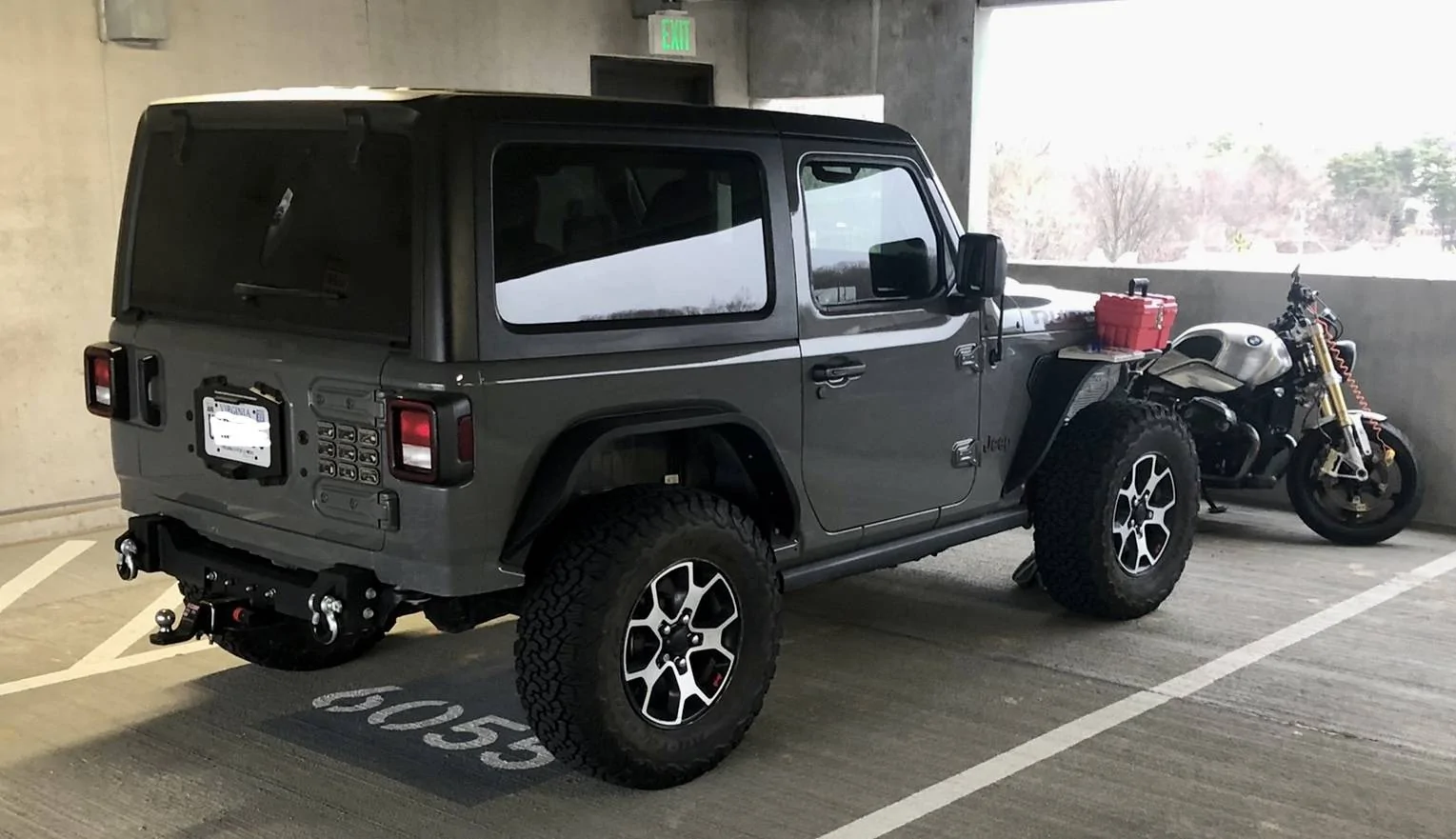

Bought a four pack of rock lights from Lux. Where should I install them? I was thinking somewhere on the metal fenders or inboard or outboard of each wheel. Thots?

Jeep Wrangler JL Rock Light Install Location Help C2AFC916-1FA2-45E4-BDF5-D8321478B572
Sponsored



BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,067
Reaction score
3,444
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon

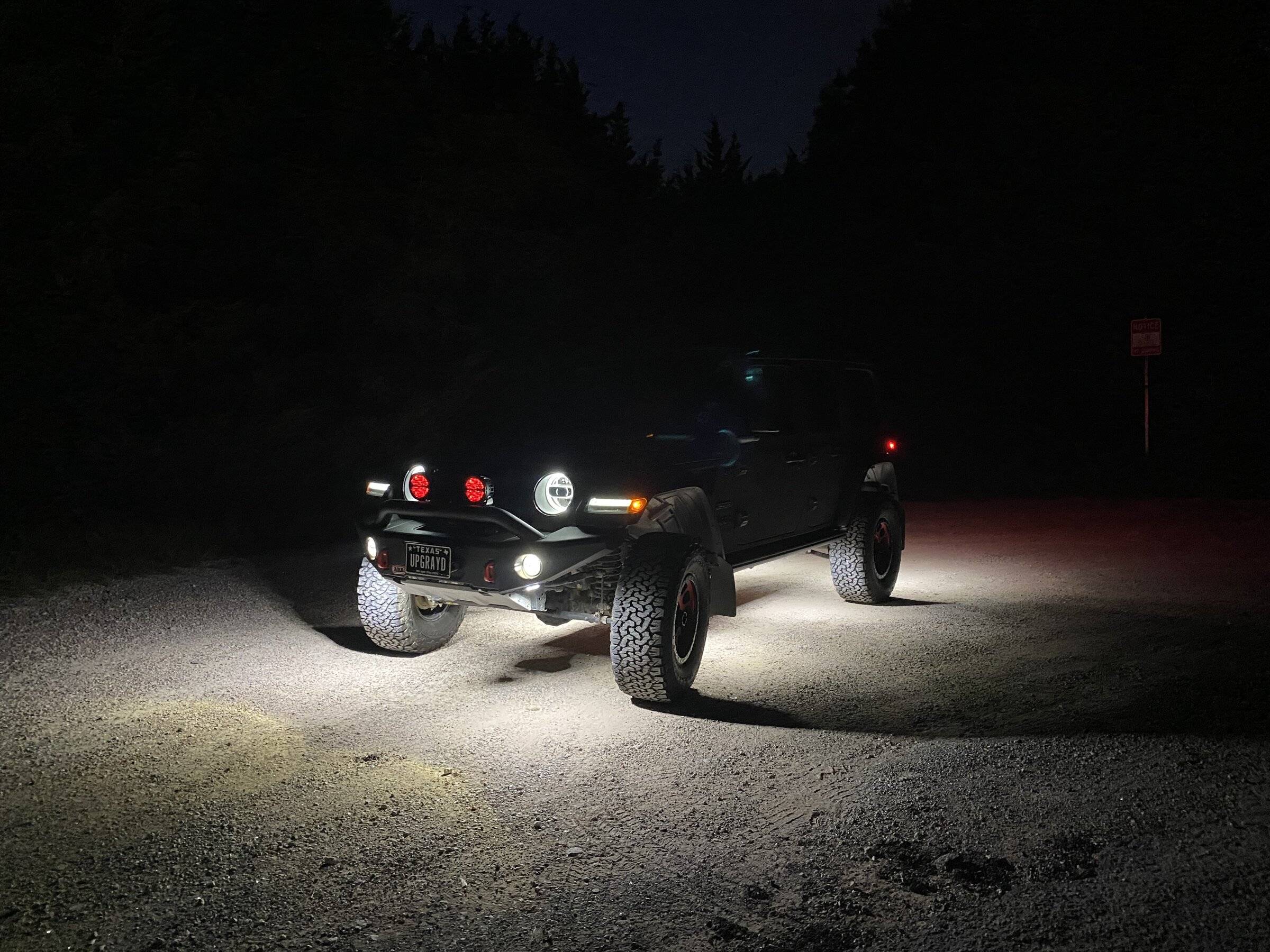

I like the idea of a spotter being able to see what your tire is going to go over. Started with a KC 6 light kit, then added two more so I could have two in the middle on each side moved closer to each tire. Those were mounted with their z brackets on the same bolts holding the factory rock rails. On the bumpers I used existing bolts.
Jeep Wrangler JL Rock Light Install Location Help 7994E0D3-E115-428C-BE32-9DC2E08C786F


Cyclone V2 LED 6-Light - Rock Light Kit (kchilites.com)


blnewt

Well-Known Member
First Name
Brad
Joined
Oct 8, 2018
Threads
96
Messages
9,876
Reaction score
23,794
Location
New Mexico
Vehicle(s)
2019 Jeep JL V6 SportS, (Retired 74 CJ-5, 80 CJ-7)
Occupation
Just ask @cosine he knows!
Bought a four pack of rock lights from Lux. Where should I install them? I was thinking somewhere on the metal fenders or inboard or outboard of each wheel. Thots?

Jeep Wrangler JL Rock Light Install Location Help 7994E0D3-E115-428C-BE32-9DC2E08C786F
With four lights probably in the fenders~behind the tire in front angling slightly forward, and in the rear fender in front of the tire angling slightly back (This assumes you have a good mounting point there). I have 8 small amber lights for more of a glow affect (not true rock lighting) and I have my corners mounted that way and 2 under each side step.

Hard to argue w/ @BDinTX as his setup really gives full view of the ground below, can't imagine a better setup for night crawlin' :)

BTW Christian, what fenders are those? Look nice w/ plenty of clearance.

OP
OP
At Risk Ute

At Risk Ute

Well-Known Member
First Name
Christian
Joined
Jun 7, 2019
Threads
42
Messages
1,168
Reaction score
2,746
Location
USA
Website
milehightrails.com
Vehicle(s)
‘94 YJ, ‘21 JLR, ‘22 JLUR XR, ‘23 392 XR
Occupation
Retired Navy
With four lights probably in the fenders~behind the tire in front angling slightly forward, and in the rear fender in front of the tire angling slightly back (This assumes you have a good mounting point there). I have 8 small amber lights for more of a glow affect (not true rock lighting) and I have my corners mounted that way and 2 under each side step.

Hard to argue w/ @BDinTX as his setup really gives full view of the ground below, can't imagine a better setup for night crawlin' :)

BTW Christian, what fenders are those? Look nice w/ plenty of clearance.
Thank you, Brad! Exactly what I needed.

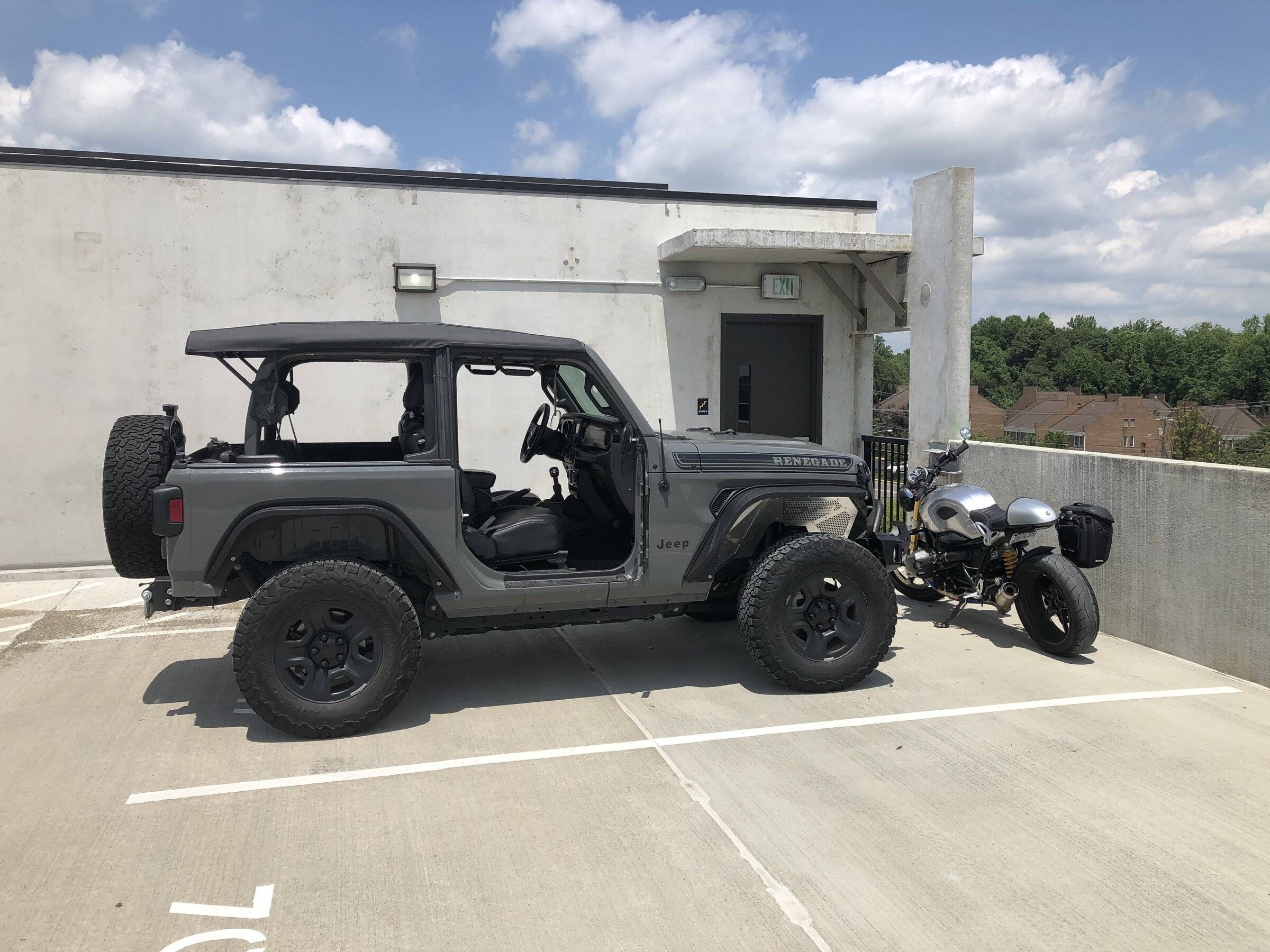

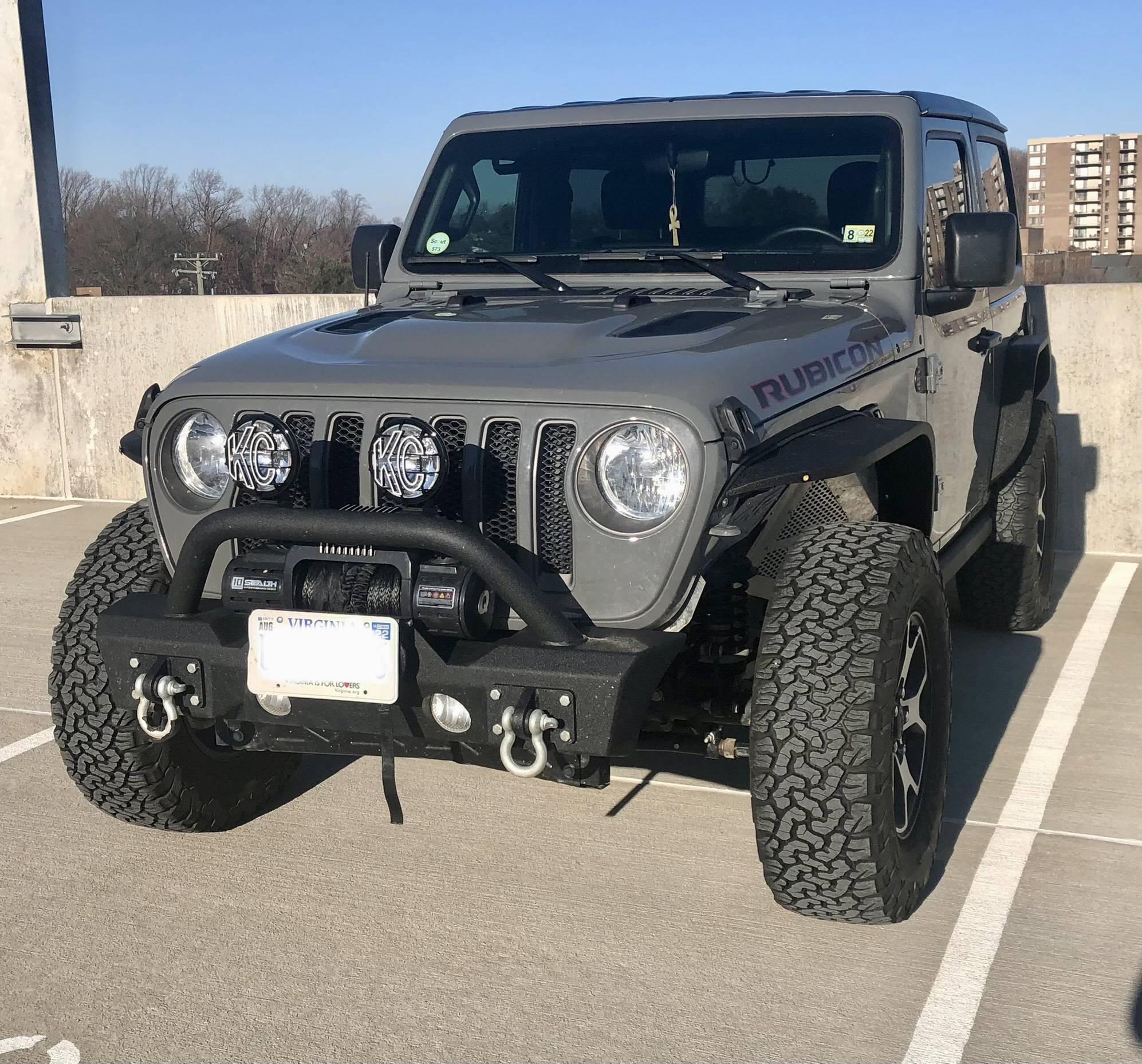

DV8 Slim Fenders. Have had them on both JLs. New JLUR XR (profile pic) coming with painted fenders to prevent me from replacing them. 🙈

Jeep Wrangler JL Rock Light Install Location Help 64CA62A6-6782-4ED1-8AB2-0D2732D7633F

Jeep Wrangler JL Rock Light Install Location Help 3B5D0660-242B-426E-811C-175C37E4E4F8


BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,067
Reaction score
3,444
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon
@At Risk Ute, If you haven't done it already, you should be able to use a 9v battery to light them up and get an idea of where the light will go if it's somewhat dark outside.

Edit: You'll have to narrow down which Brad you're thanking lol. PLUS, notice how helpful the Brads are? Impressive... ; )
