Rock Krawler Rear Track Bar Shape

QED

Member
Joined
Dec 2, 2020
Messages
17
Reaction score
18
Location
Seattle
Vehicle(s)
2020 JLUR
Did they change the shape of the adjustable rear track bar from Rock Krawler when they went from part number RK06692 to RK06692B? I just got the front and rear adjustable track bars, but the rear doesn't look like everything I've seen so far. Here's the one from the Rock Krawler site that has 2 kinks in it:

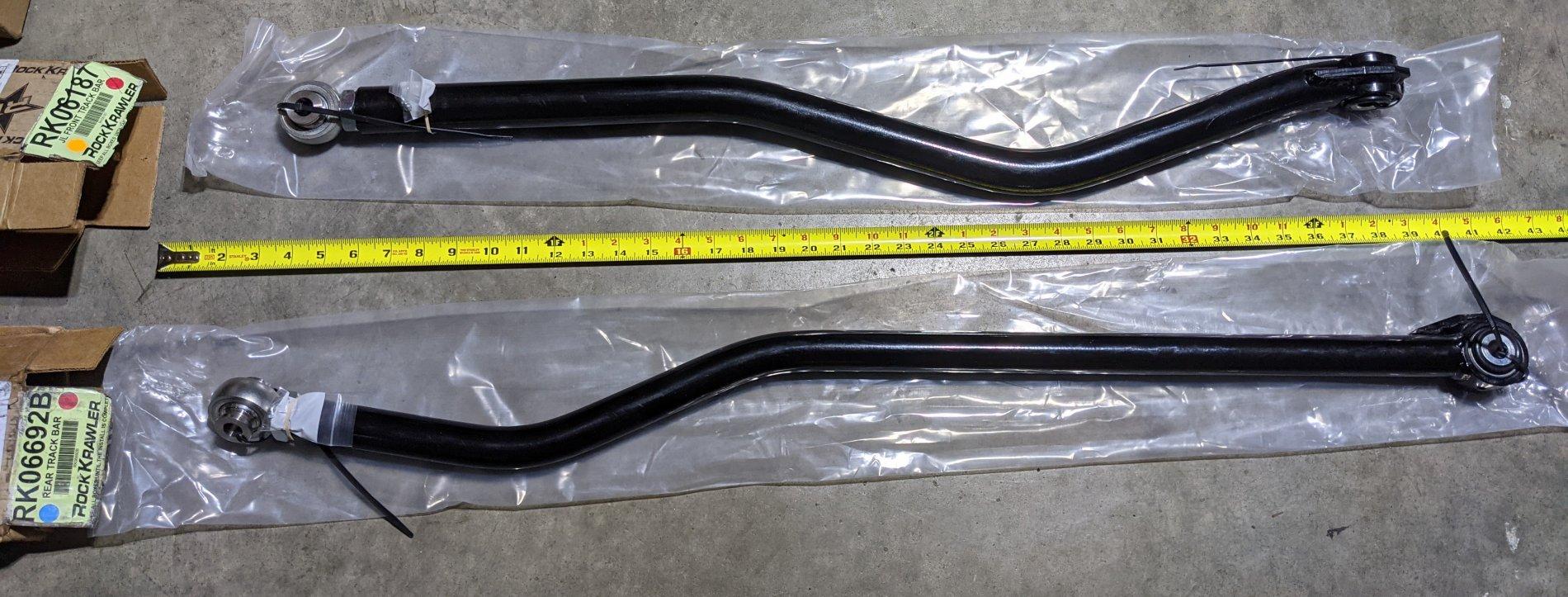

And here's what I received (front on top, rear on bottom):

Notice that the bottom kinks then unkinks. Not as beefy as the front one either. Anyone else seen this?


chevymitchell

Well-Known Member
First Name
Shawn
Joined
Feb 18, 2018
Messages
1,787
Reaction score
3,433
Location
K-Vegas, NC
Vehicle(s)
2020 Rubi Recon
Occupation
Nerd
Did they change the shape of the adjustable rear track bar from Rock Krawler when they went from part number RK06692 to RK06692B? I just got the front and rear adjustable track bars, but the rear doesn't look like everything I've seen so far. Here's the one from the Rock Krawler site that has 2 kinks in it:


And here's what I received (front on top, rear on bottom):

Notice that the bottom kinks then unkinks. Not as beefy as the front one either. Anyone else seen this?
The rear will be less beefy. The bend you see is correct. Make sure to double check it with any rear trackbar bracket you're using. It has a slight downswing on the axle side that interferes with some brackets and bolts. I just went through this with @conFUcius 's Jeep.

OP
QED

QED

Member
Joined
Dec 2, 2020
Messages
17
Reaction score
18
Location
Seattle
Vehicle(s)
2020 JLUR
  • Thread starter
  • Thread Starter
  • #3
The rear will be less beefy. The bend you see is correct. Make sure to double check it with any rear trackbar bracket you're using. It has a slight downswing on the axle side that interferes with some brackets and bolts. I just went through this with @conFUcius 's Jeep.
Thanks. I'm only doing the MOPAR lift, so I don't have an additional bracket beyond the stock mounting point. Now that I went out under the Jeep to compare, it looks like it's still at an angle after the unkink so it lines up. The older one looks like it had the 2nd kink to line it back up and go in straight. Every single one of these that I've seen online looked like the older one, so I wanted to make sure before disassembling my suspension.
