Rock Krawler 3.5 X-Factor

Martindfletcher

Well-Known Member
First Name
Martin
Joined
Jan 3, 2018
Messages
1,540
Reaction score
1,320
Location
San Diego
Vehicle(s)
Ducati 1299s, 2018 JLUR
I'm installing your 3.5 inch adventure series lift and I'm getting passenger side spring bowing what is causing this...
The RK guys will respond, assuming you used the RK pads. if you want to look quickly I would check the spring indexing, that the coil end is against the stop. their setup works well, have not heard of bowing with theirs.
Advertisement



Mojitojlu

Member
First Name
Steve
Joined
Aug 5, 2018
Messages
12
Reaction score
0
Location
New york
Vehicle(s)
2018 Jeep Wrangler Jlu rubicon 2017 Jeep Wrangler jku. 2003 Jeep Wrangler Tj rubicon. 1995 Jeep Wrangler yj. 1982 jeep cj7
Occupation
Lineman
The RK guys will respond, assuming you used the RK pads. if you want to look quickly I would check the spring indexing, that the coil end is against the stop. their setup works well, have not heard of bowing with theirs.
Double and triple checked everything still got bad now almost hitting end link


Mojitojlu

Member
First Name
Steve
Joined
Aug 5, 2018
Messages
12
Reaction score
0
Location
New york
Vehicle(s)
2018 Jeep Wrangler Jlu rubicon 2017 Jeep Wrangler jku. 2003 Jeep Wrangler Tj rubicon. 1995 Jeep Wrangler yj. 1982 jeep cj7
Occupation
Lineman
The RK guys will respond, assuming you used the RK pads. if you want to look quickly I would check the spring indexing, that the coil end is against the stop. their setup works well, have not heard of bowing with theirs.
yes it's a complete rock krawler kit...


Rock Krawler Suspension

Well-Known Member
Rock Sponsor (Level 1)
First Name
Tech Support
Joined
Oct 15, 2017
Messages
556
Reaction score
662
Location
Waterford New York
Website
rockkrawler.com
Vehicle(s)
Red JLUR, White JLUR, Yellow JL (3 so far), Bikini Diesel JLU, Billet JT, Hydro Blue JT
Sorry for the delay, I didn't get a notification of a reply until just now.

Without seeing pictures it would be impossible to begin. What is caster set to? Are you using our isolators on the bottom? Is it bowing front/back or left/right? Is the factory isolator positioned correctly on the top? Have you tried swapping coils with the other front? if you did, did the bow stay on the passenger side or did the bow move to the driver side?


Redhawk_jlu

Member
First Name
Tauland
Joined
Dec 19, 2020
Messages
15
Reaction score
16
Location
Toronto
Vehicle(s)
2019 JLU

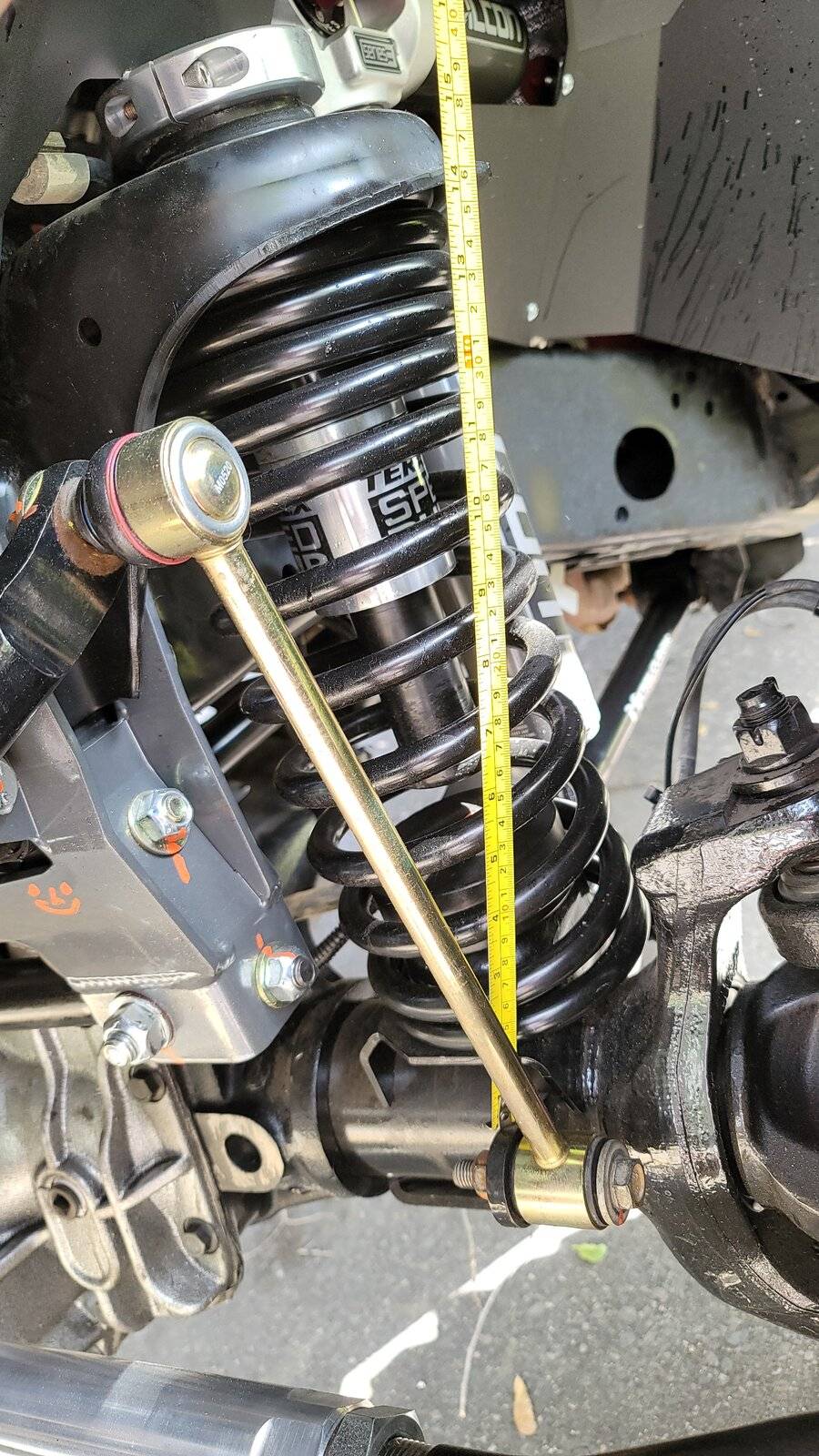

Here is my measurements from bottom of spring seat to lip of perch. I've been talking to Doug out of Outlaw Offroad for a few days. His Sahara with 1000lbs of gear is over an inch higher than this measurement.



Supposed to be 4.5 inch RC coils on metalcloak all 8 control arms lift dana spice 60 axles.

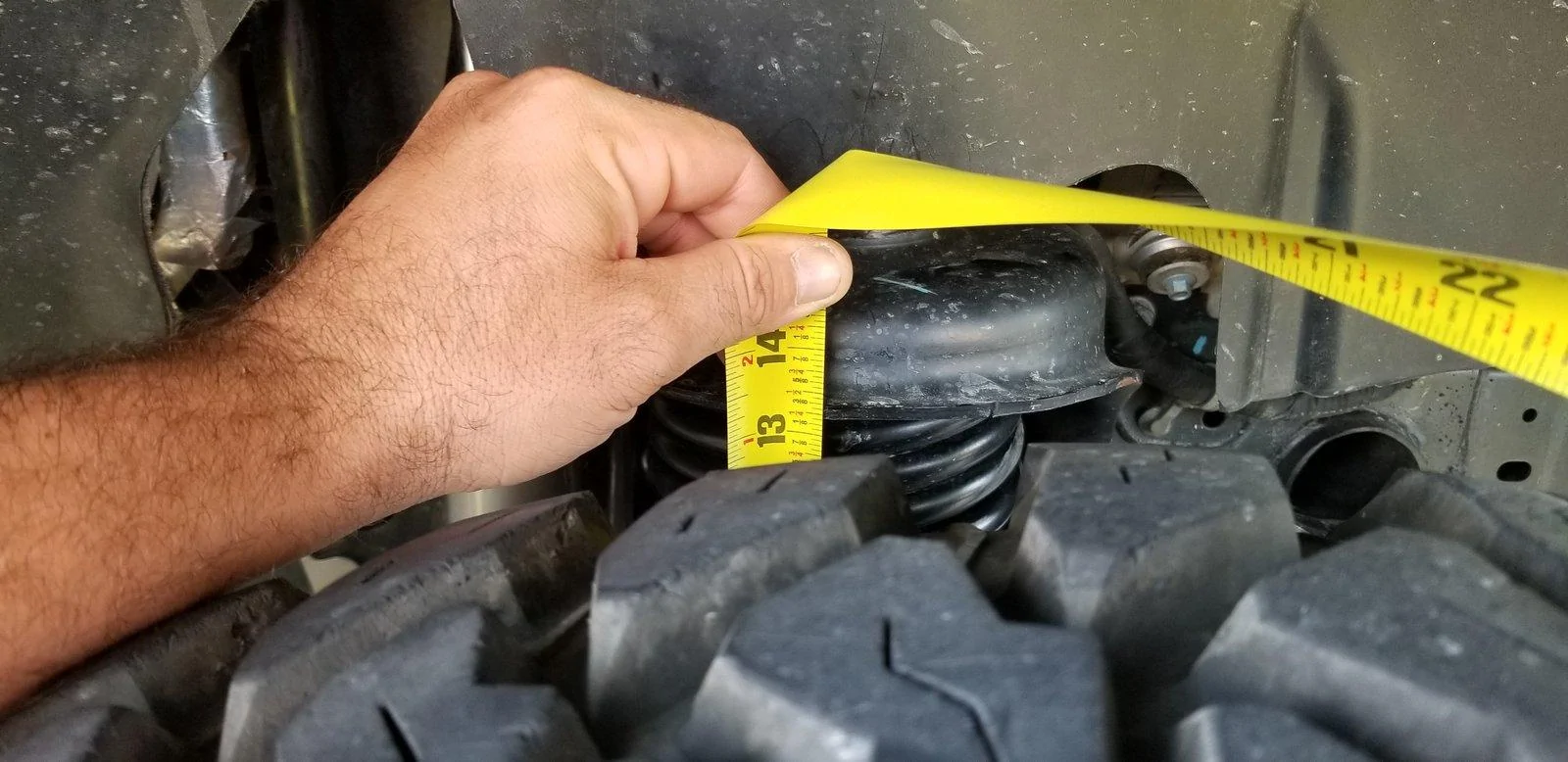

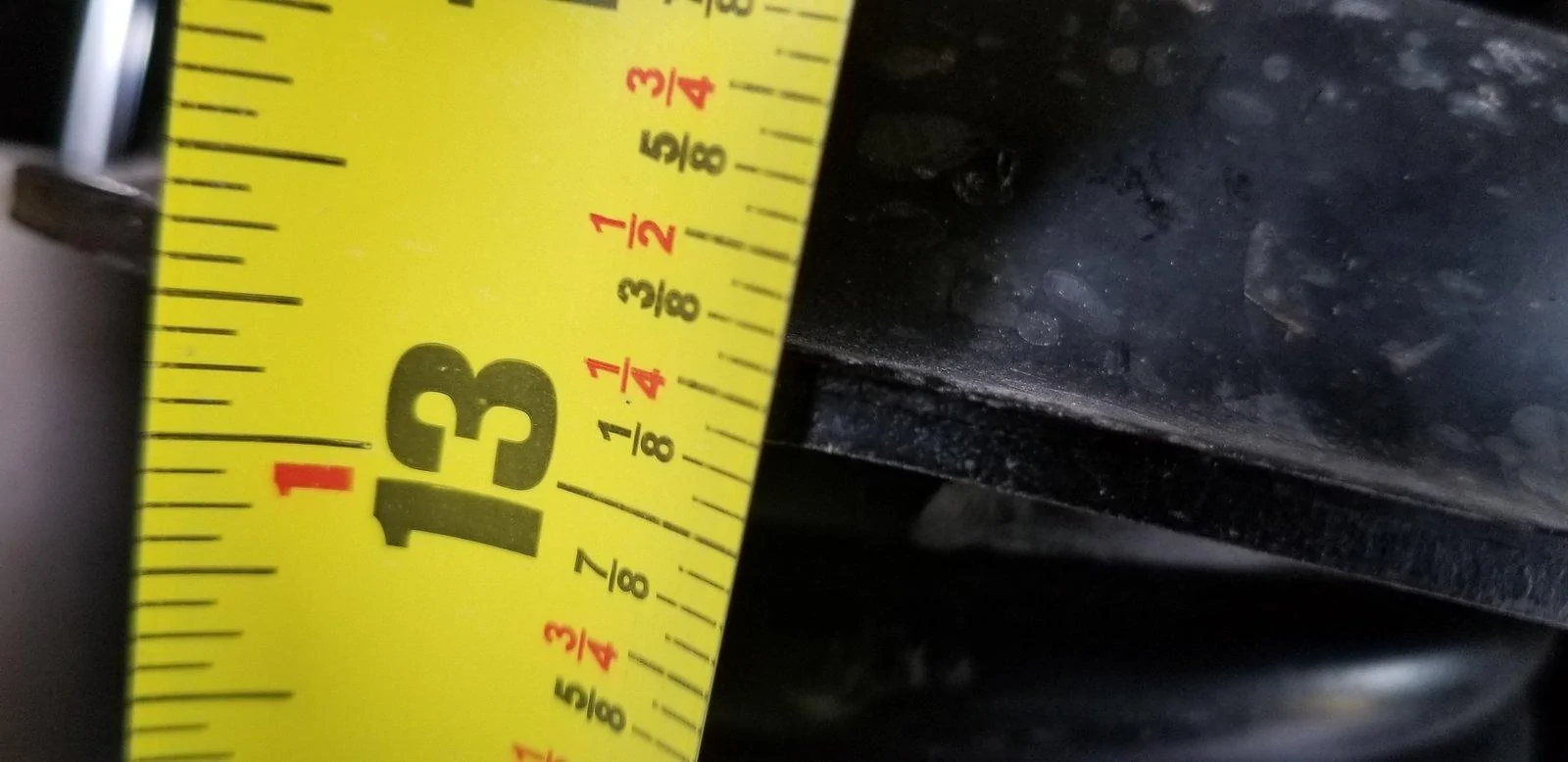

Top pic my buddy running 3.5 rancho coils

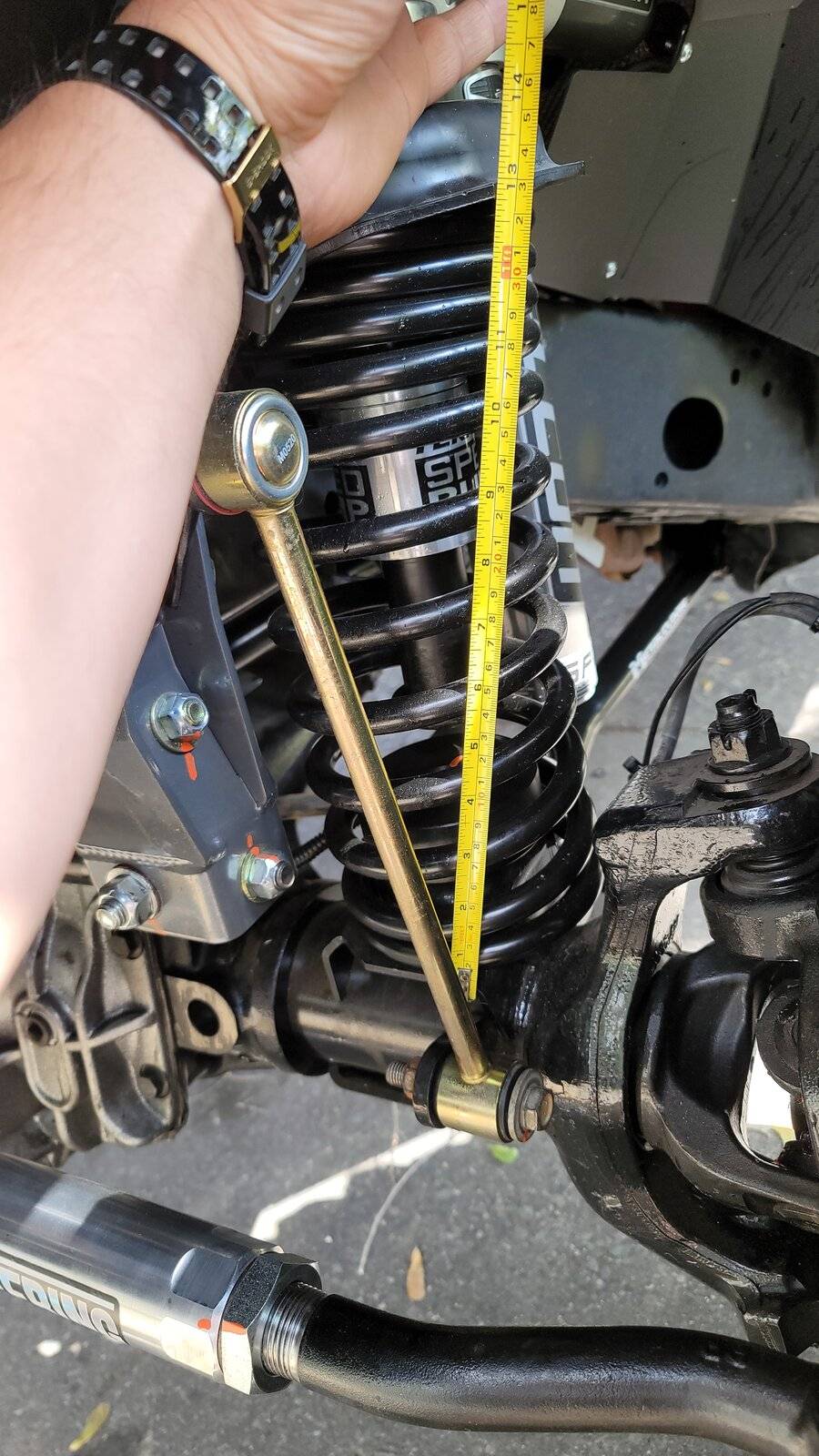

2 bottom pic me 4.5 RC coils without front pads wich is 0.75inch pad without the compression while installed.
Very disappointed







Redhawk_jlu

Member
First Name
Tauland
Joined
Dec 19, 2020
Messages
15
Reaction score
16
Location
Toronto
Vehicle(s)
2019 JLU
Our 3.5" coils provide 3.5" + 3/8 minus nothing typically for lift and has been well documented on this site. You will not be disappointed, that is for sure. To RK it is not a height game, but it is a ride quality, handling and off-road performance game. For the JL's we strived to stay as close to nominal as possible. As others have mentioned; once you go higher than these coils you will start running into other issues; for example - you will need to covert to high steer, you will definitely need a front driveshaft, and the list goes on and on. That is the point when you really need to open your check book. Not to mention with a 3.5" on a Rubi you can run up 37's up to 39's with full fenders and proper bump stops or 40's with separated rubi fenders. You certainly do not need to go taller! Build smarter!

If you want to be taller, you can swap springs out, we have 4.5" springs in stock, but since we have not released our high steer options, we have not released full systems as of yet and are still in the development and testing phases. It has to be right before we release it.

RK
This is your 4.5 inch coils
Old rusty coil pic it's my buddys Rubicon 4 door 3.5 inch rancho coils.
My jeep: 4 door jlr







Zandcwhite

Well-Known Member
First Name
Zach
Joined
Sep 4, 2019
Messages
1,442
Reaction score
2,205
Location
Patterson, ca
Vehicle(s)
2019 jlur
This is your 4.5 inch coils
Old rusty coil pic it's my buddys Rubicon 4 door 3.5 inch rancho coils.
My jeep: 4 door jlr





Looking at your pic, he's sitting at 13 5/8" and you're at 14". He has the bottom spring pad and you don't. Add that .5-.75" back to yours and you'd be 7/8" to 1 1/8" taller with an advertised 1" taller spring. That seems as spot on as you'll see with all the variables in builds, rig weights, etc? It seems like a lot of people are obsessed with how terrible a kit or spring is if it sits .25-.5" below advertised on their rig, but singing the praises of a kit that sits .5-1" above advertised? The taller lifts seem to be more out of spec than the shorter ones by my math? Now for the people who really wanted 4"+ out of their 3.5" lift kit, over height springs might be the way to go, or just buy a taller kit if that's what you ultimately wanted? If you find the ride better of the shorter spring, a .75" spacer is always an option.
