ROAM JL Stealth Snorkel

Hi everyone! I'd like to update everyone on the current development progress of the ROAM JL Stealth Snorkel : we're getting closer to production factoring but there are still a few updates/changes that we'd still want to make to the current engineering prototype:

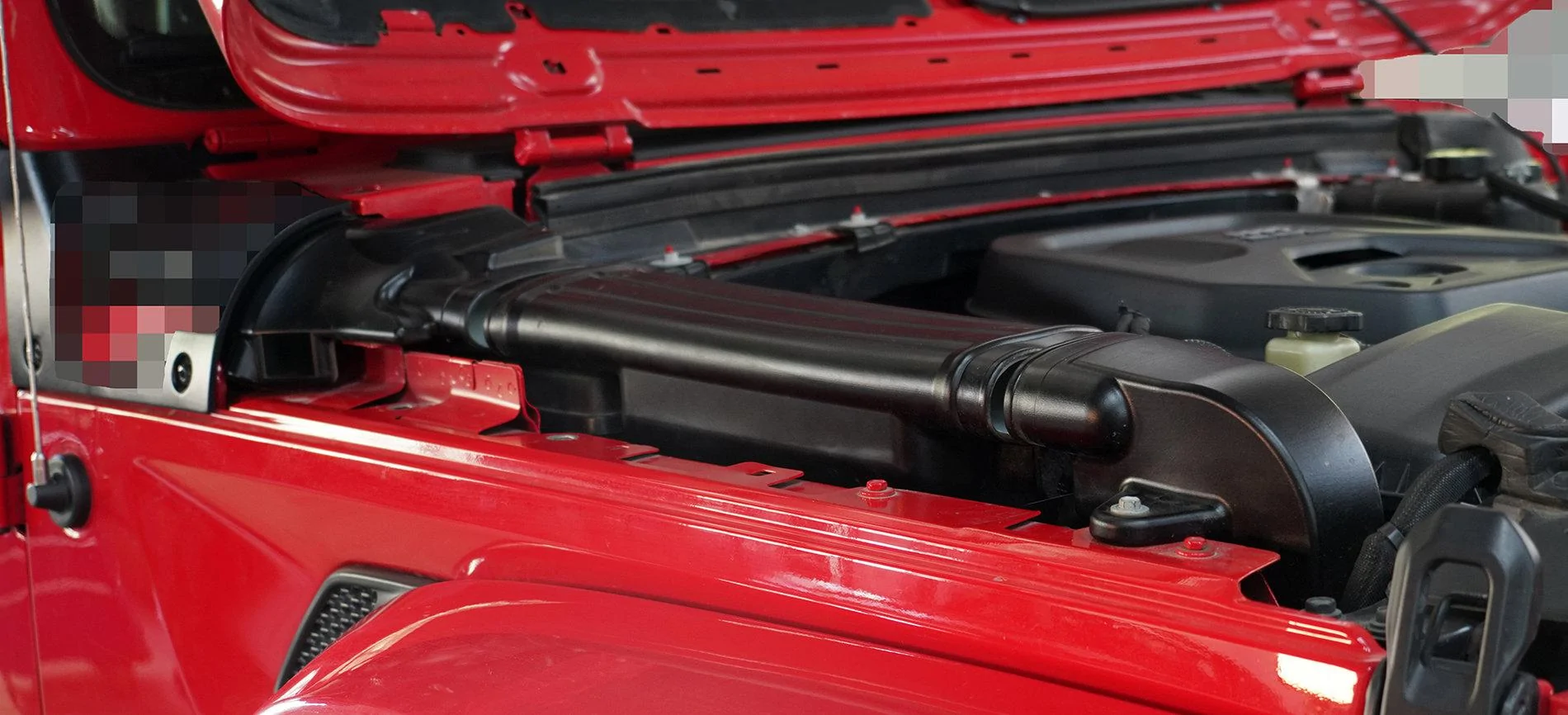

F2 Snorkel, April 2019 update - 1920x875.jpg




Please note that although our JL Stealth Snorkel effectively functions as a JL Cold Air Intake, the primary function of our JL Stealth Snorkel is still to raise the intake point/location higher.

The ROAM JL Stealth Snorkel utilizes/retains the OE air intake filter assembly. Our JL Stealth Snorkel ties directly into the main airbox assembly with a replacement lower section and does not require the use of an aftermarket cone filter. ( The ROAM JL Stealth Snorkel still uses/requires a stock JL engine air filter - 68257030AA or a Wix WA10841 )

The large compartment under the main intake routing houses an air/water separator assembly and a counterweight actuated drain valve.

No drilling required; does not require drilling or cutting the hood for air access - every exterior panel modified is included as a complete replacement.

Includes an external/exterior snorkel duct (not pictured) that follows the passenger side A pillar upwards; attaches to the transition piece at the base (will update with pictures by the next revision). The ROAM JL Stealth Snorkel is designed to not be visible by the driver (when driving, on North American vehicles only) with or without the exterior snorkel duct installed.

With our JL Stealth Snorkel installed, you can still fold down your windshield, with or without the exterior snorkel duct installed.

Our JL Stealth Snorkel is designed with high airflow in mind: every tube and transition in the ROAM JL Stealth Snorkel has a larger cross section and will flow more air than the stock intake system.

TBA: The ROAM JL Stealth Snorkel is Made in the USA with carbon filled PTFE infused cross-linked polyethylene for the ultimate in strength and durability. (UV-stable Cross-linked Polyethylene with PTFE nodules infused with carbon, think of this as chopped carbon fiber and PTFE mixed into the Cross-linked Polyethylene as an additive rather than / instead of the Cross-linked Polyethylene covering a layer of carbon fiber)

TBA/Late Availability: Optional exterior colors for the exterior snorkel duct: In addition to a black exterior, other optional colors will also be available in limited runs.

TBA: A variant of our external/exterior snorkel duct (not pictured) will be compatible with a precleaner / pre-filter attachment (compatible with all pre-filters / precleaners designed for a 4" duct transition).

Uses all stainless steel and/or plated hardware for corrosion resistance.



F2 Snorkel, April 2019 update - 1920x1180.jpg





Advertisement



TJ2018

Well-Known Member
First Name
Eric
Joined
Nov 2, 2018
Messages
2,099
Reaction score
9,984
Location
Orange County, CA
Vehicle(s)
2018 Punk'n JLUR; 2020 Silverado Trail Boss
Vehicle Showcase
1
Wow... that's the 2.0 engine in the pic!?!? I thought all the good stuff came for the V6 first ( *** cough *** cough *** skid plates *** cough *** cough ***) Will be following with interest...


Bearded_Dragon

Well-Known Member
Joined
Jul 23, 2017
Messages
1,015
Reaction score
1,120
Location
FL
Vehicle(s)
2018 Mojito! Rubicon
Cool product, will it work with Mopar's A-pillar light mounts (82215427)?


rustyshakelford

Well-Known Member
Rock Sponsor (Level 1)
First Name
Brett
Joined
Sep 14, 2018
Messages
2,425
Reaction score
2,855
Location
Navasota, TX
Vehicle(s)
2019 JLUR-8 speed 2020 F-350
I need this in my life :involve:
You and me both. I’ve had a hair trigger on ordering the mopar one but if I don’t have to cut out the hood this is much better

Cool product, will it work with Mopar's A-pillar light mounts (82215427)?
I wouldn’t imagine so on the passenger side.

Brett


DayJ

Well-Known Member
First Name
Jake
Joined
Apr 7, 2018
Messages
65
Reaction score
81
Location
Texas
Vehicle(s)
09 JKU, 13 JK (RIP), 2018 JL (RIP), 2020 JL

PaPasJP

Well-Known Member
First Name
David
Joined
Dec 20, 2017
Messages
525
Reaction score
612
Location
Gainesville, FL
Vehicle(s)
2018 JLUR
Occupation
Retired
Vehicle Showcase
1
Interested.


MadDog27

Well-Known Member
First Name
Jon
Joined
Mar 5, 2019
Messages
762
Reaction score
1,330
Location
Aurora, Colorado
Vehicle(s)
2021 JLUR 2.0T, 2021 GMC Terrain
Vehicle Showcase
1
Interested as well.


Cypher

Well-Known Member
First Name
J
Joined
Feb 8, 2018
Messages
1,883
Reaction score
1,539
Location
AZ
Vehicle(s)
2021 JLUR Eco-Diesel now. 18, 19, 20 JLUR 3.6 old.
Occupation
Cybersecurity Leader
Vehicle Showcase
4
sign me up!


Dagwood

Well-Known Member
First Name
David
Joined
Mar 4, 2019
Messages
445
Reaction score
870
Location
Alabama
Vehicle(s)
2019 Jeep JL, 1999 Jeep xj, 2008 Scion XB, 2015 Scion XB, 1966 Ford F100, 1969 Oldsmobile
Got my attention but the optional exterior color snorkel port pushed me to sold.


ogjeep

Well-Known Member
Joined
Dec 1, 2018
Messages
86
Reaction score
178
Location
Las Vegas
Vehicle(s)
2019 jeep Wrangler Turbo 2 door Mojito
I need one of these in my life asap. I like that you guys are playing with the 2.0!


Rbricker

Active Member
First Name
Ryan
Joined
Jan 8, 2019
Messages
40
Reaction score
12
Location
Cincinnati, OH
Vehicle(s)
2019 Jeep Wrangler Unlimited Sport S, 1980 Jeep CJ-7 Renegade
Occupation
Design Engineer
Vehicle Showcase
1
@ROAM Looks really good. Do you have a rough idea on when production units will be for sale? Also do you have a price point you are trying to hit?
