Retrofit side marker install with pics!

Todkavonic

Well-Known Member
First Name
Nate
Joined
Sep 11, 2018
Threads
7
Messages
182
Reaction score
230
Location
Onalaska, WI
Vehicle(s)
Moto Guzzi, Ducati, BMW, Lincoln, Land Rover

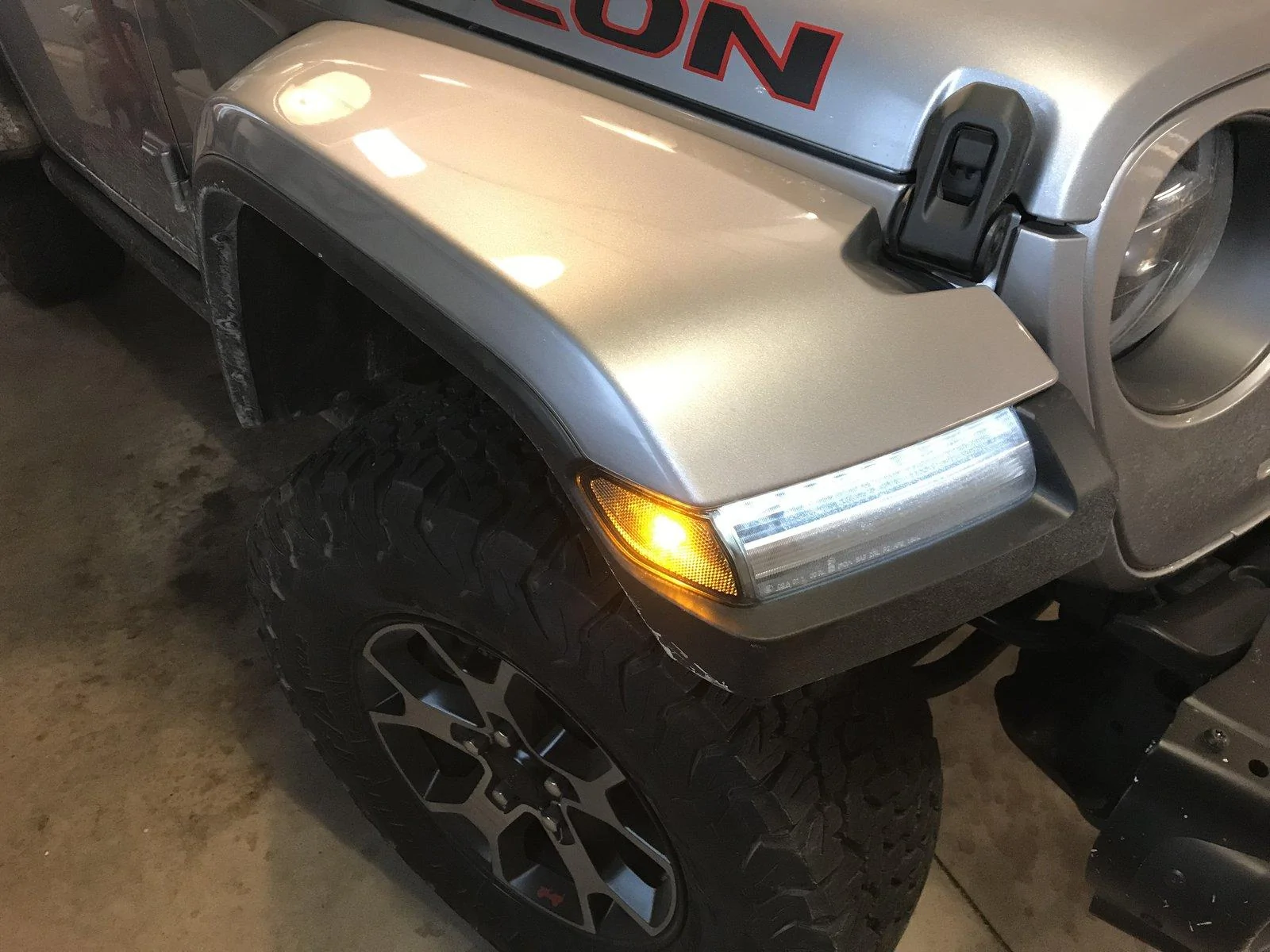

Hey everyone.

I bought a pair of smoked side markers and then hunted around for a video or maybe even just instructions regarding how to install them. No luck. Thankfully installation isn't too troublesome. Here's how to do it:

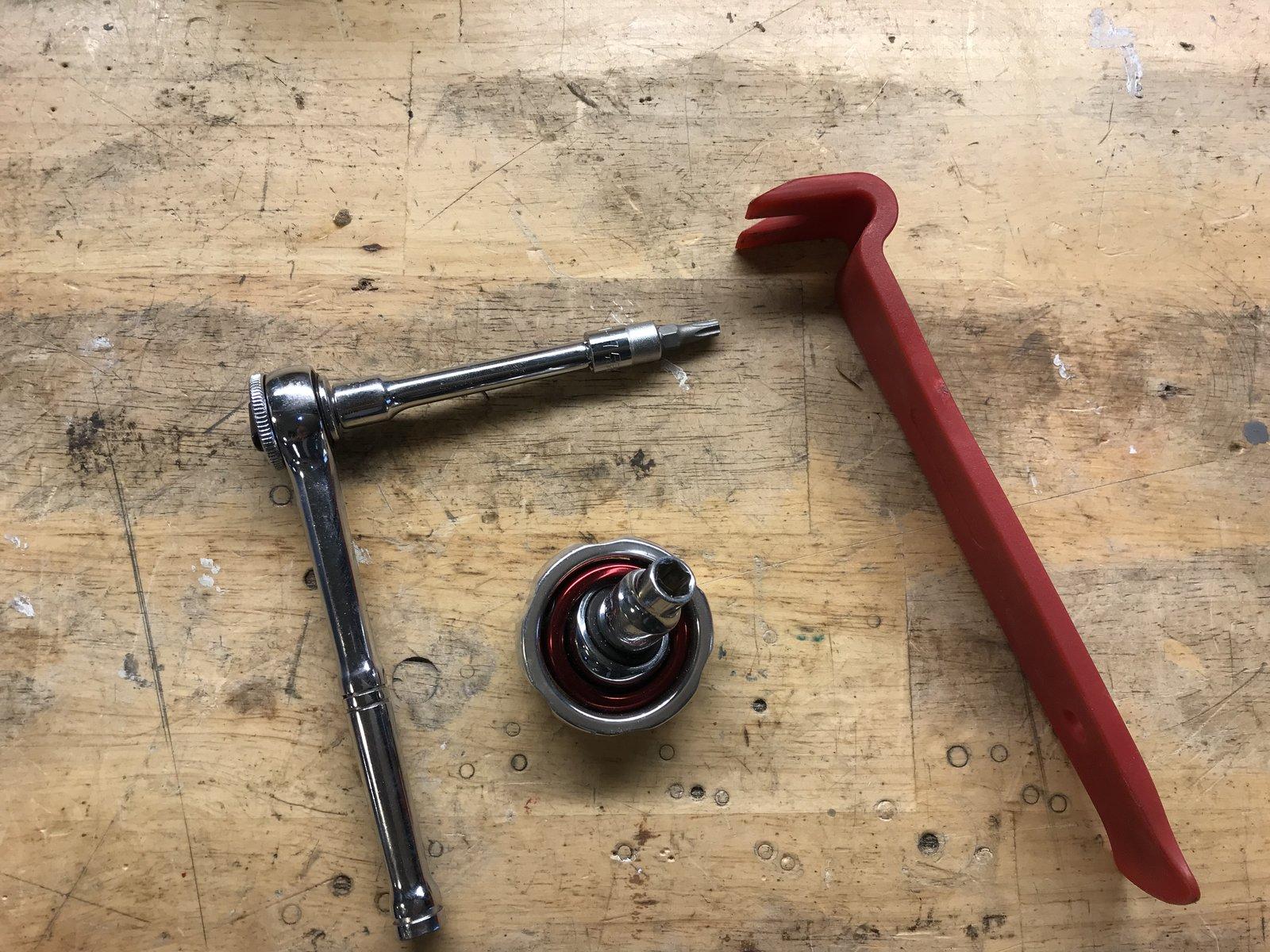

Tools:
1) trim fastener removal tool
2) 8mm socket and wrench
3) torx 27 bit and wrench
4) coffee. It's only 0830.




Step 1: use the trim fastener tool to remove the three front-most plastic retainer clips. Use the 8mm socket to remove the front-most screw as well. Peel back the plastic fender liner exposing the back-side of the turn signal assembly.

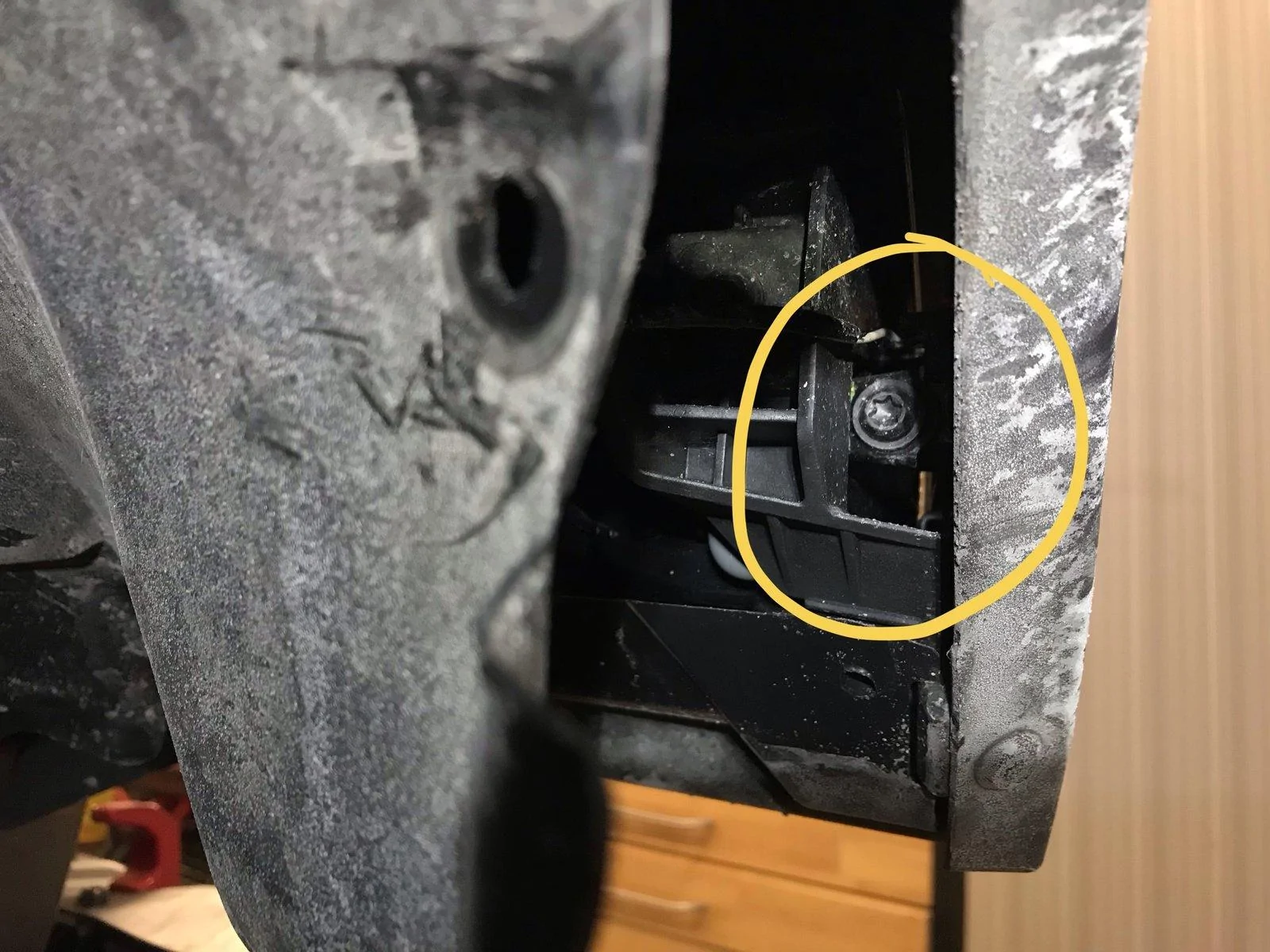

Step 2: use the Torx bit to remove the screw behind the side marker.


Be careful not to drop the screw. It's a pain in the butt to fish out.

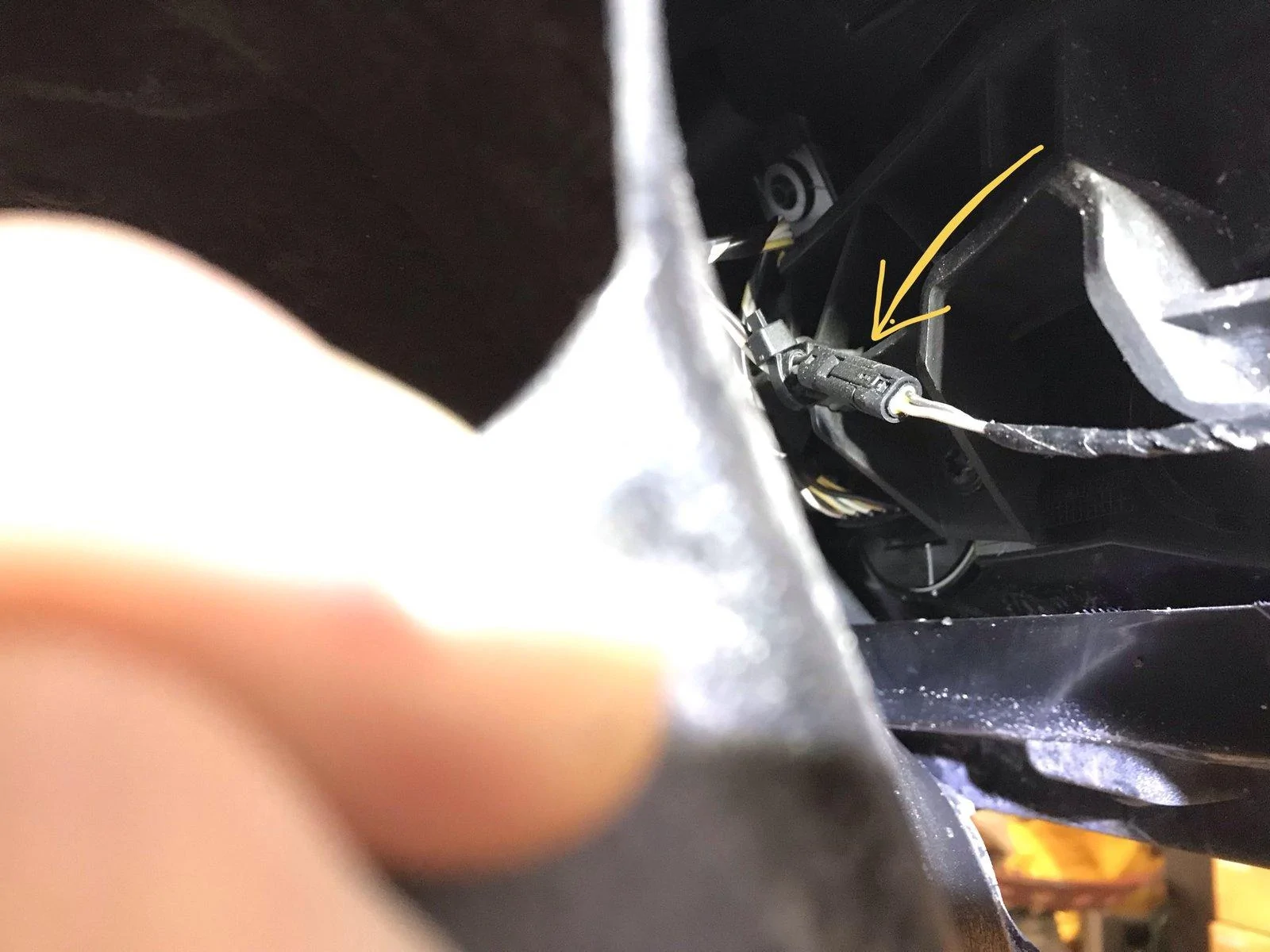

Step 3: Then disconnect the wire at the terminal by prying that little tab up.

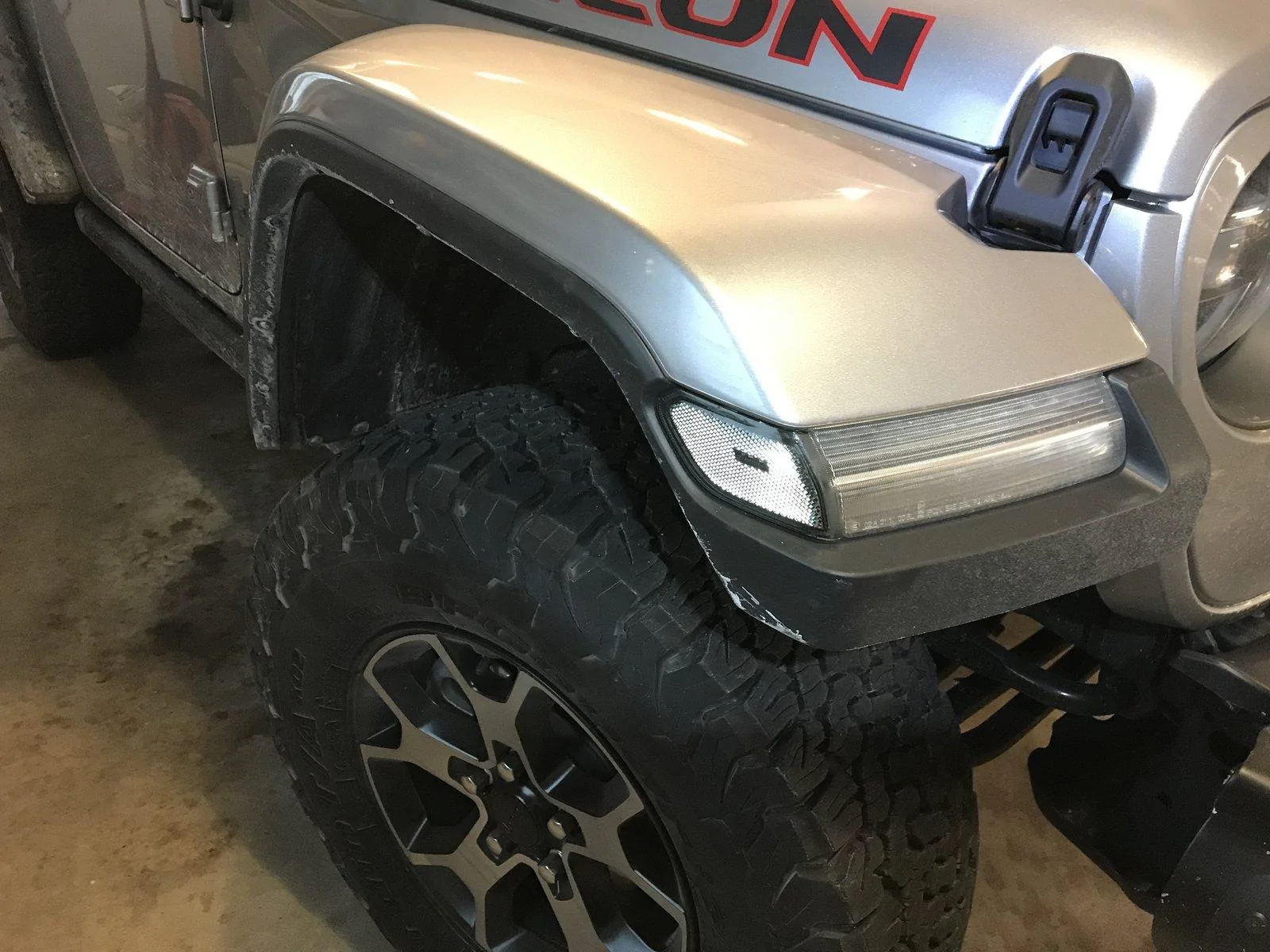

Step 4: install your new side marker by simply reversing the steps. I made sure that it worked before putting everything back together.




Step 5: finish your coffee because it's not even 9 am.
Sponsored



JC7

Well-Known Member
First Name
Jdog
Joined
Nov 21, 2018
Threads
21
Messages
682
Reaction score
838
Location
Outer space
Vehicle(s)
Jeep Rubicon
I need this. I blacked mine out, but would prefer clear. Where did you buy them?


paulr

Well-Known Member
Joined
Jan 17, 2018
Threads
58
Messages
538
Reaction score
735
Location
California
Vehicle(s)
2018 Sting Gray JLUR
Thanks @Todkavonic for the thread, very helpful and piece of cake. Ridiculous that these don't come with instructions. I asked Retrofit Source about instructions and they said to remove the entire fender, totally wrong!

OP
OP
Todkavonic

Todkavonic

Well-Known Member
First Name
Nate
Joined
Sep 11, 2018
Threads
7
Messages
182
Reaction score
230
Location
Onalaska, WI
Vehicle(s)
Moto Guzzi, Ducati, BMW, Lincoln, Land Rover
Thanks @Todkavonic for the thread, very helpful and piece of cake. Ridiculous that these don't come with instructions. I asked Retrofit Source about instructions and they said to remove the entire fender, totally wrong!
My pleasure Paul.


Sponsored

OP
OP
Todkavonic

Todkavonic

Well-Known Member
First Name
Nate
Joined
Sep 11, 2018
Threads
7
Messages
182
Reaction score
230
Location
Onalaska, WI
Vehicle(s)
Moto Guzzi, Ducati, BMW, Lincoln, Land Rover
The trick to not losing the screw is to keep it in place and allow the side marker housing to gently lift off the fender as you unscrew it. Then set the new housing onto the screw and watch as you gradually re-seat it. There are some tabs which need to align as you snug it down, but, really, it can't be installed improperly.

Honestly, I'm making it sound more complicated than it is.

If you do lose the screw. it'll likely fall into the space below the turn signal assembly. I attached one of those neodynium magnets to a small length of electrical tape and kinda fished it out. No biggie, just a bother.

Last edited:

Bilymac

Well-Known Member
First Name
Bill
Joined
Oct 23, 2018
Threads
9
Messages
348
Reaction score
209
Location
Auburn, CA
Vehicle(s)
2006 Ram 2500, 2017 Chevy Tahoe, 2017 Harley Street Glide Special, 2019 Jeep JLRU
Those look nice.


Agent47

Well-Known Member
Joined
Jun 12, 2018
Threads
15
Messages
284
Reaction score
360
Location
PNW
Vehicle(s)
Mojito! JLU 2.0T (Built 7/4)
The trick to not losing the screw is to keep it in place and allow the side marker housing to gently lift off the fender as you unscrew it. Then set the new housing onto the screw and watch as you gradually re-seat it. There are some tabs which need to align as you snug it down, but, really, it can't be installed improperly.

Honestly, I'm making it sound more complicated than it is.

If you do lose the screw. it'll likely fall into the space below the turn signal assembly. I attached one of those neodynium magnets to a small length of electrical tape and kinda fished it out. No biggie, just a bother.
Those are the smoked ones? They look clear to me.

Their website has the following note regarding figment. Did you notice anything?
“NOTE: In our findings, compared to OEM: There is a ~1.5mm larger gap between the front DRL and the edge of the sidemarker when installed. You can remove a little bit of plastic from the mounts with a dremel tool to optimize the fitment, but please recognize this fact when purchasing!"

OP
OP
Todkavonic

Todkavonic

Well-Known Member
First Name
Nate
Joined
Sep 11, 2018
Threads
7
Messages
182
Reaction score
230
Location
Onalaska, WI
Vehicle(s)
Moto Guzzi, Ducati, BMW, Lincoln, Land Rover
Those are the smoked ones? They look clear to me.

Their website has the following note regarding figment. Did you notice anything?
“NOTE: In our findings, compared to OEM: There is a ~1.5mm larger gap between the front DRL and the edge of the sidemarker when installed. You can remove a little bit of plastic from the mounts with a dremel tool to optimize the fitment, but please recognize this fact when purchasing!"
Yes, they're the smoked ones.

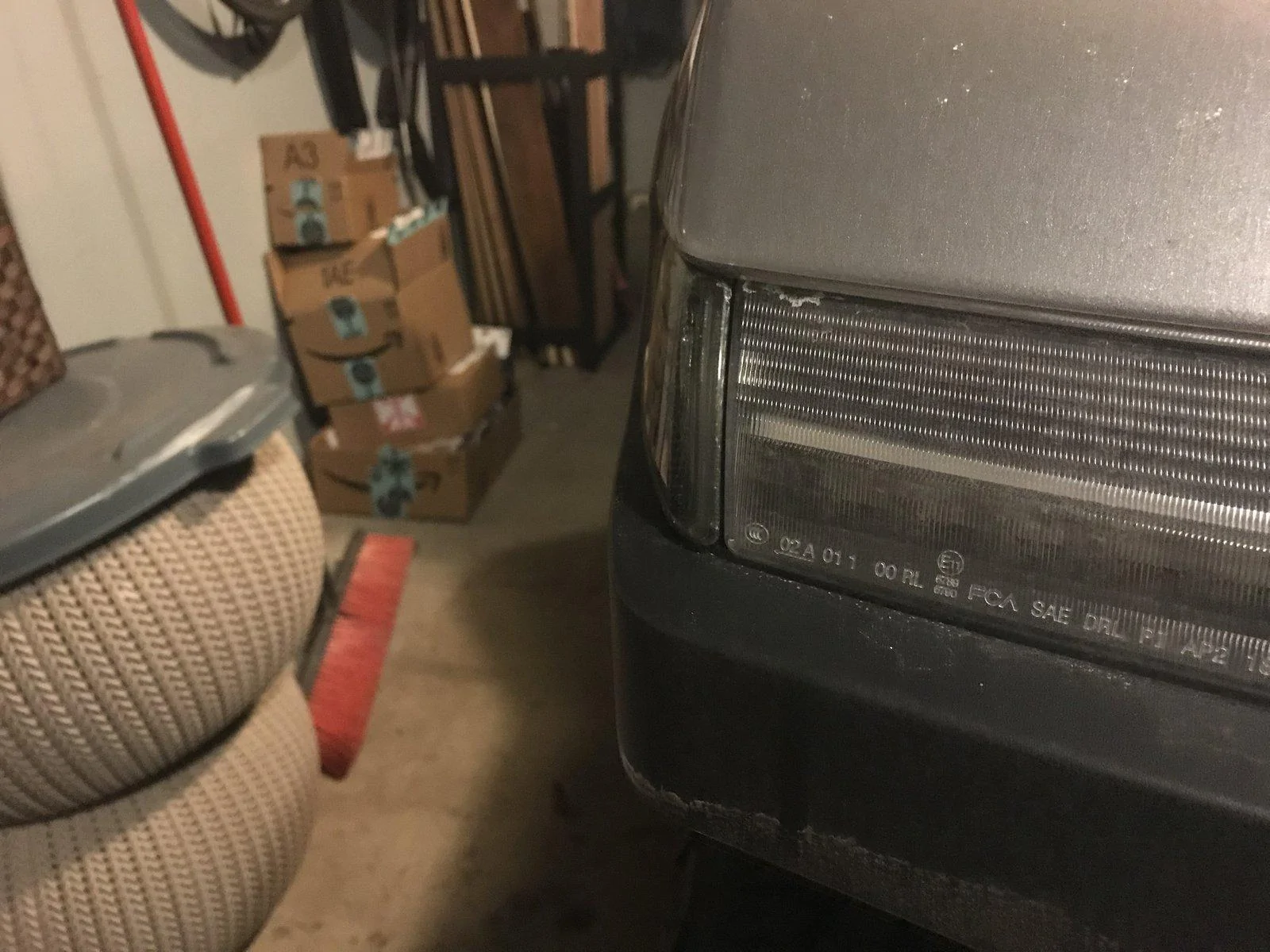

That note wasn't there when I bought, they must've had some complaints. Here's a close-up of the "gap"




RELBUS

Well-Known Member
Joined
Nov 29, 2017
Threads
16
Messages
619
Reaction score
853
Location
Chicago
Vehicle(s)
97 TJ , 22 JLURXR 392
Thanks for this thread! I had no idea these were out - I just ordered a set:like:


Sponsored

Diode Dynamics

Well-Known Member
Summit Sponsor (Level 3)
First Name
John
Joined
Feb 28, 2017
Threads
93
Messages
1,166
Reaction score
513
Location
St. Louis, Missouri
Website
www.diodedynamics.com
Vehicle(s)
2018 Jeep Wrangler
Post bump!

For anyone interested in upgrading their JL's side markers, we released our new LED Sidemarkers today! They're computer-designed for perfect alignment with the DRL right out of the box, and feature a full strip of high power LEDs. Unlike other options, these require zero adjustment or modification, and feature OEM grade retroreflector optics and housings. They're available in your choice of clear, smoked, or amber. The clear option creates a unique "wraparound" effect with the DRL that looks super clean!


Installation is can easily be done at home in your garage using basic hand tools. I'm certainly no wrench, and I installed a set on our shop JL in under 45 minutes (I'm DEFINITELY on the slower end, haha!).



We manufacture our LED Sidemarkers at our facility right here in St. Louis, and they're backed by our 3-year worry-free warranty!

Feel free to shoot us a PM with any questions! Also, I'm happy to offer free USPS shipping on these for U.S orders, just let me know if you need the code!

Jake H.
Diode Dynamics


FedeF

Active Member
First Name
Federico
Joined
Dec 12, 2018
Threads
2
Messages
28
Reaction score
22
Location
Hollywood, FL
Vehicle(s)
Audi A3 - Alfa Romeo Stelvio
Thank you Jake. What does your product do better than the existing ones from Morimoto? Also considering that yours are more expensive?


Diode Dynamics

Well-Known Member
Summit Sponsor (Level 3)
First Name
John
Joined
Feb 28, 2017
Threads
93
Messages
1,166
Reaction score
513
Location
St. Louis, Missouri
Website
www.diodedynamics.com
Vehicle(s)
2018 Jeep Wrangler
You got it!

And that's a great question. Our LED Sidemarkers offer perfect fitment right out of the box (others require adjustment during or after installation). Additionally, ours utilize an entire strip of high power LEDs, which really sets them apart from the OEM lighting! Finally, we manufacture these in-house, to ensure the highest possible quality and long-term performance.

Thanks!

Jake H.
Diode Dynamics


FedeF

Active Member
First Name
Federico
Joined
Dec 12, 2018
Threads
2
Messages
28
Reaction score
22
Location
Hollywood, FL
Vehicle(s)
Audi A3 - Alfa Romeo Stelvio
Great!
What is the discount for forum members?
