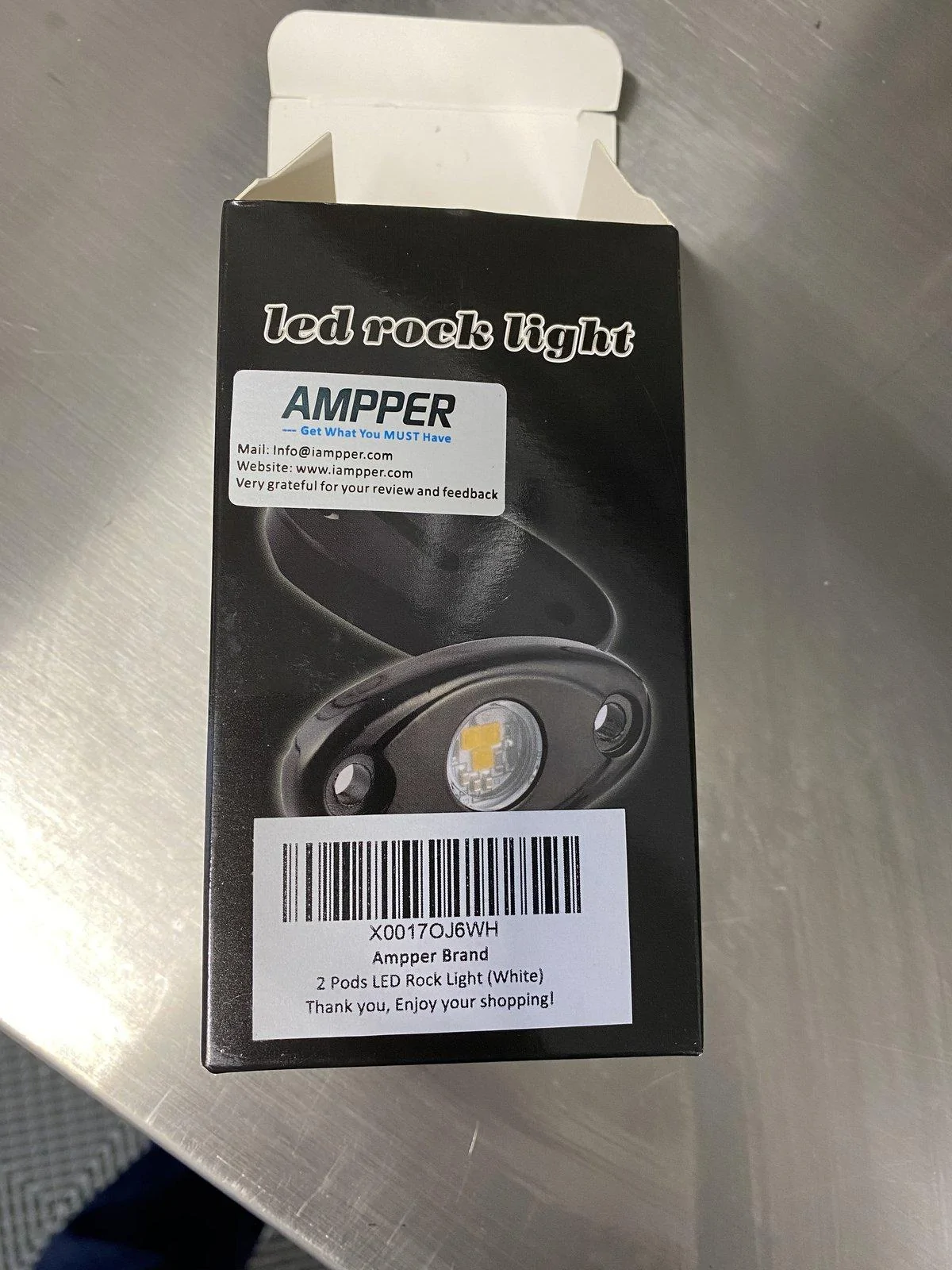

    Anyone have a YT video, pics or done the removal of the center section of the sound bar? I got some rock lights and want to mount them and wire them to the dome light for more light in the cabin.

  2. OP
    OP
    Goin2drt

    Goin2drt Well-Known Member

    Vehicle(s):
    18 Rubicon, 17 Grand Cherokee Trailhawk
    Joined:
    Oct 25, 2017
    Location:
    Kentucky (formerly Peoples Republik of Kalifornia)
    Posts:
    1,439
    Liked:
    1,505

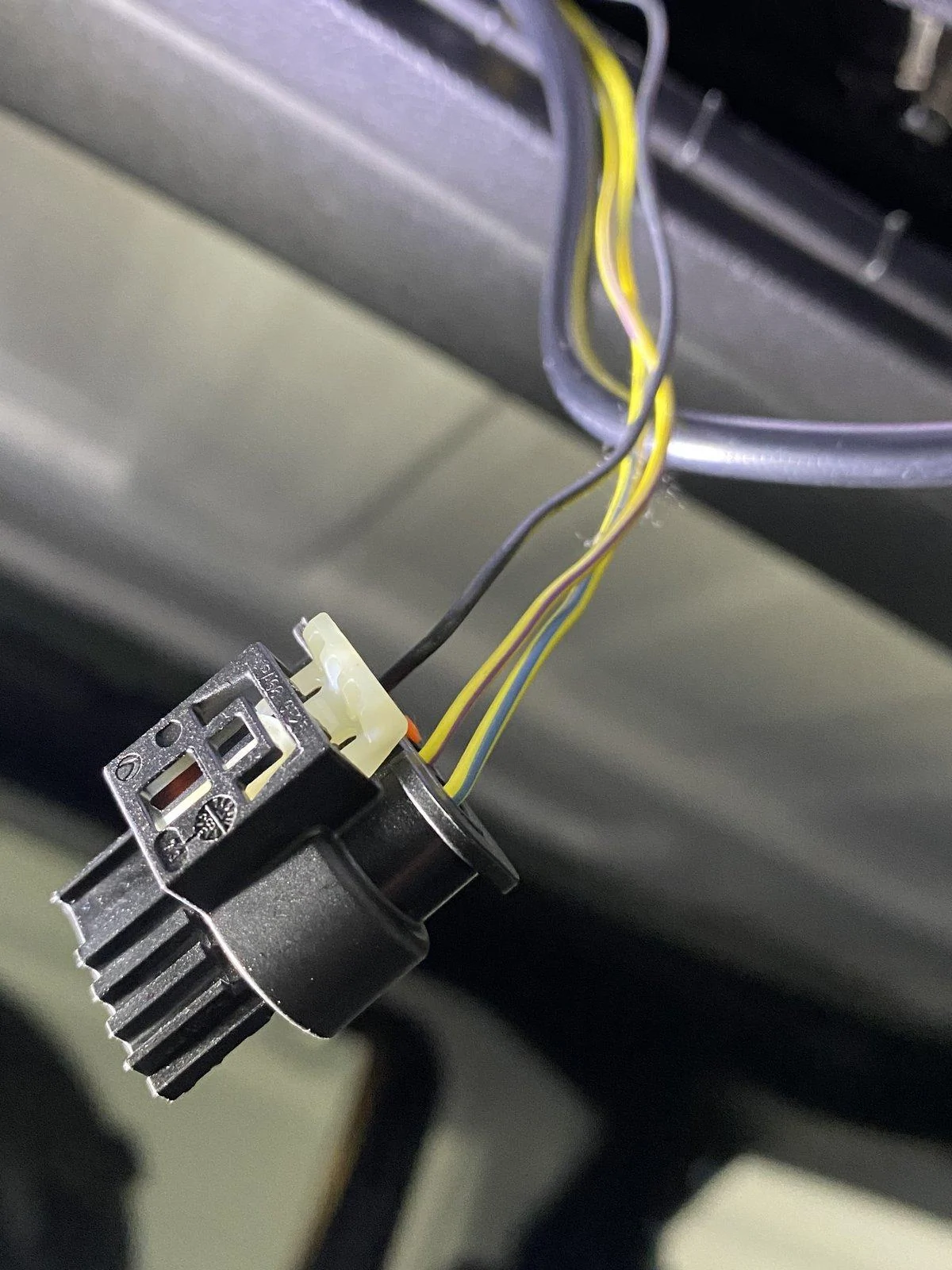

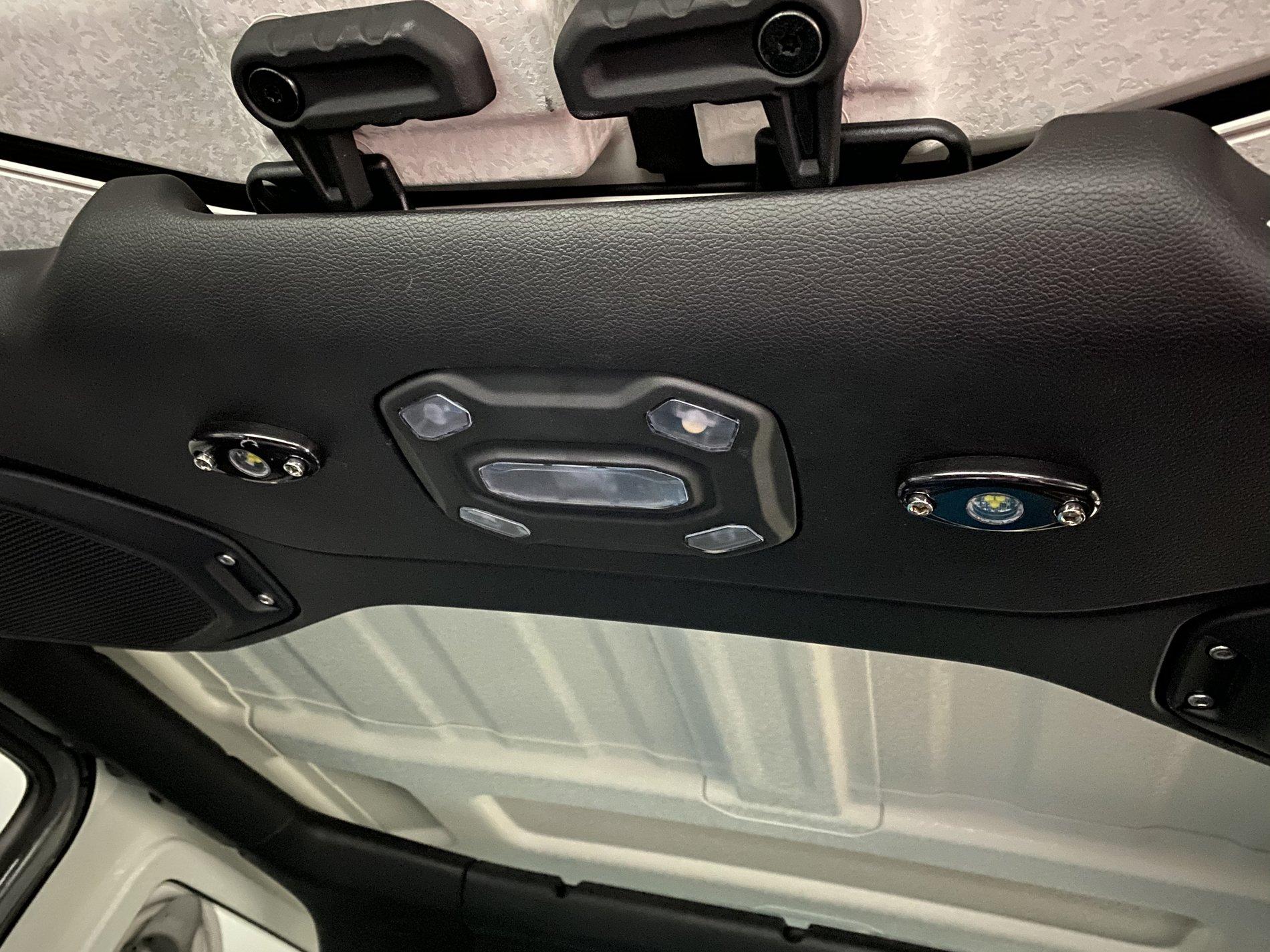

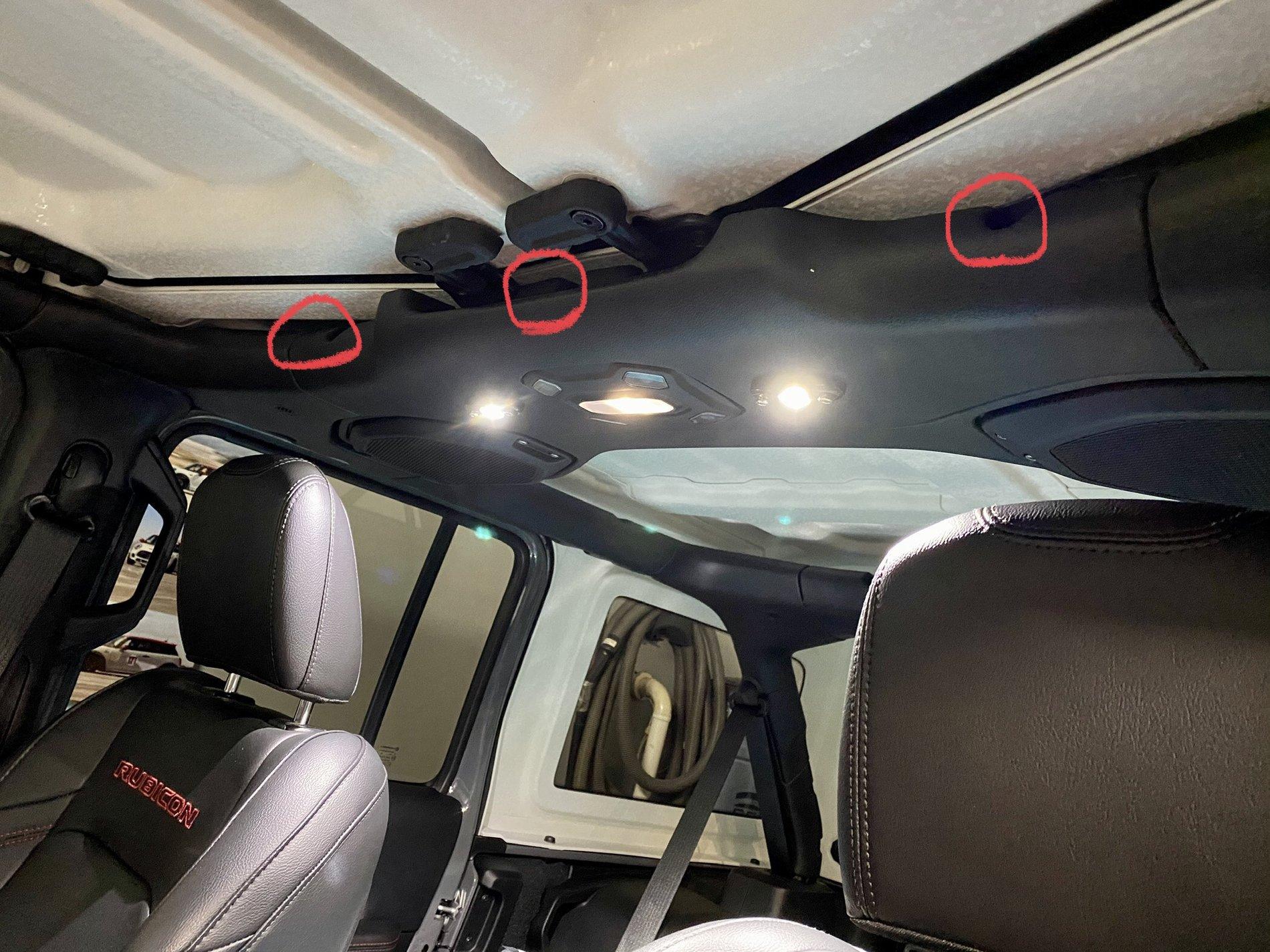

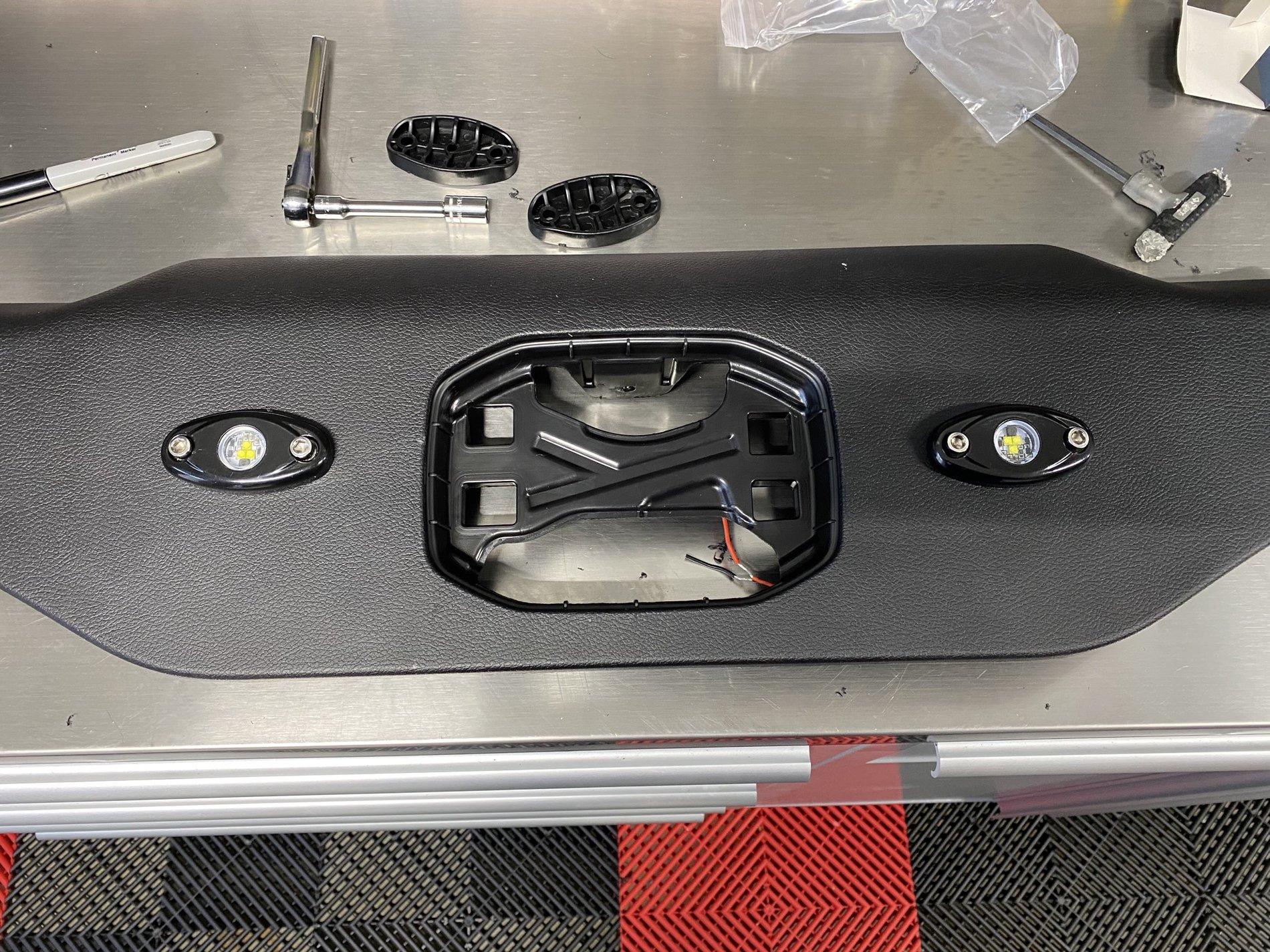

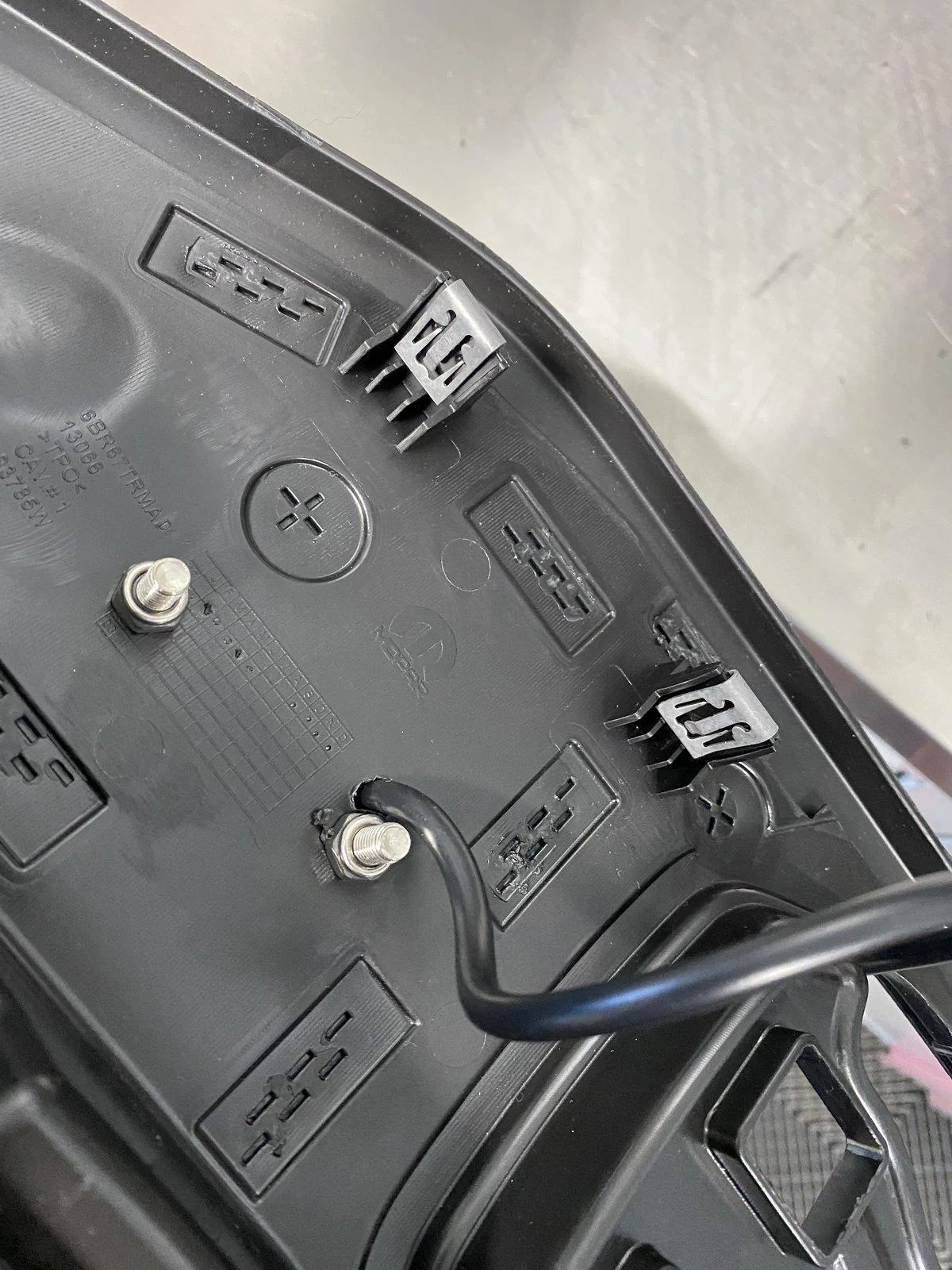

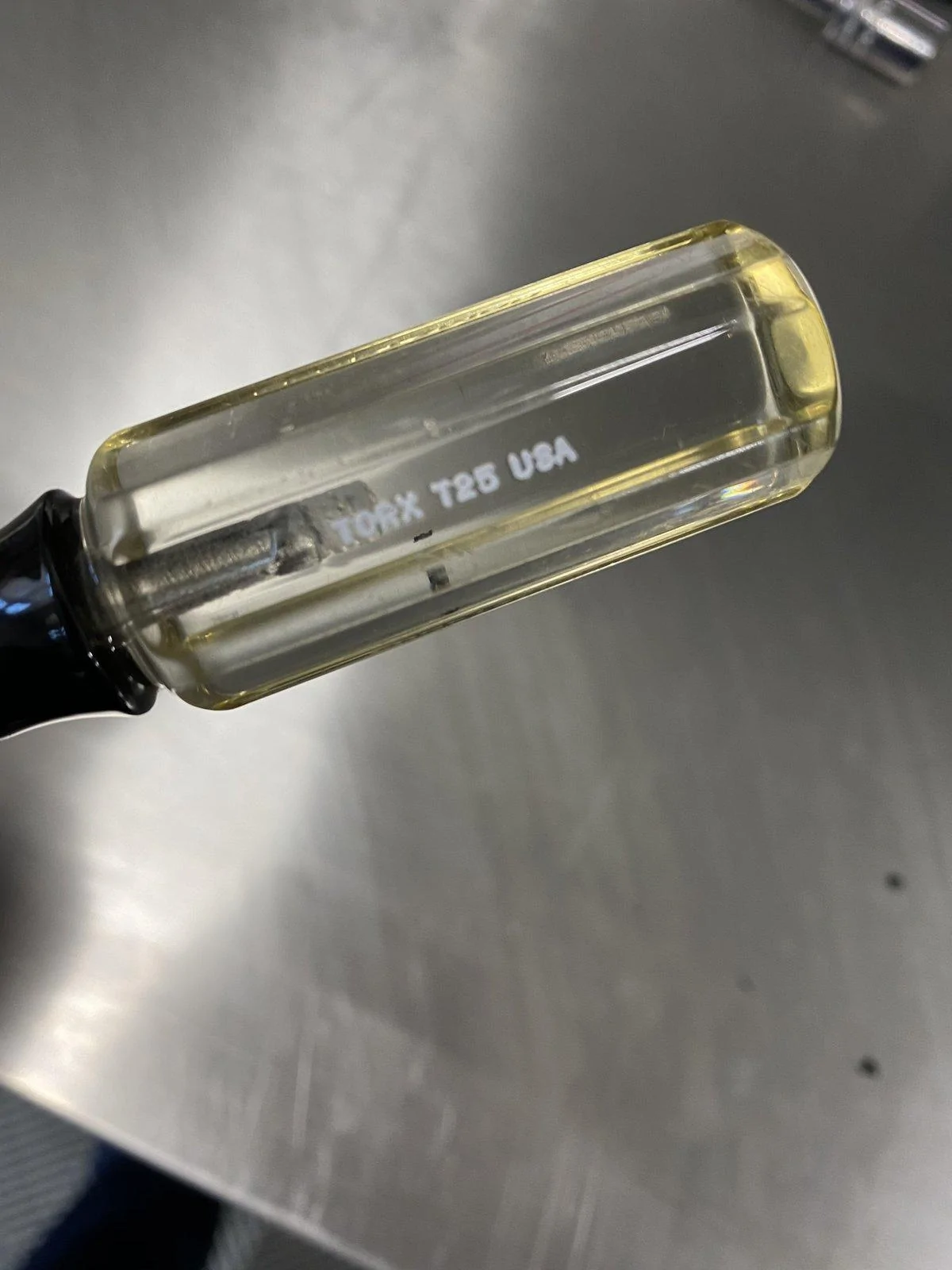

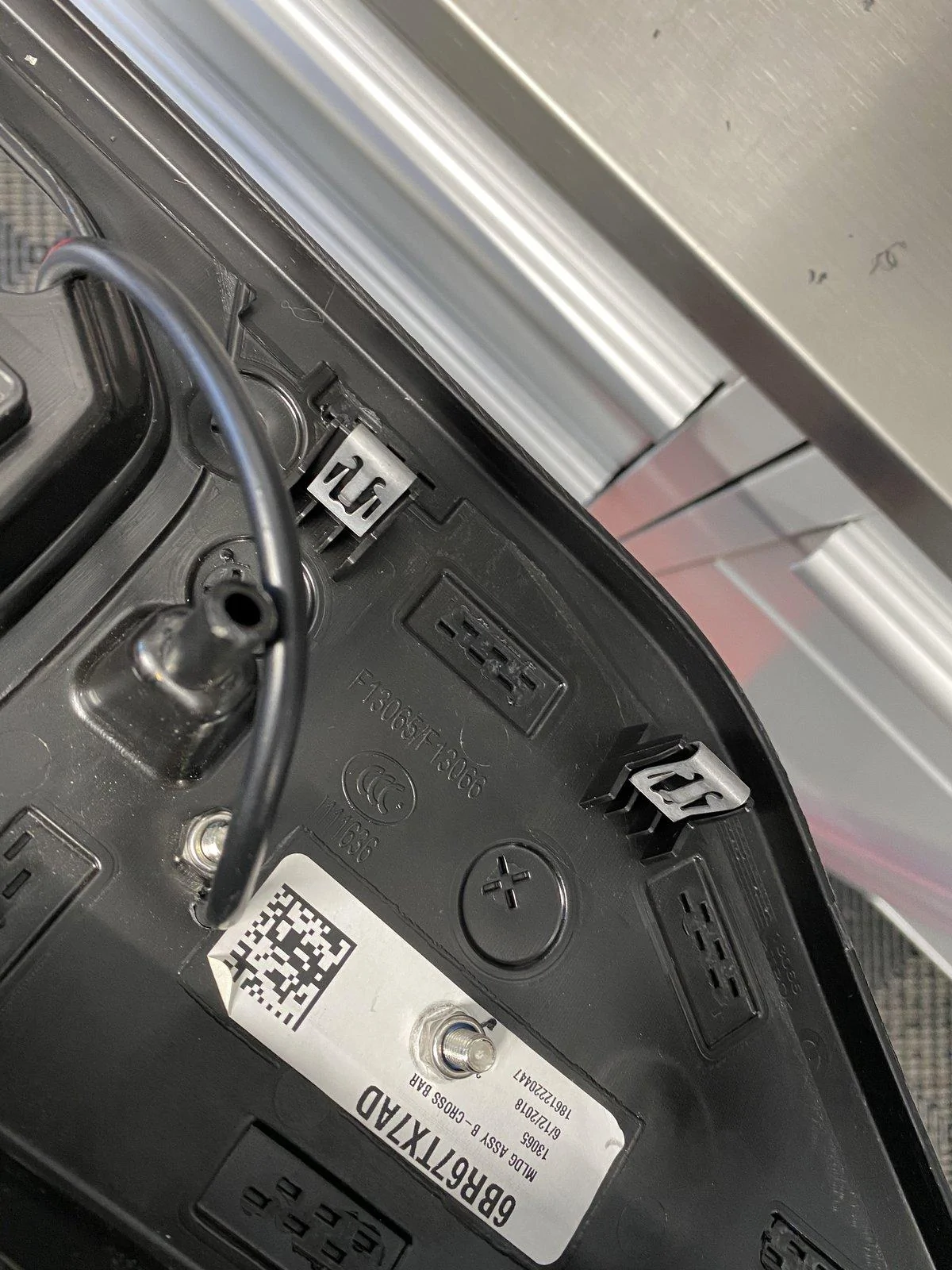

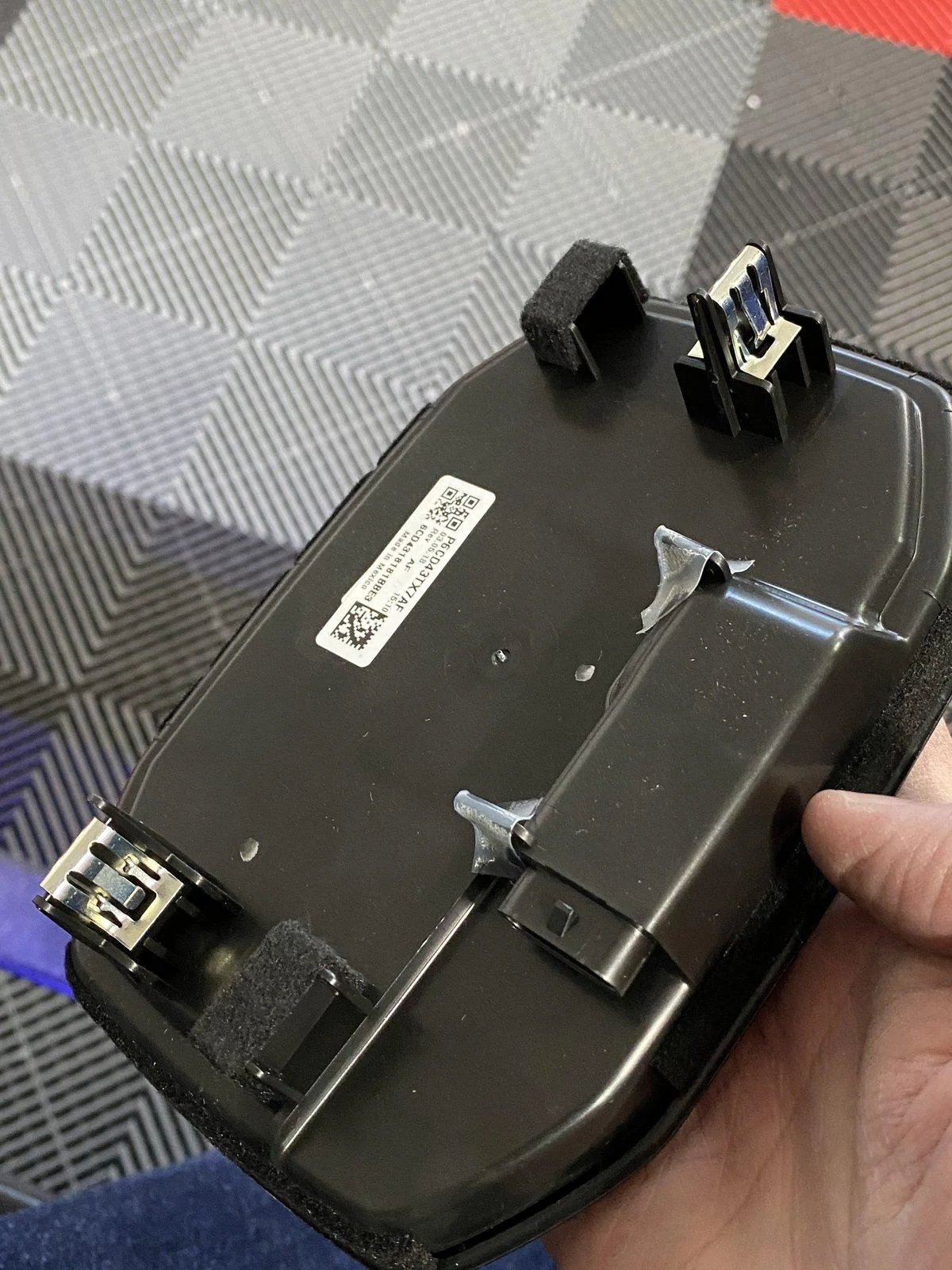

    Well since no one had any advice I went for it after a little liquid courage and installed my interior rock lights. Center section is held on by 3 torq T-25 bolts. I circled the locations in the pic. The interior light just pulls straight down. I used a pry tool and you can see the metal clips holding it up in the pic. Then the center piece just pulls down. I spliced into the interior center light so the rock lights come on and off with that. The yellow/brown center wire is the switches power for the positive to splice into. Hope this helps some others.

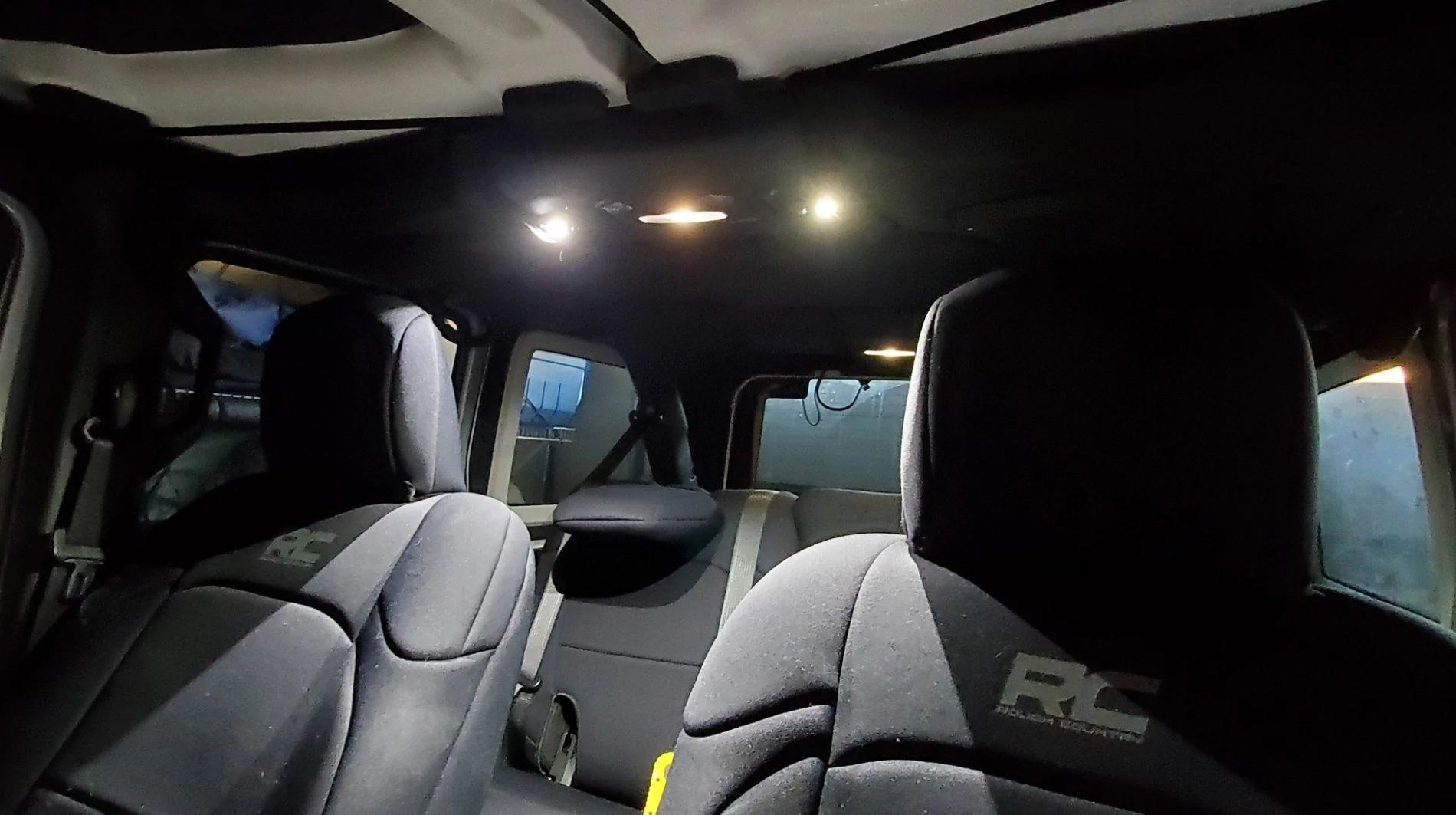

    I really like the output. I may do two more in the back by that dome light and the rear should be good to go.










    Jtizzle, EagleJL, Htfan and 4 others like this.
  3. jthoms1

    jthoms1 Well-Known Member

    First Name:
    Jeff
    Vehicle(s):
    2019 Rubicon Unlimited
    Joined:
    May 24, 2019
    Location:
    Charlotte
    Posts:
    123
    Liked:
    106
    Great write up! There is another thread similar to this but with far less detail. I ordered rock lights yesterday to this very thing. Thanks for the detailed tutorial.

    Goin2drt likes this.
  4. zyt

    zyt Well-Known Member

    Vehicle(s):
    Mazda Miata
    Joined:
    Dec 21, 2017
    Location:
    Maryland
    Posts:
    224
    Liked:
    132
    #4 Jan 17, 2020
    Last edited: Jan 17, 2020
    This is awesome. Thanks for the write up. Where do you connect the ground/negative? Is it that black wire? or yellow and blue?

  5. Htfan

    Htfan Well-Known Member

    First Name:
    Jeff
    Vehicle(s):
    2018 Jeep Wrangler JL Unlimited Sport S
    Joined:
    Nov 18, 2019
    Location:
    OC, CA
    Posts:
    171
    Liked:
    107
    Great write up! Thanks for posting!

    Do the rock lights flood the front and rear seats well? Wondering if placing the lights one forward and one back so they are slightly angled up would be any better. However your installation is very clean and looks factory.

  6. OP
    OP
    Goin2drt

    Goin2drt Well-Known Member

    Vehicle(s):
    18 Rubicon, 17 Grand Cherokee Trailhawk
    Joined:
    Oct 25, 2017
    Location:
    Kentucky (formerly Peoples Republik of Kalifornia)
    Posts:
    1,439
    Liked:
    1,505
    Yep spliced into the black. Forgot to mention that.

    They do. You will see when you pull off that center section doing what you suggest would be real custom. I was going to do that but you will see that center is actually two pieces molded together.

    Htfan and zyt like this.
  7. Htfan

    Htfan Well-Known Member

    First Name:
    Jeff
    Vehicle(s):
    2018 Jeep Wrangler JL Unlimited Sport S
    Joined:
    Nov 18, 2019
    Location:
    OC, CA
    Posts:
    171
    Liked:
    107
    Appreciate your wisdom on this! I've just added these lights to my Amazon list.
