Looking for any ideas to fabricate a floor panel in place of the rear seats. Not keen spending that money on buying one if I can make something. Thanks
Sponsored



BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,068
Reaction score
3,448
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon
We made one from 5/8” plywood. I made a template from cardboard first. Once I got the shape right I added the large support piece that runs left to right across the transmission hump. Getting the measurements for that was tricky, cut it tall and trim it shorter until it sits level in the back. There is a cable that comes out of the top of transmission hump towards the back. We avoided having anything resting on that. The side and center braces were much easier, glued and screwed it together then put carpet on it. Took most of a day it moving the thing in and out of the Jeep consumed a lot of that time.

sorry for the terrible pics

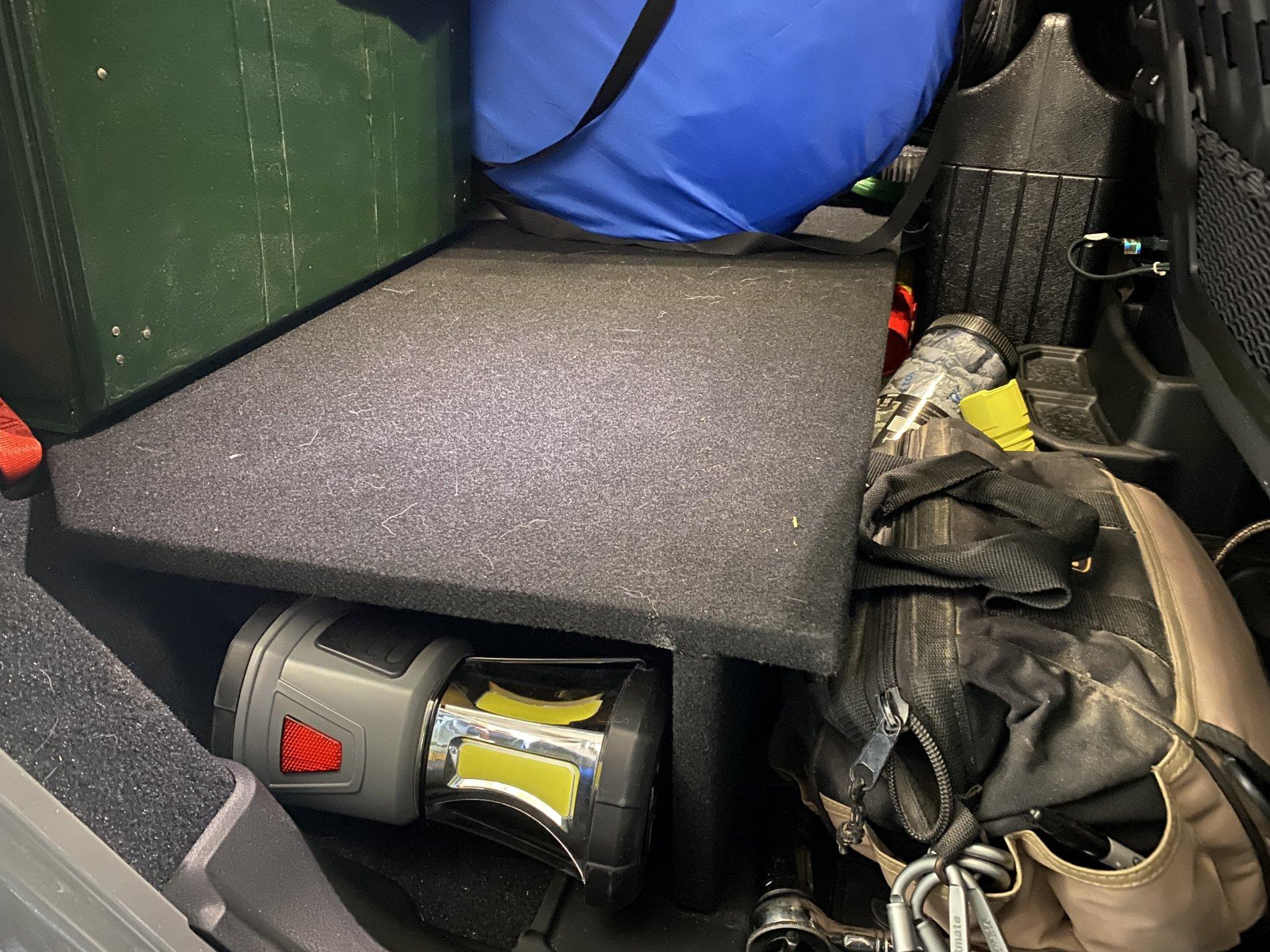

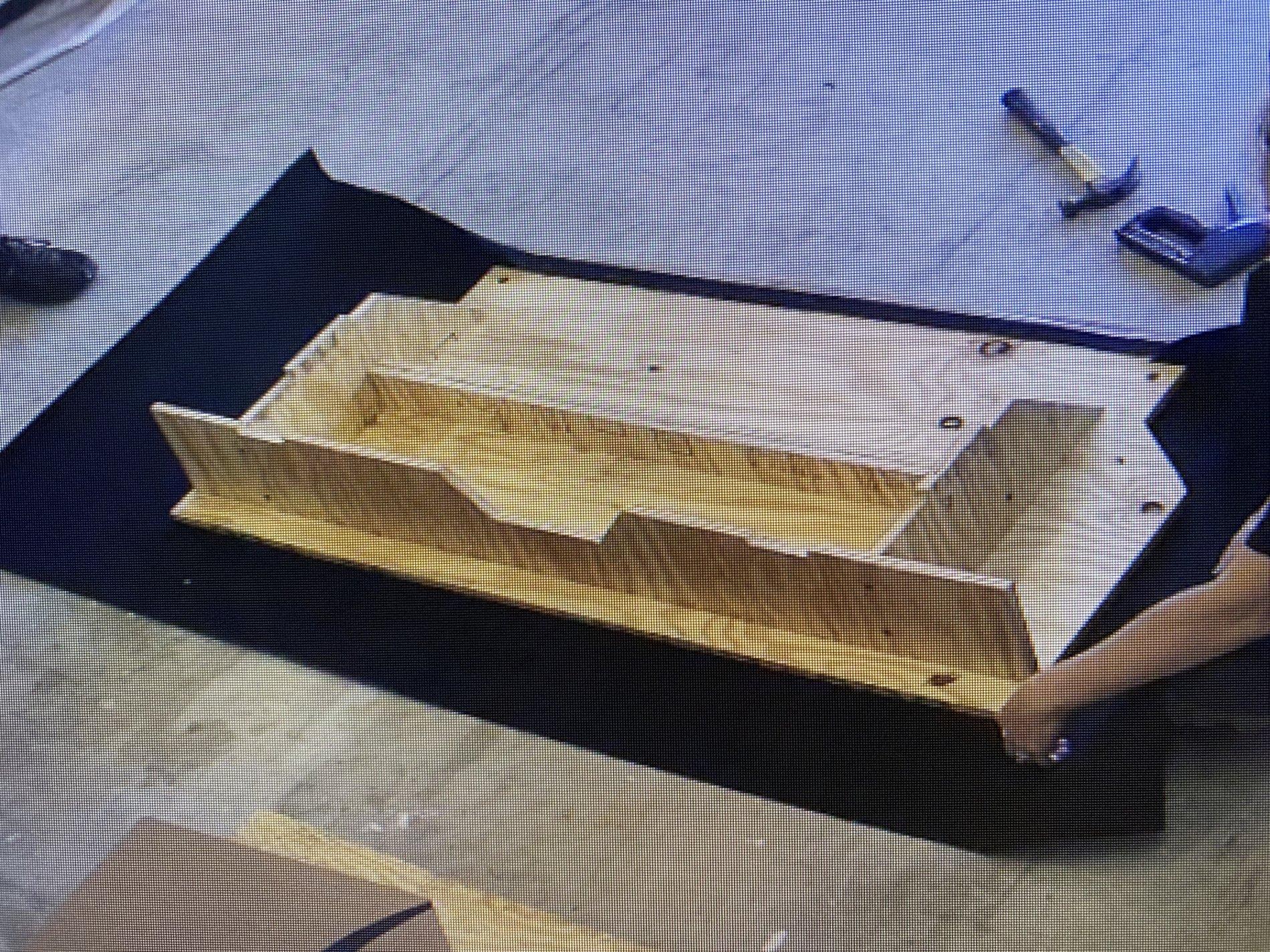

Jeep Wrangler JL Rear Seat Removal 3E291678-B011-47A0-98E7-52360A8FB493

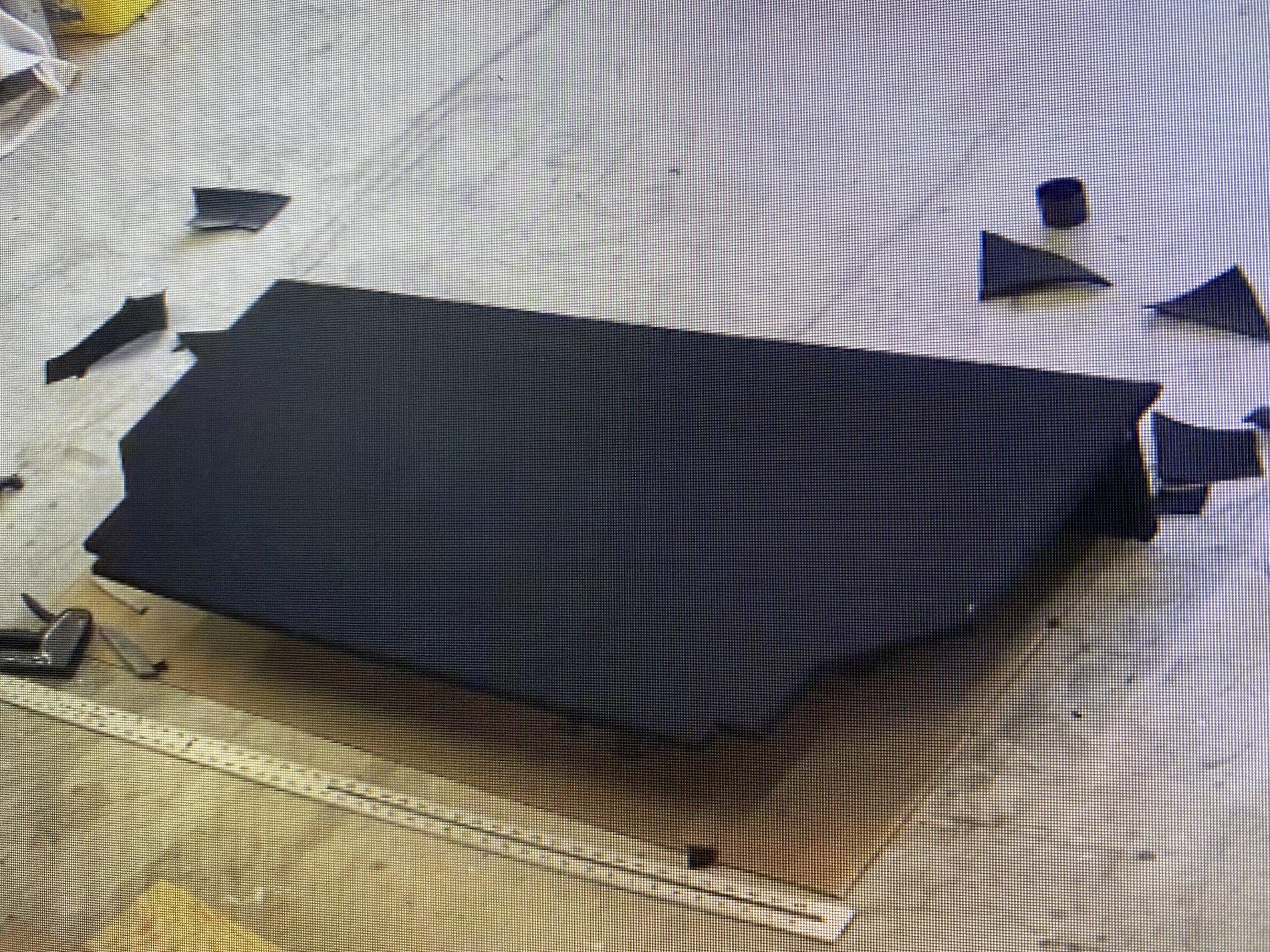

Jeep Wrangler JL Rear Seat Removal 88D0DC69-085C-4549-9D4C-D3AAEE188B67
Jeep Wrangler JL Rear Seat Removal 21255D07-3568-49CE-9B3B-D2A96D2C1B96


BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,068
Reaction score
3,448
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon
So I had the great idea to store it in the closet underneath all the camping gear... but I’ll pull it out this evening and draw it up. I can’t remember why the vertical parts have notches in them so when you’re building be sure to look under the carpet to make sure you aren’t squishing something important.


Sponsored

BDinTX

Well-Known Member
First Name
Brad
Joined
Jul 18, 2020
Threads
38
Messages
2,068
Reaction score
3,448
Location
Dallas, Tx
Vehicle(s)
2020 JLU Rubicon Recon, 2021 JLU Rubicon
You bet, I tried to be accurate but I'd double check the dimensions before making cuts. - and yes, I did have to rip the sheet length wise to get that extra 3/8" wide. I don't recall why but it seemed like a good idea at the time.

Edit - Forgot to include the two 5/8" holes at the corners that drop over two seat mounting studs. They are 1" from each edge and keep it from sliding around.

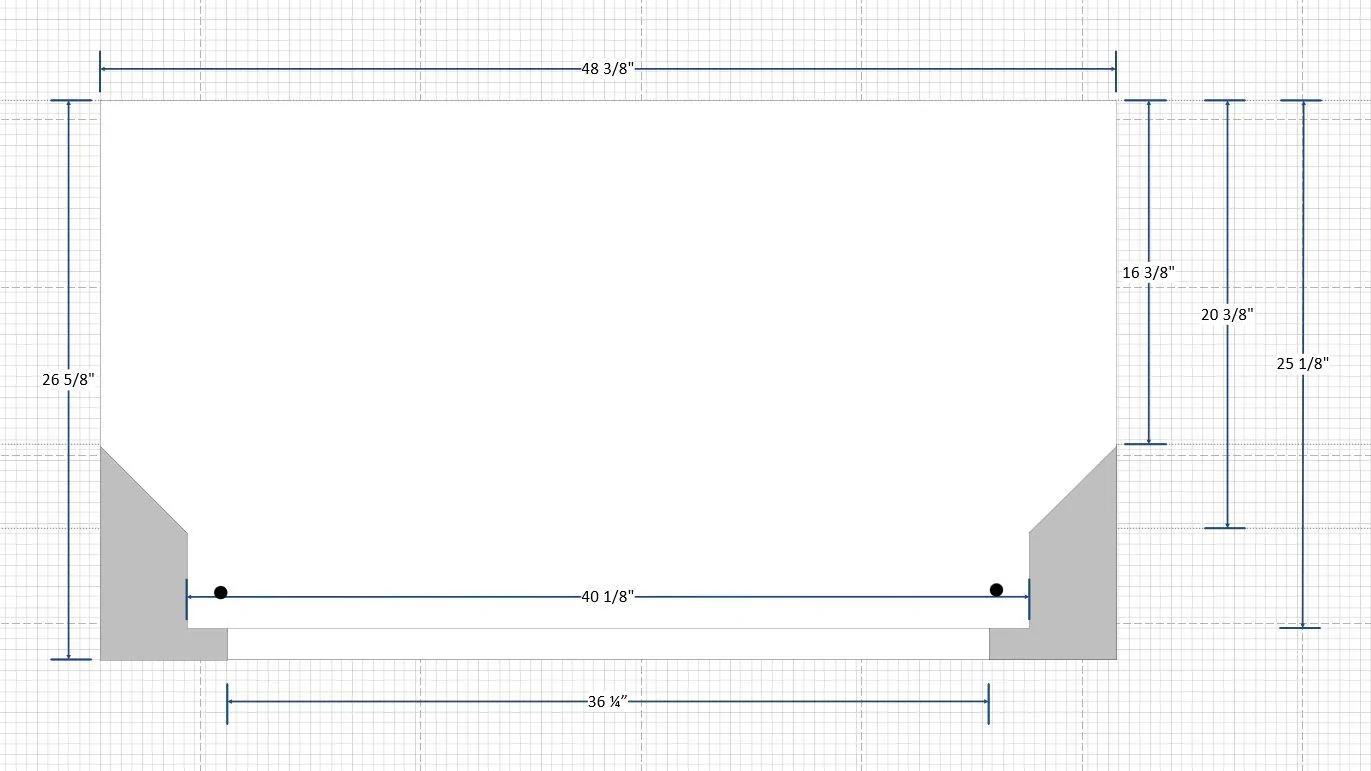

Jeep Wrangler JL Rear Seat Removal Jeep Platform to

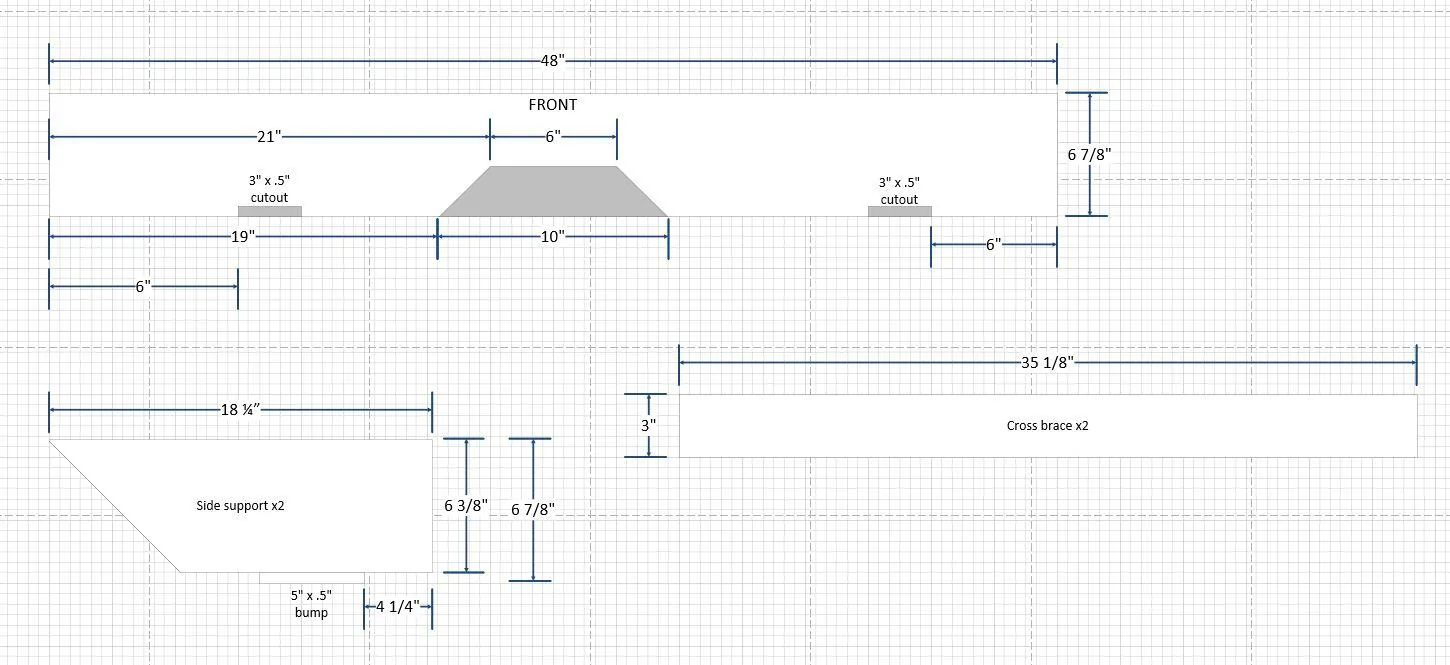

Jeep Wrangler JL Rear Seat Removal Jeep Platform supports

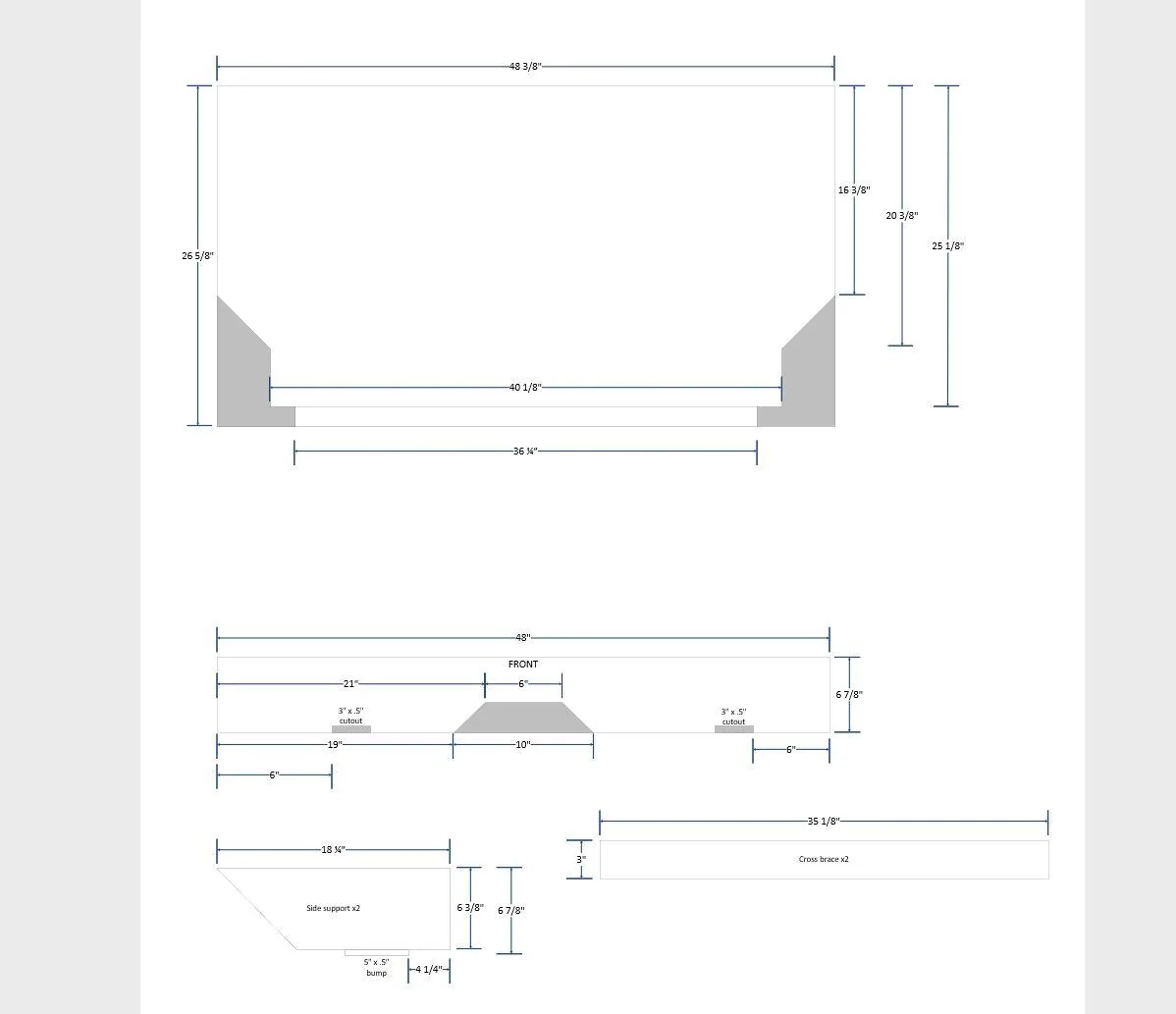

Jeep Wrangler JL Rear Seat Removal Jeep Platform


Yellow Cake Kid

Well-Known Member
Joined
Nov 20, 2019
Threads
95
Messages
890
Reaction score
557
Location
USA
Vehicle(s)
Jeep
Hi @BDinTX,
WOW!

Thanks very much for going to the trouble of making and sharing the dimensional drawings and providing the additional comments and tips.

Thank you!
