Rear Main Seal Replacement

bllprk

Well-Known Member
First Name
Brian
Joined
Aug 6, 2021
Threads
8
Messages
167
Reaction score
211
Location
Kalamazoo, MI
Vehicle(s)
2008 WK CRD
Purchased my 2018 with 40,000 miles. Noticed oil dripping between the bell housing and engine.

Eventually replaced the seal while replacing the clutch. Dry as a bone until I added a flush to the oil trying to resolve a rough idle issue (VVL or VVT). The seal blew during the 20 min I ran the engine for the flush.

The seal leaked bad. Oil puddles in the bell housing and coating everything. A 6 inch diameter oil spot every morning…

For the first part of the job refer to the numerous posts about installing a clutch.

The reason for this post is some tips:

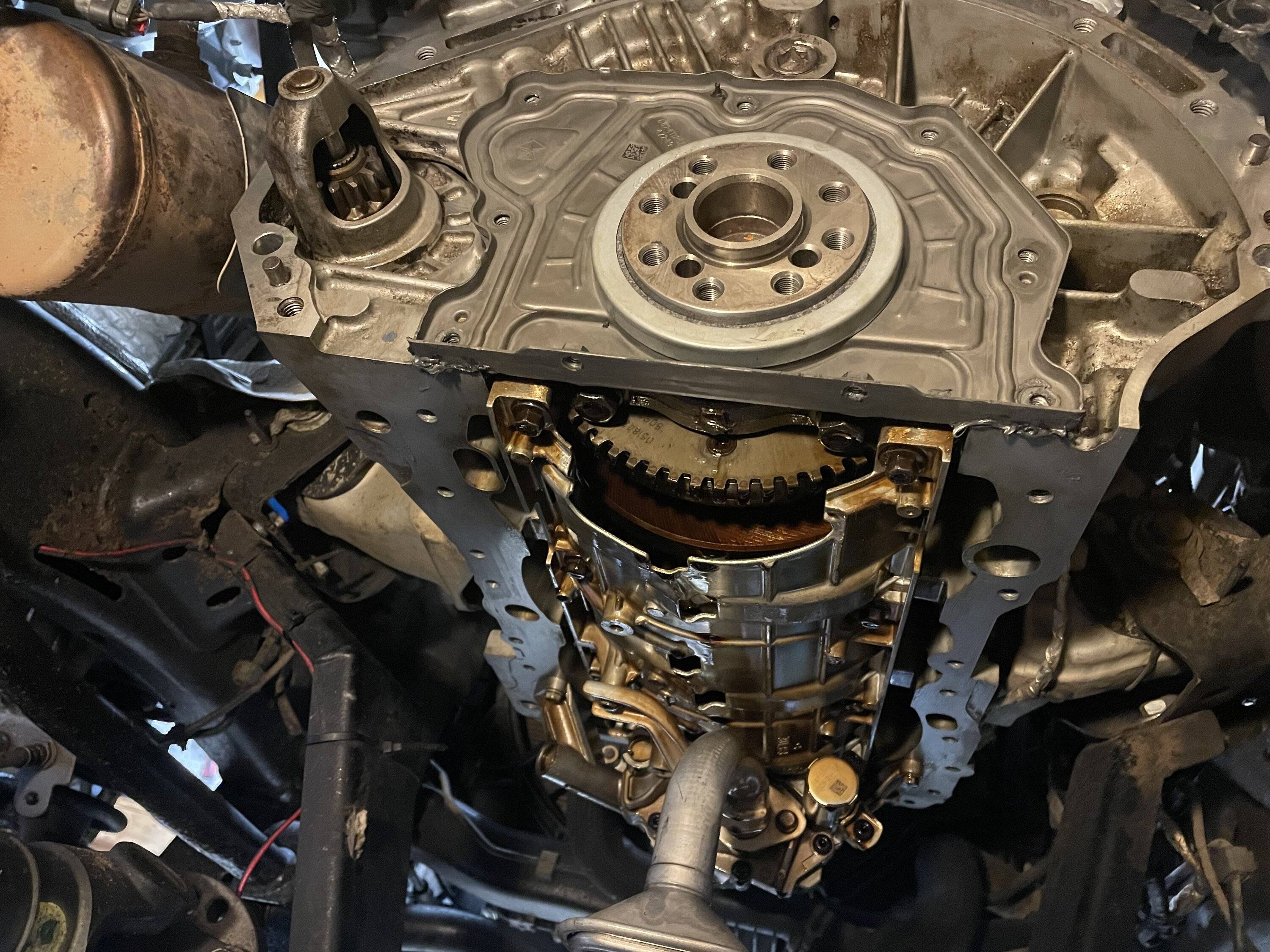

You must remove the upper oil pan to replace the seal. Once the transmission is off, remove the 19 fasteners plus the two on the seal itself. There is a pry location on the passenger side. You must clean off the old RTV.

Install the seal first. RTV is required around the bottom two holes.

Take the time to center the seal before you tighten the rear main seal bolts. If you don’t pay attention, it will tighten with it off center.

Then apply your RTV and fasten the upper oil pan per the RTV instructions.

Make sure you clean the crank shaft surface.

I couldn’t find much info on the topic and wanted to add this.

Note: I had assumed I could replace it without removing the oil pan. There is no way to properly make the RTV gasket as well as the seal was not concentric at all with the crank shaft.



Sponsored



toothirtyj

Well-Known Member
First Name
Joe
Joined
Jun 4, 2021
Threads
2
Messages
157
Reaction score
484
Location
Indy, IN
Vehicle(s)
'21 Hellayella JL Willys, 3.6L/6MT, 4.10's
Occupation
LE
Thanks for the post. Did you happen to notice where specifically, around the seal, it was leaking?

OP
OP
bllprk

bllprk

Well-Known Member
First Name
Brian
Joined
Aug 6, 2021
Threads
8
Messages
167
Reaction score
211
Location
Kalamazoo, MI
Vehicle(s)
2008 WK CRD

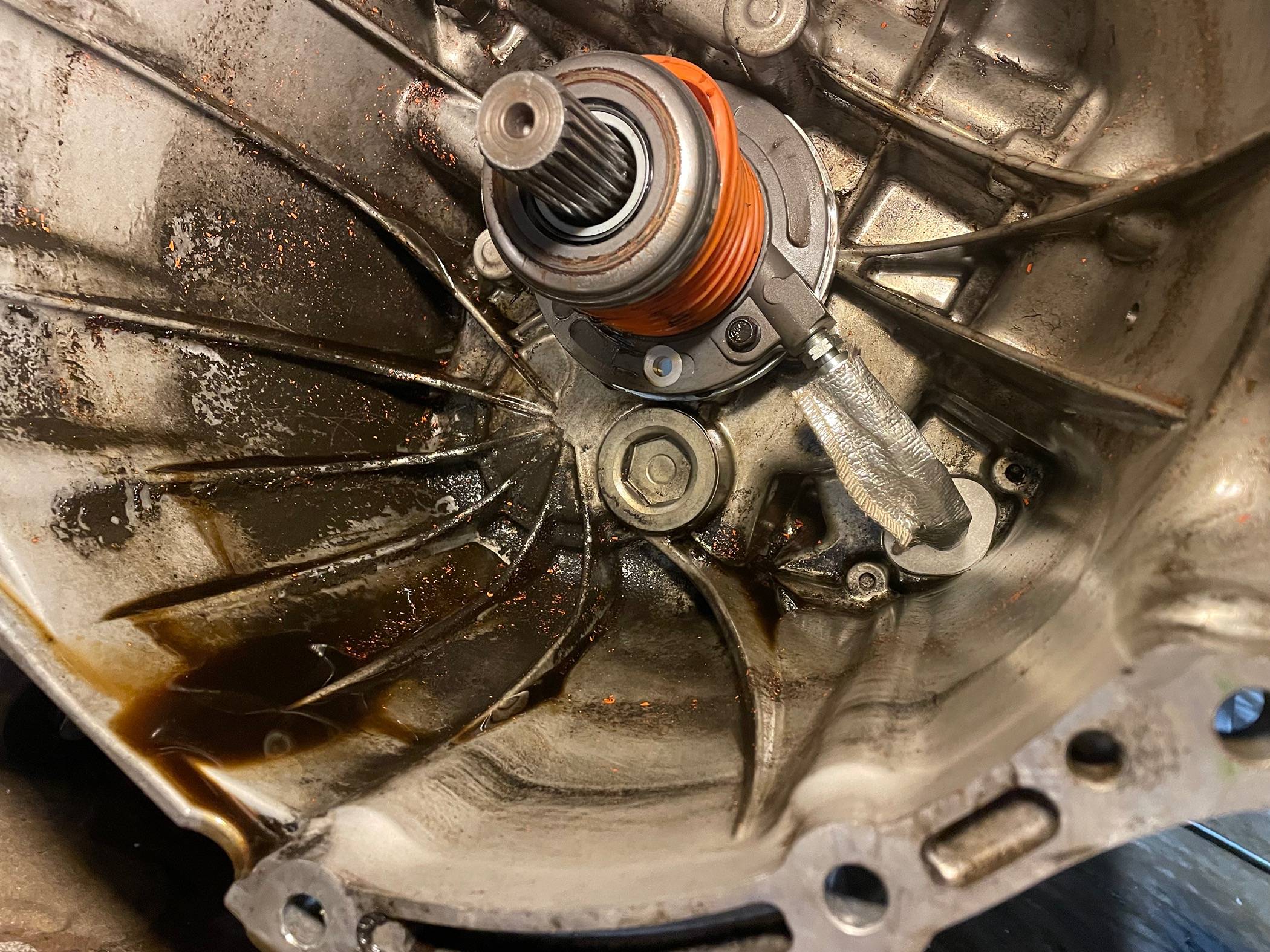

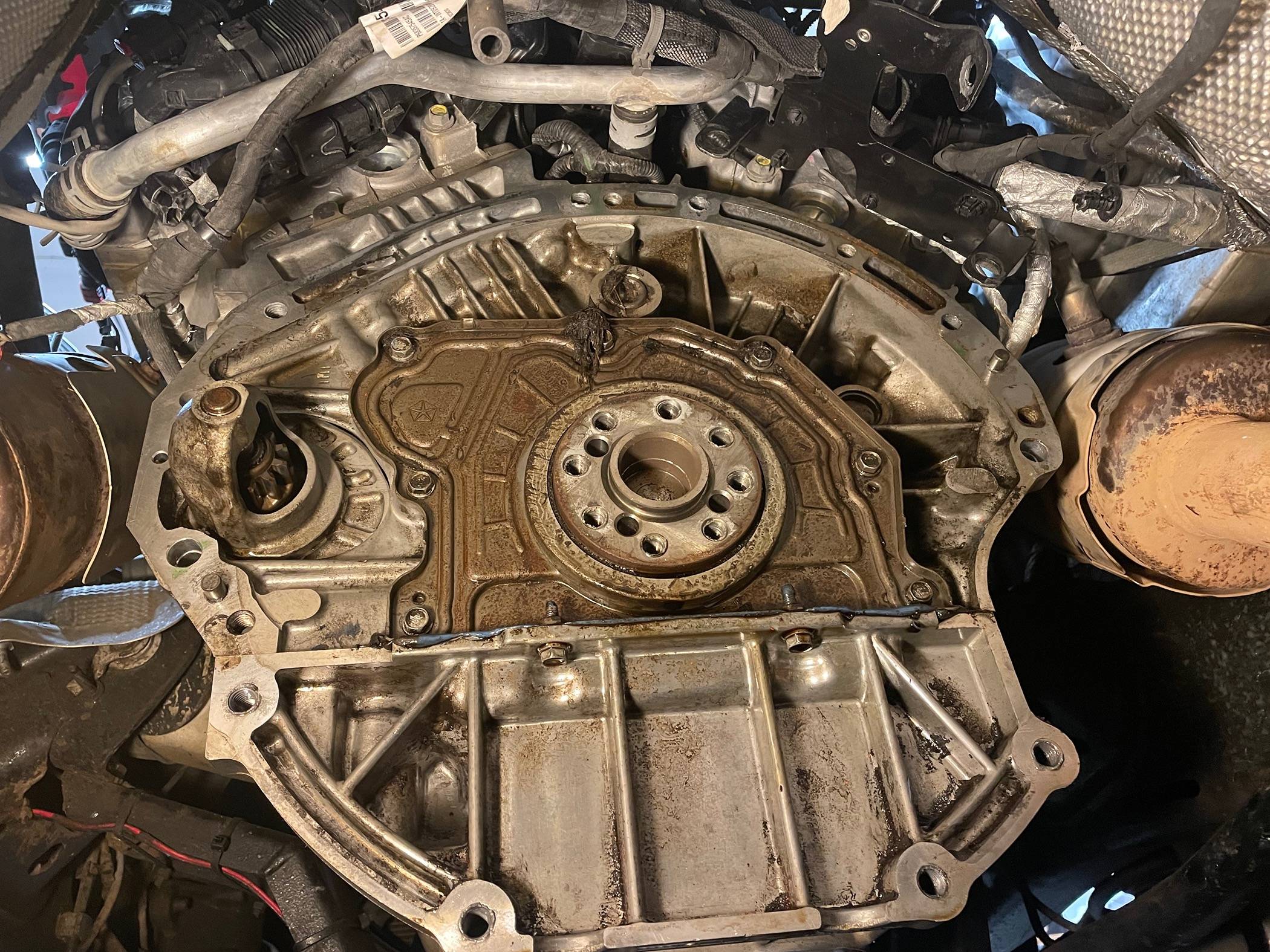

Jeep Wrangler JL Rear Main Seal Replacement IMG_0234

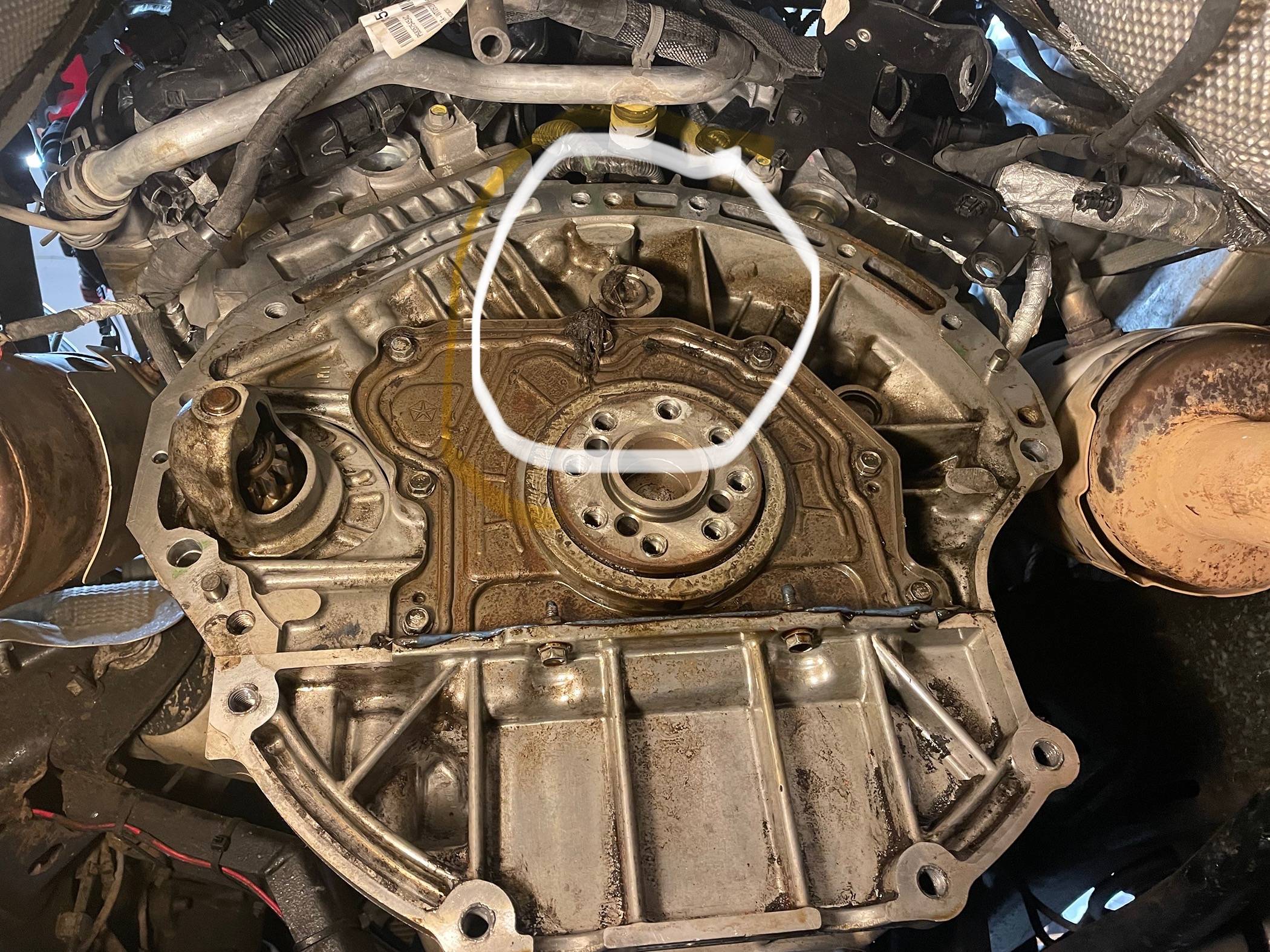

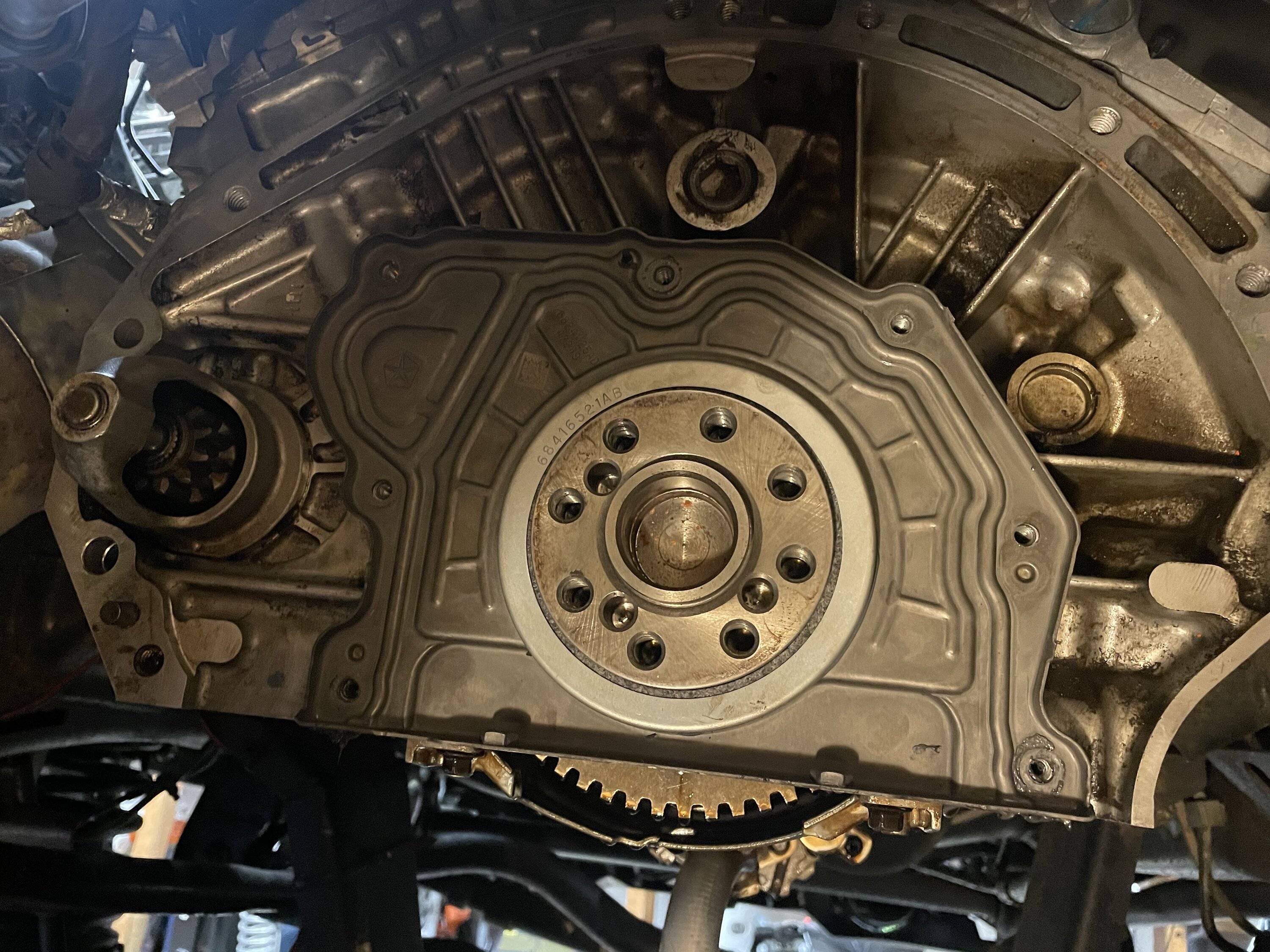

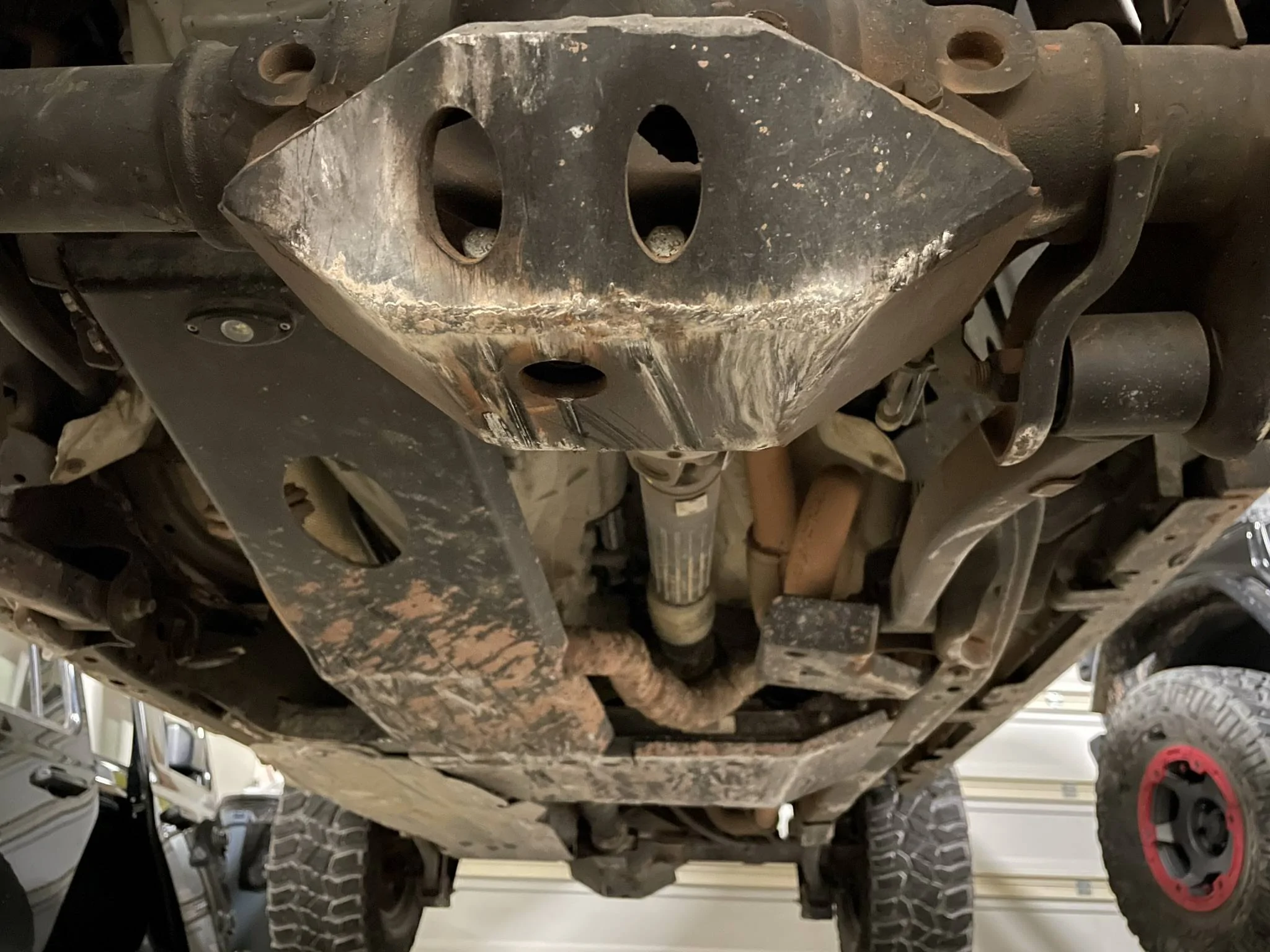

I believe it came thru the seal itself. If you zoom in you can see a nice drip. Lots of oil around the starter as well. Also puddles of oil in the bell housing.

That said, I didn’t feel or see any damage on the seal.

I think the oil was flung to the sides of the bell housing…


Sponsored

Gregj

Well-Known Member
First Name
Greg
Joined
Dec 15, 2018
Threads
19
Messages
2,306
Reaction score
5,118
Location
West Texas
Vehicle(s)
JLU Rubicon, JLU Sport, JTuRD
You didn’t happen to make any trips through swamp’s did you?
Jeep Wrangler JL Rear Main Seal Replacement IMG_8014

Gregj


Sponsored

Gregj

Well-Known Member
First Name
Greg
Joined
Dec 15, 2018
Threads
19
Messages
2,306
Reaction score
5,118
Location
West Texas
Vehicle(s)
JLU Rubicon, JLU Sport, JTuRD
Ok, we do similar things with our Jeeps, minus the swamps.
Jeep Wrangler JL Rear Main Seal Replacement Resized_Resized_20220924_114659
Jeep Wrangler JL Rear Main Seal Replacement IMG_8019
Jeep Wrangler JL Rear Main Seal Replacement IMG_7258
Jeep Wrangler JL Rear Main Seal Replacement IMG_8017
Jeep Wrangler JL Rear Main Seal Replacement IMG_7268
Jeep Wrangler JL Rear Main Seal Replacement IMG_8018
Jeep Wrangler JL Rear Main Seal Replacement IMG_8016

Greg


mwilk012

Well-Known Member
Joined
Mar 10, 2018
Threads
14
Messages
9,028
Reaction score
8,836
Location
Oklahoma
Vehicle(s)
2018 Ocean Blue JLU Rubicon
Occupation
Service
Yeah, I should keep to the mall...



Jeep Wrangler JL Rear Main Seal Replacement IMG_8016


Jeep Wrangler JL Rear Main Seal Replacement IMG_8016


Jeep Wrangler JL Rear Main Seal Replacement IMG_8016


Jeep Wrangler JL Rear Main Seal Replacement IMG_8016


Jeep Wrangler JL Rear Main Seal Replacement IMG_8016


Jeep Wrangler JL Rear Main Seal Replacement IMG_8016
Nothing wrong with that, but its like saying radiator leaks are common if you keep jamming sticks through it. You're just thrashing that seal and experiencing failures that aren't at all common.


azjl#3

Well-Known Member
First Name
Scott
Joined
Sep 24, 2022
Threads
5
Messages
1,045
Reaction score
1,257
Location
North AZ
Vehicle(s)
2023 Sarge Green JLR
are you sure it says rtv, or is it FIPG, big difference.


Spank

Well-Known Member
Joined
Mar 29, 2017
Threads
25
Messages
2,411
Reaction score
4,056
Location
Colorado
Vehicle(s)
2018 Jeep Wrangler Unlimited Rubicon, 2020 Dodge Challenger RT Scat Pack
99.9% of the time owners think they have and rear main seal leak it is the oil cooler running down the back of the motor.
I've had the pleasure of having to replace both.

OP
OP
bllprk

bllprk

Well-Known Member
First Name
Brian
Joined
Aug 6, 2021
Threads
8
Messages
167
Reaction score
211
Location
Kalamazoo, MI
Vehicle(s)
2008 WK CRD
Nothing wrong with that, but its like saying radiator leaks are common if you keep jamming sticks through it. You're just thrashing that seal and experiencing failures that aren't at all common.
I took full responsibility for the second leak. Happened the minute I added extra fluid to perform an engine flush.

I do believe 99.9% is an exaggeration on oil cooler. In fact I replaced mine based on those posts. It wasn’t actually bad at 78k.
