Rear Defroster Scorching...

AstroDave

Well-Known Member
First Name
Dave
Joined
Nov 19, 2018
Threads
2
Messages
49
Reaction score
43
Location
Northern Virginia, USA
Website
davescosmos.com
Vehicle(s)
2018 JLU Rubicon
Vehicle Showcase
1

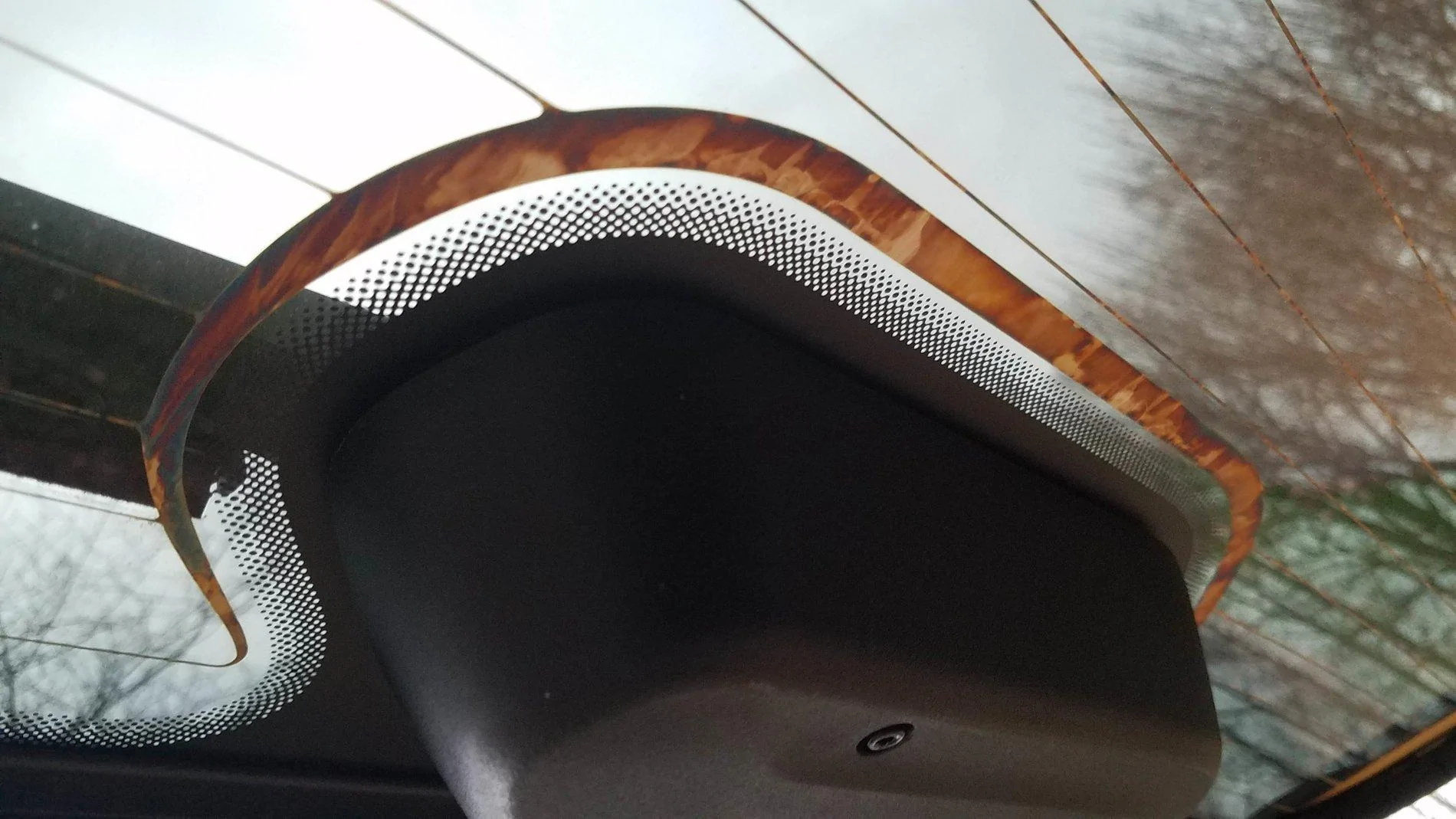

So I have been reading other folks' experiences with the rear defroster. It seems the most common issue is the connection becoming unsoldered. For me, the issue is what appears to be scorch marks. It appears around the entire perimeter and on the smaller wires.



When I asked the dealer he said that was normal...hahaha... I guess for a jeep. So is this what precedes either the disconnection or as I have also seen here, the exploding rear window?
Sponsored



DanFelix

Well-Known Member
Joined
Dec 22, 2018
Threads
25
Messages
275
Reaction score
124
Location
Riverside, CA
Vehicle(s)
2018 Wrangler JL Sport S
I don't thick that is scorched. It appears to be oxidized, which is normal.


JeepWildman

New Member
First Name
Doug
Joined
Jan 19, 2020
Threads
0
Messages
4
Reaction score
1
Location
USA
Vehicle(s)
2018 Jeep Wrangler Unlimited JL
Occupation
Engineer

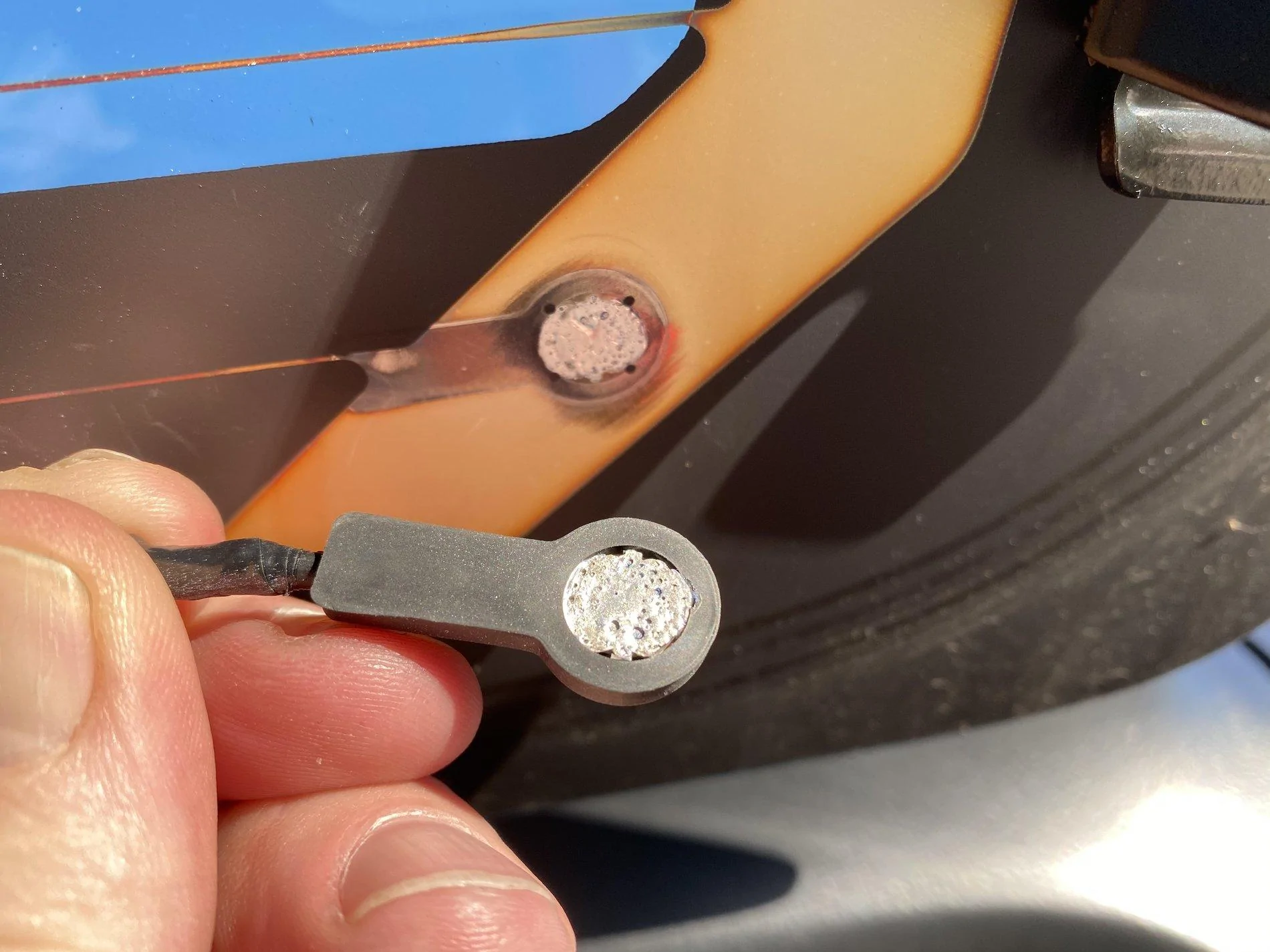

I have a 2018 JL with 12k miles that has the connector solder joint broken off the window on the rear defroster connector. This break appears to be a manufacturing defect as a cold solder joint. This should be under the warranty IMHO. We’ll see...

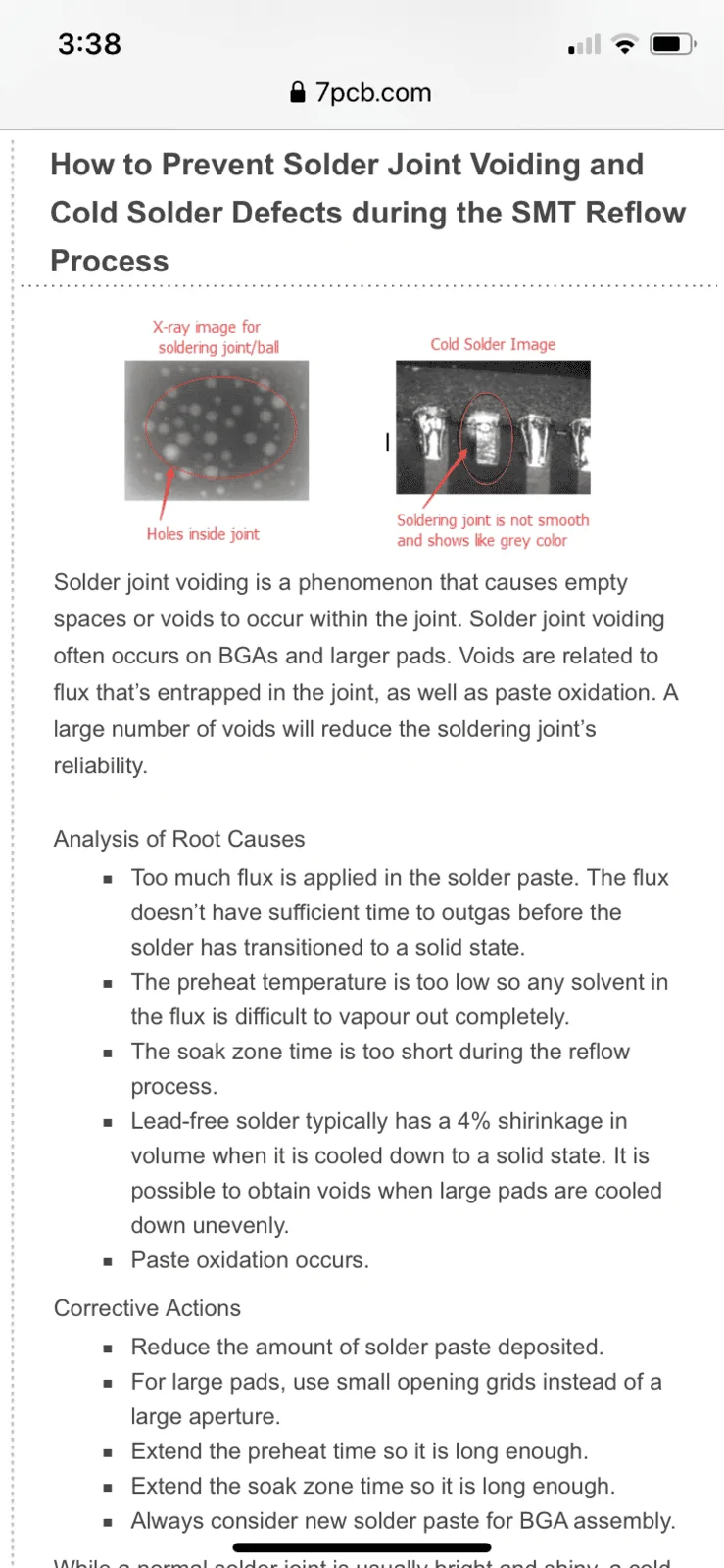

There are multiple YouTube videos of a fix. See photo and screenshot of explanation for cold solder joint below:





DanFelix

Well-Known Member
Joined
Dec 22, 2018
Threads
25
Messages
275
Reaction score
124
Location
Riverside, CA
Vehicle(s)
2018 Wrangler JL Sport S
I helped a friend repair his detached rear heater connection. In his case, the solder melt temperature was lower than the heat from the botched solder. We removed all old solder, using a soldering gun - not any abrasive. The silver-epoxy compound was used liberally. The defroster has worked without error and the connection remains solid. Any new connection needs to ensure that the electrical path is not narrowed by too little epoxy/solder. The voids concentrate the electricity to narrow paths, causing the overheat and melt. IMHO


Pat’s Sahara Unlimited

Well-Known Member
First Name
Patrick
Joined
Sep 26, 2019
Threads
5
Messages
130
Reaction score
80
Location
Mont-Saint-Hilaire, Canada
Vehicle(s)
2019 Wrangler Sahara Unlimited

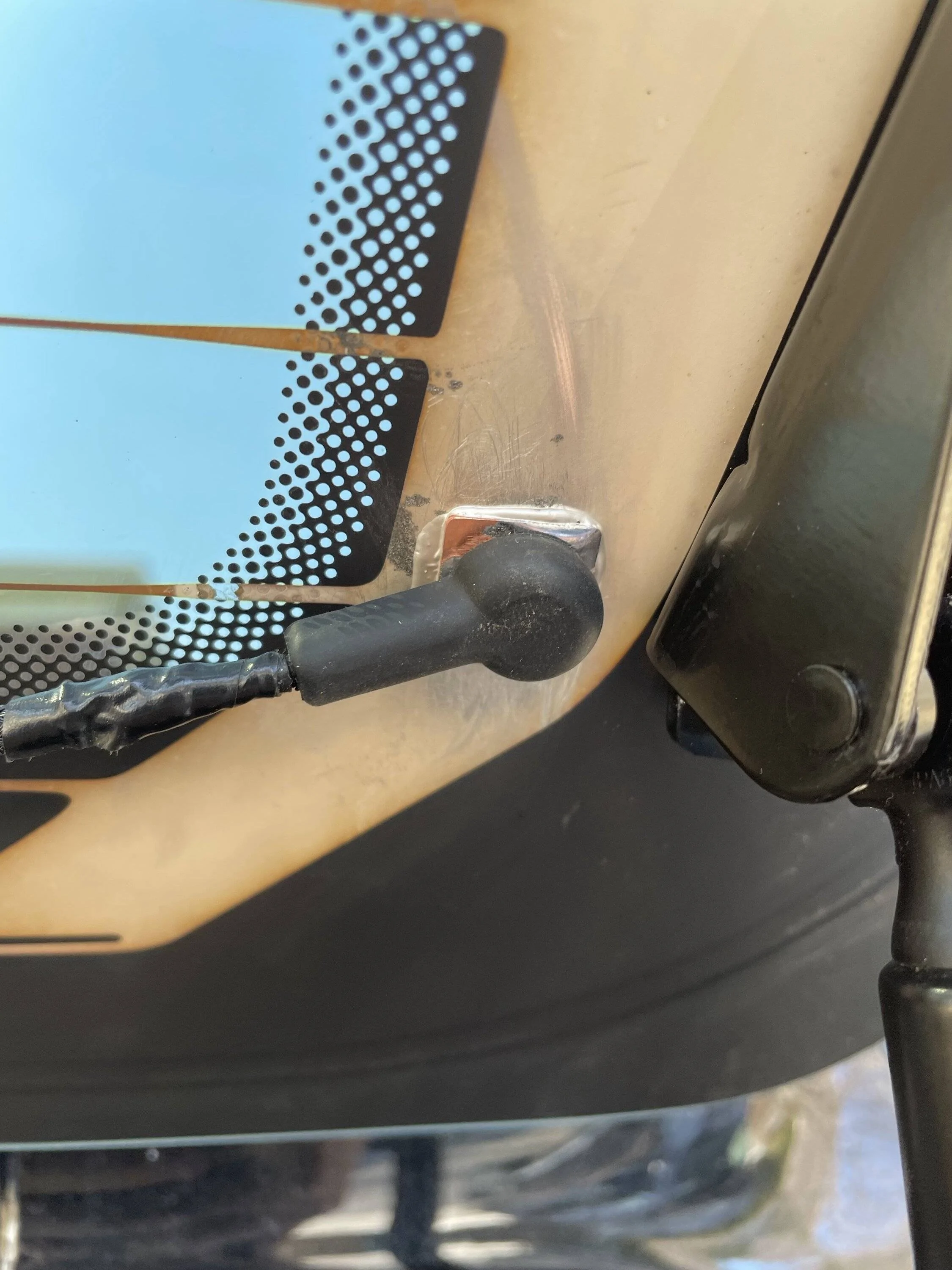

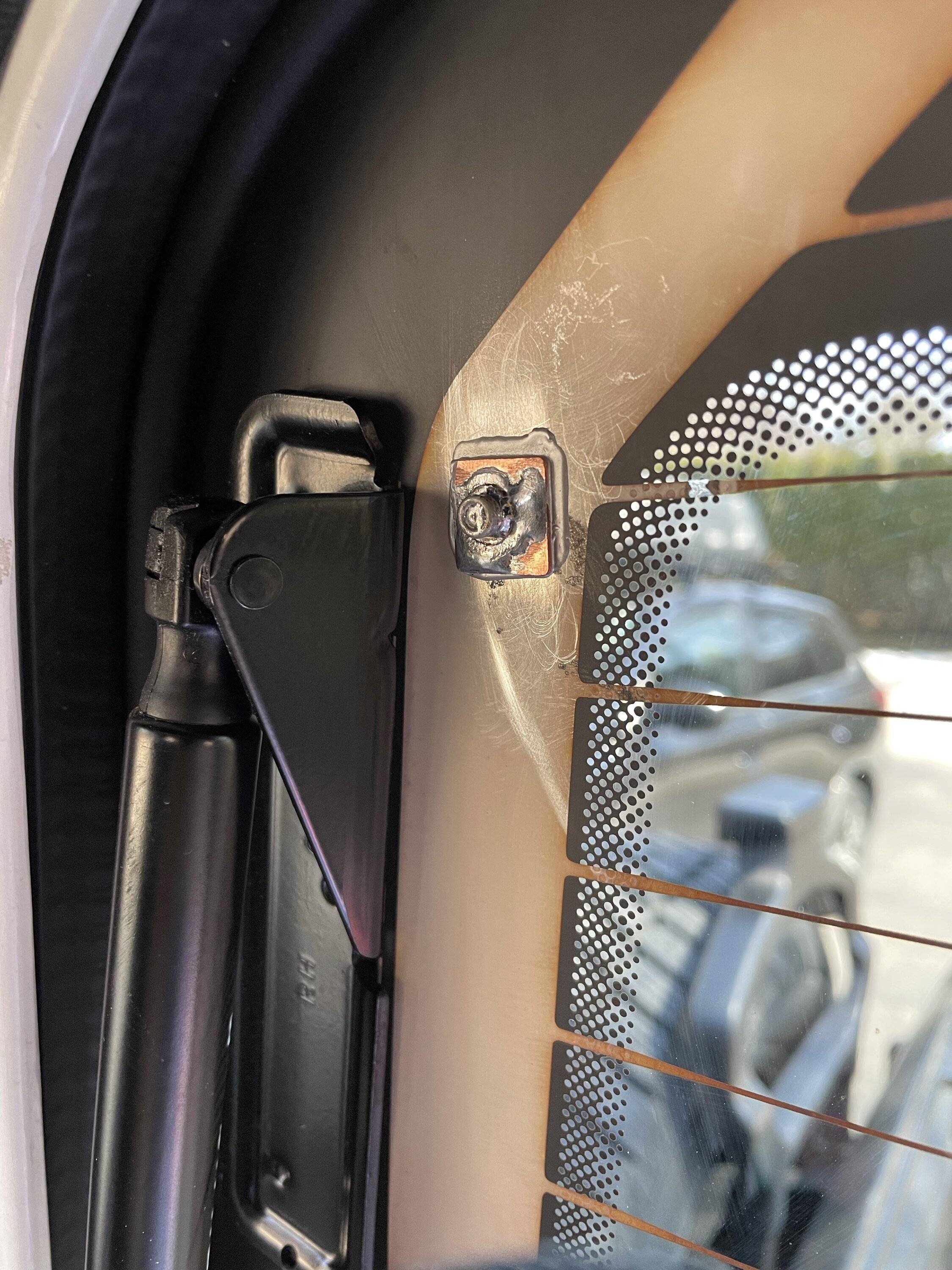

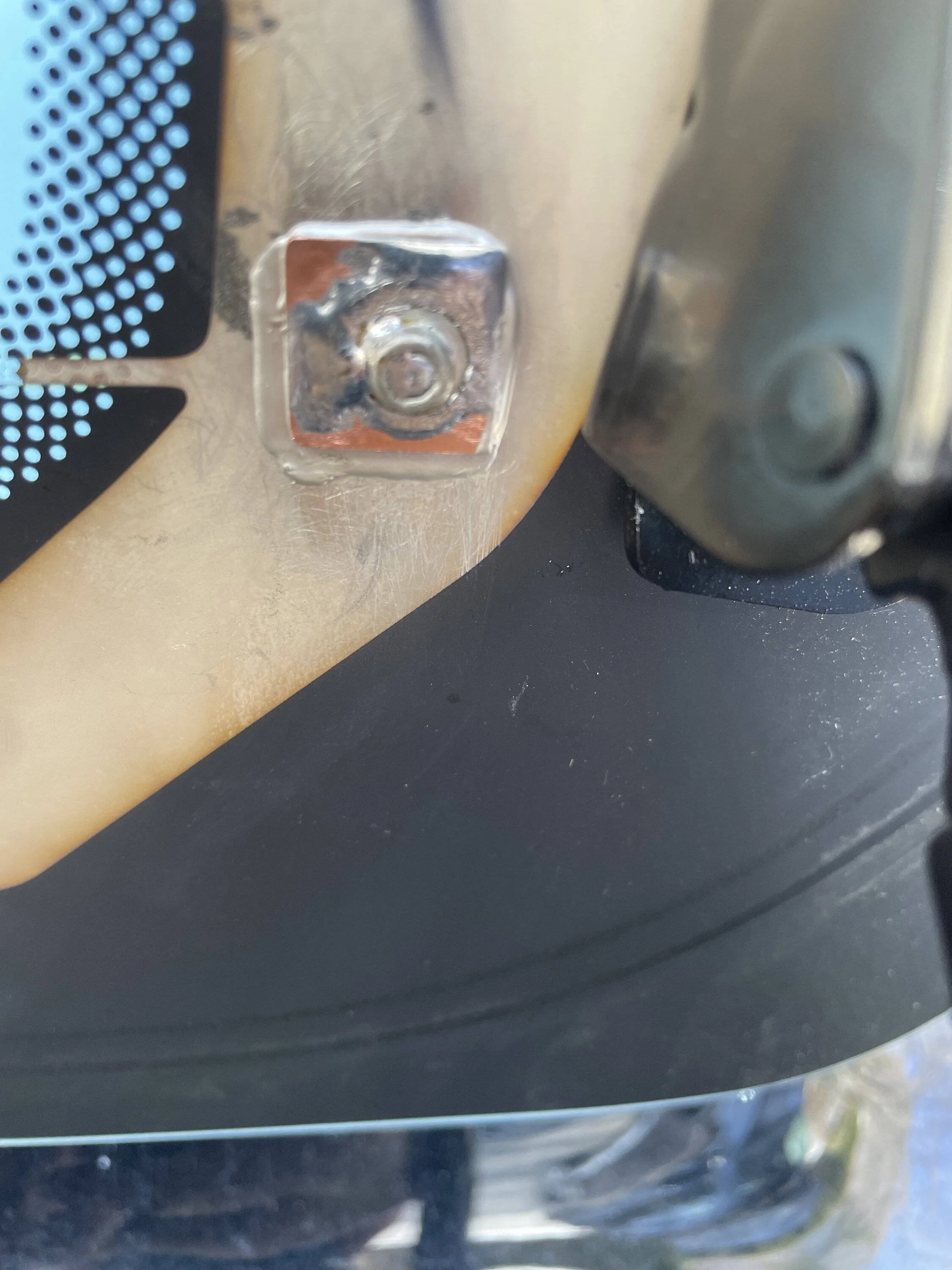

This how I fixed mine: lots of solder onto a copper heat sink, heatsink glued with Permatex. Bigger electrical path/surface, bigger glued surface = higher sheering resistance. Some used a penny instead of a heatsink.
