I ordered two 7" headlight adapters for a Harley Davidson, installed one light into a bracket, and have measured a template out. I'm going to make these out of steel or diamond plate aluminum, but I want it to be easy and repeatable. I'll post pictures of my progress and the final install.

I think there are/will be many of us that traded up, but want our old aftermarket lights. That and there are also a lot of 7" LED fixtures that are far cheaper than what is available now.







Advertisement


OP
OP
americonium

americonium

Well-Known Member
First Name
Abe
Joined
Jul 2, 2018
Messages
228
Reaction score
205
Location
NY
Vehicle(s)
2018 JLUR Black
Occupation
Engineering Technician

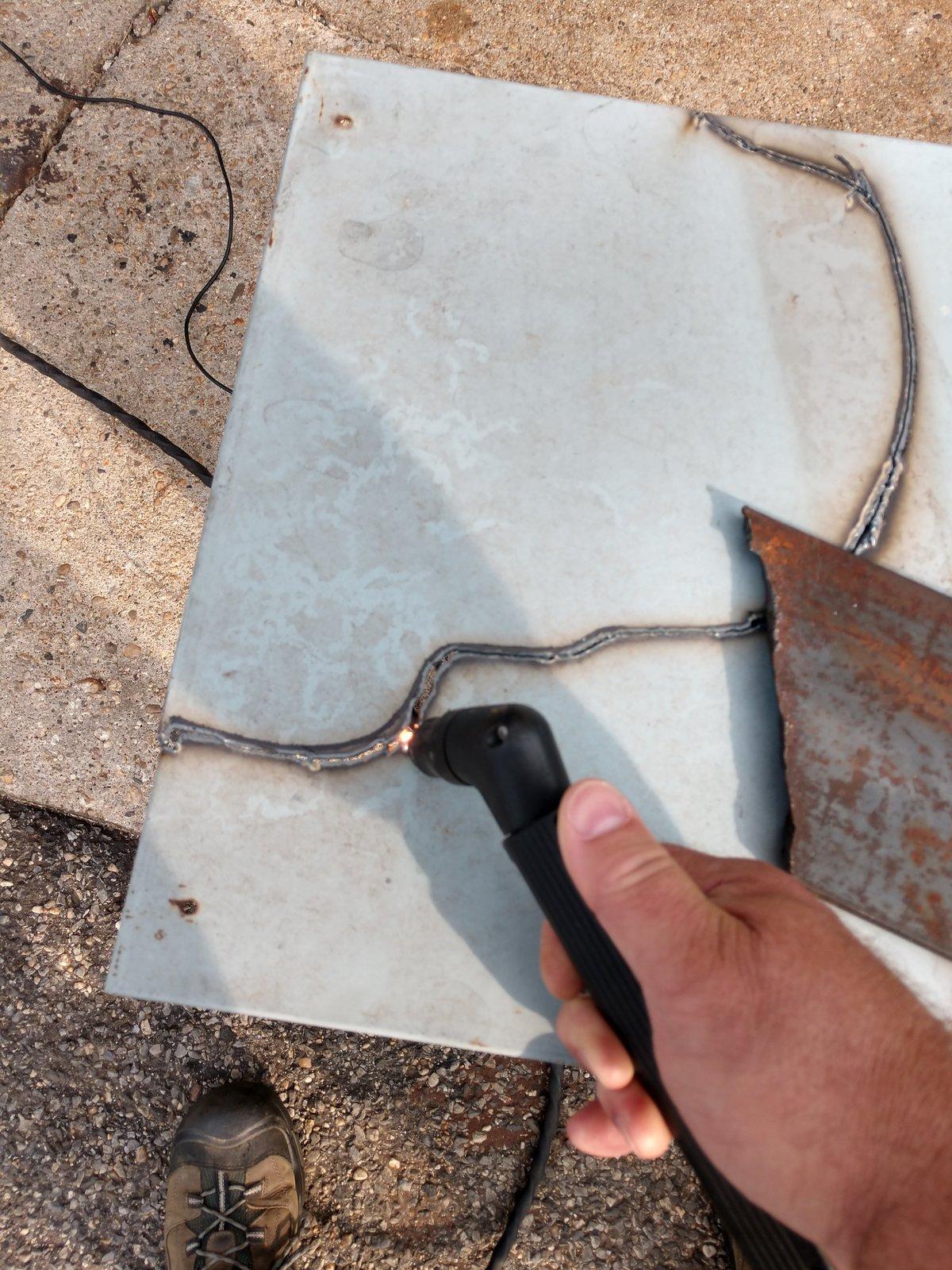

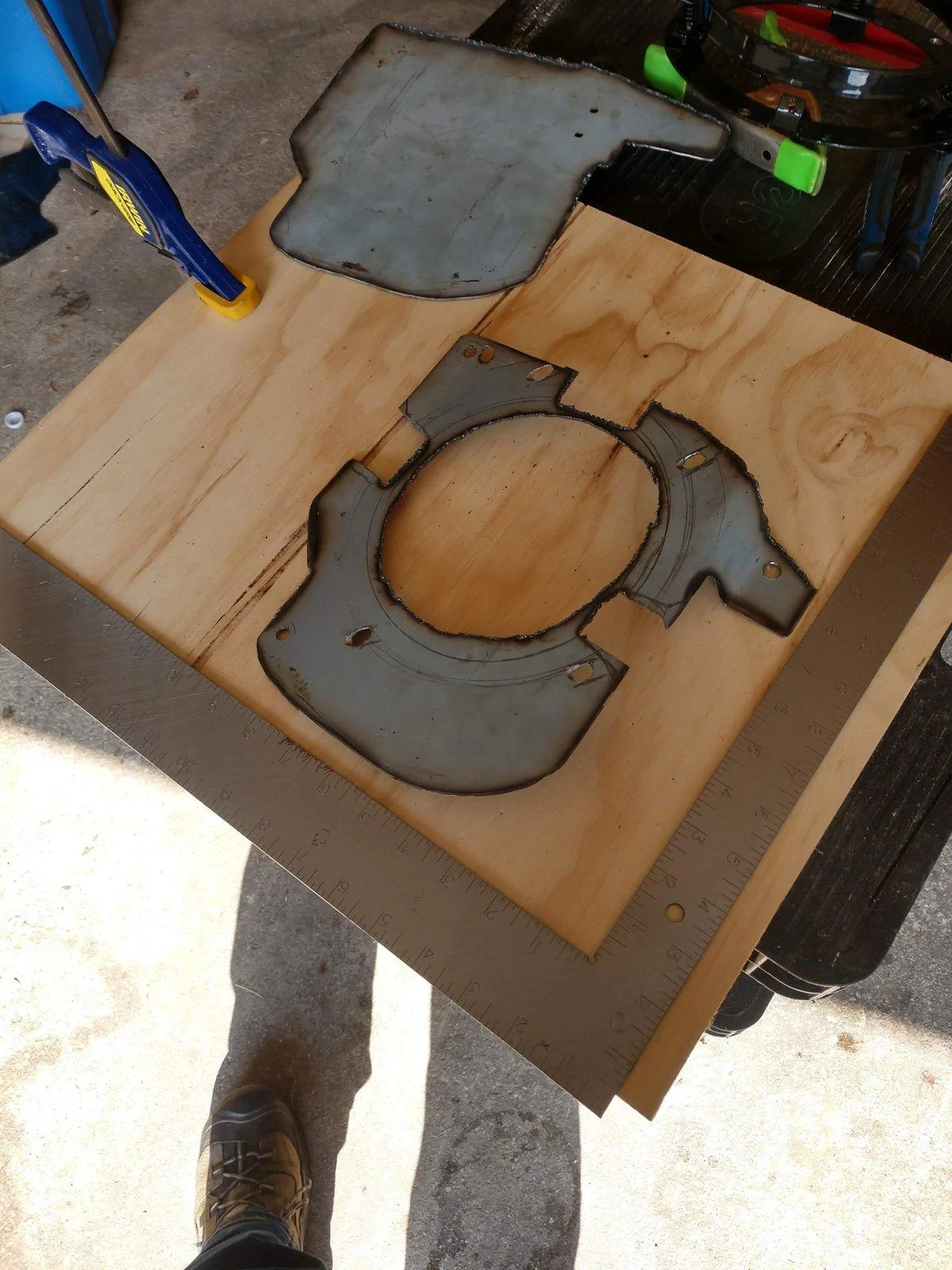

I used a plasma cutter to cut my plates, bent it in the vice, now drilling holes to attach it .








OP
OP
americonium

americonium

Well-Known Member
First Name
Abe
Joined
Jul 2, 2018
Messages
228
Reaction score
205
Location
NY
Vehicle(s)
2018 JLUR Black
Occupation
Engineering Technician

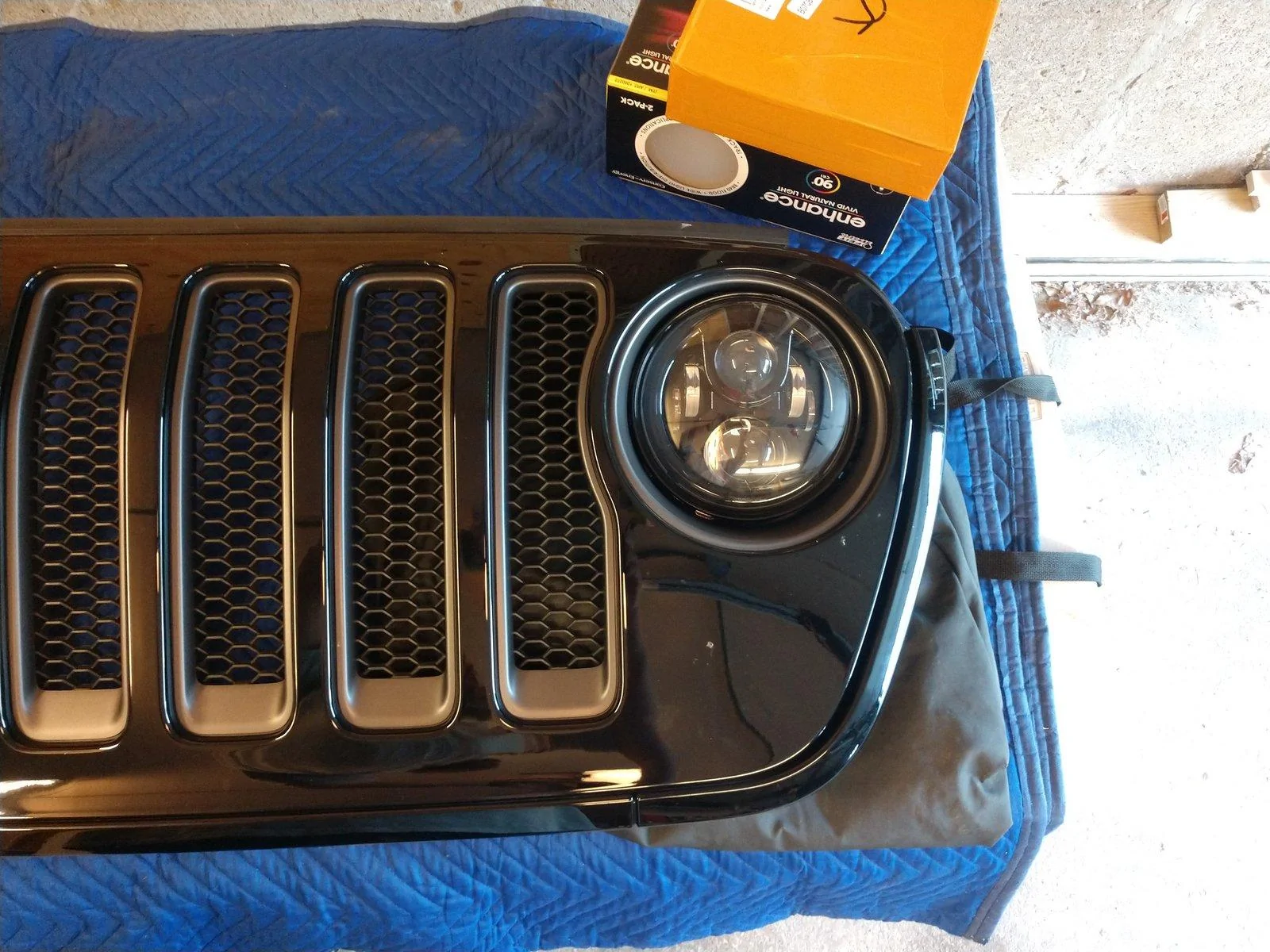

Light ring mock-up .

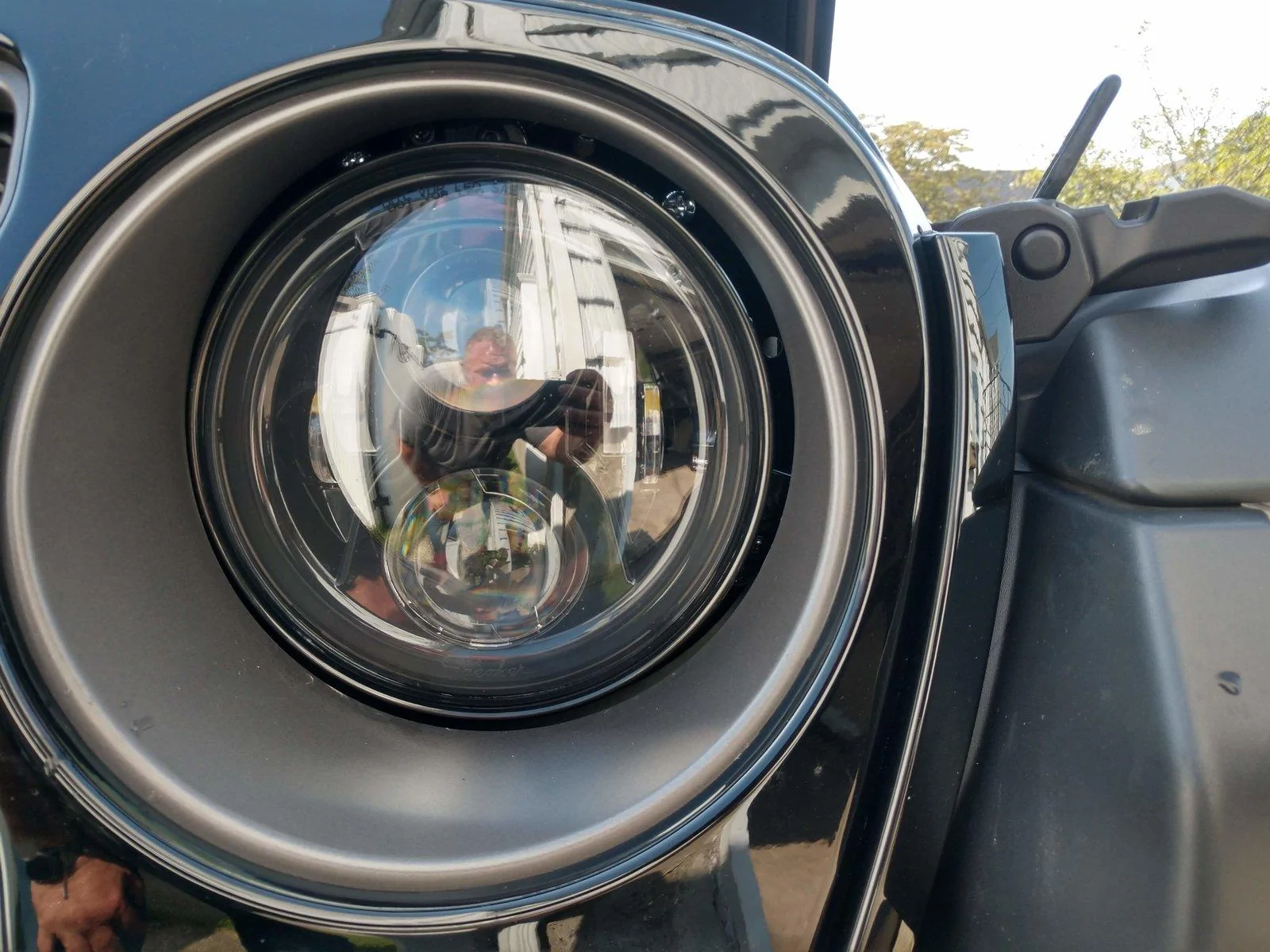

More: Driver's side done, ready for paint.
