Problem installing Mopar hitch to JL Wrangler 2018

Ciaranmc09

New Member
First Name
Ciaran
Joined
Jul 11, 2020
Messages
4
Reaction score
4
Location
Santa Cruz
Vehicle(s)
2018 Jeep Wrangler JL
Hi all,

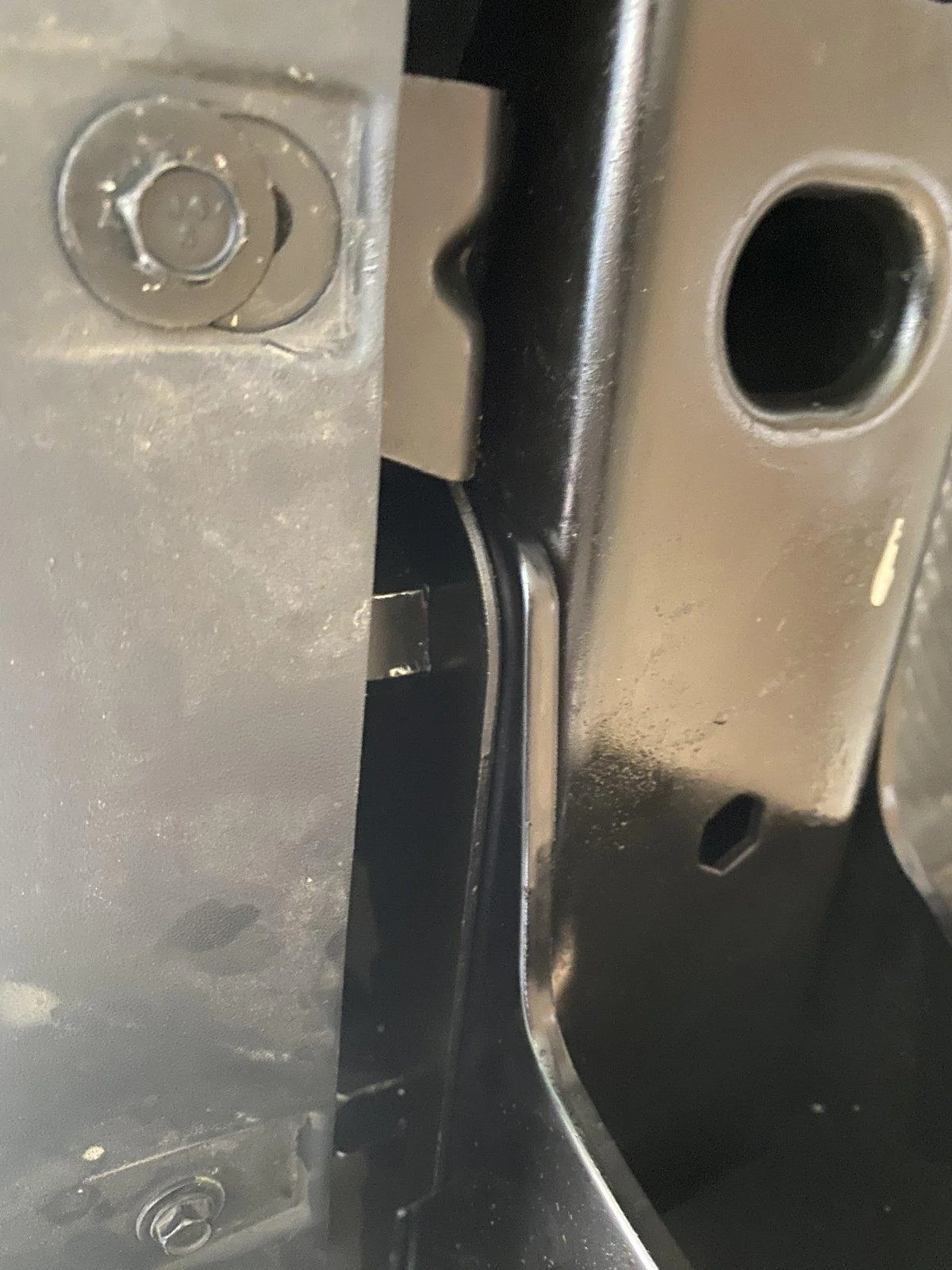

I’m having an issue installing the Mopar hitch to my jeep. In all of the install videos and threads I’ve read, no one seems to have encountered the problem I’m having with the two black bolts that seem to be welded into the frame of the car - see photo. I’ve tried using liquid wrench to loosen them but it’s had no effect. Any suggestions?
Advertisement



LooselyHeldPlans

Well-Known Member
First Name
Brandon
Joined
Aug 7, 2019
Messages
504
Reaction score
413
Location
Denver
Vehicle(s)
2020 3.6 JLUR
Occupation
Several
Lol, yep. Those are welded on. Rear hitches come is several very similar variations. From my personal experience, this usually means your hitch is from a different stock bumper config.

OP
OP

Ciaranmc09

New Member
First Name
Ciaran
Joined
Jul 11, 2020
Messages
4
Reaction score
4
Location
Santa Cruz
Vehicle(s)
2018 Jeep Wrangler JL
Lol, yep. Those are welded on. Rear hitches come is several very similar variations. From my personal experience, this usually means your hitch is from a different stock bumper config.
Damn - thanks though. So back to the store and buy a new one then?


plex

Well-Known Member
Joined
Oct 25, 2018
Messages
1,155
Reaction score
1,591
Location
Cincinnati, OH
Vehicle(s)
2018 JLUR
Occupation
Weekend keyboard mechanic and beer drinker
Vehicle Showcase
1
Hi all,

I’m having an issue installing the Mopar hitch to my jeep. In all of the install videos and threads I’ve read, no one seems to have encountered the problem I’m having with the two black bolts that seem to be welded into the frame of the car - see photo. I’ve tried using liquid wrench to loosen them but it’s had no effect. Any suggestions?
That is an inner structure support of your plastic bumper, your hitch needs to be sandwiched in between this piece and the frame rail. Unfortunately you need to take off your bumper cover to do this, adds a little bit of time.


aldo98229

Well-Known Member
First Name
Aldo
Joined
Nov 16, 2019
Messages
5,577
Reaction score
12,228
Location
Bellingham, WA
Vehicle(s)
2018 Jeep Wrangler Unlimited Sahara, 2018 Fiat 124 Spider Abarth
Occupation
Market Research
Vehicle Showcase
2
Yes, they all look the same but you have to be very careful with them hitch receivers.

On JK, for instance, the trailer hitch for the plastic bumper and the steel bumper were different. The hitch receiver for the steel bumper had a flatter backside.

I even found out that the $7 Mopar hitch plug from JK doesn’t fit JL. You’d think a plug is a plug. But instead of the top hinged plug, JL uses a side-hinged plug to clear the bumper —see below.

Best thing is to talk to your dealer’s parts counter and get the correct part number. That way, if it doesn’t fit, it is on them.

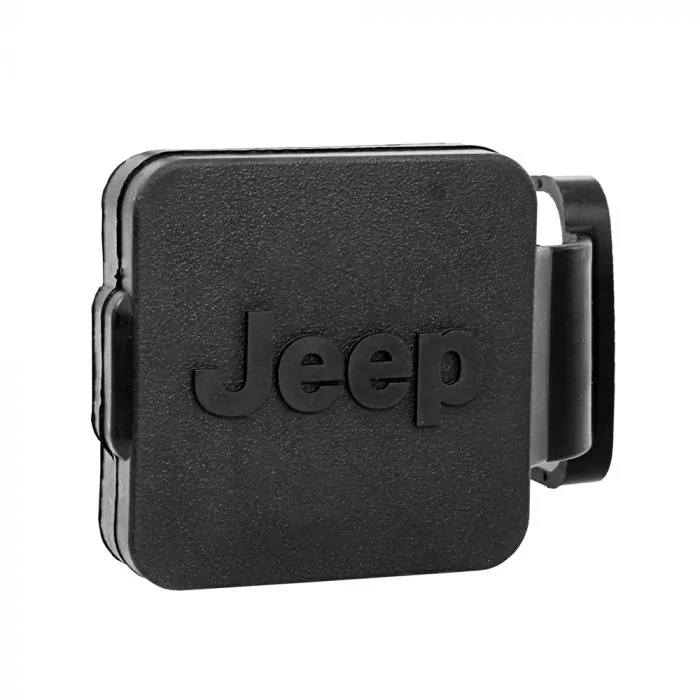

JK hitch plug

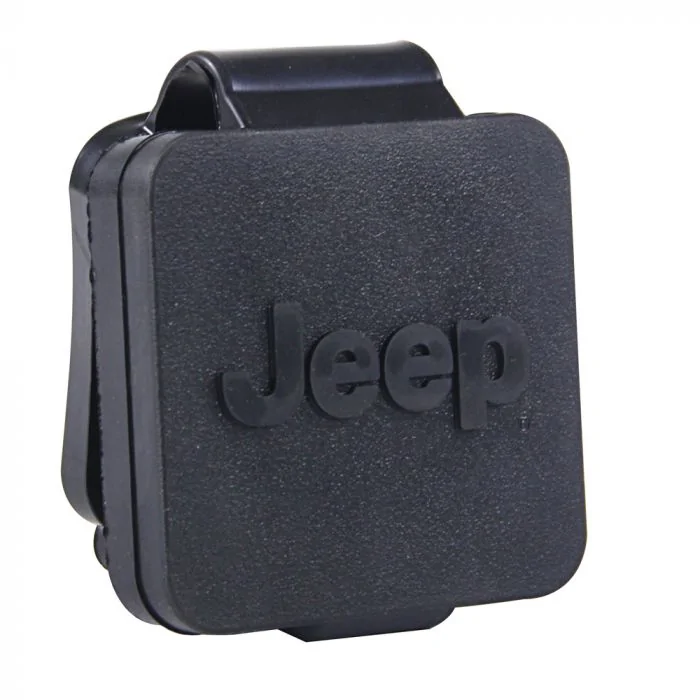

JL hitch plug

OP
OP

Ciaranmc09

New Member
First Name
Ciaran
Joined
Jul 11, 2020
Messages
4
Reaction score
4
Location
Santa Cruz
Vehicle(s)
2018 Jeep Wrangler JL
That is an inner structure support of your plastic bumper, your hitch needs to be sandwiched in between this piece and the frame rail. Unfortunately you need to take off your bumper cover to do this, adds a little bit of time.
Ok, thanks. So it is the correct part, I just need to figure out how to remove the bumper cover?

OP
OP

Ciaranmc09

New Member
First Name
Ciaran
Joined
Jul 11, 2020
Messages
4
Reaction score
4
Location
Santa Cruz
Vehicle(s)
2018 Jeep Wrangler JL

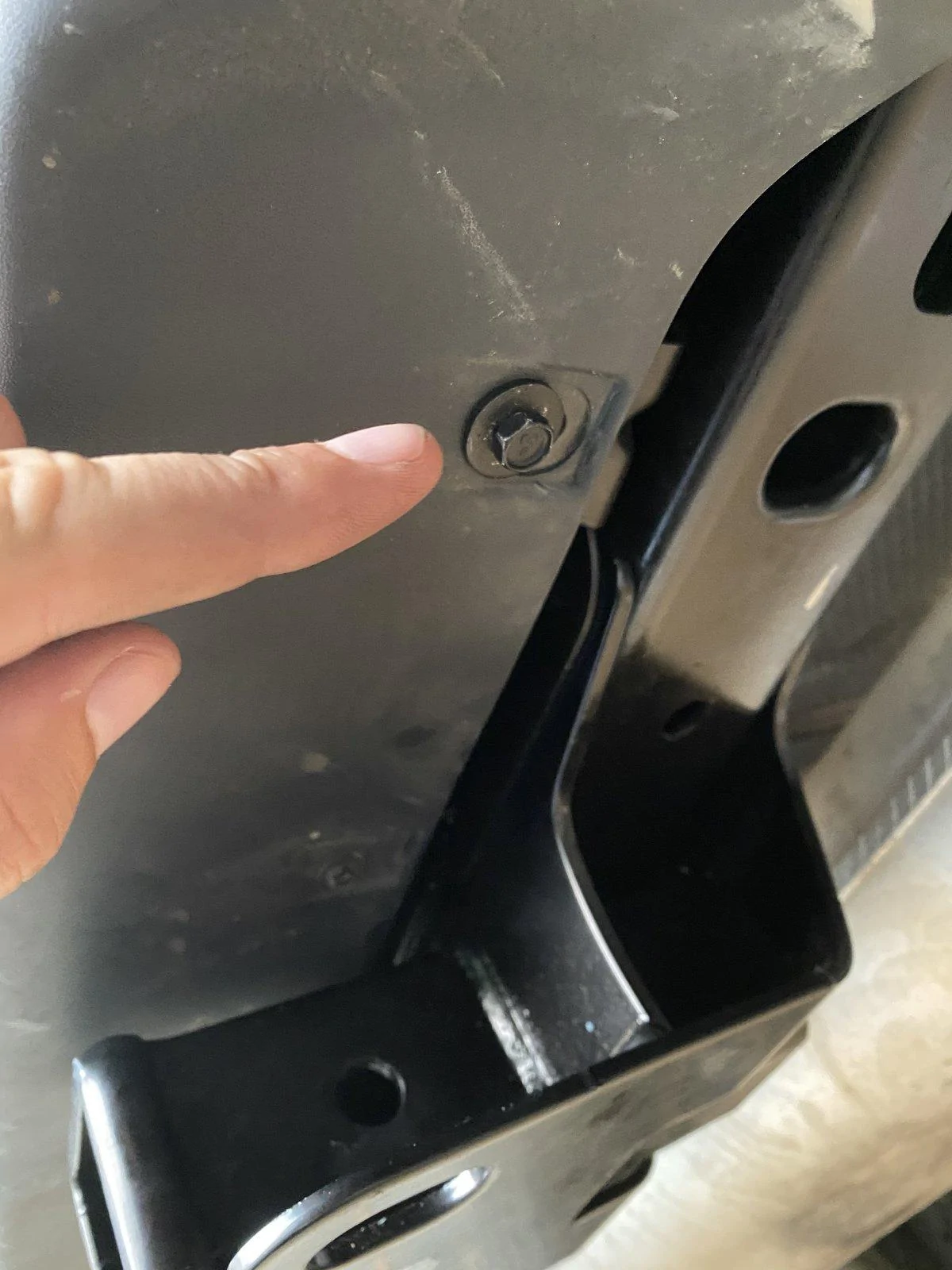

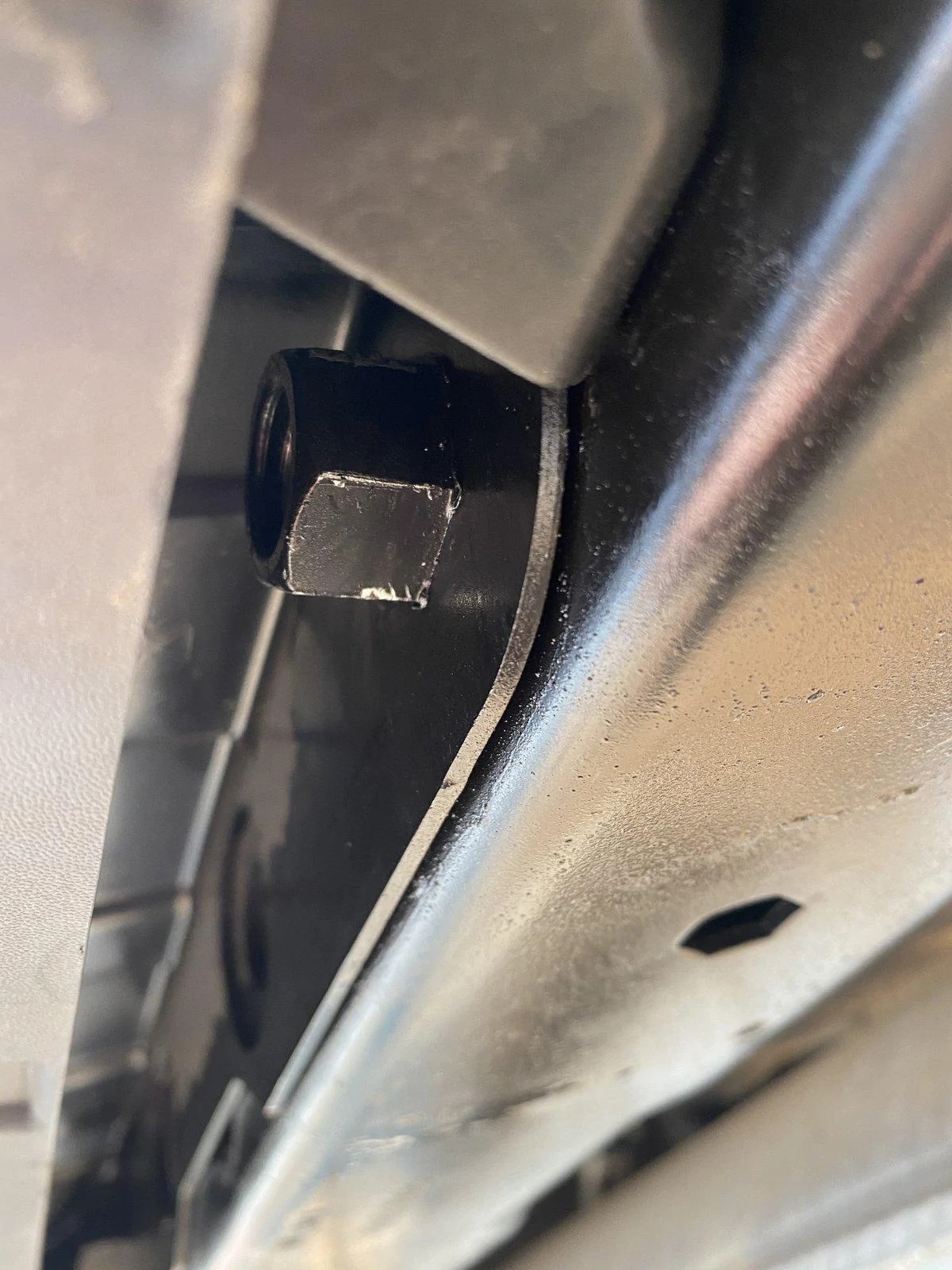

Update for anyone else who runs into this problem with the JL Sahara Unlimited plastic bumper. I was able to install without removing the rear bumper. I removed the two small screws under the plastic bumper, that allowed me to lift the steel chassis up high enough to attach the hitch. I had to force the bolts through with a little bit of force but it worked.

The hitch sandwiches between the two metal parts.

see images below





rhaelrubicon

New Member
First Name
Rhael
Joined
Sep 25, 2021
Messages
2
Reaction score
0
Location
Alberta North
Vehicle(s)
2003 TJ Rubicon 2021 JL Rubicon 2008 Jk Rubicon
Update for anyone else who runs into this problem with the JL Sahara Unlimited plastic bumper. I was able to install without removing the rear bumper. I removed the two small screws under the plastic bumper, that allowed me to lift the steel chassis up high enough to attach the hitch. I had to force the bolts through with a little bit of force but it worked.

The hitch sandwiches between the two metal parts.

see images below



Update for anyone else who runs into this problem with the JL Sahara Unlimited plastic bumper. I was able to install without removing the rear bumper. I removed the two small screws under the plastic bumper, that allowed me to lift the steel chassis up high enough to attach the hitch. I had to force the bolts through with a little bit of force but it worked.

The hitch sandwiches between the two metal parts.

see images below





rhaelrubicon

New Member
First Name
Rhael
Joined
Sep 25, 2021
Messages
2
Reaction score
0
Location
Alberta North
Vehicle(s)
2003 TJ Rubicon 2021 JL Rubicon 2008 Jk Rubicon
Thank you for posting this , helped me with my Jl hitch install yesterday.
