Positive Offset Wheel Choices

jdhunt0

Well-Known Member
Joined
Jan 13, 2019
Threads
26
Messages
428
Reaction score
167
Location
Kentucky
Vehicle(s)
2019 Wrangler Unlimited
I may be in the minority here, but I would prefer my tires to not stick out way past the fenders. What I have been looking for are wheels 17x8.5 with an offset of +18 to +25. There are not many that fit these specs especially that are light weight. I plan post wheels that I find in this thread and hope others do as well.
Sponsored


OP
OP
jdhunt0

jdhunt0

Well-Known Member
Joined
Jan 13, 2019
Threads
26
Messages
428
Reaction score
167
Location
Kentucky
Vehicle(s)
2019 Wrangler Unlimited
I'm not sure what wheels these are, but this is drock317's Jeep with +18 offset.



Hayseed_JLUR

Well-Known Member
Joined
Apr 12, 2019
Threads
29
Messages
708
Reaction score
854
Location
Midwest
Vehicle(s)
2019 JLUR, 2015 JKU
I have the Pintlers and they are not heavy. I saw someone weigh them under 30lbs.


Sponsored

AnnDee4444

Well-Known Member
Joined
Jan 14, 2019
Threads
44
Messages
4,380
Reaction score
5,682
Location
Vehicle(s)
'18 JLR 2.0
Not sure if this fits the theme of the thread, but the Grand Cherokee WK2 wheels have the same bolt pattern, are available in 17" x 8", and have 56.4mm offset. The extra 1/2" width over stock would allow more tire sizes to be mounted, and with a 1.75" spacer the effective offset would be +12mm. If you consider 18" wheels, even more styles are available.

http://www.wk2jeeps.com/wk2_wheels.htm

OP
OP
jdhunt0

jdhunt0

Well-Known Member
Joined
Jan 13, 2019
Threads
26
Messages
428
Reaction score
167
Location
Kentucky
Vehicle(s)
2019 Wrangler Unlimited

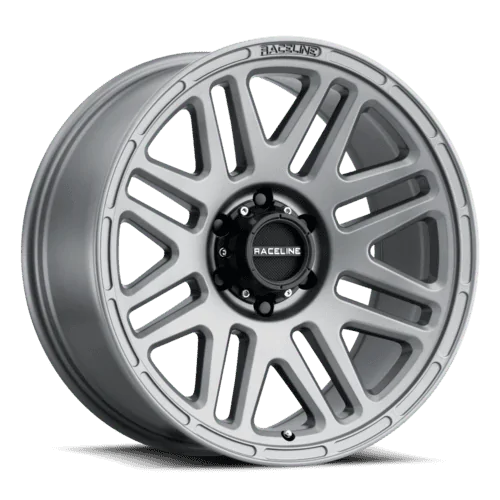

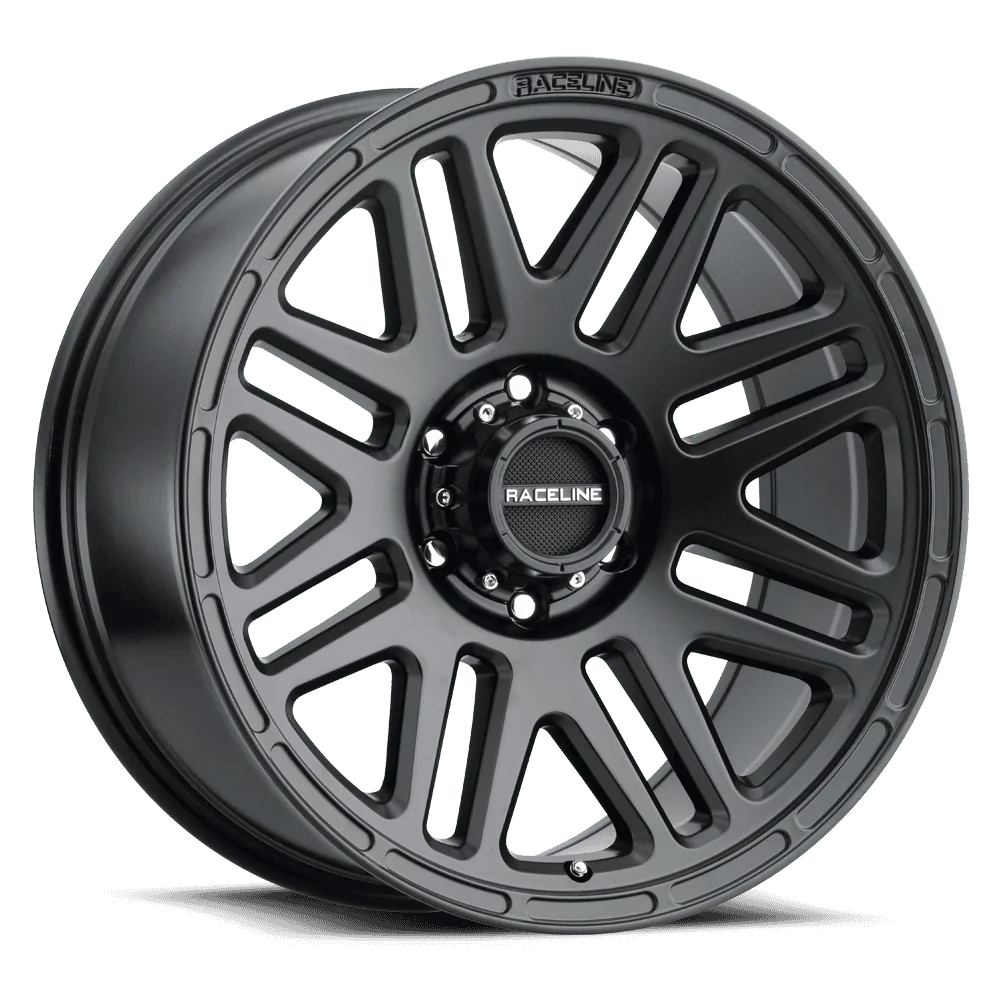

The Raceline 944B OUTLANDER is a +18 and I think around 27lbs. But I'm not sure if I care for the looks.



LBK454

Well-Known Member
First Name
Larry
Joined
Apr 29, 2019
Threads
8
Messages
49
Reaction score
40
Location
Wyoming
Vehicle(s)
2019 JLUR
I believe the AEV are +25mm offset (Borah 5.72”; Pinter / Saverge 5.77”) and the MOPAR Off-road are +12mm (5.22”).


blnewt

Well-Known Member
First Name
Brad
Joined
Oct 8, 2018
Threads
96
Messages
9,811
Reaction score
23,605
Location
New Mexico
Vehicle(s)
2019 Jeep JL V6 SportS, (Retired 74 CJ-5, 80 CJ-7)
Occupation
Just ask @cosine he knows!
ATX Ravine 17x8.5 +10 & weigh about 30 lbs, these are on 295/70s





Sponsored

Sting_NC_USA

Well-Known Member
First Name
Michael
Joined
Mar 25, 2018
Threads
27
Messages
1,026
Reaction score
992
Location
Greensboro, NC
Vehicle(s)
2018 Jeep Wrangler JL Unlimited Rubicon
Build Thread
Link
Vehicle Showcase
1
If you go with that offset, just understand that adding a lift later will likely cause issues. A spacer lift should be fine, though most lifts require 4.5 inches of backspacing to avoid rubbing the control arms. 3.5 inches for 37+. Admittedly, I do love the look of having the tires tucked in!

OP
OP
jdhunt0

jdhunt0

Well-Known Member
Joined
Jan 13, 2019
Threads
26
Messages
428
Reaction score
167
Location
Kentucky
Vehicle(s)
2019 Wrangler Unlimited
If you go with that offset, just understand that adding a lift later will likely cause issues. A spacer lift should be fine, though most lifts require 4.5 inches of backspacing to avoid rubbing the control arms. 3.5 inches for 37+. Admittedly, I do love the look of having the tires tucked in!
My plan is to go with the Dynatrac lift. I do not remember seeing a backspace requirement, but I'll call and ask.


Sting_NC_USA

Well-Known Member
First Name
Michael
Joined
Mar 25, 2018
Threads
27
Messages
1,026
Reaction score
992
Location
Greensboro, NC
Vehicle(s)
2018 Jeep Wrangler JL Unlimited Rubicon
Build Thread
Link
Vehicle Showcase
1
My plan is to go with the Dynatrac lift. I do not remember seeing a backspace requirement, but I'll call and ask.
The concern comes about when you add lower control arms (LCA's). If you're adding something like the Dynatrac JL20-1X5310-A EnduroSport 2" Lift with Fox Shocks, it doesn't include LCA's. At that point, it would simply matter if the tire was already hitting your existing LCA's.


blnewt

Well-Known Member
First Name
Brad
Joined
Oct 8, 2018
Threads
96
Messages
9,811
Reaction score
23,605
Location
New Mexico
Vehicle(s)
2019 Jeep JL V6 SportS, (Retired 74 CJ-5, 80 CJ-7)
Occupation
Just ask @cosine he knows!
OP
OP
jdhunt0

jdhunt0

Well-Known Member
Joined
Jan 13, 2019
Threads
26
Messages
428
Reaction score
167
Location
Kentucky
Vehicle(s)
2019 Wrangler Unlimited
Here's a list on Custom offsets, on the left column you can select offsets, I selected +25 but it shows a list of +18 thru +25, just have to go through a few offset selections to show the full lineup of positive offset wheels.
https://www.customwheeloffset.com/store/wheels?sort=popular&suspension=Leveling Kit&modification=No trimming&dia=17&width=8.5&offset=25&bolt=5x5,5x127
I had noticed that too. Why when I pick +25 does it show everything from +10 to +30? And I don't think they show weights of many wheels if I remember right.
