Photos of Off-Road Pages on Uconnect 8.4 Display?

DanW

Well-Known Member
First Name
Dan
Joined
Mar 2, 2017
Threads
159
Messages
8,404
Reaction score
11,073
Location
Indiana
Vehicle(s)
21 JLUR, 18JLUR, 08JKUR, 15 Renegade, 04 WJ
Vehicle Showcase
2
Does anyone have any high quality photos of the off road pages on the main screen? How about also on the 7 inch screen between the guages.
Sponsored



The Great Grape Ape

Well-Known Member
Joined
Mar 30, 2017
Threads
9
Messages
2,840
Reaction score
4,122
Location
Canadian Rockies
Vehicle(s)
2015 JKU AspenX 5spd , 2015 JK Sport 6spd
Does anyone have any high quality photos of the off road pages on the main screen? How about also on the 7 inch screen between the guages.
What are you looking for? There have been a few around, but is there a cluster in particular you are lookin for? There are most of them in colour and clear enough to determine detail in the JL user guide.

As for the 7” screen, IIRC the Off-Road pages are only on the 8.4”. That may have changed though as I think that was a bit of info from months ago, not a recent finding.

OP
OP
DanW

DanW

Well-Known Member
First Name
Dan
Joined
Mar 2, 2017
Threads
159
Messages
8,404
Reaction score
11,073
Location
Indiana
Vehicle(s)
21 JLUR, 18JLUR, 08JKUR, 15 Renegade, 04 WJ
Vehicle Showcase
2
What are you looking for? There have been a few around, but is there a cluster in particular you are lookin for? There are most of them in colour and clear enough to determine detail in the JL user guide.

As for the 7” screen, IIRC the Off-Road pages are only on the 8.4”. That may have changed though as I think that was a bit of info from months ago, not a recent finding.
I just wanted to see each page in a high res image. I also wanted to see if the clinometer has alarms near the limits that are adjustable or if they are fixed, and if it even has an alarm. I've seen images on the 7" display between the guages that show the clinometer, as well, so I'm wondering if other pages can be moved there to allow their simultaneous use while the map is displayed on the 8.4" screen.


The Great Grape Ape

Well-Known Member
Joined
Mar 30, 2017
Threads
9
Messages
2,840
Reaction score
4,122
Location
Canadian Rockies
Vehicle(s)
2015 JKU AspenX 5spd , 2015 JK Sport 6spd
Yeah, upon further digging in the Owner’s manual, the premium7” instrument cluster has the ability to move the off-road pages there is equipped on the 8.4” Uconnect.

However no info on setting alarms.

I don’t have any of the pics and have low bandwidth to search at the moment, so here’s the info from the User Guide and Owner’s manual.

8” inclinometer pic from the user guide



Info on 7” premium instrument cluster Off-Road pages from Owner’s manual.




OP
OP
DanW

DanW

Well-Known Member
First Name
Dan
Joined
Mar 2, 2017
Threads
159
Messages
8,404
Reaction score
11,073
Location
Indiana
Vehicle(s)
21 JLUR, 18JLUR, 08JKUR, 15 Renegade, 04 WJ
Vehicle Showcase
2
That is great info! Now we just need someone to capture some high quality images or even a good Youtube video scrolling through the screens. Thanks, Ape!


Sponsored

ThrillerR1

Well-Known Member
First Name
Tee
Joined
Dec 11, 2017
Threads
5
Messages
84
Reaction score
63
Location
Denver, CO
Vehicle(s)
2006 4Runner V8, 2008 Z06, 2009 R1, 2015 Tenere
I test drove a Rubicon and was unable to find the off road pages button under apps. Wonder if it'll be in some kind of update later on?


AZCrawl

Well-Known Member
Joined
Oct 9, 2017
Threads
8
Messages
1,414
Reaction score
1,054
Location
AZ
Vehicle(s)
2018 Granite Jeep JLUR
I test drove a Rubicon and was unable to find the off road pages button under apps. Wonder if it'll be in some kind of update later on?
They are there, you just didn't find them.


ThrillerR1

Well-Known Member
First Name
Tee
Joined
Dec 11, 2017
Threads
5
Messages
84
Reaction score
63
Location
Denver, CO
Vehicle(s)
2006 4Runner V8, 2008 Z06, 2009 R1, 2015 Tenere
They are there, you just didn't find them.
Saleswoman and I looked at both screens multiple times and didn't see it. The Jeep literally had just gone through the shop and was the first they'd received. Maybe an update to uConnect they missed?


JHJLUR

Well-Known Member
First Name
Justin
Joined
Dec 27, 2017
Threads
4
Messages
554
Reaction score
648
Location
SE PA
Vehicle(s)
17 GC Overland, 18 JLUR
Saleswoman and I looked at both screens multiple times and didn't see it. The Jeep literally had just gone through the shop and was the first they'd received. Maybe an update to uConnect they missed?
No they’ve been available for awhile, not being condescending but I do think you missed them


BCJeep

Member
Joined
Jan 17, 2018
Threads
2
Messages
20
Reaction score
1
Location
Ohio
Vehicle(s)
2020 Jeep Rubicon 4D
I have The 2018 and cannot find the off road apps on either app screen. You cab get to some of the off road screens in the display on the dash between the rpm + speedometer.


Sponsored

ThrillerR1

Well-Known Member
First Name
Tee
Joined
Dec 11, 2017
Threads
5
Messages
84
Reaction score
63
Location
Denver, CO
Vehicle(s)
2006 4Runner V8, 2008 Z06, 2009 R1, 2015 Tenere
I have The 2018 and cannot find the off road apps on either app screen. You cab get to some of the off road screens in the display on the dash between the rpm + speedometer.
Something I noticed in someone else's photos was that the soft buttons on the bottom of the display (Nav, Climate, etc) looked different in the one I drove. The pics I've seen with the Offroad Pages, the button have a trapezoid shape instead of a square. Hopefully I'm making sense.

You have a Rubicon right?


JHJLUR

Well-Known Member
First Name
Justin
Joined
Dec 27, 2017
Threads
4
Messages
554
Reaction score
648
Location
SE PA
Vehicle(s)
17 GC Overland, 18 JLUR
It’s located in a sub menu, you have to go into one to get to the off-road app, I forget which selection you have to hit, ap store or something along those lines... you can make it more prominent, but if I want to get on my GC screen I have to select something then select it from there, sorry I’m not in front of the screen


BCJeep

Member
Joined
Jan 17, 2018
Threads
2
Messages
20
Reaction score
1
Location
Ohio
Vehicle(s)
2020 Jeep Rubicon 4D
I could not find it in a submenu. If you see it later let us know where you found it.


BCJeep

Member
Joined
Jan 17, 2018
Threads
2
Messages
20
Reaction score
1
Location
Ohio
Vehicle(s)
2020 Jeep Rubicon 4D
Something I noticed in someone else's photos was that the soft buttons on the bottom of the display (Nav, Climate, etc) looked different in the one I drove. The pics I've seen with the Offroad Pages, the button have a trapezoid shape instead of a square. Hopefully I'm making sense.

You have a Rubicon right?

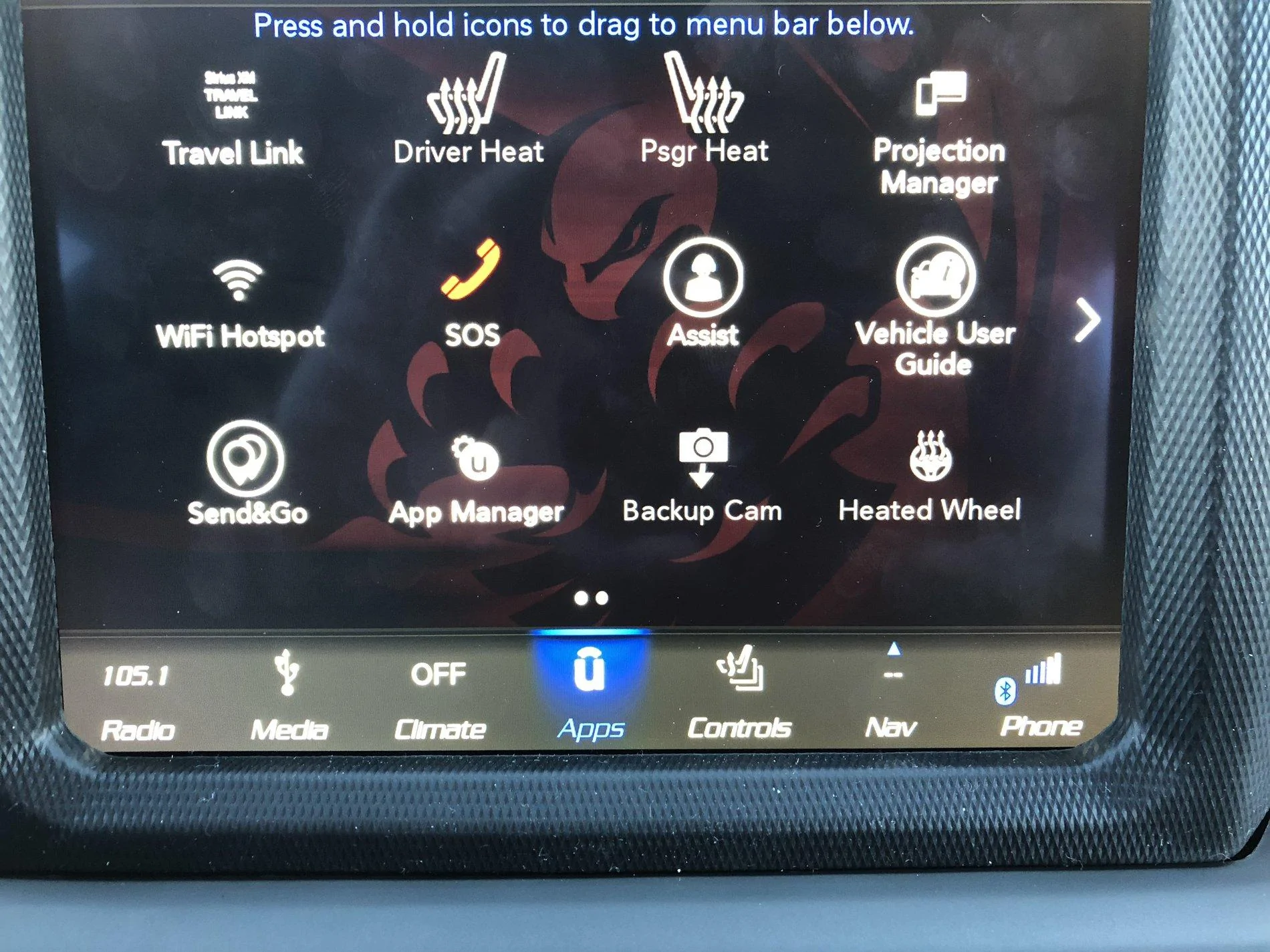

It is a rubicon. Here is what my screen looks like.
