Outback Tailgater w/ Switch Plate

mortimer

Well-Known Member
Joined
Oct 31, 2017
Messages
125
Reaction score
159
Location
USA
Vehicle(s)
JLUR
Vehicle Showcase
1
I've always liked the fit and finish of Outback Adventure's Tailgater, and thought the tailgate area on the right side of the back-panel would make a good location for a switch plate.

I started with the Tailgater from https://outbackadventureproducts.com/

Added a switch plate and USB outlet from Amazon and custom switches from Rocker Switch Pros.
Here's how I cut in the switches and the finished Tailgater mounted:

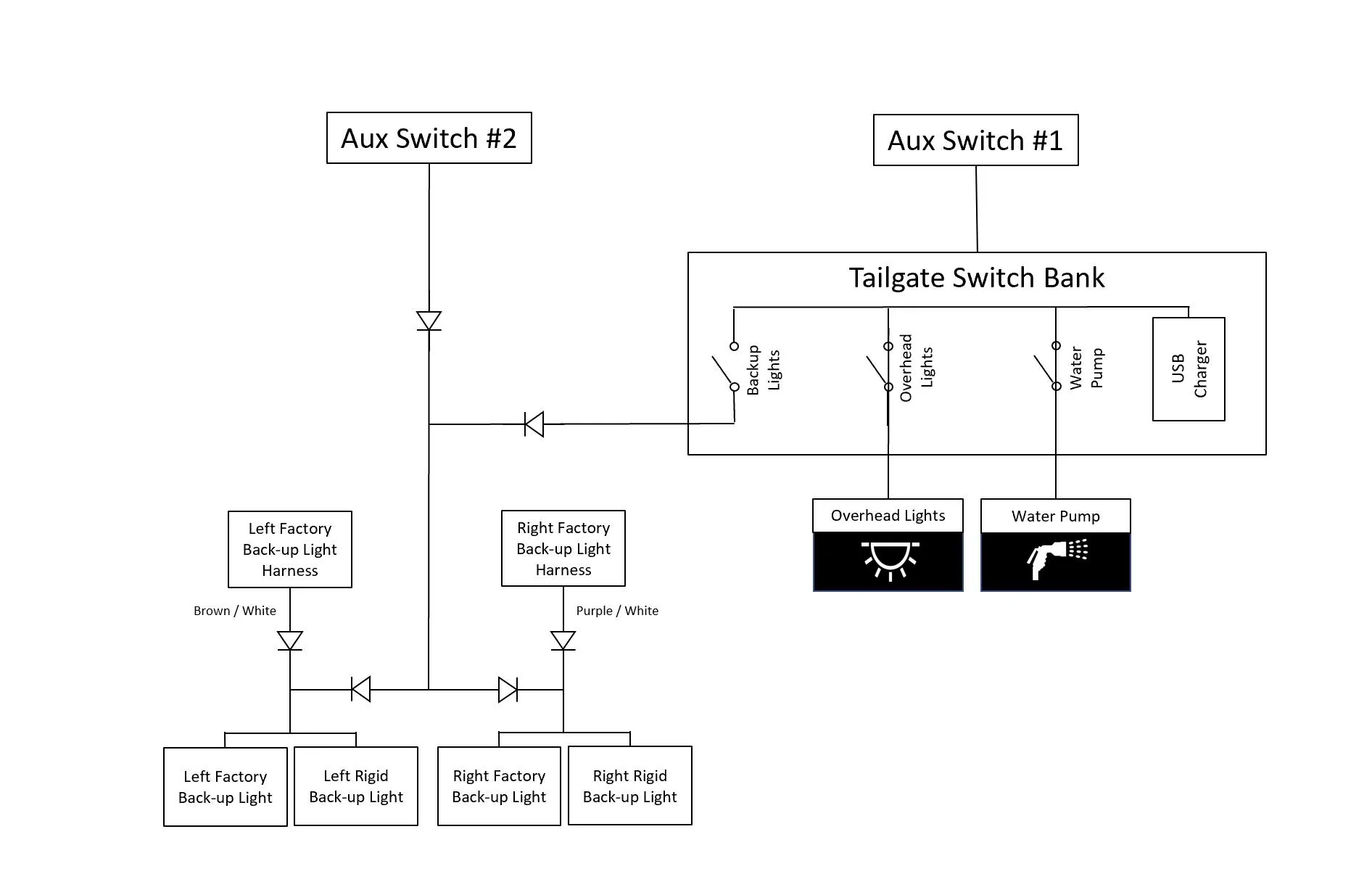

Here's the schematic I worked to:

Wiring this way:
  • Turns on both the factory backup lights *and* the Rigid Ignites when I turn on Aux 2
  • Turns on both the factory backup lights *and* the Rigid Ignites when I turn on the "rear lights" from the tailgate switch panel
  • Turns on both Rigid Ignites when the reverse lights are on
  • Turns on only the right Rigid when the right backup light is on and only the left Rigid light when the left backup light is on

Here's how I did the wiring to the Aux switches:
While I was adding a wireless charging mount for my cell phone (https://www.jlwranglerforums.com/forum/threads/wireless-cellphone-charger.30106/), I wired in the feed from the Aux Switches to the tailgate switch plate at the same time.

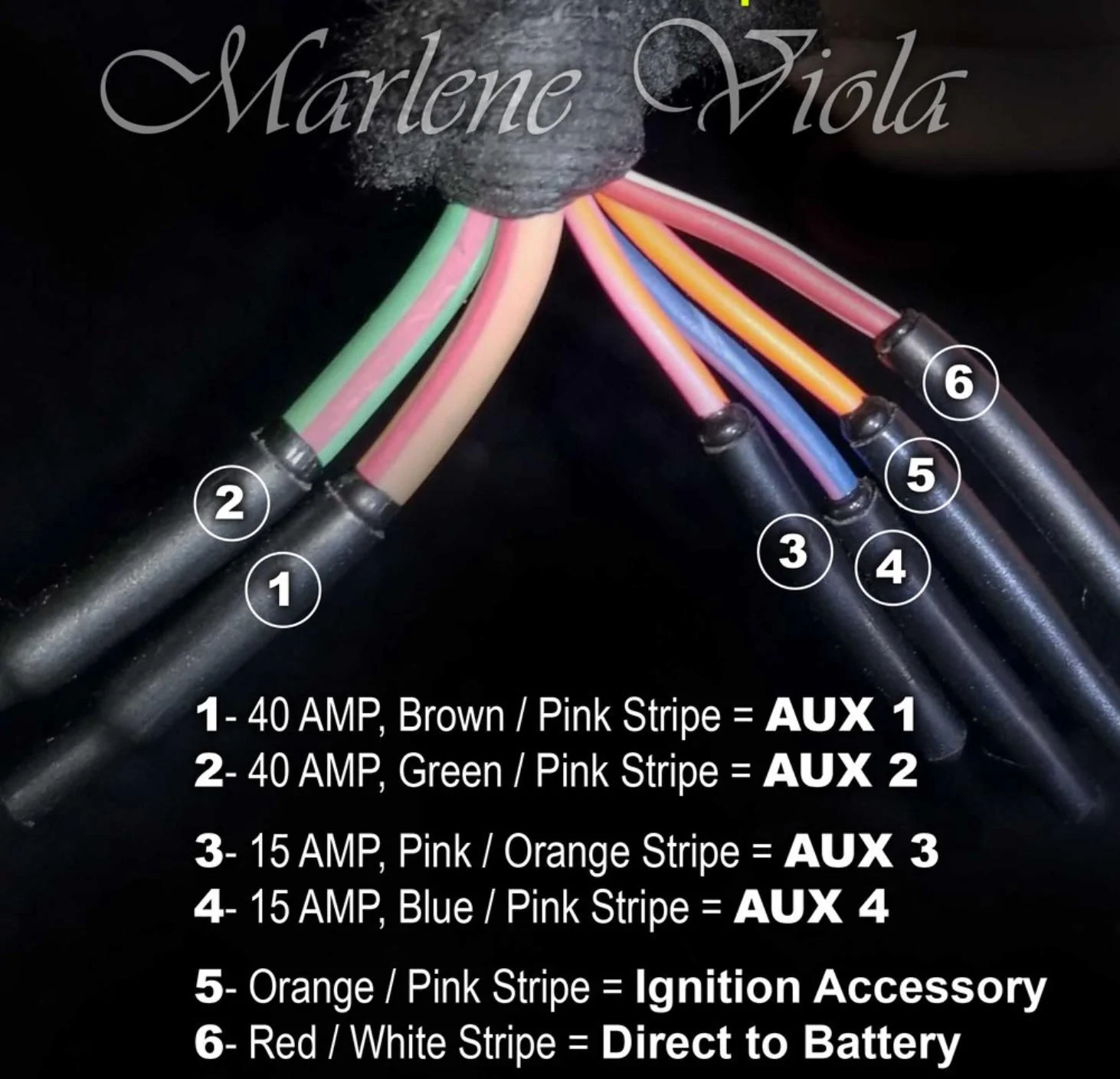

I used the following color codes:

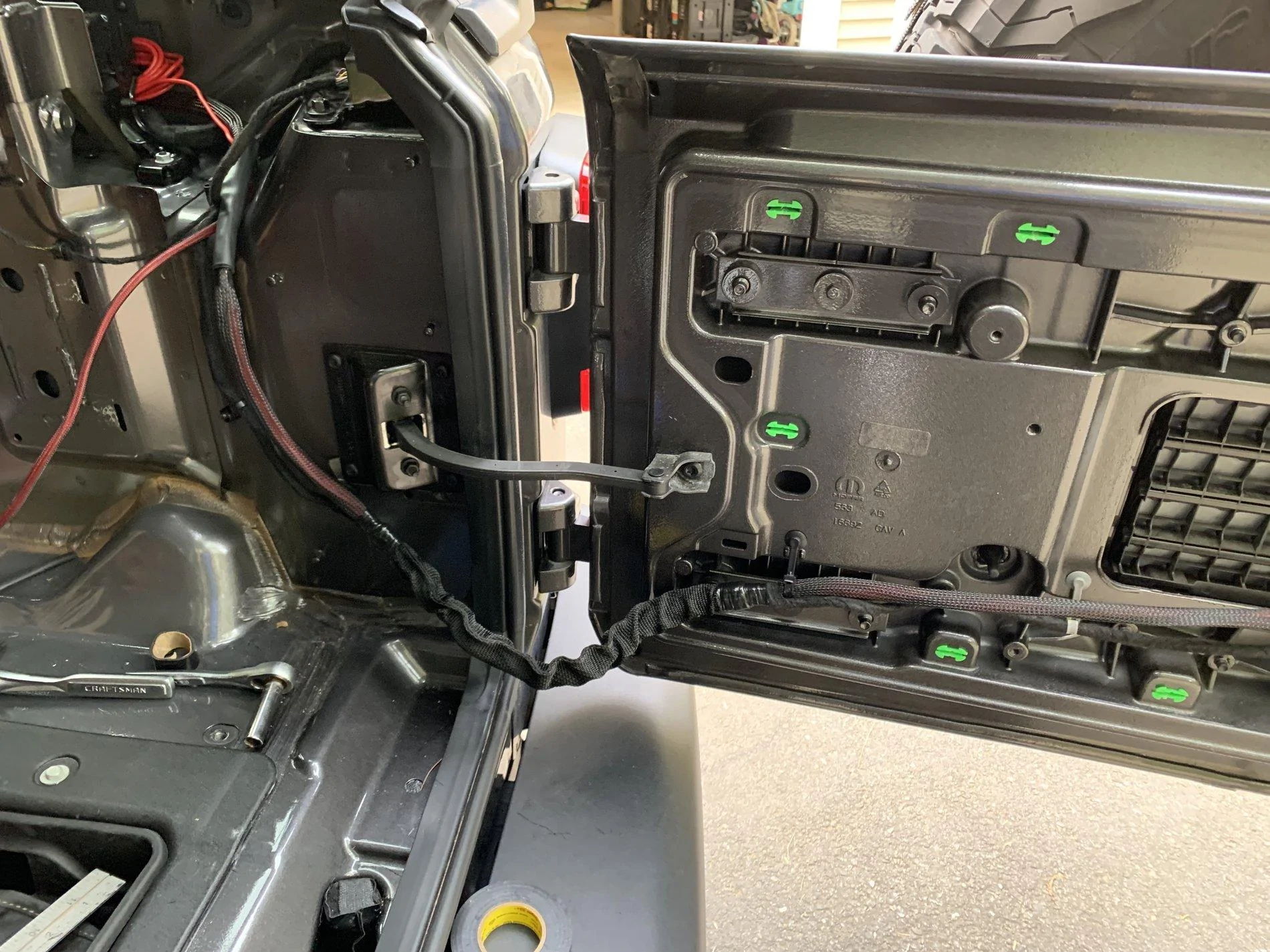

I ran a wire to power the switch plate (Aux 1), a wire for the Rigid Ignites (Aux 2), and a spare "home run" wire. The three wires were rung through a cable sheath from the Aux switches, along the passenger side of the Jeep, and then to the rear panel by the subwoofer. I then ran the wires I needed through the existing tailgate conduit.

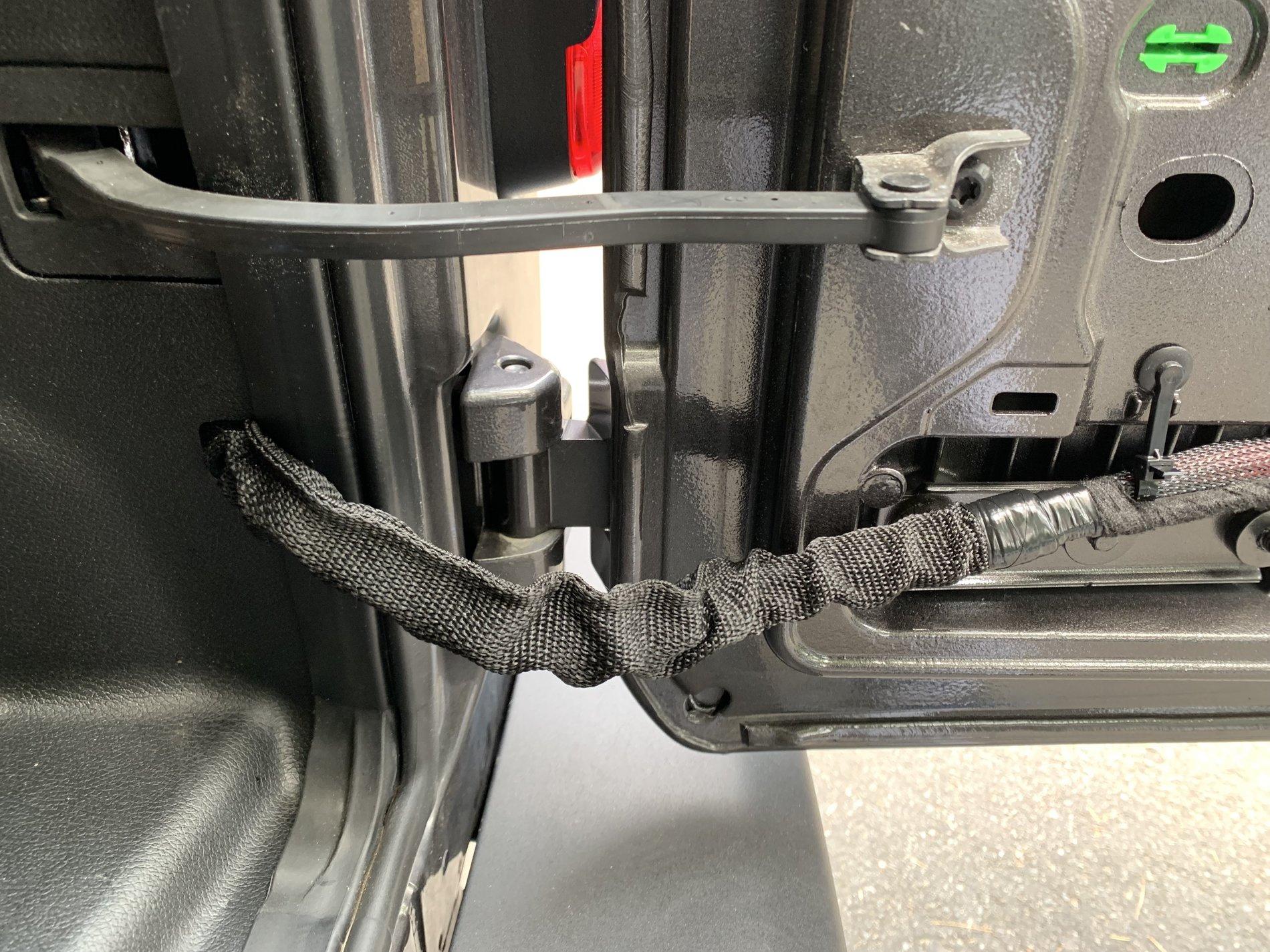

After running the new wires through the tailgate conduit, I cleaned things up a bit:

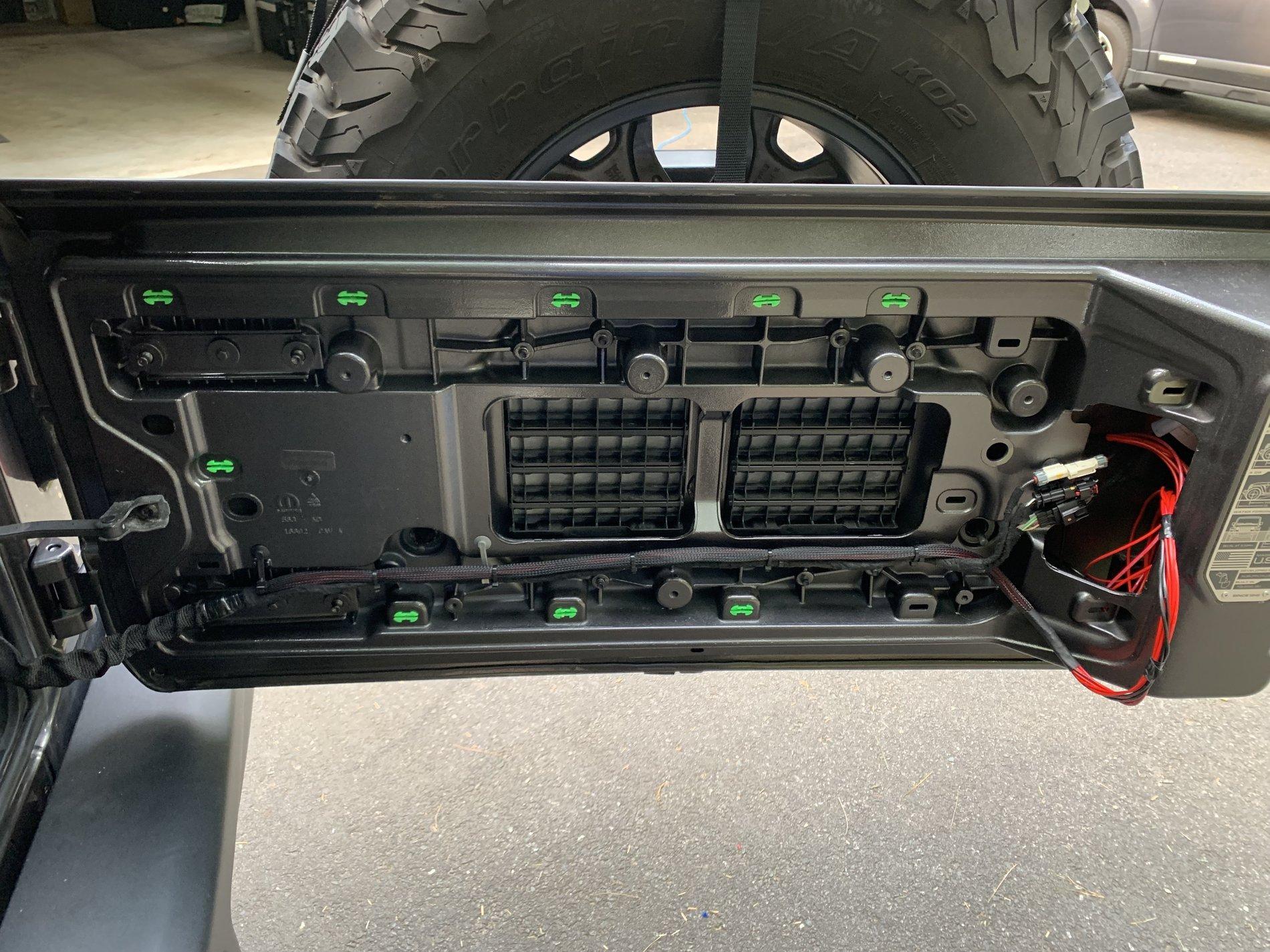

And then ran the wires out to where the switch plate would be.

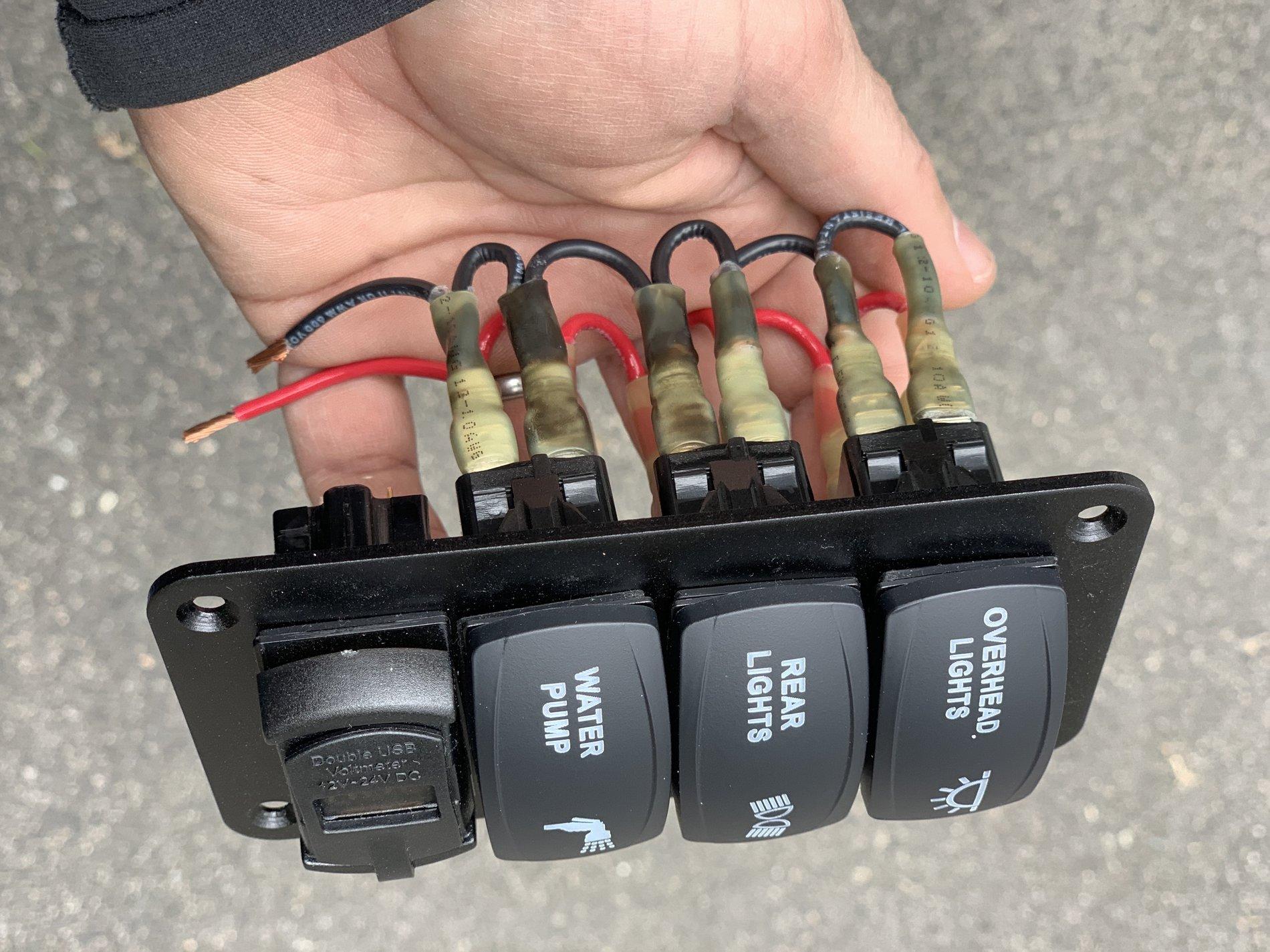

Here's how I wired the switch plate switches:

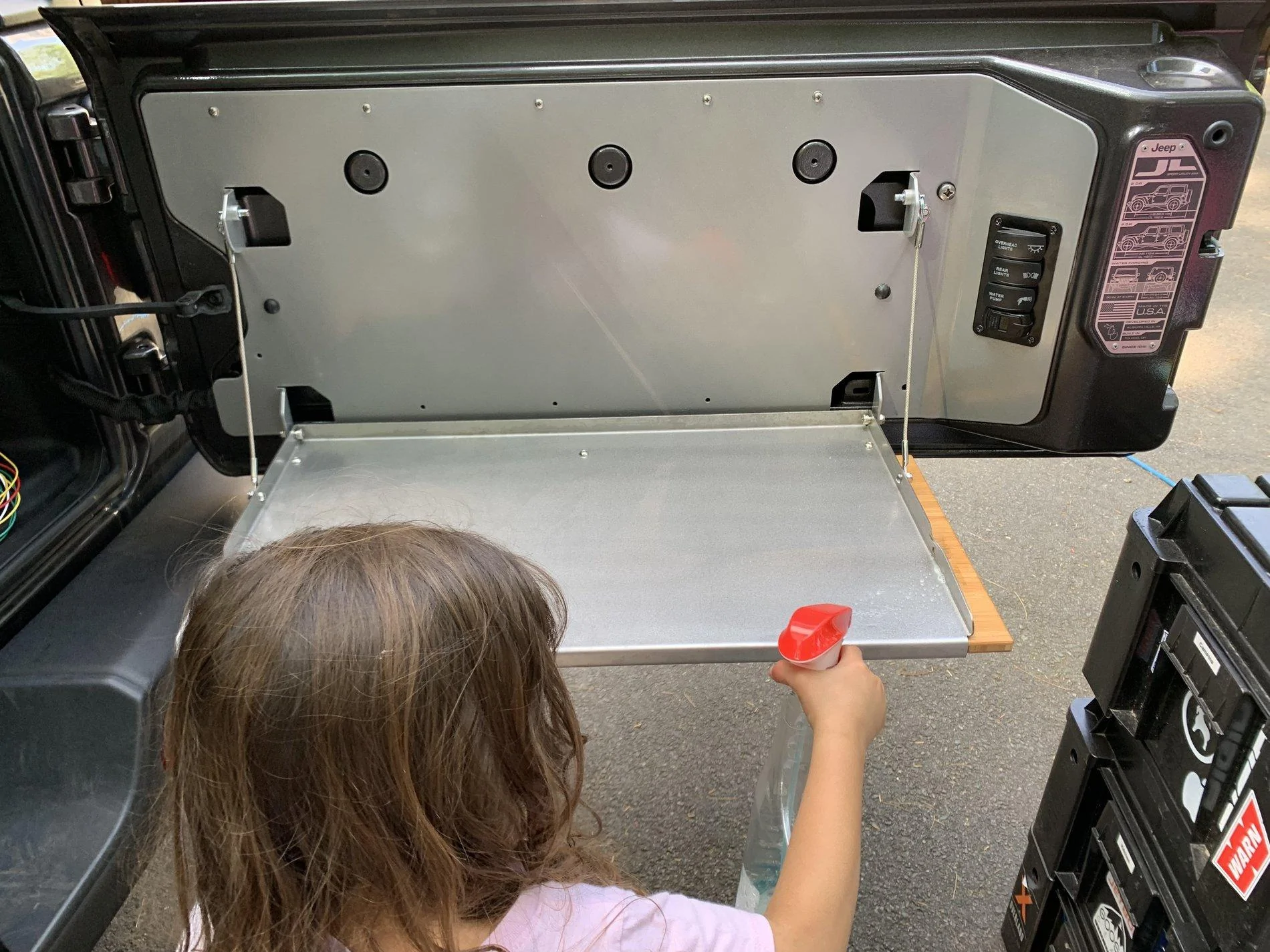

I fastened the Outback Tailgater to the tailgate, and "I" cleaned it up.


This is what things looked like when finished:





Advertisement


Last edited:

JL1LE

Well-Known Member
First Name
Neal
Joined
Jan 25, 2018
Messages
108
Reaction score
52
Location
Denver, CO
Vehicle(s)
2018 JLU White Rubicon
Very nice! Well executed.


BullMoose1776

Well-Known Member
First Name
Bull
Joined
Feb 11, 2019
Messages
725
Reaction score
999
Location
South Texas
Vehicle(s)
2019 Jeep Wrangler Unlimited Rubicon and 2003 Toyota Land Cruiser
Build Thread
Link
Occupation
Project Manager
I've always liked the fit and finish of Outback Adventure's Tailgater, and thought the tailgate area on the right side of the back-panel would make a good location for a switch plate.

I started with the Tailgater from https://outbackadventureproducts.com/

Added a switch plate and USB outlet from Amazon and custom switches from Rocker Switch Pros.
Here's how I cut in the switches and the finished Tailgater mounted:


Here's the schematic I worked to:

Wiring this way:
  • Turns on both the factory backup lights *and* the Rigid Ignites when I turn on Aux 2
  • Turns on both the factory backup lights *and* the Rigid Ignites when I turn on the "rear lights" from the tailgate switch panel
  • Turns on both Rigid Ignites when the reverse lights are on
  • Turns on only the right Rigid when the right backup light is on and only the left Rigid light when the left backup light is on

Here's how I did the wiring to the Aux switches:
While I was adding a wireless charging mount for my cell phone (https://www.jlwranglerforums.com/forum/threads/wireless-cellphone-charger.30106/), I wired in the feed from the Aux Switches to the tailgate switch plate at the same time.


I used the following color codes:


I ran a wire to power the switch plate (Aux 1), a wire for the Rigid Ignites (Aux 2), and a spare "home run" wire. The three wires were rung through a cable sheath from the Aux switches, along the passenger side of the Jeep, and then to the rear panel by the subwoofer. I then ran the wires I needed through the existing tailgate conduit.


After running the new wires through the tailgate conduit, I cleaned things up a bit:


And then ran the wires out to where the switch plate would be.


Here's how I wired the switch plate switches:





I fastened the Outback Tailgater to the tailgate, and "I" cleaned it up.


This is what things looked like when finished:
Ok, this is awesome. Also would like to know about that ham radio and what you did a out an antenna and antenna mount.

OP

mortimer

Well-Known Member
Joined
Oct 31, 2017
Messages
125
Reaction score
159
Location
USA
Vehicle(s)
JLUR
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #6

bgrex

Well-Known Member
Joined
Oct 9, 2019
Messages
101
Reaction score
390
Location
NJ
Vehicle(s)
JLU Sahara Altitude
Fantastic plan, Mortimer. Super clean, better-than-factory look! Is there a separate thread with more detail on your water pump install?


Akbill

Well-Known Member
First Name
Bill
Joined
Aug 18, 2018
Messages
267
Reaction score
98
Location
Alaska
Vehicle(s)
'19 JLUR
nice write up. The wiring diagram seems oversimplified with the rigid lights and factory lights sharing the same circuit.
ditto that on water pump


BBDOC

Well-Known Member
First Name
Victor
Joined
Nov 11, 2017
Messages
217
Reaction score
214
Location
California
Vehicle(s)
BMW 5-Series, Honda Civic, Honda Minivan

Dkretden

Well-Known Member
First Name
David
Joined
Jan 29, 2019
Messages
2,288
Reaction score
2,912
Location
Denver, CO
Vehicle(s)
2020 JLUR 3.6L
@mortimer

I am utterly amazed at the talent so many people, including you, on this Board have. This is a brilliant mod, perfectly executed. You should get with the outback folks and see if they want to market it (paying you the appropriate royalty of course) As an “add on” option for their product.


MILT

Well-Known Member
First Name
Milt
Joined
Apr 17, 2020
Messages
72
Reaction score
63
Location
MN
Vehicle(s)
2019 JLU Sahara
Occupation
Honda technician
Agree. I would buy this as an add on for my table


DanFelix

Well-Known Member
Joined
Dec 22, 2018
Messages
188
Reaction score
62
Location
Riverside, CA
Vehicle(s)
2018 Wrangler JL Sport S
Excellent work. Does the mod change the air flow through the vent in the gate? Thanks.
