OEM 7 Way Plug Wire Colors

Luco

Well-Known Member
First Name
Luke
Joined
May 26, 2018
Messages
60
Reaction score
96
Location
South Carolina
Vehicle(s)
2018 Jeep JL Unlimited Rubicon, 2016 GMC 2500 HD, 2010 Seneca Motorhome on Chevrolet C5500
I am going to put some auxiliary led backup lights on my JL. I would like to power them from the backup light circuit in the 7 way factory trailer plug. Anyone have a wiring diagram or wire colors for the factory plug?

OP
Luco

Luco

Well-Known Member
First Name
Luke
Joined
May 26, 2018
Messages
60
Reaction score
96
Location
South Carolina
Vehicle(s)
2018 Jeep JL Unlimited Rubicon, 2016 GMC 2500 HD, 2010 Seneca Motorhome on Chevrolet C5500
  • Thread starter
  • Thread Starter
  • #2
I am going to put some auxiliary led backup lights on my JL. I would like to power them from the backup light circuit in the 7 way factory trailer plug. Anyone have a wiring diagram or wire colors for the factory plug?
Traced it down. It is a white wire with a orange trace. Makes is easy to connect secondary backup lights.

Last edited:

Rhinebeck01

Well-Known Member
Joined
May 9, 2018
Messages
5,306
Reaction score
6,124
Location
.
Vehicle(s)
9/1/20.............................................Am quitting the forum!..........Just an occasional lurker from now on...
@Luco

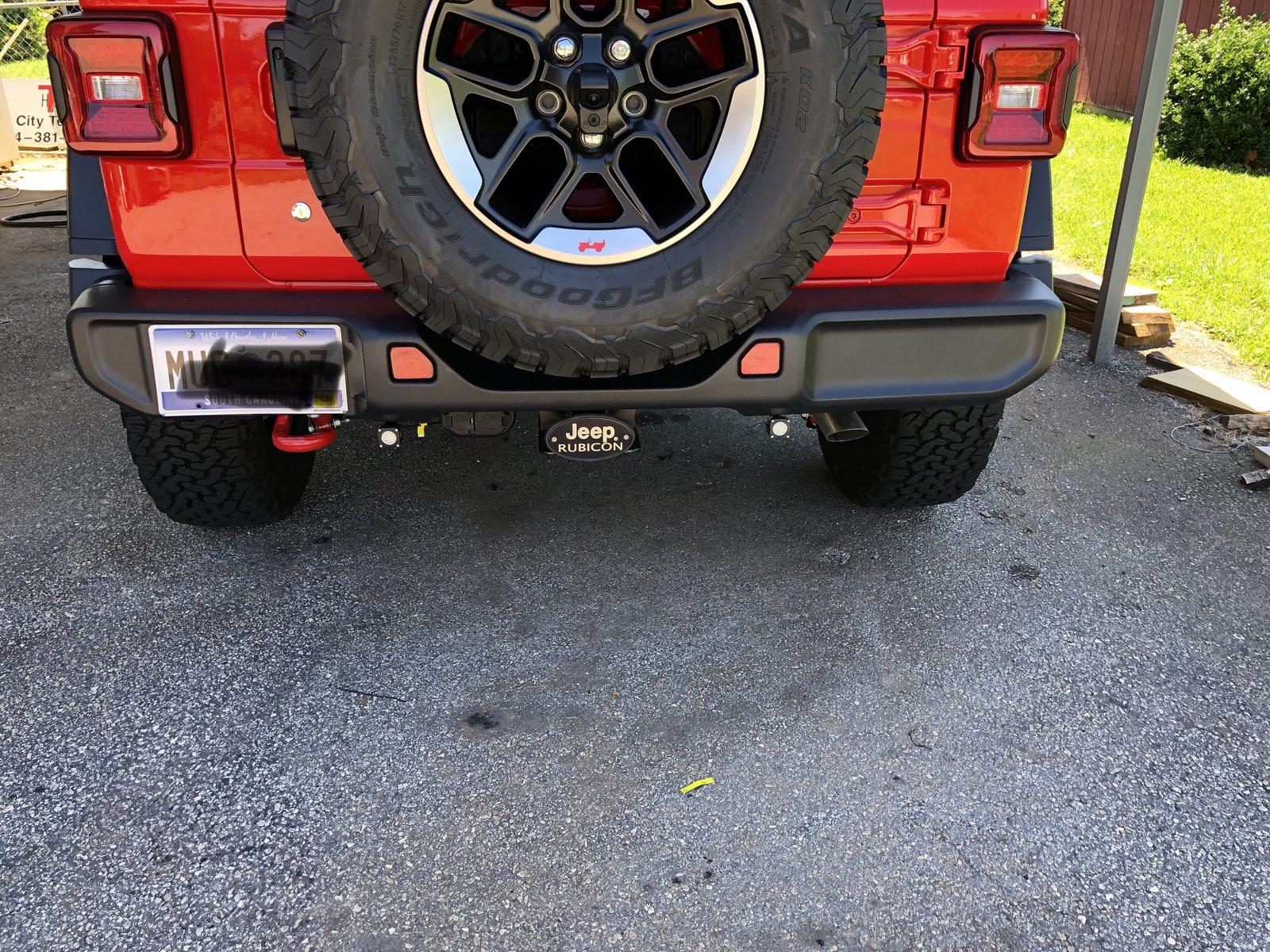

Can you give info and link in regard to the two little circular LED backup lights shown in your pic. I assume those are the two that you will receive power from the white wire with a brown trace?

Thanks in advance for the info..

OP
Luco

Luco

Well-Known Member
First Name
Luke
Joined
May 26, 2018
Messages
60
Reaction score
96
Location
South Carolina
Vehicle(s)
2018 Jeep JL Unlimited Rubicon, 2016 GMC 2500 HD, 2010 Seneca Motorhome on Chevrolet C5500
  • Thread starter
  • Thread Starter
  • #4
@Luco

Can you give info and link in regard to the two little circular LED backup lights shown in your pic. I assume those are the two that you will receive power from the white wire with a brown trace?

Thanks in advance for the info..
Rigid Ignite Surface mount LED backup lights.
