OBDJscan wiring issues...HELP, PLEASE!!!!

MyDaughters20JL

Well-Known Member
First Name
Jeff
Joined
Jun 6, 2020
Messages
466
Reaction score
235
Location
WA
Vehicle(s)
20 JL Sport S
Maybe I'm being stupid, but I can't, for the life of me, figure out why I can't get the wiring hooked up to the point that everything fits together: I'll start out with some pictures,


again, maybe I"m mistaken about what goes where, so I'll just TRY to explain the problem I"m having:

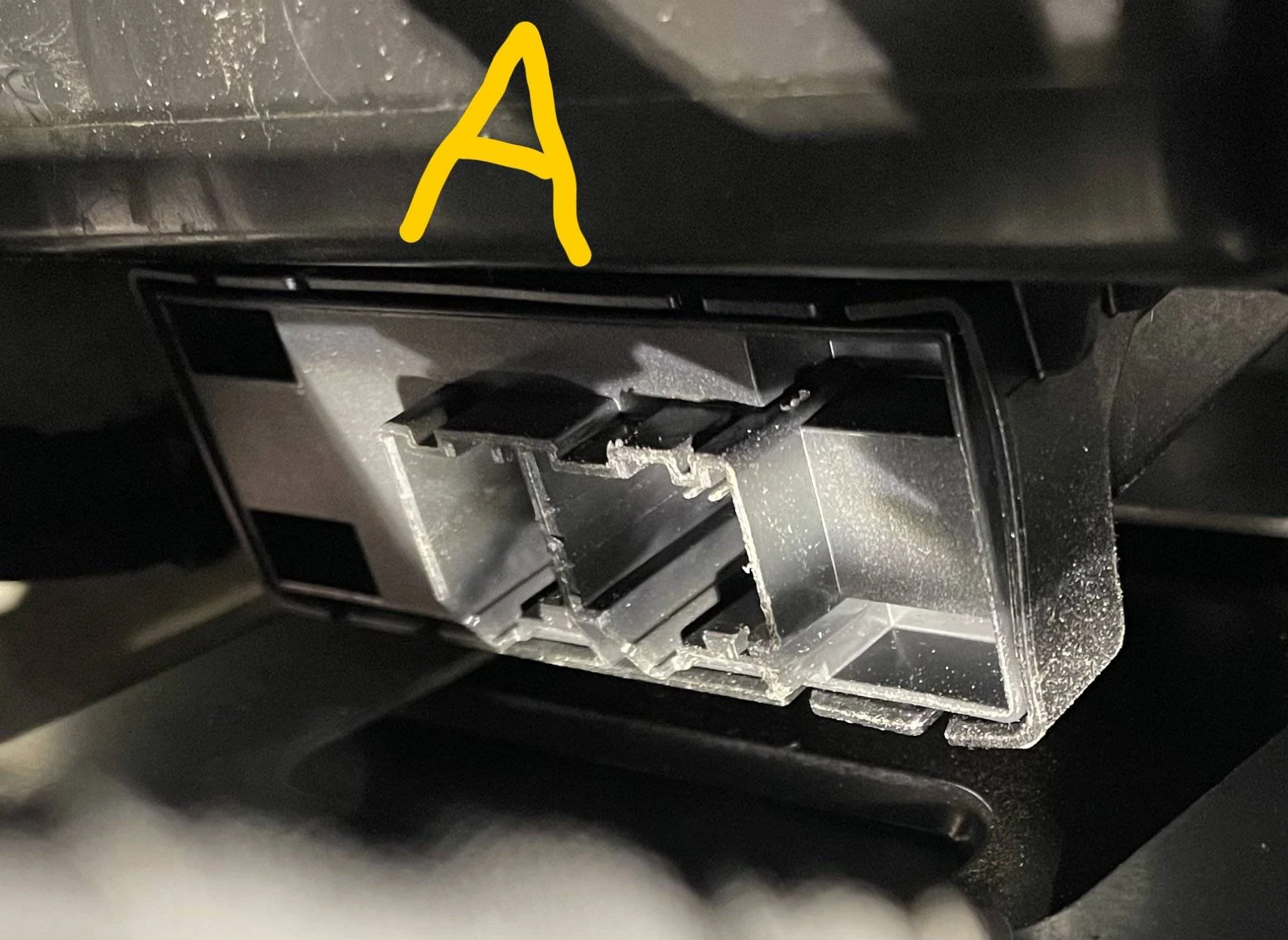

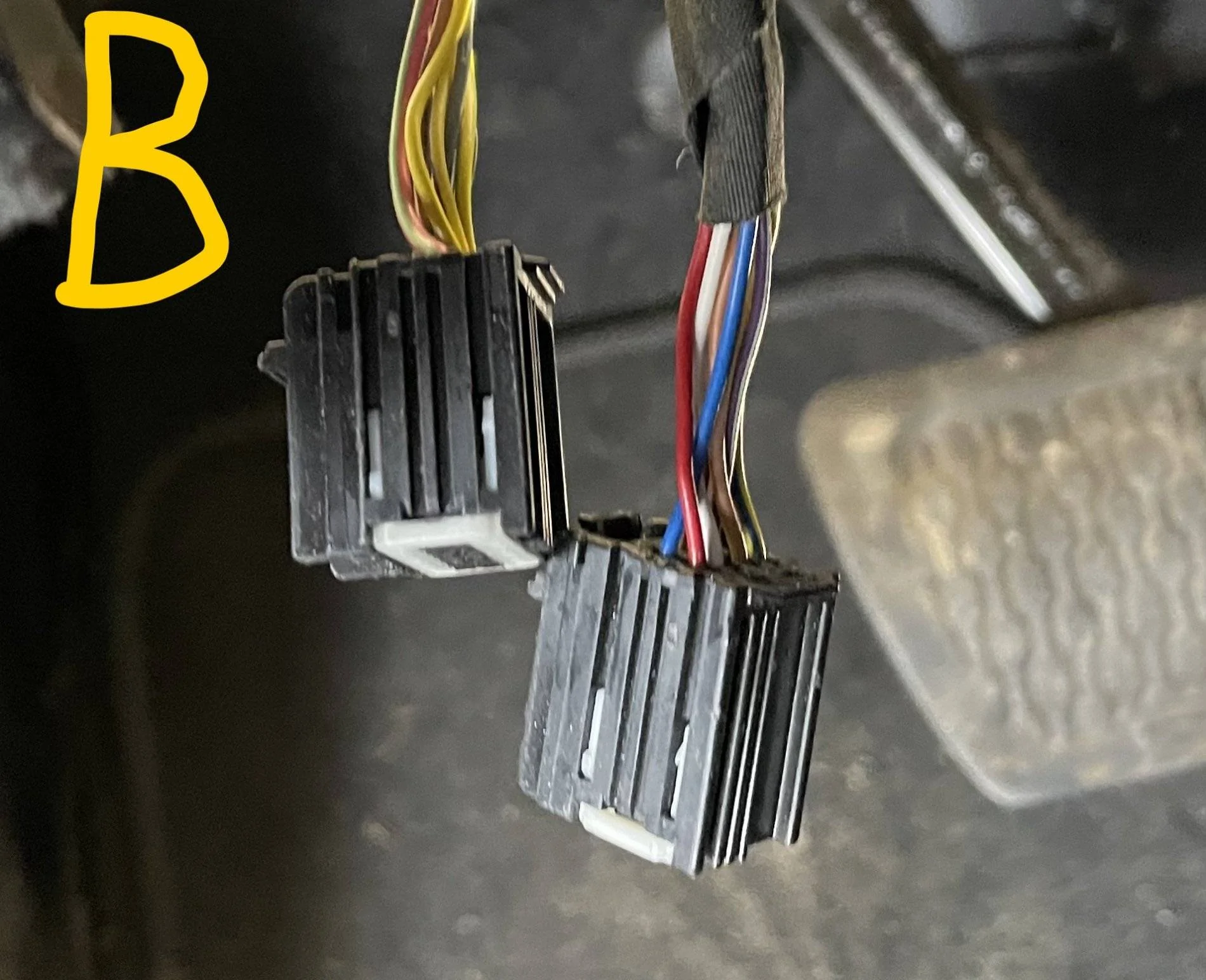

under the dash, A and B were connected

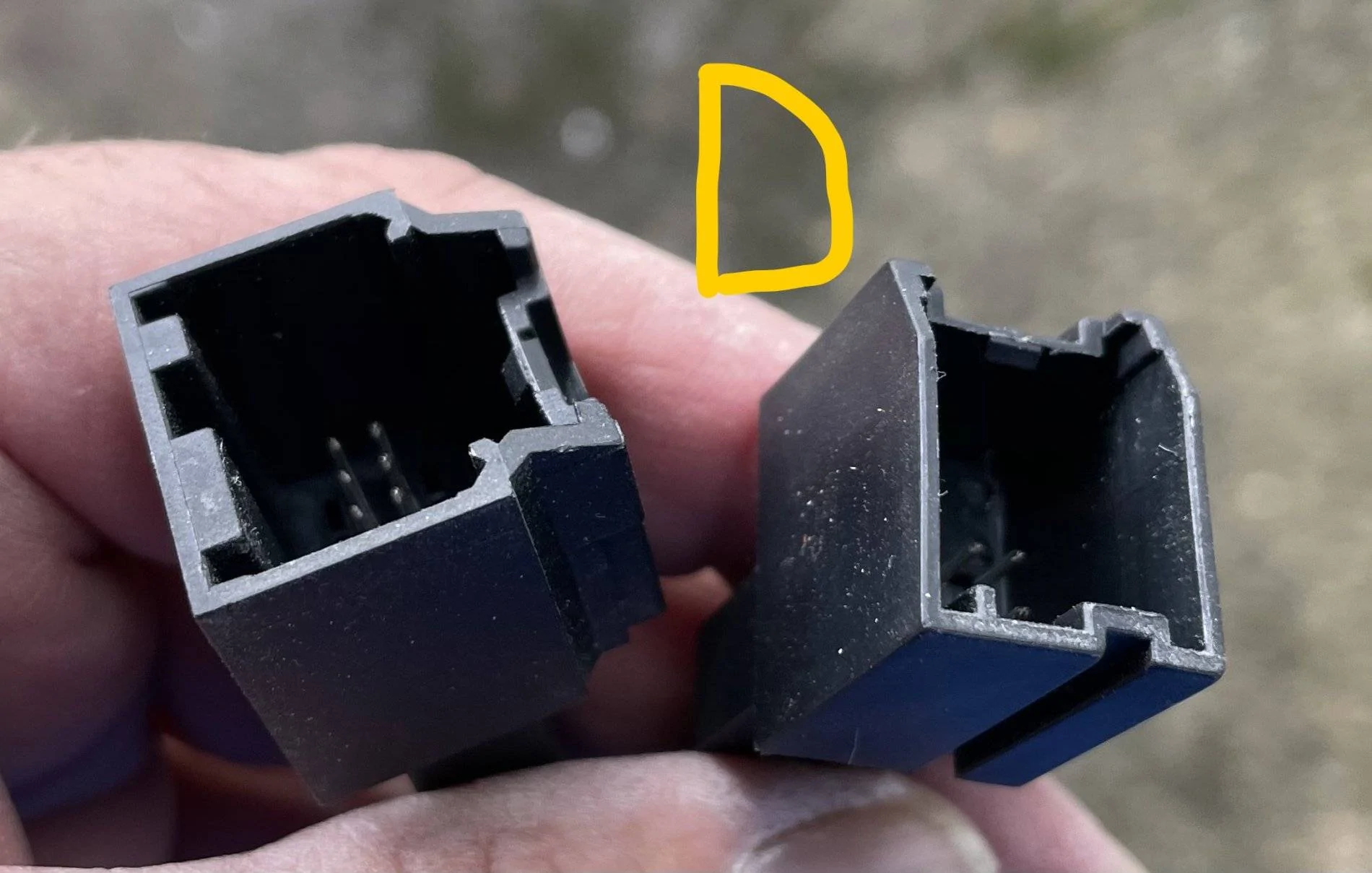

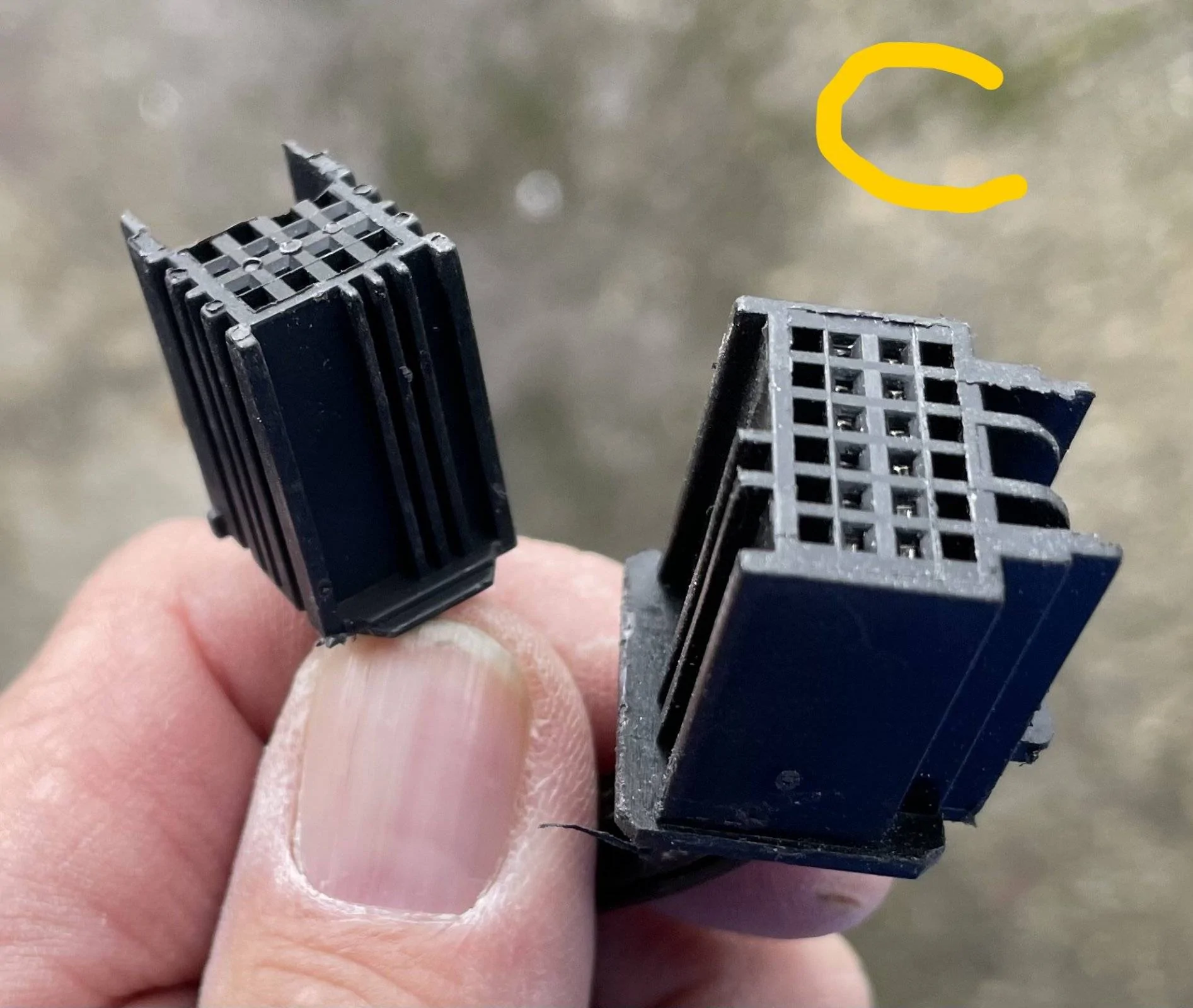

C and D are the ends of the extension that I ordered from Z Automotive

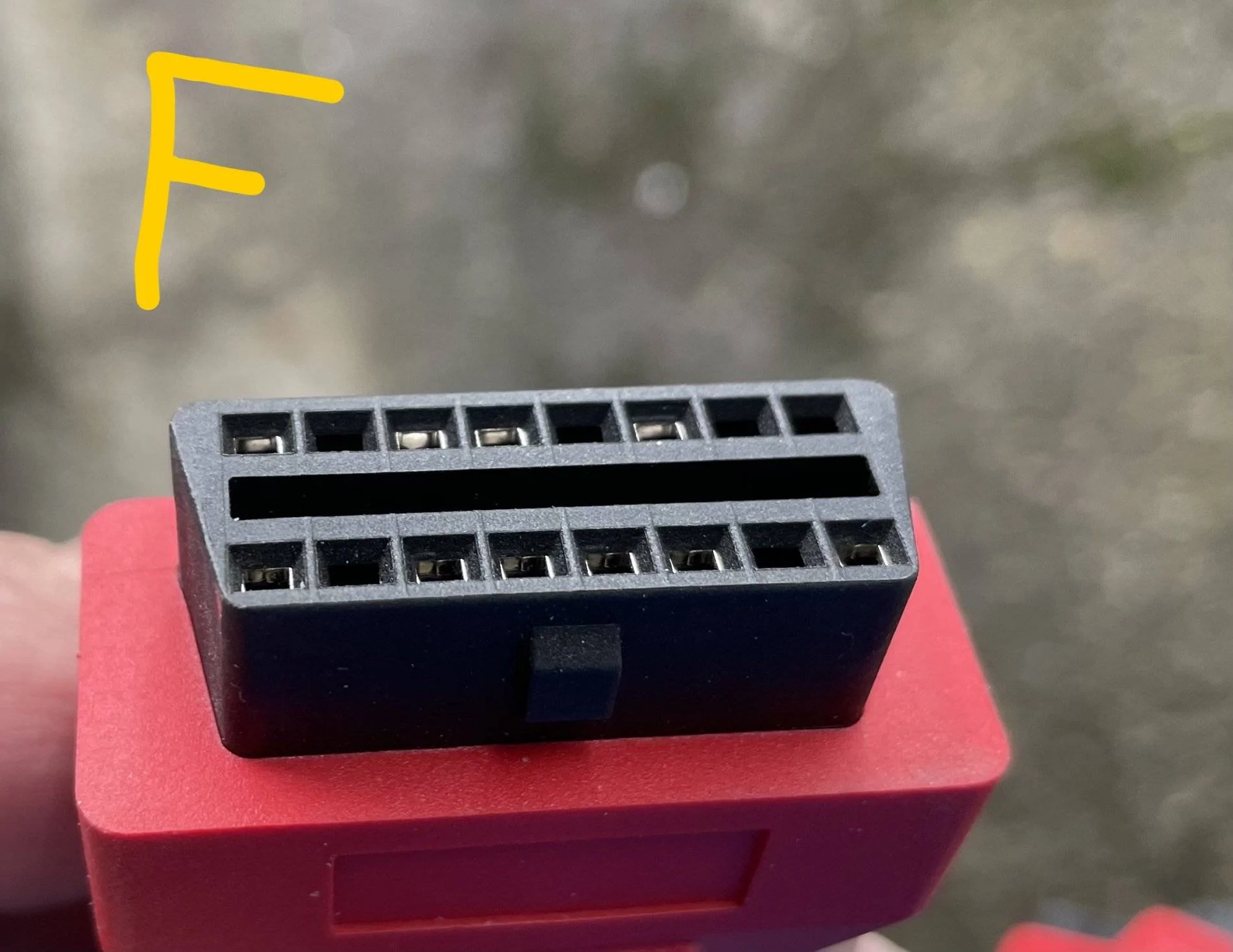

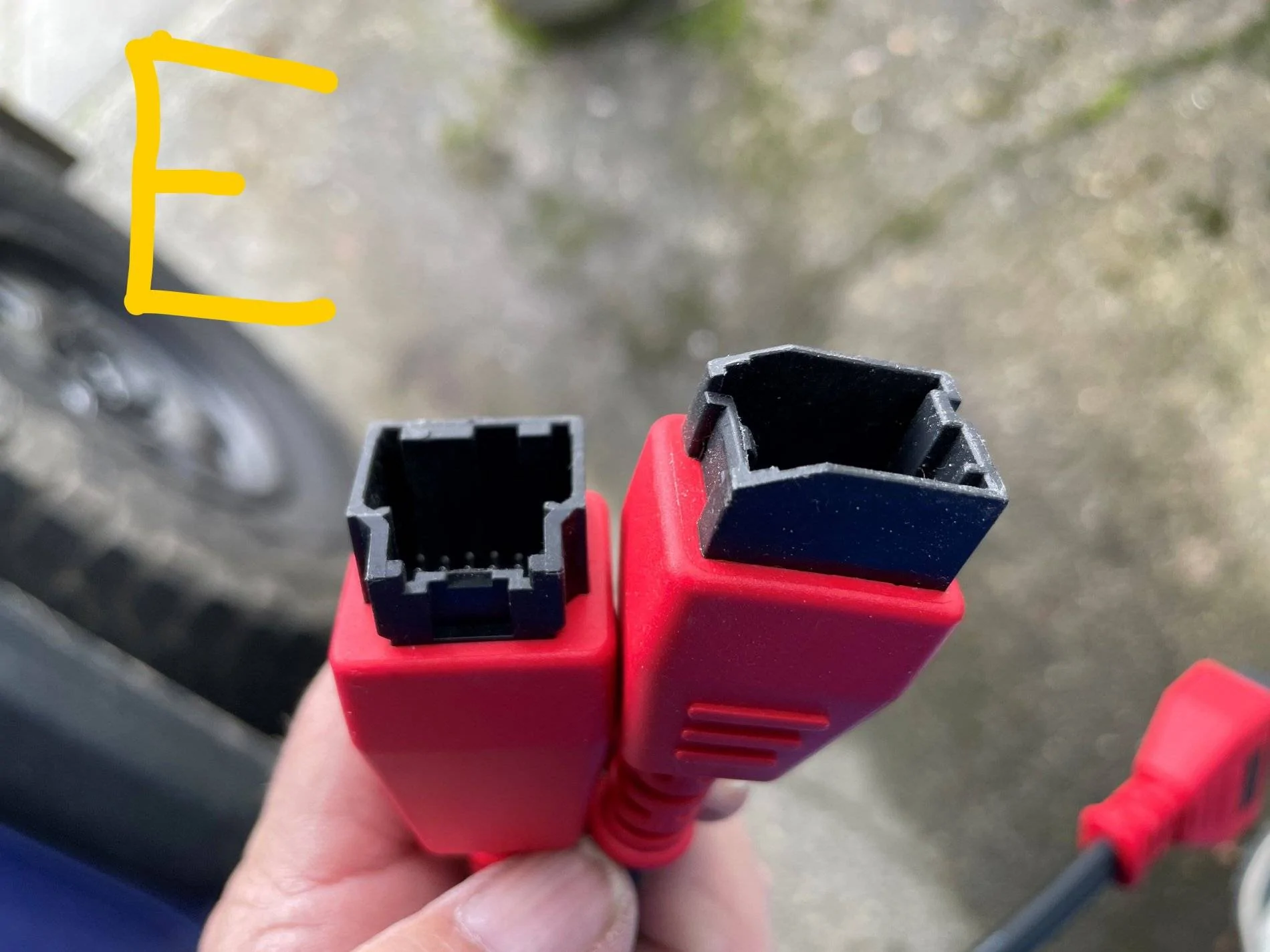

E and F are the ends of the Adapter

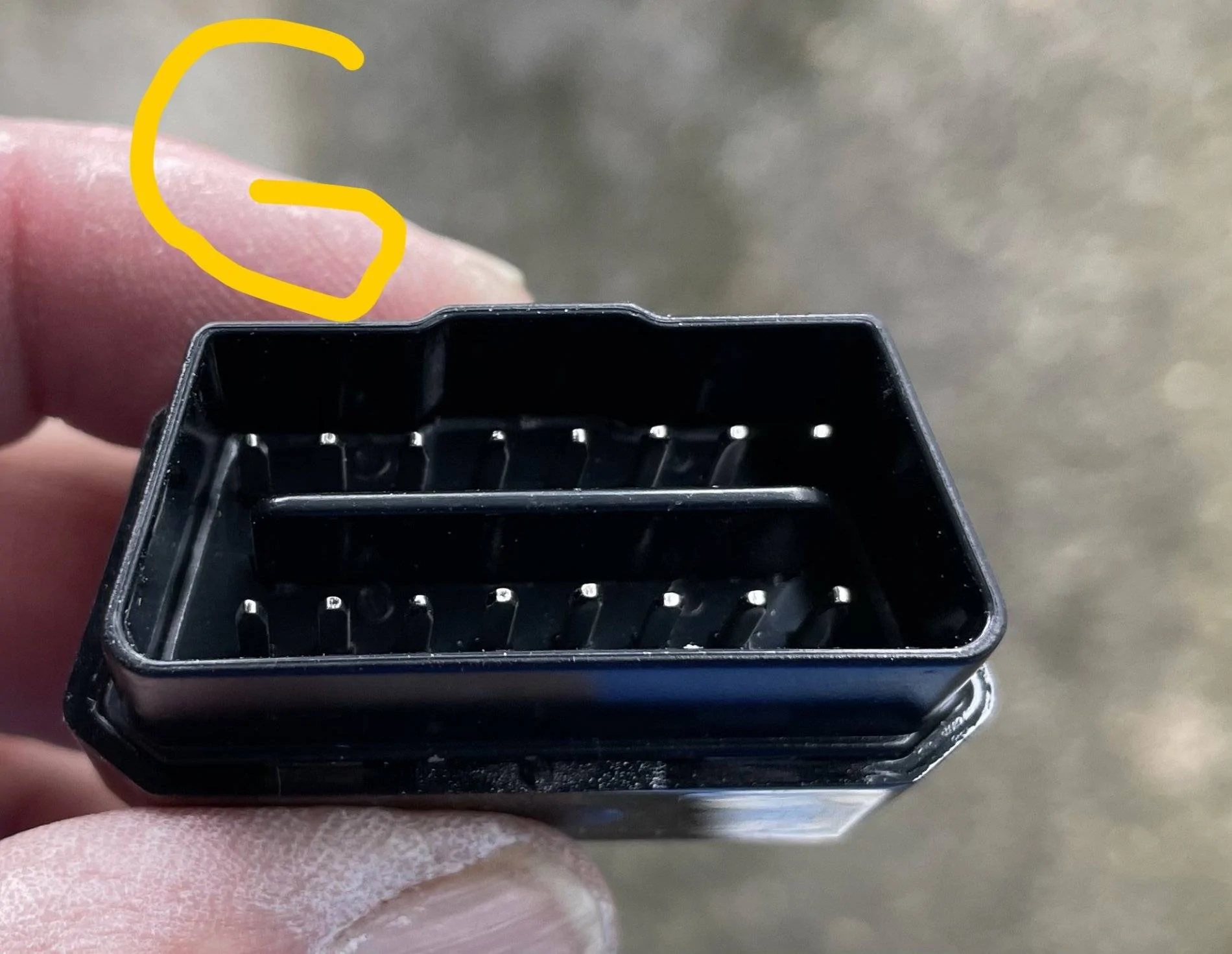

G is the OBD scanner/reader

I know that F and G end up together when making changes...

if extension end C mounts into plug A under dash, then D will not connect with E as they are basically the same plug

the only thing I can possible think of is that the wires, B, are what's connected to E

make sense?

was my mistake thinking that the extension is what's plugged into the adapter, when it's actually the wires, B ?

in other words
1) connect C to A then leave it TF alone until time to re-attach B, then attach B to D
2) Connect B to E
3) F to G
4) do whatever I need to do with the Jscan
5) remove E, F & G
6) Plug B into D & tuck up under dash

again, don't feel bad about pointing out my stupidity, I"ve got thick skin





Advertisement


Last edited:

jludave

Well-Known Member
First Name
David
Joined
Feb 13, 2020
Messages
980
Reaction score
638
Location
The Isle of Long
Vehicle(s)
2020 Wrangler Unlimited Sport Altitude
What extension are you referring to with C & D? You shouldn't need that at all.

Disconnect B from A.

Connect B to E.

Connect G to F.

Look at the pictures here: http://jscan.net/jl-jt-security-bypass/

OP

MyDaughters20JL

Well-Known Member
First Name
Jeff
Joined
Jun 6, 2020
Messages
466
Reaction score
235
Location
WA
Vehicle(s)
20 JL Sport S
  • Thread starter
  • Thread Starter
  • #3
What extension are you referring to with C & D? You shouldn't need that at all.

Disconnect B from A.

Connect B to E.

Connect G to F.

Look at the pictures here: http://jscan.net/jl-jt-security-bypass/
having somewhat large hands, I bought the extension cable from z automotive so that I could simply leave it plugged into the SGW. if I needed to unplug the cables, I could do so at B/D so that I don't have to thrash my hands up on all the sharp metal whenever I choose to make a change

OP

MyDaughters20JL

Well-Known Member
First Name
Jeff
Joined
Jun 6, 2020
Messages
466
Reaction score
235
Location
WA
Vehicle(s)
20 JL Sport S
  • Thread starter
  • Thread Starter
  • #4
yeah, I was just being a dumb ass-but I'm much better now....

thanks for confirming my thoughts on where I was messed up with respect to what goes to what


WranglerMan

Well-Known Member
First Name
Will
Joined
May 8, 2018
Messages
2,663
Reaction score
1,827
Location
Katy Texas
Vehicle(s)
2018 Wrangler JLU Sahara
Occupation
Gas Pipeliner
Vehicle Showcase
1
There are lots that struggle with those connectors, this item does drive the cost up in running JSCAN but you can leave it plugged in all the time and then just plug in you OBDII BT module and connect to JSCAN

https://www.zautomotive.com/product/bypass-module/
